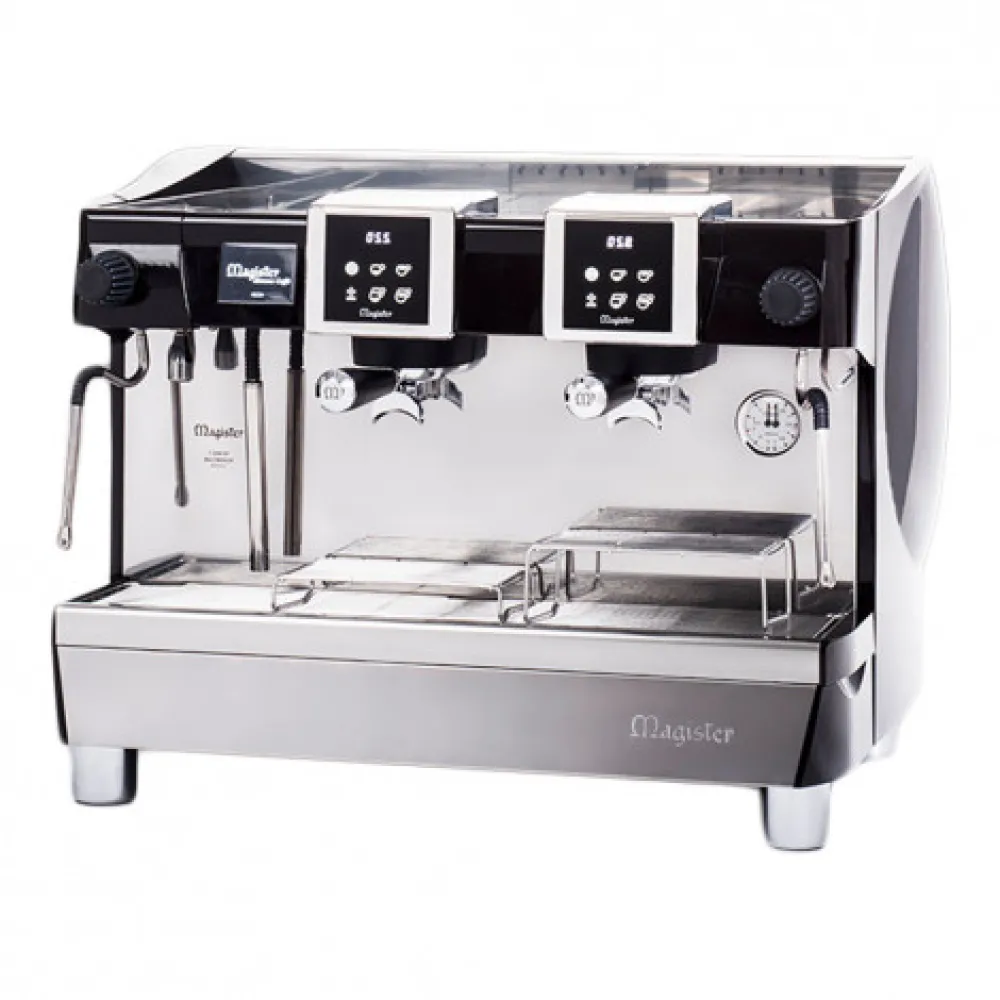

Coffee machine Magister Sistema Caffe BHS-F2006HP-2G

The Magister Sistema Caffe F2006HP is a professional coffee machine designed for high-volume use. This High Group version accommodates cups up to 185 mm in height.

The operating principle of this type of coffee machine involves heating water to brew espresso and simultaneously generating steam for milk frothing. The machine features independently heated brewing groups, each with its own coffee boiler of 400 cc capacity. A larger, separate boiler provides hot water and steam. The heating element for the boilers engages only when they are full, and electronic PID control maintains precise boiler temperatures, ensuring consistent brewing conditions. An inbuilt volumetric pump with a balanced by-pass delivers water at the correct pressure for extraction.

Operation begins with filling the boilers. Users can then select their desired coffee and hot water dosages via the back-lit touch screens. Each group head is equipped with a group temperature display and a shot timer to monitor the brewing process. Programmable settings accessible through the graphic touch screen include on/off cycles, dosage adjustment, boiler level checks, language selection, and maintenance programmes. The machine also features an automatic back flush programme for cleaning.

Construction includes a body made from AISI 304 – 18/8 polished stainless steel, with touch panels framed in silver 99 plating. Chrome feet provide stability. Stainless steel steam wands are fitted with rubber grips and cool-touch Teflon inserts. A separate stainless steel hot water dispenser offers programmable dosage and temperature control.

Controls consist of back-lit touch screens for managing various functions, including programmable on/off cycles, a digital clock, dosage settings, boiler level monitoring, language selection, an alarm list, and counters for coffee and hot water dispensed. Electronic water level control with a safety system prevents operation when the boiler is empty. The machine also has an electronic cup warmer and a power saving mode that activates when the unit is in stand-by.

The 4.5 kW power rating indicates the electrical load required for operation. The 240 V voltage specification details the electrical supply needed. Its dimensions are 770 mm in length, 560 mm in width, and 580 mm in height, defining its footprint. The weight of 91 kg indicates its substantial build.

Cleaning is facilitated by the automatic back flush programme. The touch screen interface also provides access to a periodical maintenance programme and a softener regeneration programme.

This model is part of the F2006HP catalogue range from Magister Sistema Caffe.

It is listed under coffee machines F2006HP.
