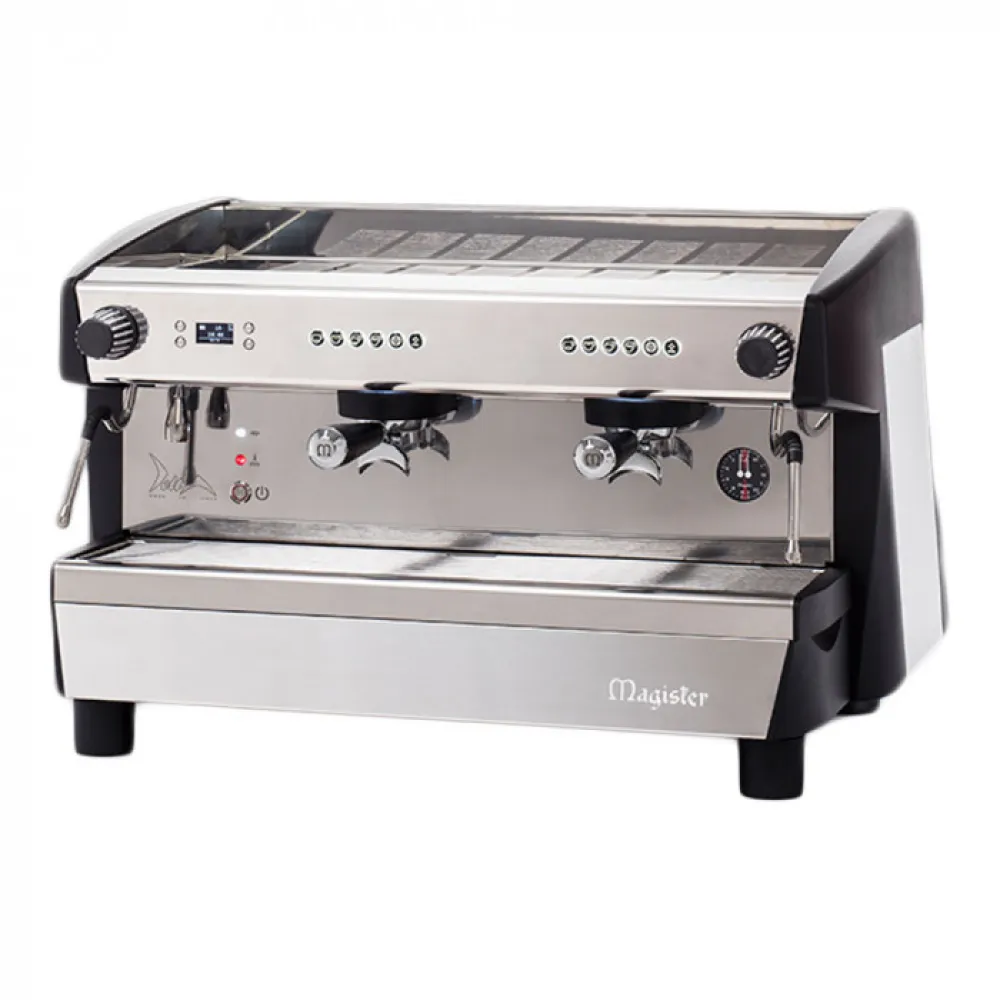

Coffee machine Magister Sistema Caffe BHS-DELTA-ESD-2G

The Magister Sistema Caffe DELTA ESD 2GROUPS is a professional coffee machine, article BHS-DELTA-ESD-2G. Its construction includes a polished steel body with moulded polyurethane side panels reinforced by a stainless steel frame.

The machine uses an inbuilt volumetric pump to draw water and an electronically controlled boiler to maintain the correct temperature for brewing. The machine also features electronic pre-infusion, which can be enabled or disabled.

Operation begins with the selection of coffee doses. This machine offers volumetric dosage with four programmable doses per group, plus a continuous brewing option. The doses can be programmed through a self-learning process. The machine also provides hot water delivery with time setting and a water mixer for temperature adjustment. Steam is delivered via two stainless steel wands equipped with rubber grips and cool touch Teflon inserts. The porta-filters feature Magister OEM handles with a cool touch grip.

Controls are managed through white LED back-lit six-key touch panels with Magister graphics. The machine is equipped with LED indicators and working area lights. An OLED display provides information such as the machine name, current boiler temperature, water level, brewing timer (chrono-function), and alerts for maintenance or operational issues. Through the display buttons, users can set programmable on/off cycles, adjust boiler temperature, set pre-infusion time, manage maintenance alarms, and configure the chrono-function.

The coffee machine has a boiler volume of 11 litres and a power rating of 4.5 kW. Its dimensions are 830 mm in length, 535 mm in width, and 500 mm in height. The voltage supply is 110-220/240 V. The machine weighs 68 kg.

This model is available in electronic and semi-electronic versions. It is listed in the catalogue under coffee machines MAGISTER and coffee machines DELTA.
