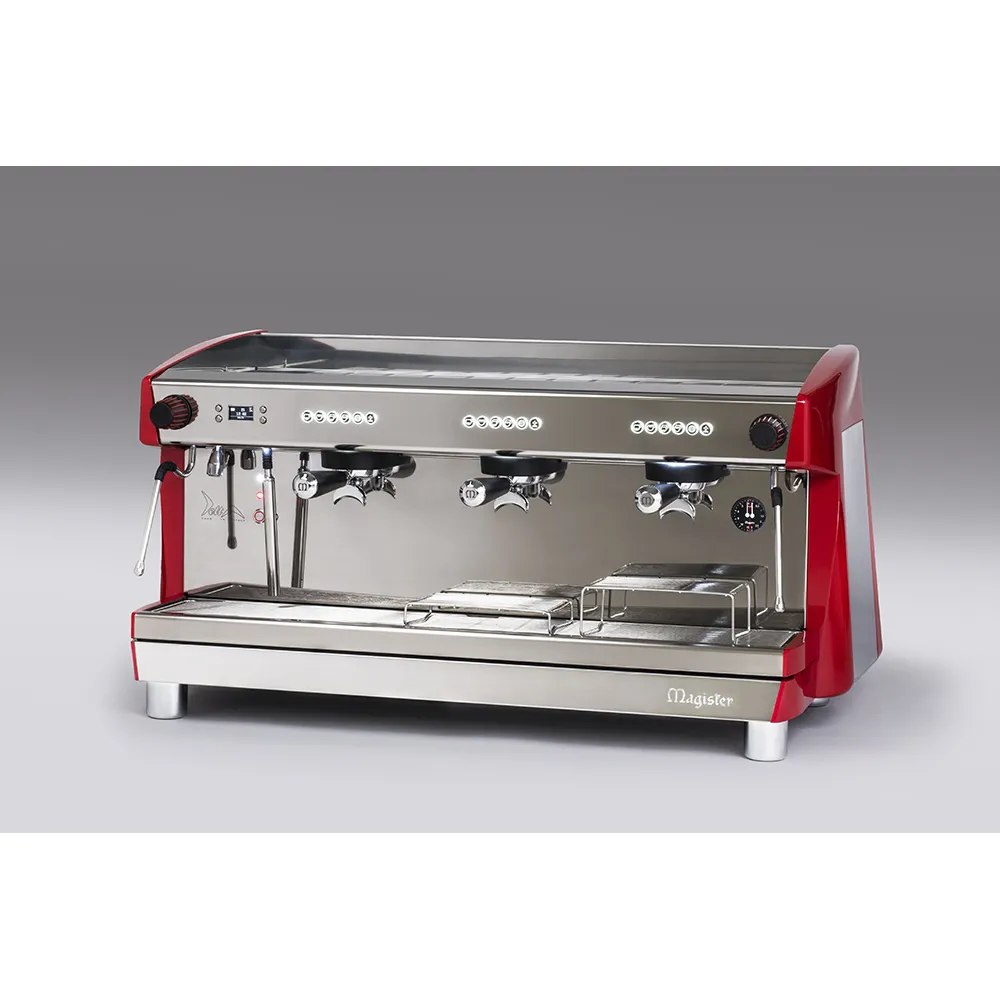

Coffee machine Magister Sistema Caffe BHS-DELTA-ESD-HG-3G

Its article number is BHS-DELTA-ESD-HG-3G.

This machine operates by heating water in a boiler and dispensing it under pressure through coffee grounds held in porta-filters. The brewing process is controlled volumetrically, meaning specific volumes of water are delivered for each coffee dose. This type of machine typically uses an inbuilt pump to draw water from a reservoir or mains supply, heat it in a boiler, and then force it through the coffee puck at a set pressure. Steam for milk frothing is generated directly from the boiler.

The sequence of use involves preparing the porta-filter with ground coffee, locking it into one of the three groups, and initiating the brewing cycle. The machine offers volumetric brewing with four programmable doses per group, which are self-learning and can be programmed via the touch panels. A continuous brewing button is also available. The machine also dispenses hot water, with programmable time settings and a mixer to adjust temperature. Steam wands are used to froth milk.

Construction includes a polished steel body, with side panels made from moulded polyurethane and a stainless steel frame. Porta-filters are fitted with Magister OEM handles featuring a cool touch grip. The machine is equipped with two stainless steel steam wands that have rubber grips and cool touch Teflon inserts. A stainless steel hot water dispenser is also integrated.

Controls consist of six white LED back-lit touch panels with Magister graphics. These panels manage the coffee doses and other functions. An OLED display, operated with four programming buttons, shows the machine name, boiler temperature, water level, brewing timer for each group, and any maintenance alarms or operational failures. Functions programmable via the display include on/off cycles, boiler temperature, pre-infusion time, maintenance alarms, and a chrono-function.

The 5.4 kW power rating indicates the electrical load required. The machine operates on a 240 V supply. Its dimensions are 1070 mm in length, 535 mm in width, and 580 mm in height. The total weight is 94 kg.

Cleaning involves maintaining the steam wands, hot water dispenser, and porta-filters. The machine features a self-engaging heating element and electronic boiler temperature control, adjustable via the touch pad. A switching power unit is included to stabilise voltage fluctuations. Boiler level control is also present.

The catalogue places this product under MAGISTER > Coffee machines > DELTA.
