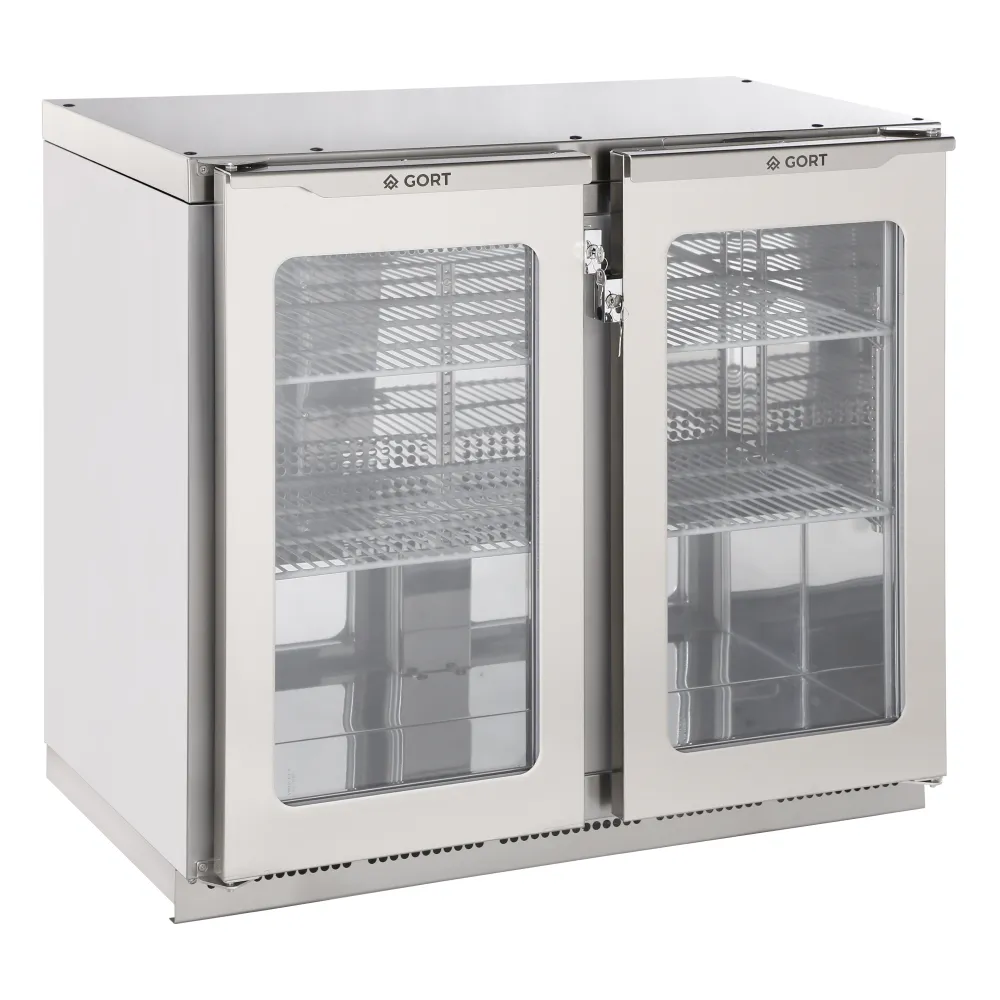

Bar refrigerator BHS-G MBCDLP0S0-092DV

A refrigeration circuit extracts heat from inside and releases it at the rear via a condenser. The internal evaporator coil absorbs warmth, reducing the air temperature to the chosen setting. A fan distributes cooled air evenly, ensuring consistent chilling across all shelves. Dual glass doors allow staff to check stock levels without opening the cabinet, minimising cold-air loss and energy consumption.

Connect the unit to a 230 V single-phase supply to operate. The compressor cycles automatically, circulating refrigerant through the evaporator and condenser. LED lights activate when either door opens, brightening the interior. Adjust the temperature between +2 °C and +16 °C using the control panel. The cooler consistently maintains this range, adapting to ambient heat and frequent door access. Automatic defrost prevents ice build-up on the evaporator, while a manual defrost option is also available. Condensate collects in a tray below the evaporator and evaporates automatically, eliminating the need for an external drain.

Store bottles and cans behind the two full-height glass doors. The 139 litre interior features sliding wire shelves for easy restocking. Magnetic seals on the doors retain cold air when closed. An anti-corrosion coating on the evaporator coil enhances durability in humid bar conditions.

The stainless steel housing resists corrosion and simplifies cleaning. Polyurethane insulation between the inner and outer walls reduces heat transfer, improving energy efficiency. The 0.3 kW power rating indicates the electrical load for this unit size.

Cleaning involves wiping the stainless steel exterior and glass doors with a damp cloth. Remove the wire shelves for separate washing. The automatic condensate evaporation system removes the need to empty a drip tray, though the area beneath the evaporator should be inspected periodically for residue. LED lighting requires only occasional dusting.

The cooler measures 920 mm wide, 577 mm deep, and 845 mm high, suitable for placement under most bar counters or against a wall. The 139 litre capacity provides ample storage for bottles and cans, depending on their size and shelf arrangement.
