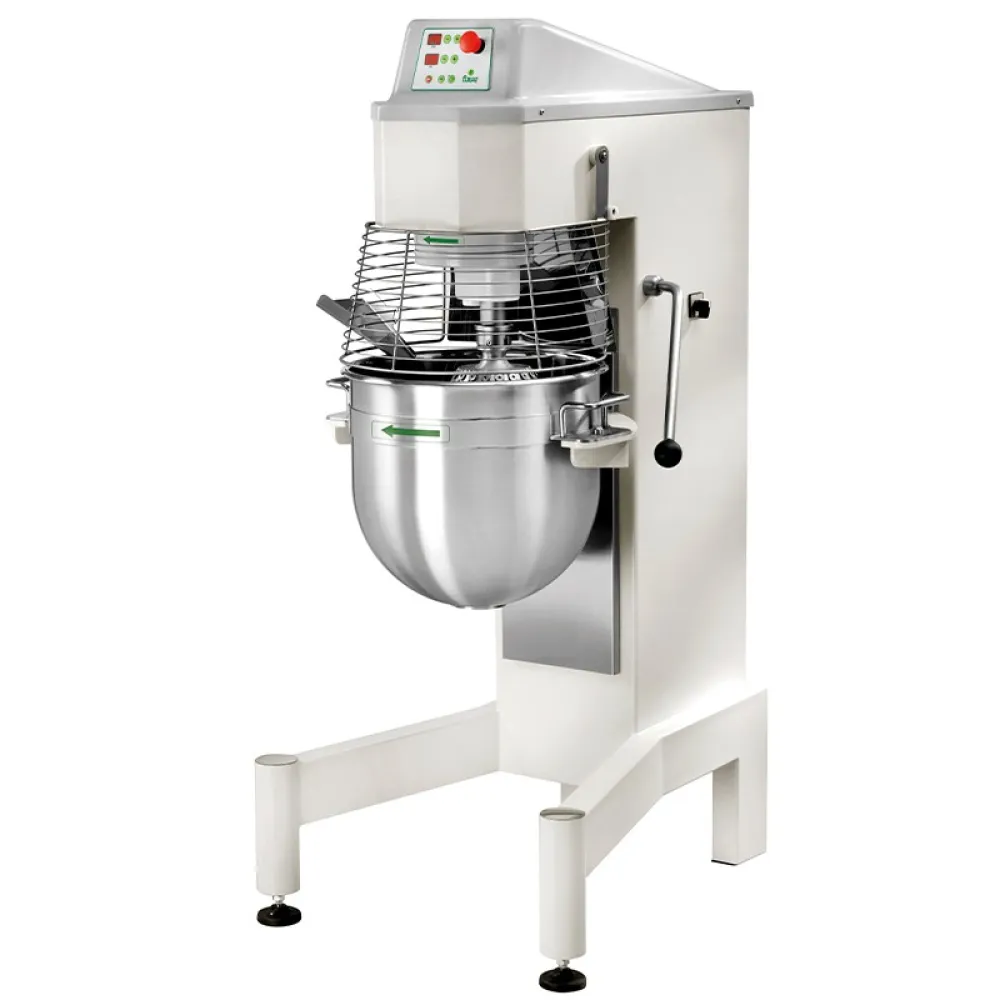

Planetary mixer FIMAR PLN80D

The FIMAR PLN80D is a planetary dough mixer. It operates with a central beater that moves in an orbital or planetary motion, rotating on its own axis while simultaneously revolving around the inside of the bowl. This action combines all ingredients thoroughly, producing a consistent dough or batter.

Ingredients are placed into the 80 L stainless steel bowl. The bowl is removable and secured with a quick tool connection. A microswitch is fitted to the bowl protector, which must be in place for the machine to operate, providing a safety interlock. Once mixing is complete, the bowl can be removed for emptying and cleaning.

The construction includes a frame coated with scratch-proof paint and an upper casing made from ABS. The bowl, whip, and bowl protector are manufactured from stainless steel AISI 304. The hook and spatula attachments are made of aluminium.

The power rating is 3 kW. The voltage requirement is 400 V, supplied via a 3-phase electrical connection. The dimensions are 930 mm in length, 725 mm in width, and 1679 mm in height. The total weight of the mixer is 290 kg.

Cleaning involves the removable stainless steel bowl, whip, and bowl protector, along with the aluminium hook and spatula. These components can be detached for thorough washing. The machine is listed in the catalogue under electromechanical equipment and planetary mixers.
