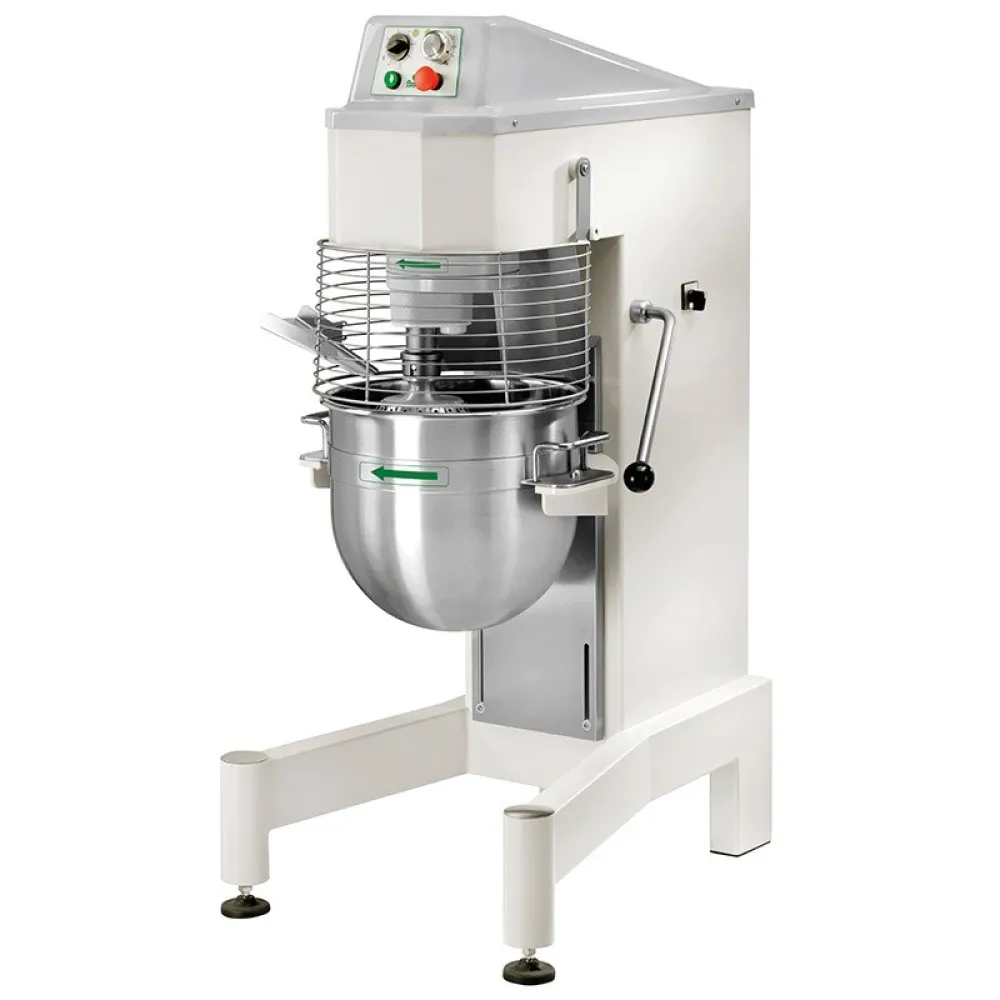

Planetary mixer FIMAR PLN60V

The FIMAR PLN60 V is a planetary dough mixer designed for professional use.

Planetary mixers operate with a mixing tool that rotates on its own axis while simultaneously revolving around the bowl. This action mimics the motion of a planet orbiting a star, ensuring all ingredients are thoroughly combined and achieving a consistent texture. The PLN60 V is equipped with attachments for various mixing tasks.

To operate, ingredients are placed into the removable dough bowl. The bowl is secured, and the appropriate mixing tool (such as a hook, beater, or spatula) is attached. The machine is then started, and the mixing process begins. Safety features include a microswitch on the bowl guard and dough bowl, which stops the machine if they are not correctly positioned.

The construction includes a housing coated with scratch-resistant paint and a plastic top cover. The dough bowl, beater, and bowl guard are made from AISI 304 stainless steel, chosen for its resistance to corrosion and ease of cleaning. The hook and spatula attachments are made of aluminium.

Key specifications for the PLN60 V include a 3 kW power rating, indicating the electrical load required for operation. It has a volume capacity of 60 L, defining the maximum amount of dough or mixture it can handle. The dimensions are 930 mm in length, 725 mm in width, and 1679 mm in height, which are important for placement and space planning. The mixer operates on a 400 V, 3-phase electrical supply. Its weight is 280 kg, suggesting it is a substantial piece of equipment that requires a stable location.

Cleaning involves ensuring the dough bowl, beater, hook, and spatula are cleaned after use. The removable dough bowl facilitates this process.

This model is listed under electromechanical equipment and planetary mixers in the catalogue.
