Pastry Display Cabinet TEFCOLD UPD80

A refrigerated display counter keeps chilled food visible while maintaining safe holding temperatures. A compressor circulates refrigerant through an evaporator coil behind the cabinet; a fan draws warm air over the coil, cooling it before pushing it back into the display area. This ventilated cooling ensures even temperatures throughout the unit, preventing hot spots that could spoil food or cause condensation on the glass. The double-glazed panels on all four sides reduce heat transfer from the room, while the internal LED light illuminates the contents without adding noticeable heat, preserving both visibility and temperature control.

To use the UPD80, position the counter on a level worktop or floor, adjusting the feet for stability. Plug the unit into a 220–240 V, 50 Hz supply. Set the desired temperature between 2 °C and 12 °C using the control panel. Load the three wire shelves with pre-chilled items, arranging them to allow air to circulate freely. Close the glass door to maintain the internal climate. The LED light activates automatically, keeping the display visible through the glass. Monitor the temperature display to ensure the unit remains within the set range.

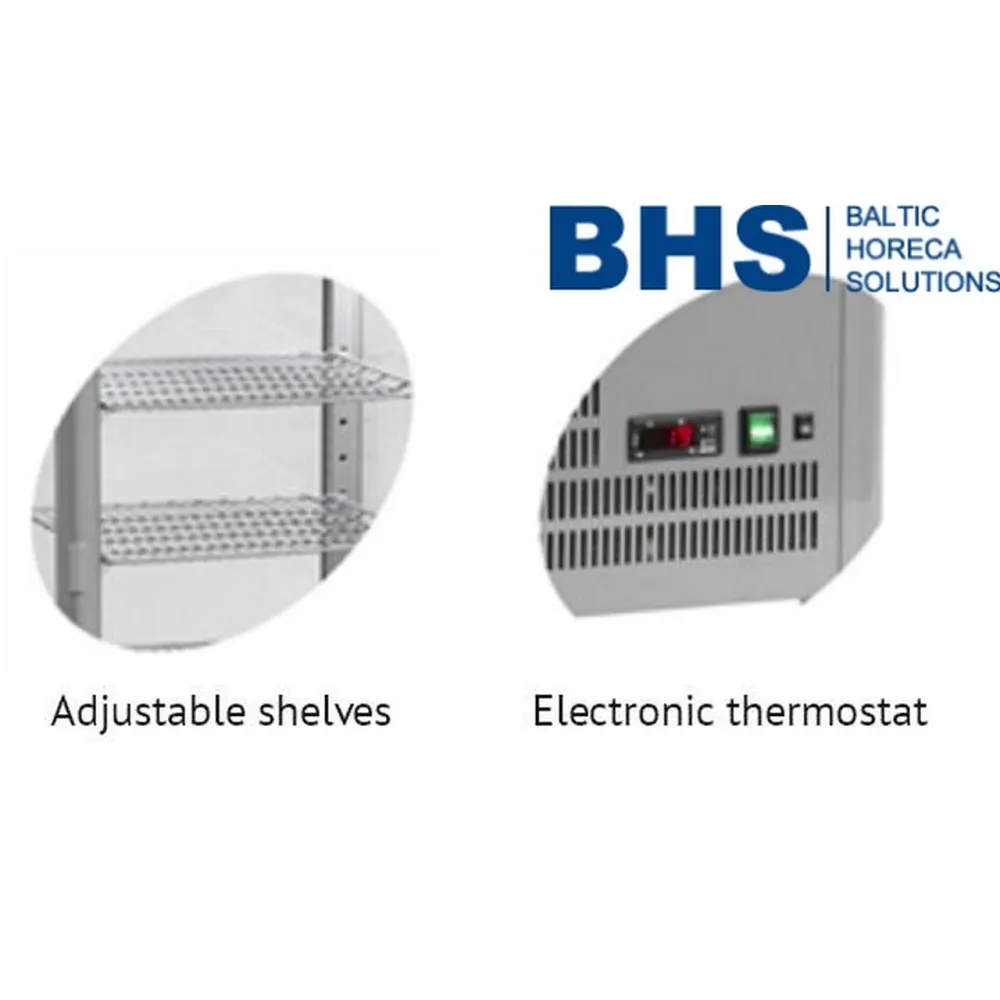

The UPD80 is constructed with a black-finished steel frame and double-glazed panels on all four sides, providing insulation and visibility. The interior features three adjustable wire shelves, each measuring 315 mm by 341 mm, allowing flexible organisation of items. The glass door seals the cabinet, while ventilated cooling maintains consistent temperatures. Adjustable feet ensure the unit can be levelled on uneven surfaces.

The control panel includes a temperature setting dial, allowing the operator to select a holding range between 2 °C and 12 °C. This range suits chilled prepared foods, dairy products, and beverages, keeping them safe for service without freezing. The 0.184 kW power rating indicates a modest load on the electrical circuit, suitable for standard kitchen wiring. The 80-litre volume provides ample space for small to medium displays, while the 41 kg weight allows the unit to be moved by two people without specialised equipment. The footprint of 428 mm by 386 mm fits compact work areas, such as café counters or deli sections.

Cleaning involves wiping the interior and wire shelves with a mild detergent solution, ensuring no residue remains on surfaces that contact food. The glass panels should be cleaned with a glass cleaner to maintain visibility. The LED light requires no maintenance beyond occasional dusting. The ventilated cooling system should be checked periodically to ensure the fan and evaporator coil remain free of dust and debris, which could reduce efficiency.

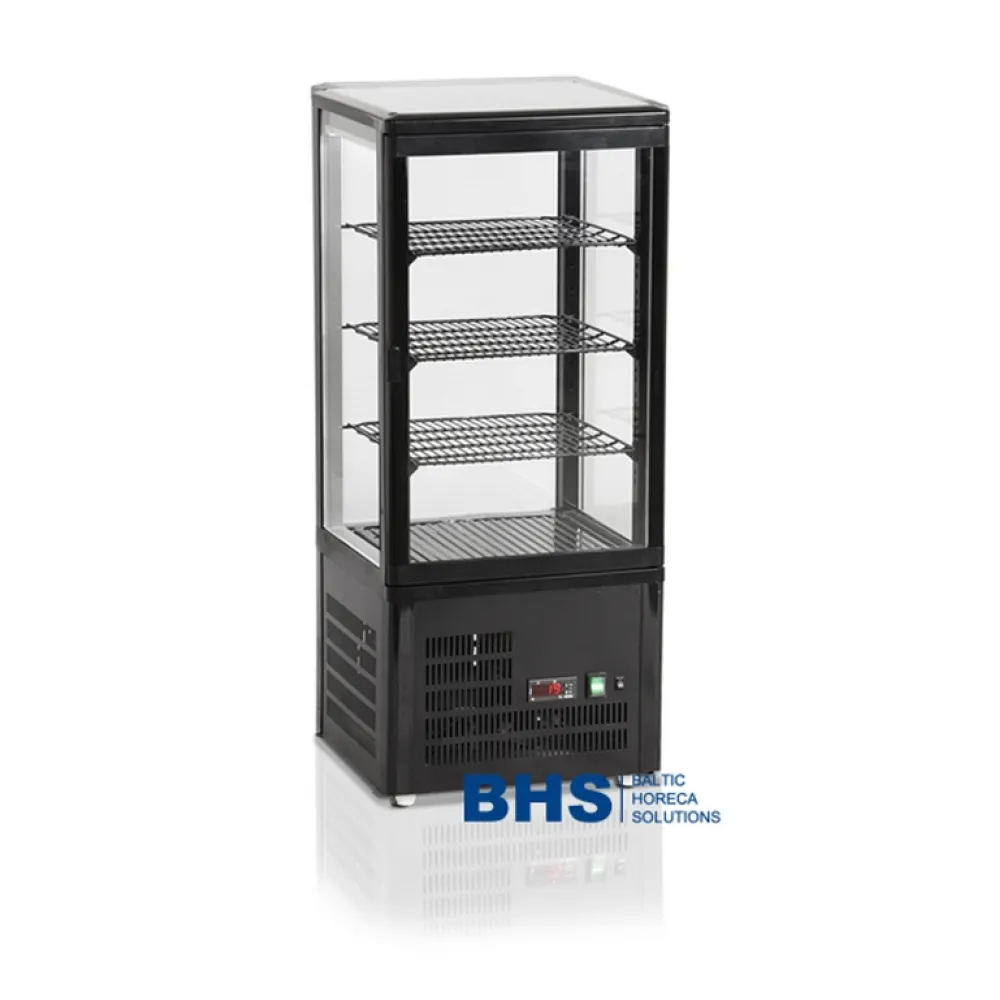

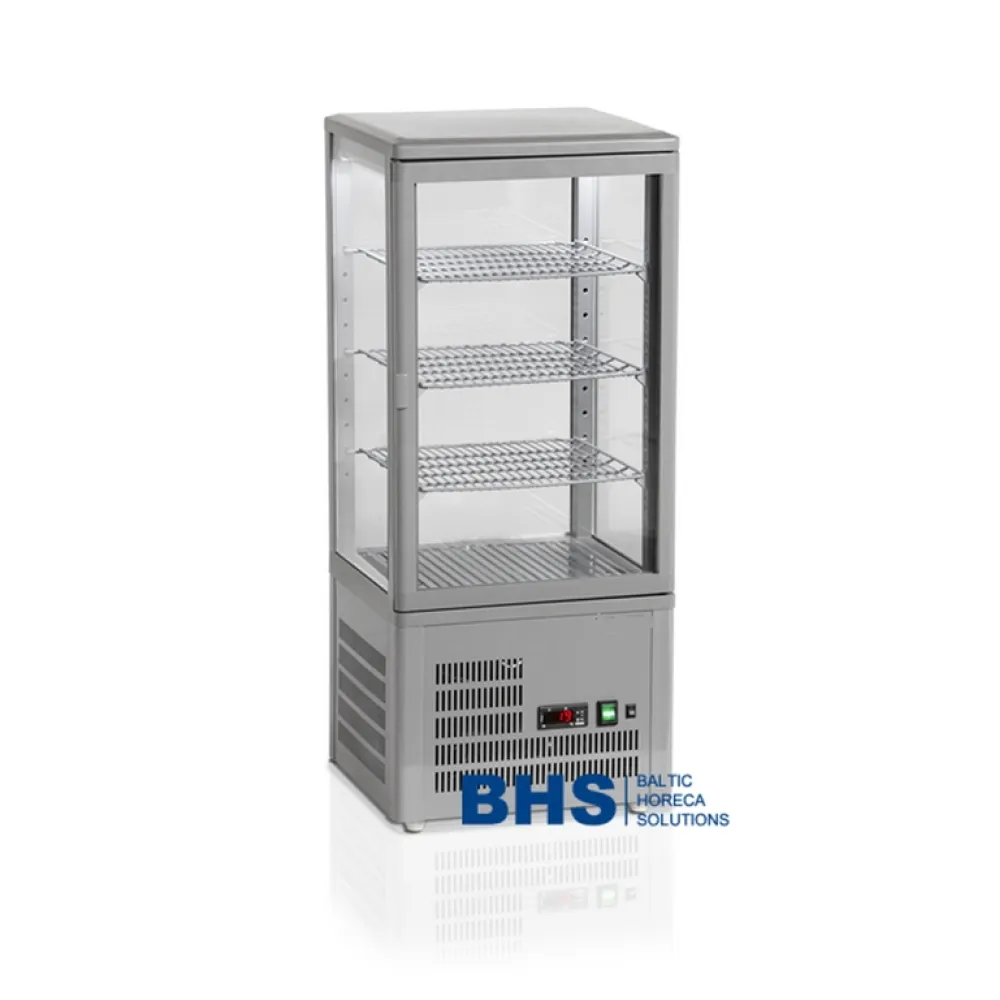

The UPD80 is available in grey or black finishes, allowing it to match different kitchen aesthetics. It is designed for use as a standalone refrigerated display counter in professional catering environments.

This model is categorised under refrigerated display counters in the TEFCOLD professional catering equipment range.
