Technical data
| Attributes | |
| ARTICLE | CU101.3-c |
| POWER | 0.154 kW |
| SIZE L/W/H | 1310/ 835/ 1380+/-10 mm |
| VOLTAGE | 230/50Hz |
| Temperature | +5 / +15 ºC |
| NOTES | Refrigerant/Cooling factor: R404a/ R507/ R448/ R449 |

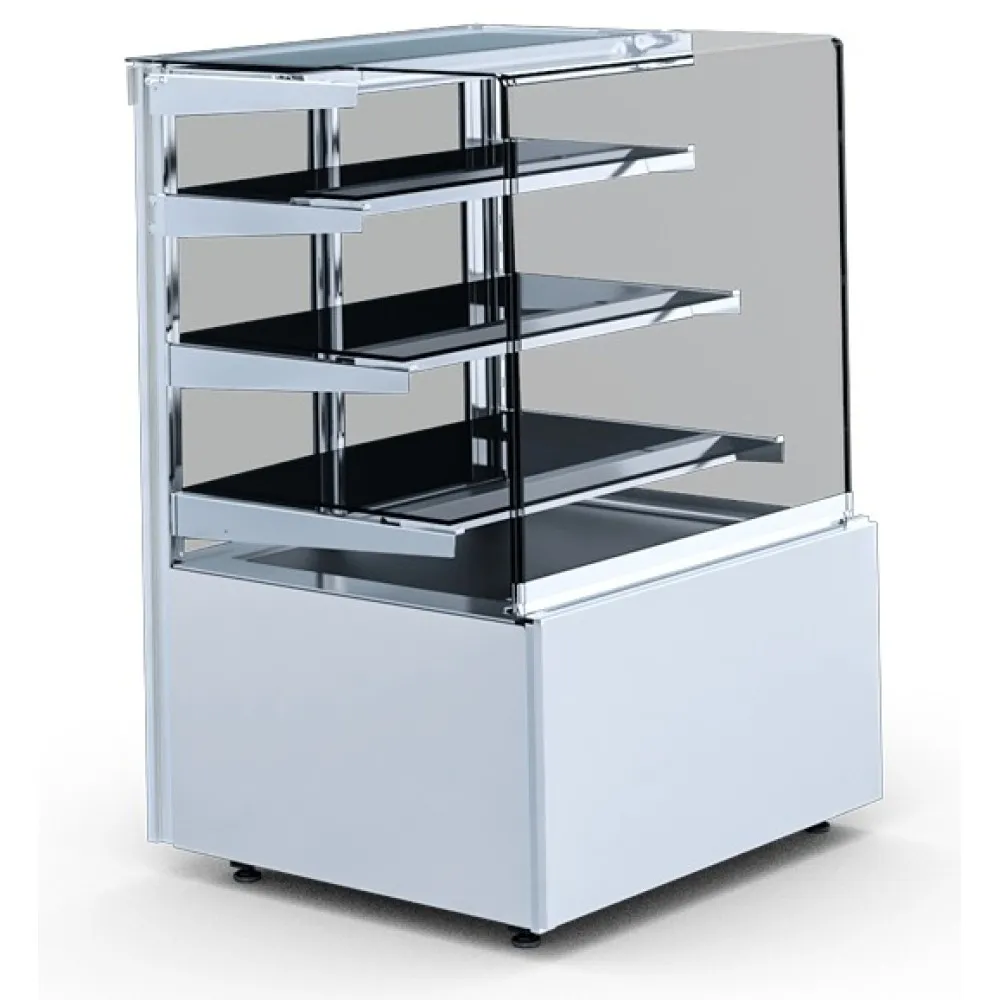

Confectionery display case CUBE 1310 mm REMOTE. Temperature range +5ºC/+15ºC
A warm showcase keeps confectionery at serving temperature without drying or spoiling. The IGLOO CUBE 1310 mm model circulates air gently from an external refrigeration unit, maintaining an even climate between +5 and +15 °C. This controlled warmth preserves texture and appearance while allowing customers to view the products clearly through the large glazed front. The process begins with the external refrigeration unit, which cools refrigerant before sending it to the showcase. Inside, a fan distributes the cooled air evenly across every shelf, preventing hot spots and ensuring each item stays within the set range. LED lighting above and beneath each shelf illuminates the confectionery, highlighting colours and details without adding heat. The dynamic cooling system adjusts automatically, compensating for frequent door openings and varying kitchen temperatures. To use the showcase, the operator connects it to the external refrigeration unit and powers it on. The electronic temperature regulator, with its digital display, allows precise setting of the desired temperature. Once stabilised, the confectionery is placed on the three adjustable glass shelves, which can be tilted or repositioned to suit different product heights. The lower melamine shelf provides additional storage for items that do not require display. Automatic defrost cycles prevent ice build-up, maintaining consistent cooling performance without manual intervention. The outer cladding is made of black coated sheet metal, providing a durable and professional finish. The full front panel is constructed from melamine, offering resistance to scratches and ease of cleaning. Insulation consists of ecological polyurethane foam, which minimises energy loss and maintains internal temperature stability. The inner frame is available in silver, gold, or black, allowing customisation to match the kitchen's aesthetic. Each glass shelf rests on a frame that permits height and angle adjustments, ensuring optimal display for various confectionery items. The 0.154 kW power rating indicates a low electrical load, suitable for standard kitchen circuits. The 230 V, 50 Hz voltage requirement matches the UK mains supply, allowing straightforward installation without additional transformers. The dimensions of 1310 mm wide, 835 mm deep, and 1380 mm high provide a substantial display area while fitting within typical counter or floor spaces in professional kitchens and retail environments. Cleaning involves wiping the glass shelves and melamine surfaces with a damp cloth and mild detergent. The LED strips beneath each shelf bathe delicate macarons and glossy éclairs in steady, shadow-free light that keeps their colours true under the kitchen's fluorescent glare. The black coated sheet metal exterior can be cleaned with a soft cloth to maintain its appearance. The electronic temperature regulator should be kept dry, and the digital display wiped gently to ensure visibility. The IGLOO CUBE 1310 mm warm showcase is designed for connection in series, allowing multiple units to be linked to a single external refrigeration unit. The product is categorised under warm showcases in the IGLOO professional catering equipment range.
