Technical data
| Attributes | |
| ARTICLE | 09031231 |
| POWER | 24.0 kW |
| SIZE L/W/H | 1200/900/900 mm |
| VOLTAGE | 400V-3N ;50/60Hz |
| WEIGHT | 129 kg |
| Model | PCQ-912ET |
| POWER SYPPLY | |
Professional electric range with 6 cast iron hotplates and a neutral cabinet, designed for intensive use in professional kitchens. The durable AISI 304 stainless steel construction ensures long service life, even heat distribution and easy daily cleaning.

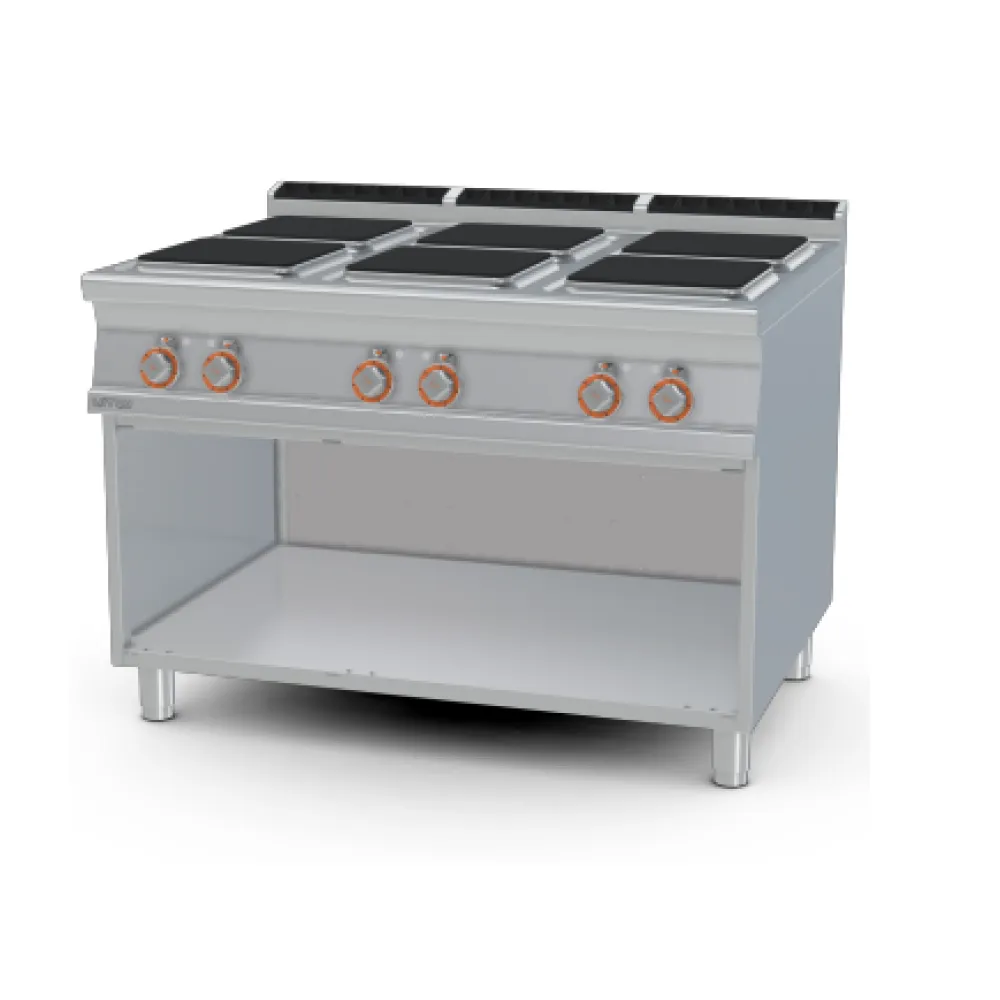

A 1200 mm electric range combines six cast-iron hobs and an open neutral cabinet in a single worktop unit. The hobs heat by electric elements beneath the cast iron; the iron holds and spreads the heat evenly across the cooking surface, giving steady, predictable results without hot spots. Each hob is controlled independently, allowing multiple dishes to be cooked at once at different temperatures.
The operator places pots or pans on the hobs, selects the power level from seven settings, and starts cooking. A temperature limiter prevents overheating, so the hob maintains the chosen setting without constant adjustment. The open cabinet beneath provides storage for utensils, pans or ingredients within arm's reach, keeping the worktop clear.
The range is built from 18/10 AISI 304 stainless steel with a Scotch-Brite satin finish. The 2 mm thick worktop has rounded edges for safety and durability. Chrome details and a rear protective panel give a professional appearance and protect the controls from splashes. IPX5-rated water-resistant control knobs allow safe cleaning with a hose. Adjustable feet ensure the unit sits level on uneven floors, and the front control panel can be removed for access to internal parts during maintenance.
The 24 kW total power rating requires a 400 V three-phase supply, typical of commercial kitchens. The 129 kg weight means the unit is moved on a trolley or with two people. The 1200 × 900 mm footprint fits standard worktop layouts, leaving space for adjacent equipment.
Cleaning involves wiping the stainless steel surfaces with a damp cloth and mild detergent. The cast-iron hobs are cleaned after each use to prevent residue build-up, and the control panel can be removed to reach internal components. The neutral cabinet is wiped down regularly to keep stored items clean.
The range is supplied with one end panel (TPA-9) to finish the side when the unit is installed at the end of a run. No other variants are listed for this model.
The product is categorised under professional electric ranges in the LOTUS catalogue.
