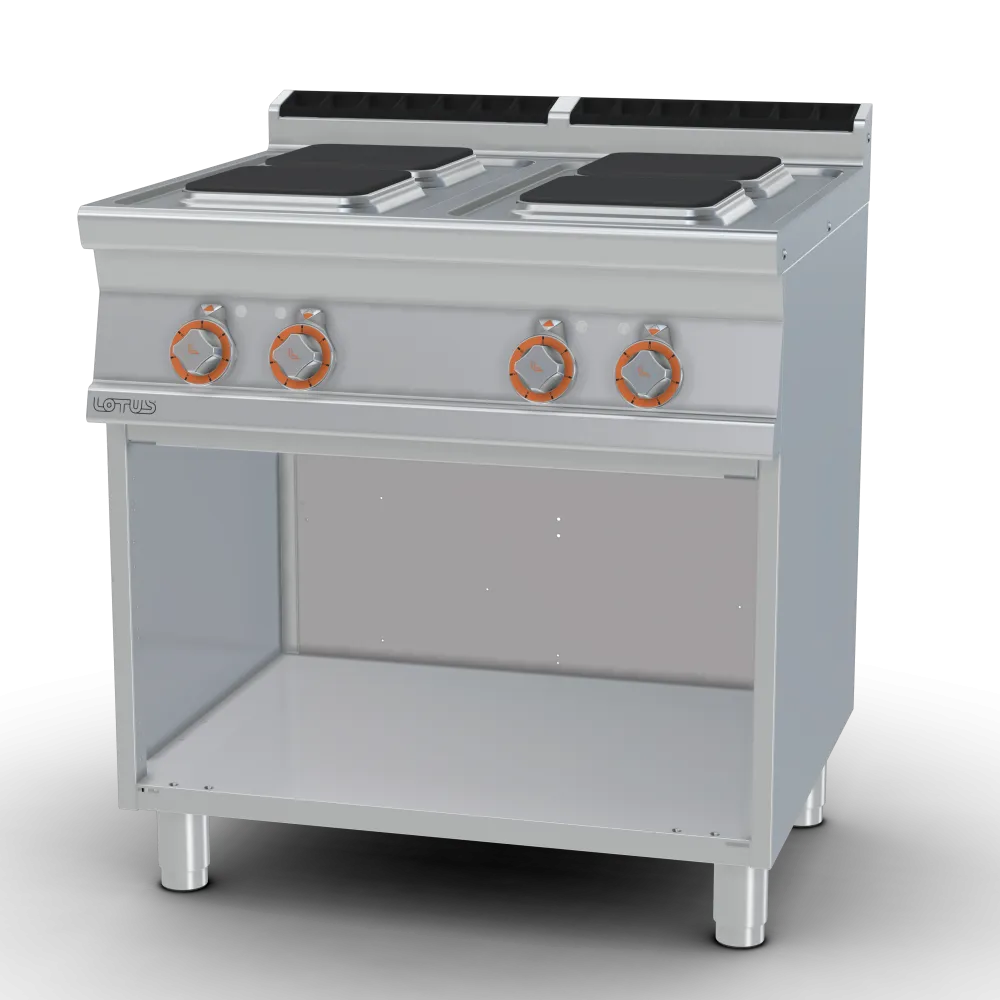

Electric hob with stand or neutral cabinet LOTUS 08030831

The LOTUS PCQ-78ET is an electric range featuring a neutral cabinet. This appliance is constructed from CrNi 18/10 AISI 304 stainless steel, with a Scotch-Brite satin finish.

The operating principle of an electric range of this type involves heating elements located beneath the cooking surface, which transfer thermal energy directly to the cookware. The neutral cabinet below provides storage space and does not have integrated heating or cooling functions.

This range is equipped with square or round cast iron hotplates. Each hotplate is fitted with steel sealing rings to provide heat transfer and containment. A seven-position switch controls the heat output for each hotplate, allowing for precise temperature management during cooking. A temperature limiter is incorporated to prevent overheating.

The worktop has a thickness of 2 mm and features rounded edges for safety and ease of cleaning. Chrome-plated components are used throughout the appliance. The control knobs are IPX5 water-resistant, offering protection against water ingress.

Maintenance is simplified as all serviceable components are accessible by removing the front control panel. The range stands on adjustable feet, allowing for levelling on uneven surfaces. The cabinet section does not have doors.

This model has a power rating of 10.4 kW and operates on a 400 V, 3-phase electrical supply, functioning on 50/60 Hz frequencies. Its dimensions are 800 mm in length, 705 mm in width, and 900 mm in height, with a weight of 71 kg.

Cleaning involves maintaining the stainless steel surfaces and the hotplates. The IPX5 rating of the control knobs indicates resistance to water jets.

This appliance is listed in the catalogue under electric cooktops with a stand or neutral cabinet.
