Electric cooktop for ships LOTUS 18030430X

The LOTUS PCT-74ETX is an electric hob designed for marine applications. It is built with CrNi stainless steel and 18/10 stainless steel (AISI 304), featuring a Scotch-Brite satin finish. The worktop is 1 mm thick with rounded edges for safety and ease of cleaning.

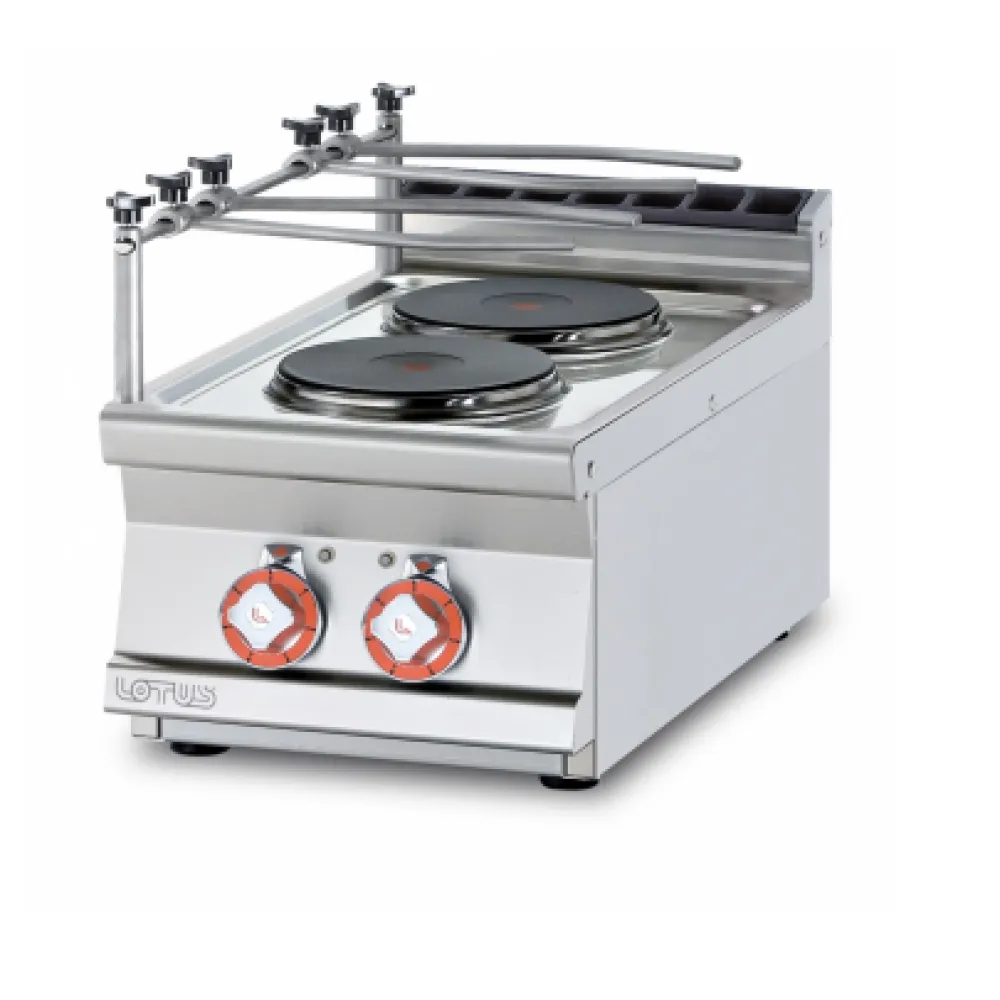

An electric hob operates by passing an electric current through heating elements located beneath the cooking surface. This heat is then transferred to cookware placed on top. The PCT-74ETX has two round cast iron hotplates, each equipped with steel sealing rings to contain heat and spills. The heating intensity for each hotplate can be adjusted across 7 distinct power settings using a selector switch.

For safety and precise control, each hotplate includes a temperature limiter to prevent overheating. The control knobs are rated IPX5 for water resistance, protecting them from splashes during operation and cleaning. The hob also features tray runners with locking stops, designed to hold pans securely in place.

Construction details include chrome-plated components and a splash guard to maintain cleanliness. The unit is supported by adjustable feet, allowing for levelling on uneven surfaces, and incorporates a locking system for stability.

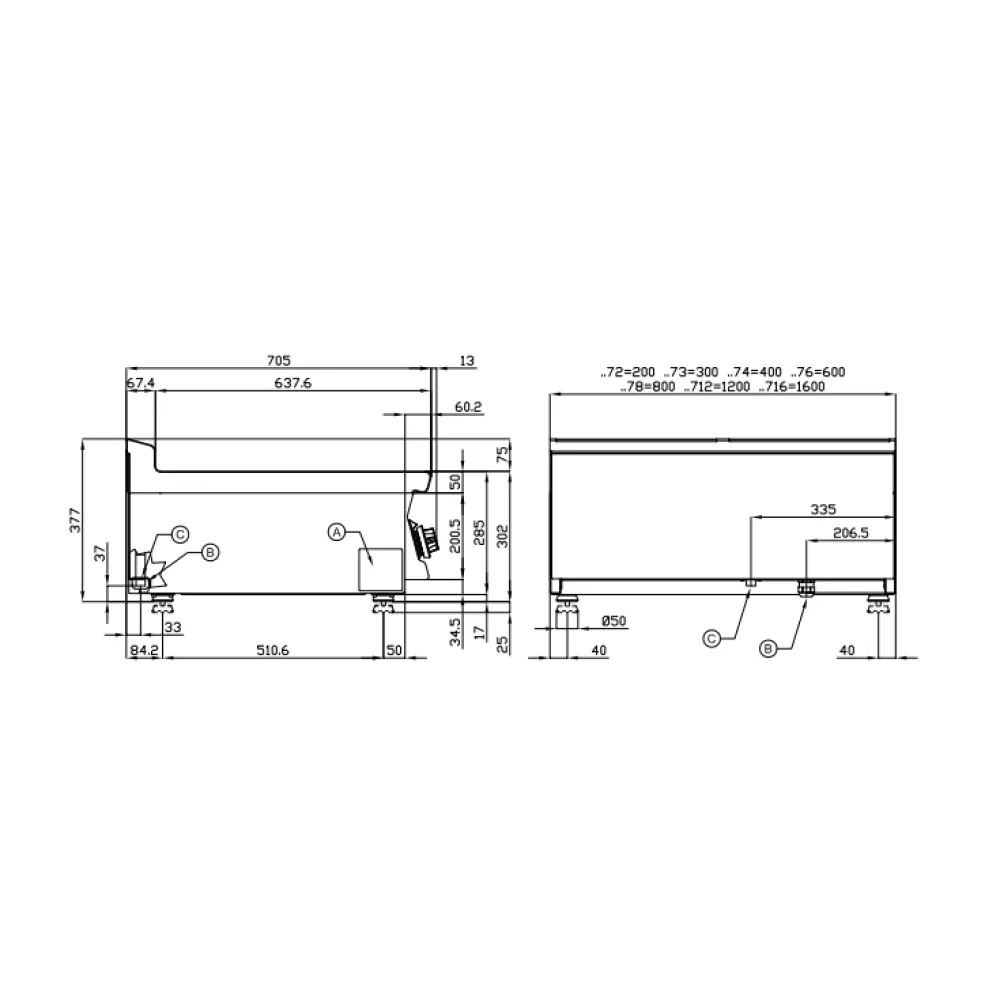

The hob has a power rating of 5.2 kW, requiring a 400 V, 3-phase electrical supply. Its dimensions are 400 mm in width, 705 mm in depth, and 280 mm in height. The unit weighs 26 kg.

This appliance is listed in the catalogue under kitchen equipment for ships and electric hob tops for ships.
