Cold room panel TEFCOLD 43977

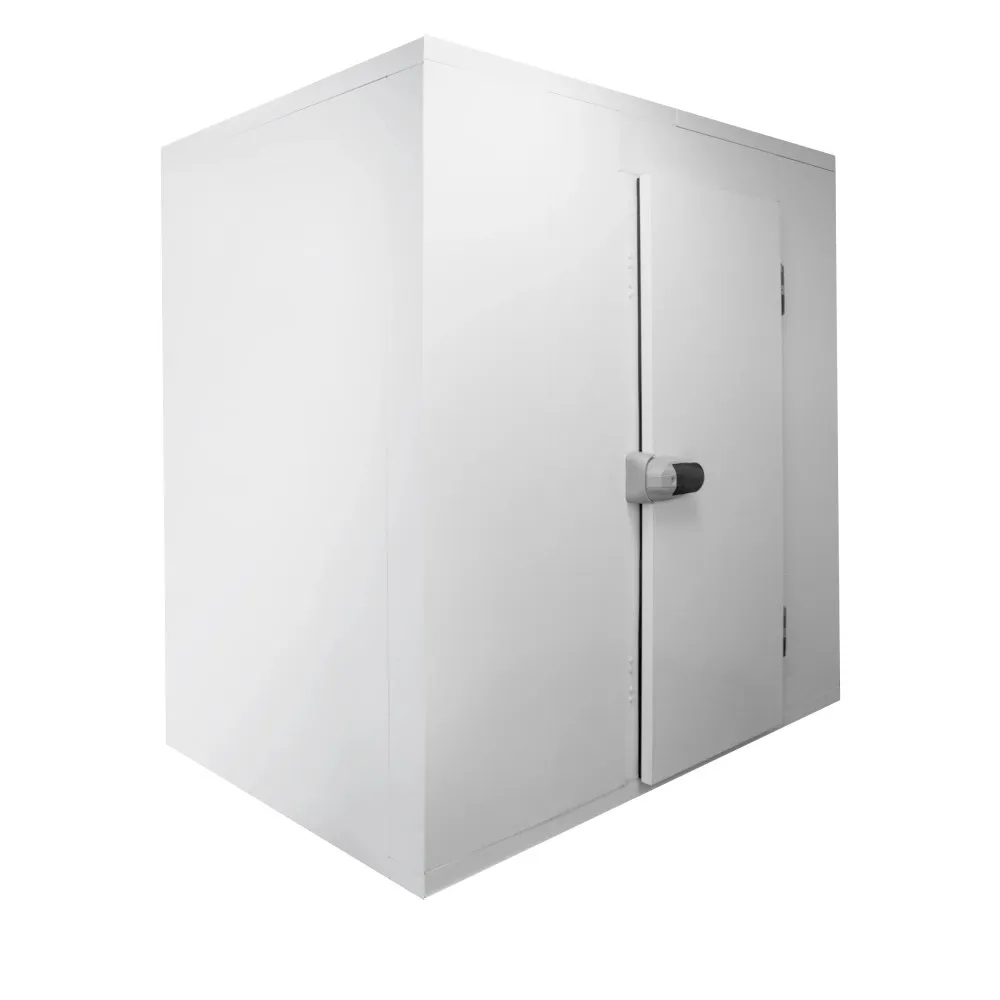

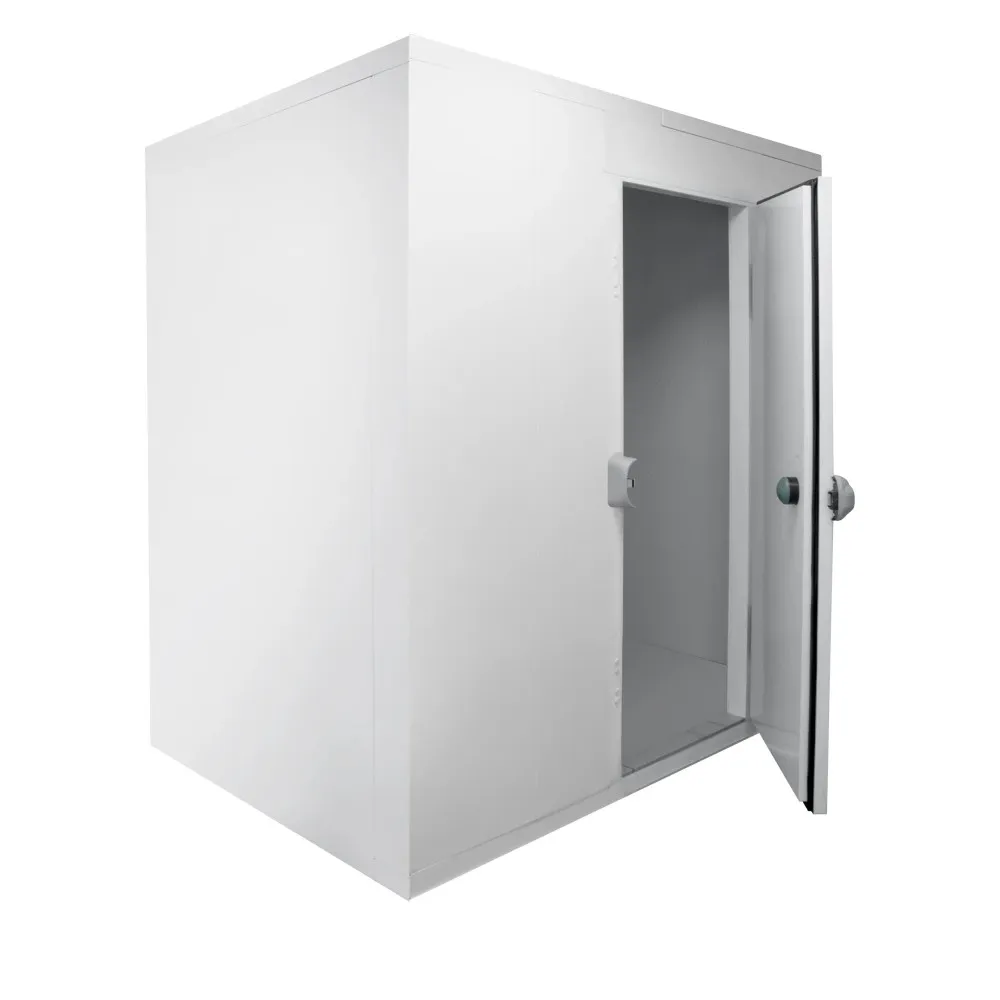

These are modular room panels manufactured by TEFCOLD, designed for the construction of cold storage environments.

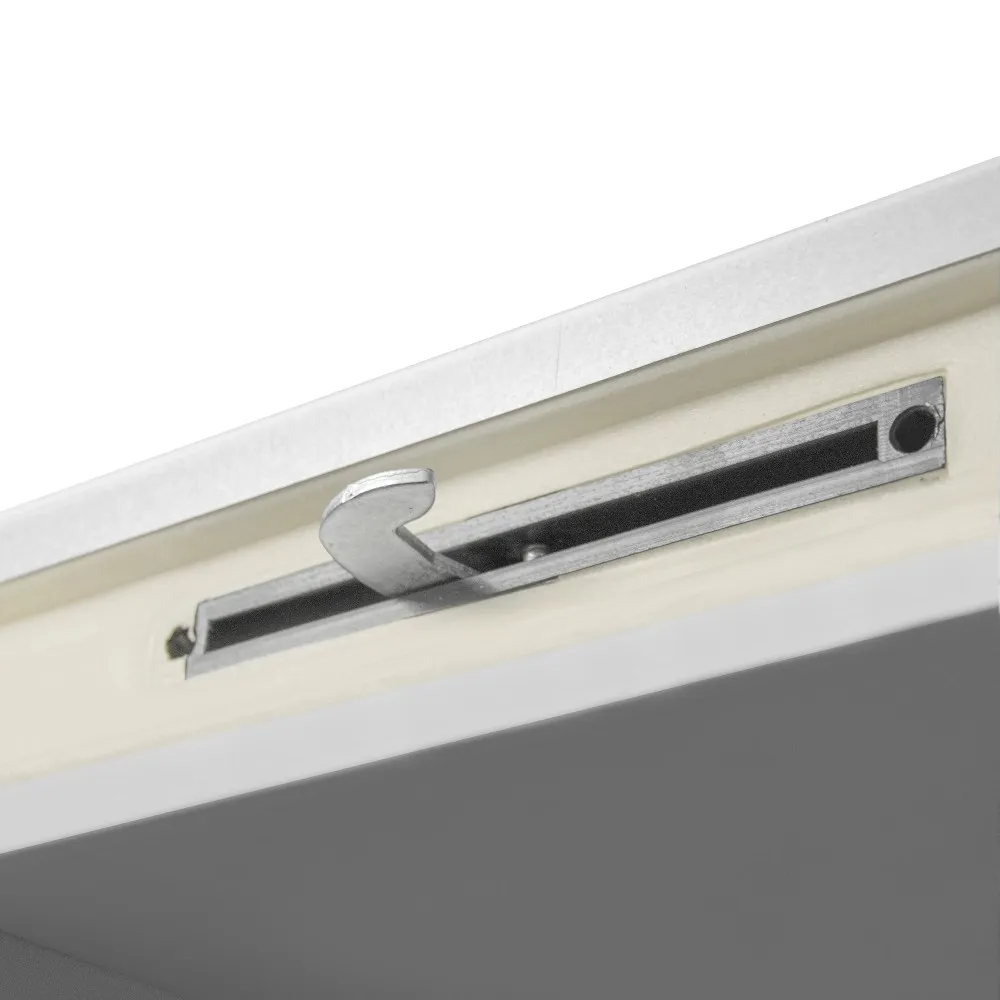

The panels are constructed with 80 mm of insulation to maintain low internal temperatures. They feature an interlocking connection system, allowing for straightforward assembly and configuration of cold rooms. The floor panel is constructed from SS304 stainless steel and has an anti-slip surface for safety.

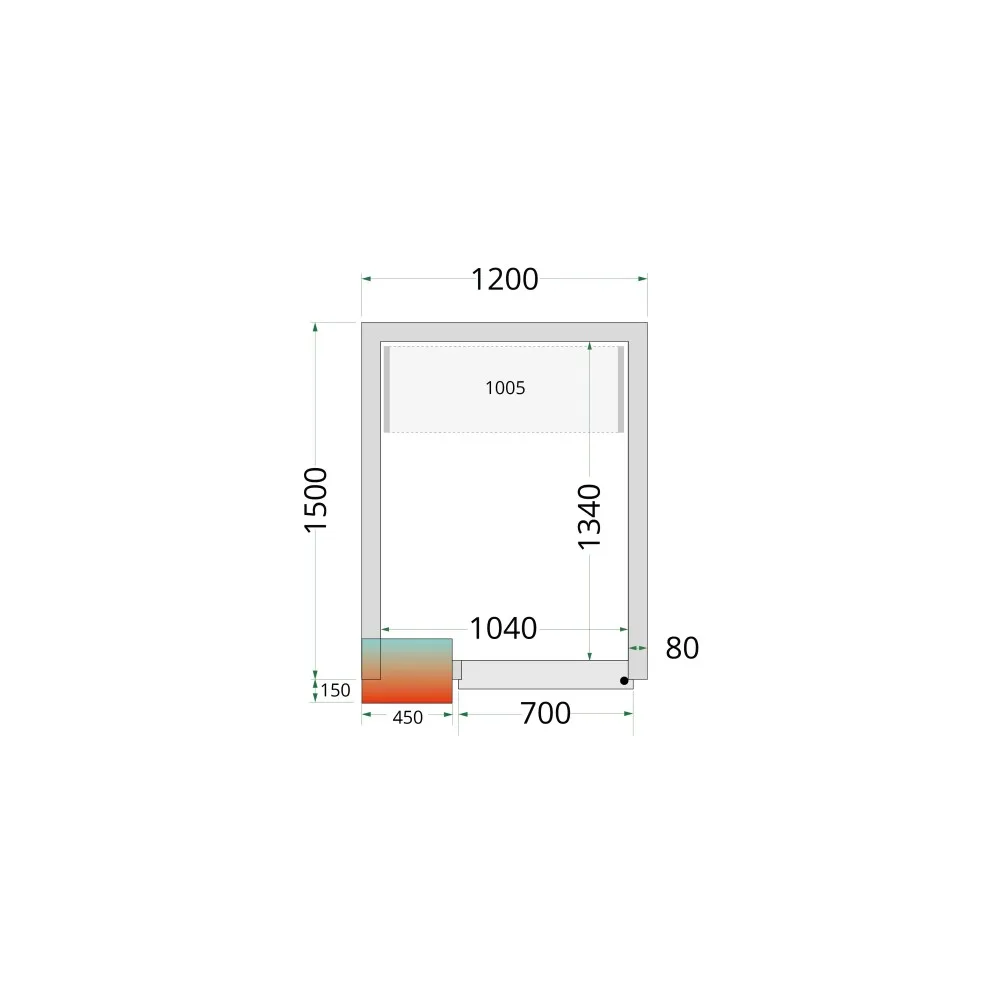

The external dimensions of the assembled panels are 1200 mm in length, 1500 mm in width, and 2200 mm in height. These external measurements define the overall footprint and vertical space occupied by the structure. The internal chamber dimensions, which dictate the usable storage space, measure 1040 mm in length, 1340 mm in width, and 2040 mm in height. The total volume of the internal chamber is 2840 litres.

The floor is rated for a maximum load capacity of 1500 kg per square metre, indicating the weight it can safely support. The total weight of the panels is 185 kg.

These panels are listed in the catalogue for use in building cold rooms.
