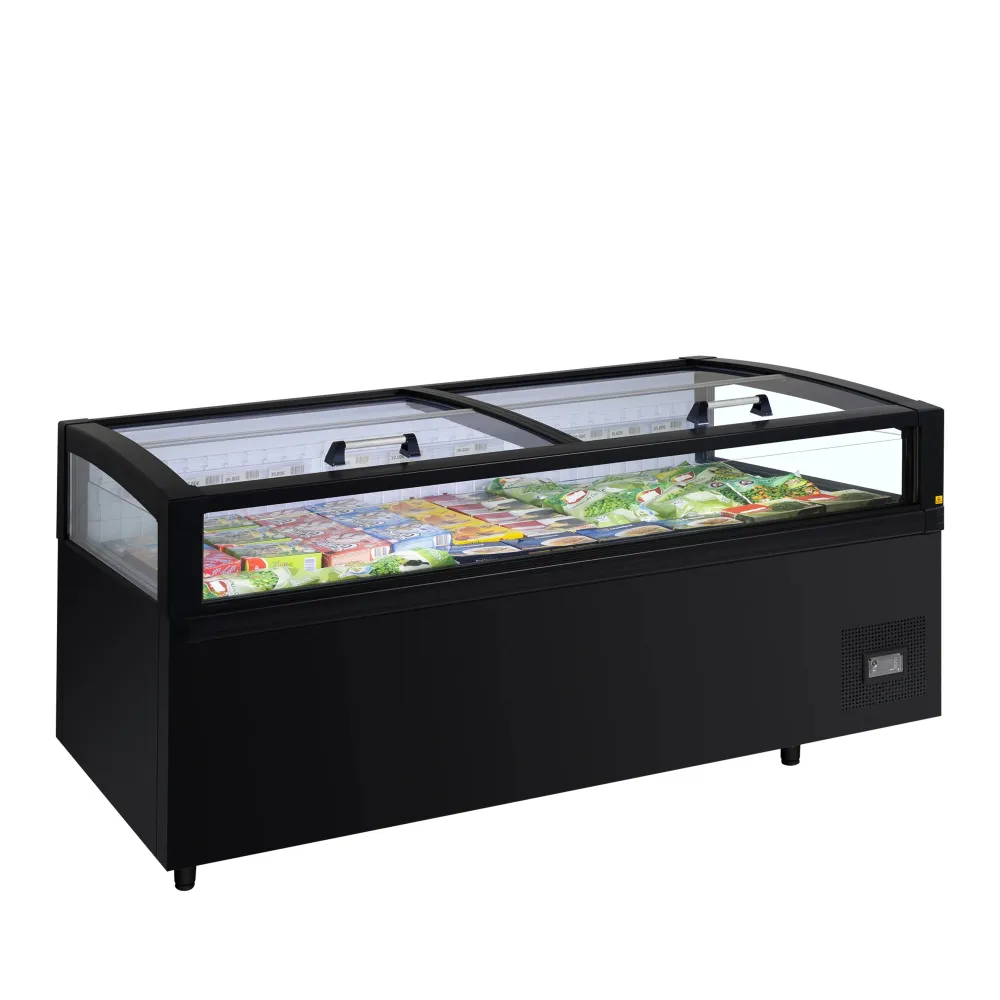

Retail Display Cabinet TEFCOLD VIEW 200 CF VS B

This supermarket cooler-freezer combines chilled and frozen storage in one unit. A variable-speed compressor adjusts cooling to maintain set temperatures, allowing the cabinet to store frozen goods at -22 °C or chilled items at +10 °C without separate systems or manual defrosting.

Products are loaded onto wire shelves and secured with two sliding glass covers. The digital controller lets staff set the desired temperature, displaying the current reading and activating the compressor as needed. LED lighting along the top edge brightens the contents evenly, while triple-glazed glass on three sides ensures clear visibility for customers. The sliding covers open front-to-back, enabling access to both sides of the unit without moving around it.

The unit features a black-coated steel frame with a food-safe plastic interior liner. Both the evaporator and condenser coils are made of aluminium, and the compressor is hermetically sealed. All glass walls and sliding covers use triple glazing for improved thermal performance. The digital controller, mounted on the front panel, includes a clear LED display and a rotary knob for temperature adjustment.

With a 0.520 kW power rating, the unit operates on a 220-240 V, 50 Hz supply, standard for UK commercial circuits. The 613 L capacity provides ample storage, while the 1953 x 980 x 970 mm dimensions suit a standard back wall. The 166 kg weight means two people or a trolley are needed for installation.

Maintenance involves wiping the interior and shelves with mild detergent and cleaning the glass with a non-abrasive solution. The condenser coil should be vacuumed monthly to prevent dust build-up, which can reduce efficiency. The sliding covers can be removed from their tracks for deeper cleaning.
