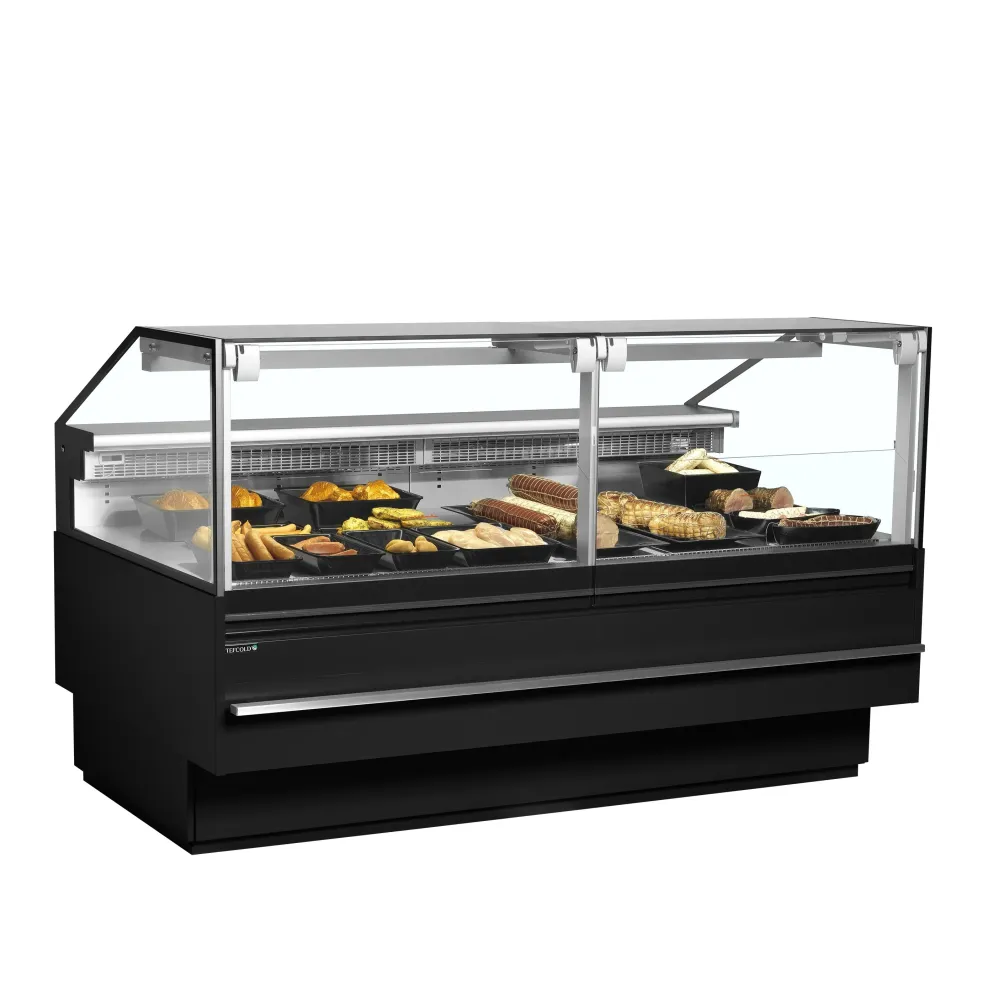

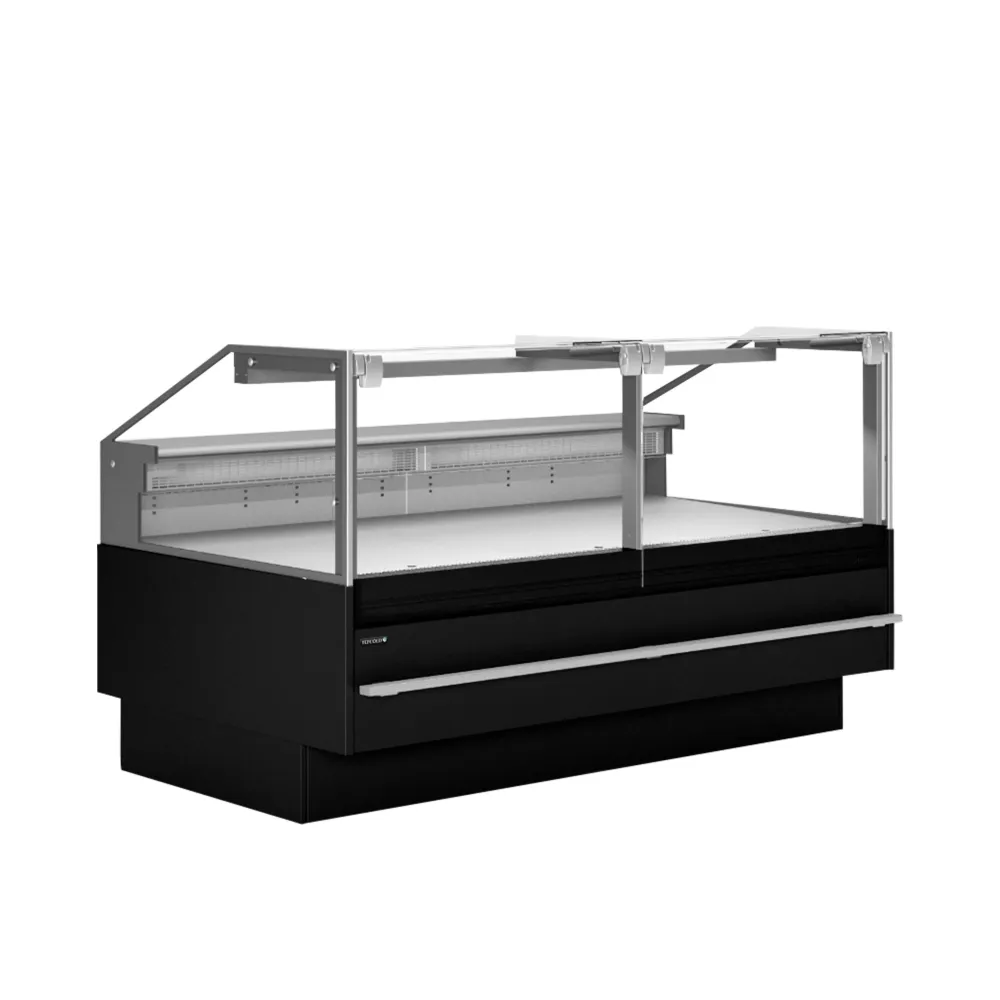

Retail Display Cabinet TEFCOLD SOCA18790B

A refrigerated display counter keeps perishable goods chilled while presenting them to customers through a clear front glass. The unit circulates cold air with a fan, spreading an even temperature across every shelf and corner. This ventilated cooling prevents warm spots and keeps food safe without freezing it, making the showcase suitable for meat, cheese and ready-to-eat items that must stay above freezing but below room temperature.

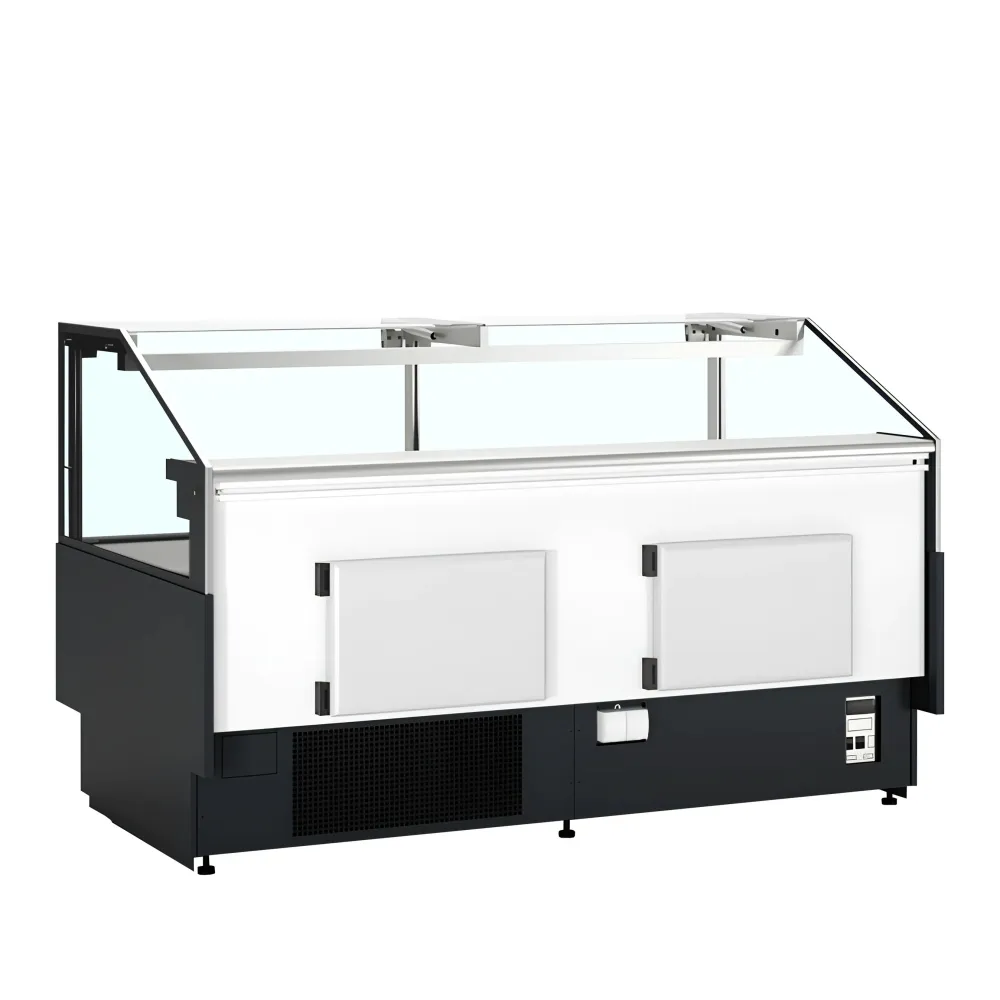

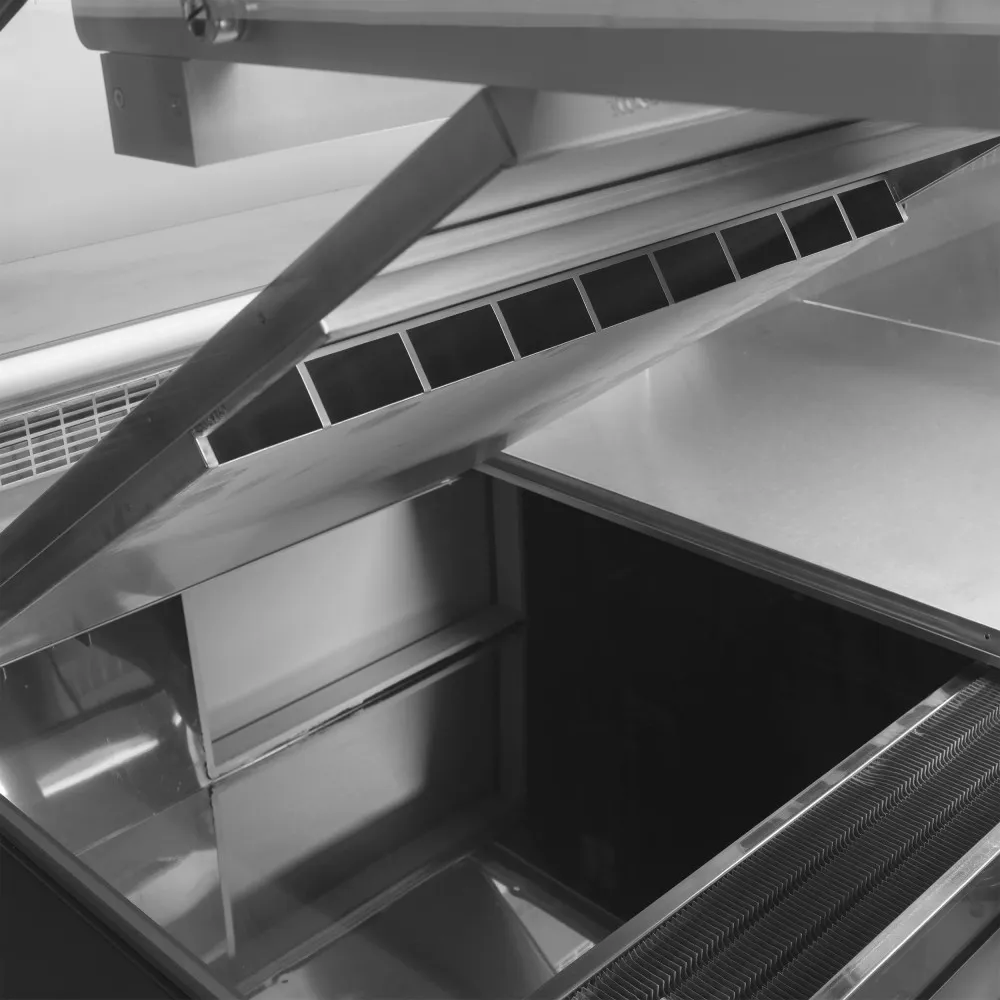

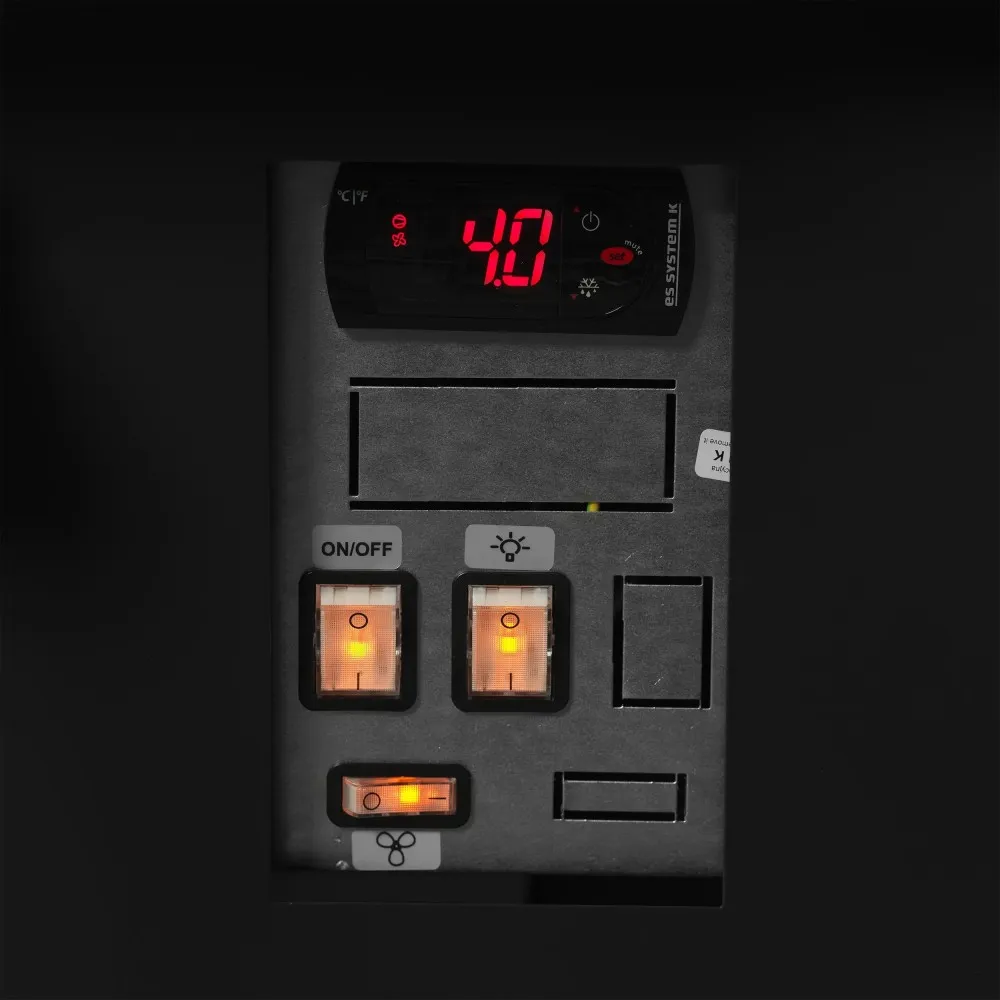

The operator loads products onto the stainless steel display surface and rear shelf, then sets the temperature between 0 and 4 °C. Once switched on, the fan draws air over an evaporator coil charged with R290 refrigerant, cooling it before pushing it back into the cabinet. Heated glazing on the front glass stops condensation, so customers always see a clear view of the goods. The glass panel lifts upwards for cleaning, and wide rear doors open to give access to the storage compartment behind.

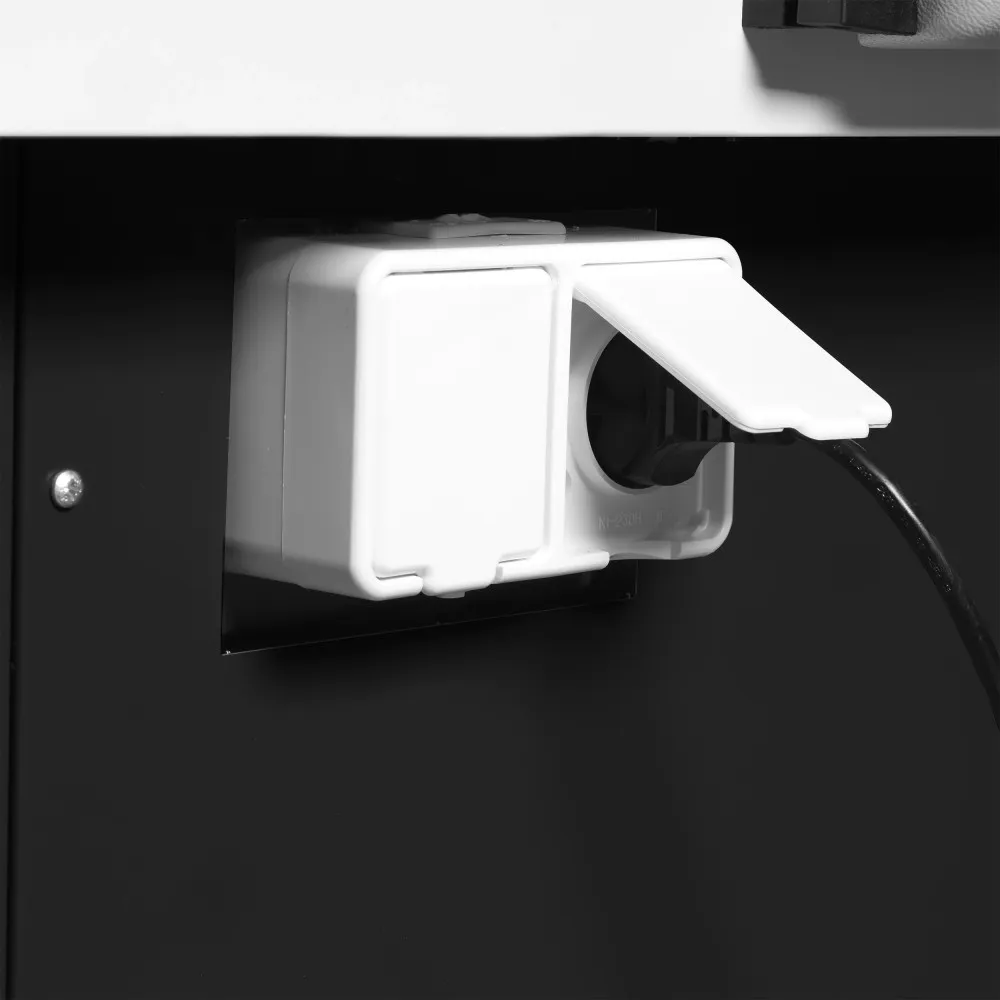

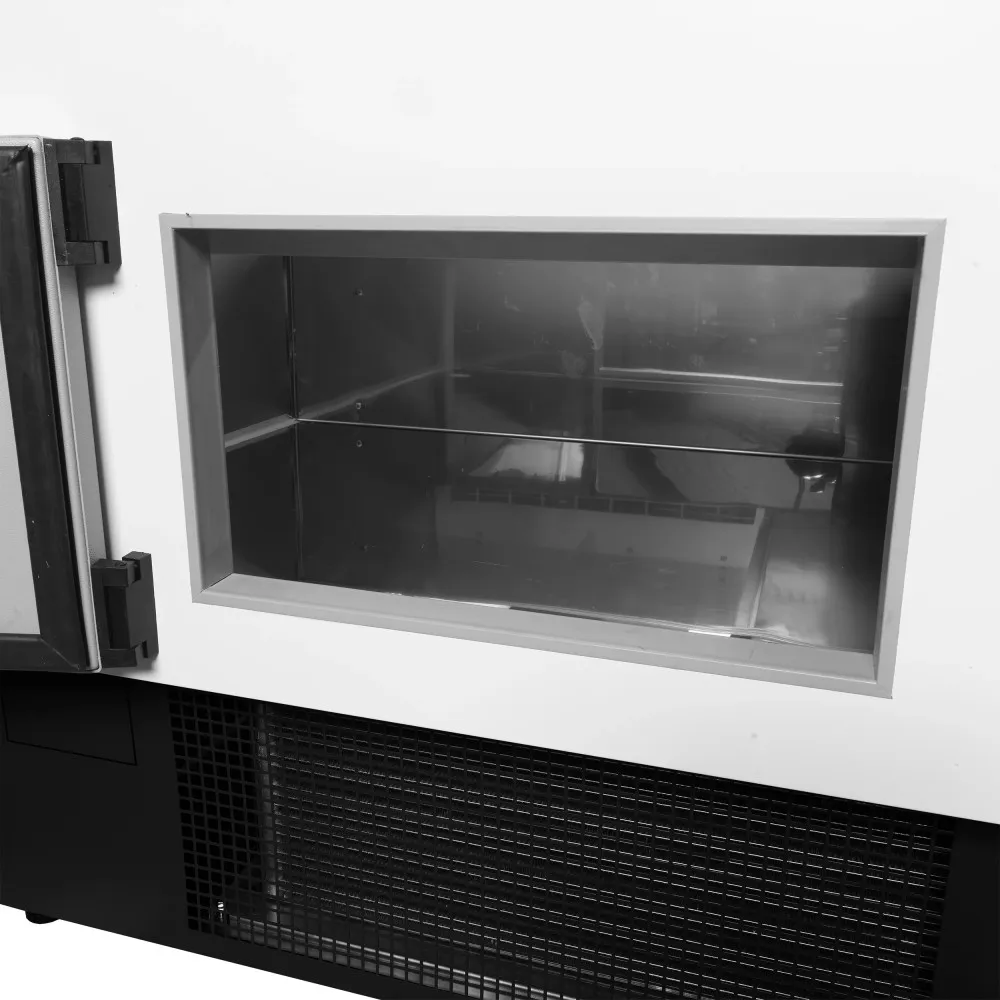

Inside, a single stainless steel shelf runs the full width, and the rear wall is also stainless steel. The cabinet's footprint measures 1923 mm long, 1120 mm deep and 1190 mm high, giving a total volume of 489 L. A 900 mm deep display surface at the front provides ample room for arranging products, while the rear section accepts standard E2 crates for bulk storage. Two 220 V power sockets at the back allow scales, cash registers or other retail devices to be plugged in without extra wiring.

The black exterior is finished in a wipe-clean surface, and the stainless steel interior resists corrosion and staining. The fan-assisted system draws 0.48 kW, which translates to a daily energy consumption of 7.5 kWh. A voltage range of 220–240 V at 50 Hz matches the standard single-phase supply found in most professional kitchens and retail outlets. The unit weighs 250 kg, so it is moved on a trolley or pallet jack rather than lifted by hand.

Cleaning involves wiping the stainless steel surfaces with a damp cloth and mild detergent, lifting the front glass to reach the display area, and opening the rear doors to access the storage compartment. The heated glazing reduces the need for frequent wiping of the front glass, but it should still be checked daily to ensure clear visibility.

The SOCA18790B is a single model in black, designed as a refrigerated display counter for retail and food-service environments.
