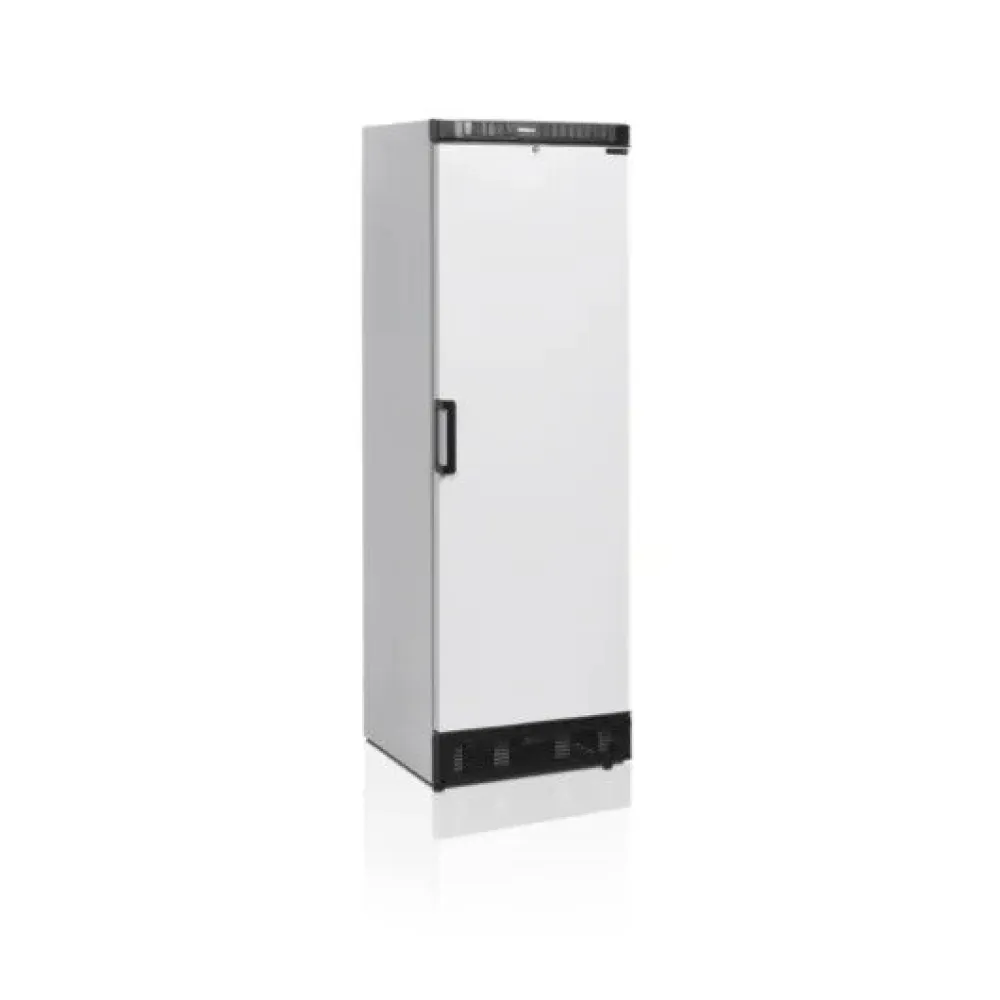

Refrigerator TEFCOLD SDU1375

A fan-assisted refrigerator designed for chilled storage of canned and bottled drinks maintains an even temperature throughout the cabinet by circulating cool air continuously. The fan draws air across an evaporator coil, removing heat and lowering the air temperature before pushing it back into the storage space. This method prevents warm spots and ensures every shelf reaches the set temperature quickly, making it suitable for high-turnover environments where drinks are loaded and unloaded frequently.

To use the refrigerator, position it on a level surface and adjust the feet for stability. Load drinks onto the wire shelves, leaving space between items for air circulation. Set the desired temperature between +2 °C and +10 °C using the internal control. The reversible solid door can be hinged on either side to fit the layout of the workspace. Once powered on, the fan-assisted cooling system begins circulating air immediately, maintaining the set temperature without manual defrosting.

The cabinet is constructed with a white exterior and interior, housing five adjustable wire shelves measuring 498 mm by 405 mm. The refrigerant used is R600a, a hydrocarbon with a low environmental impact. The refrigerator operates on a 220-240 V, 50 Hz electrical supply, drawing 0.215 kW of power. Its external dimensions are 595 mm wide, 640 mm deep, and 1840 mm high, with a total storage volume of 345 litres and a net weight of 64 kg.

The 345 litre capacity allows storage of up to 455 x 330 ml cans, 301 x 500 ml cans, 217 x 330 ml bottles, or 217 x 500 ml PET bottles. The adjustable wire shelves can be repositioned to accommodate different bottle and can sizes, while the reversible door provides flexibility in installation.

Cleaning involves wiping the interior and wire shelves with a damp cloth and mild detergent. The exterior can be cleaned similarly, avoiding abrasive materials that could damage the surface. The fan and evaporator coil should be kept free of dust and debris to maintain efficient cooling performance. The refrigerator is designed for professional use in bars, cafés, and retail environments where consistent chilled storage of drinks is required.
