Refrigerator TEFCOLD SDU1220

A fan-assisted refrigerator circulates cold air evenly around bottles and cans, keeping every shelf at the same temperature without hot spots. The fan draws air over an evaporator coil, cooling it before pushing it through vents inside the cabinet. This method chills drinks faster than static cooling and prevents frost build-up on the back wall, so shelves stay clear and usable right to the rear.

The operator loads drinks onto the three adjustable wire shelves, each sized to hold standard can and bottle trays. The door reverses to open left or right, fitting the layout of the bar or servery. Once stocked, the thermostat is set between +2 °C and +10 °C; the fan cycles on and off to maintain the chosen temperature. Adjustable feet level the unit on uneven floors, keeping the door seal tight and the cooling efficient.

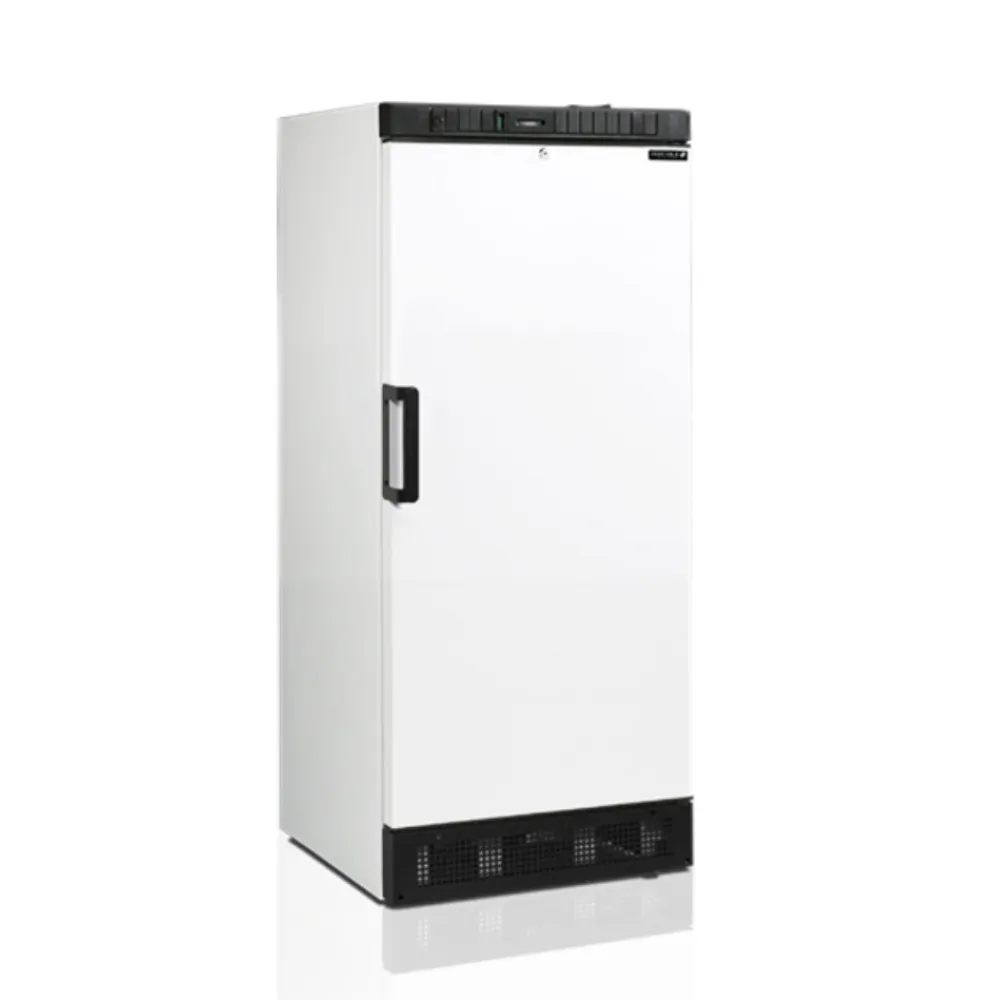

The cabinet is built with a reversible solid door that seals against a magnetic gasket. Inside, three white wire shelves support trays of cans or bottles without blocking airflow. The refrigerant is R600a, a hydrocarbon that cools effectively while using less energy than older gases.

Controls are a simple thermostat dial that sets the temperature between +2 °C and +10 °C. The 220–240 V, 50 Hz supply plugs into a standard single-phase socket found in most commercial kitchens and bars. The 0.197 kW power rating means the unit draws less current than a typical domestic fridge, reducing the load on the circuit.

A 190 litre volume holds up to 301 x 330 ml cans or 133 x 500 ml PET bottles, making it sized for back-bar storage or small retail displays. The 595 mm width fits between standard worktops or under low shelves, while the 1315 mm height allows stacking of trays without reaching above shoulder level. At 63 kg, the refrigerator can be moved by two people using a sack trolley, but is stable enough to stay in place once positioned.

Cleaning involves wiping the wire shelves and interior surfaces with a damp cloth and mild detergent. The fan and evaporator coil are accessed by removing the back panel, which should be done by a technician to avoid damaging the refrigerant circuit. The reversible door gasket should be checked regularly for cracks or gaps that could let warm air in.

The SDU1220 is a single-door, single-compartment refrigerator with no variants or additional modules. It is listed in the catalogue under commercial refrigeration for beverage storage.
