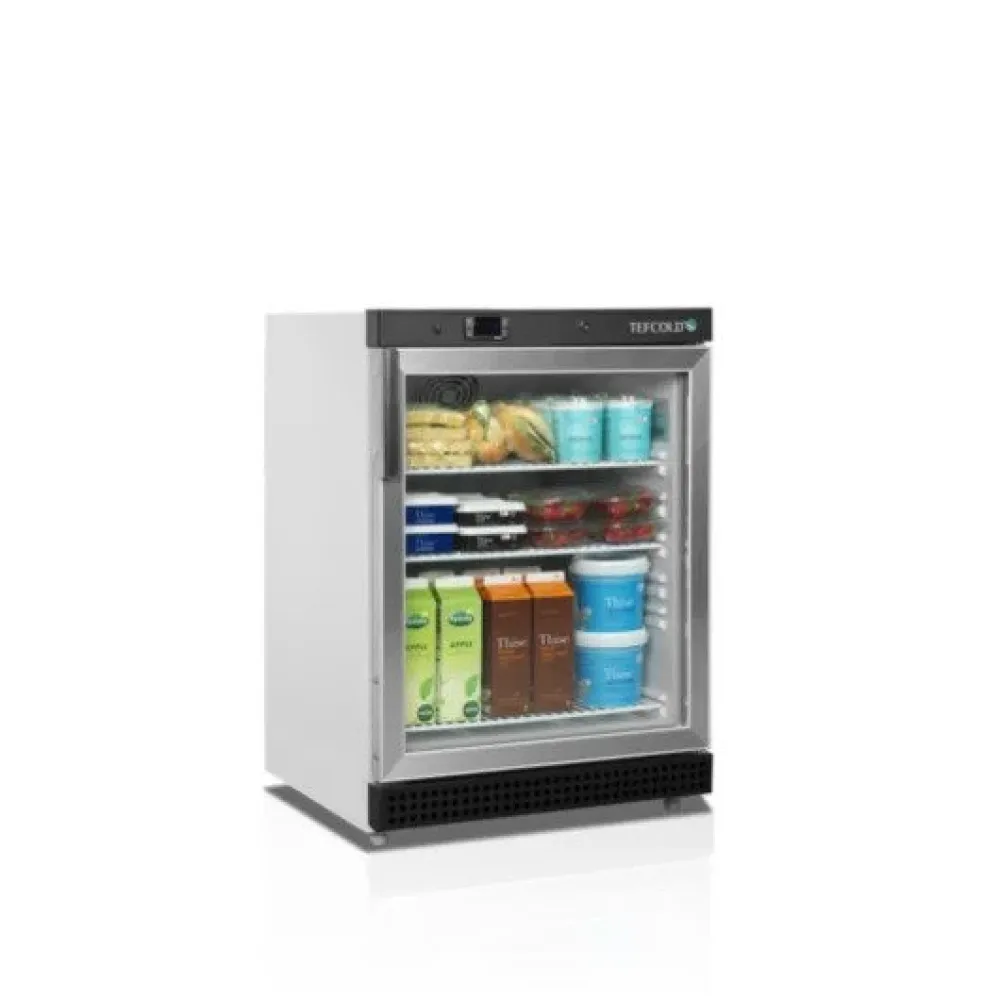

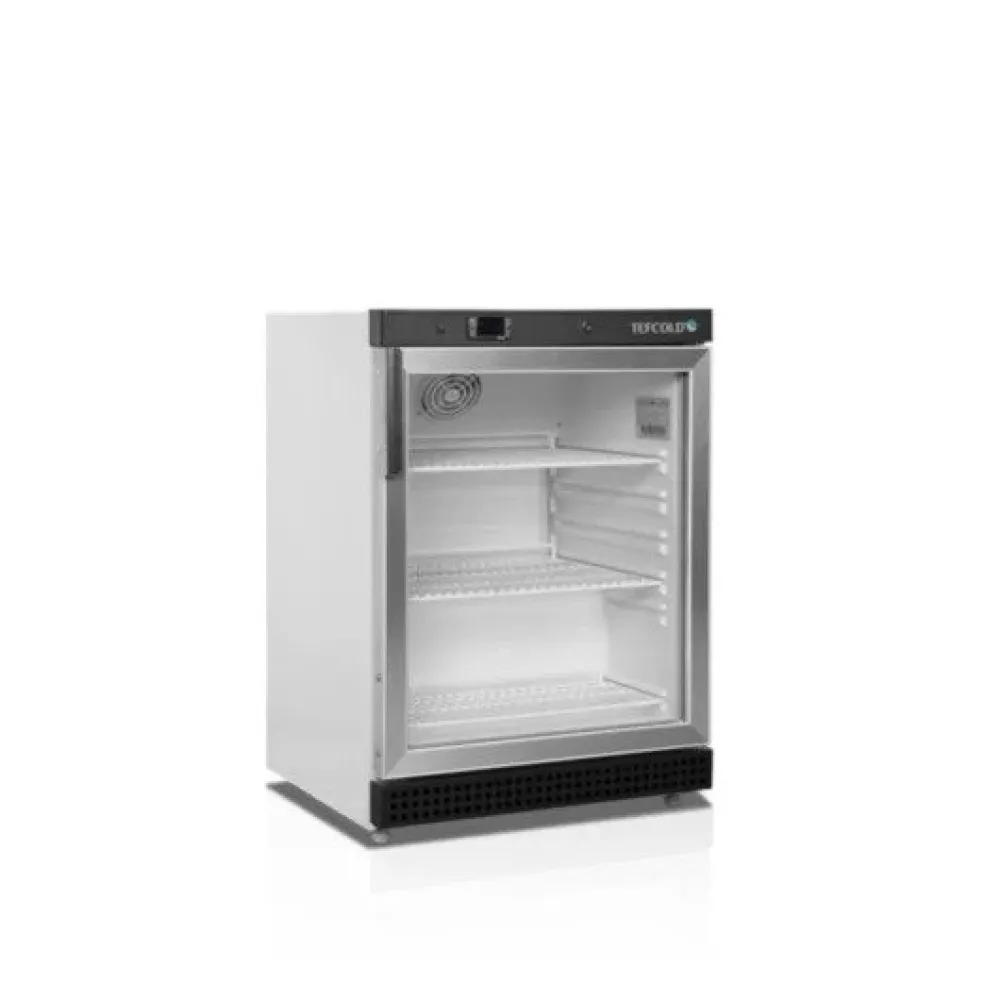

Refrigerated display cabinet TEFCOLD UR200G

A glass door display cooler keeps chilled goods visible while maintaining a steady low temperature. Inside, a refrigeration circuit circulates cold air with a fan, drawing heat away from the shelves and out through a condenser. The fan spreads the chill evenly, so every shelf stays within the set range without cold spots or warm zones. This method lets customers see the products without opening the door, reducing temperature swings and energy use.

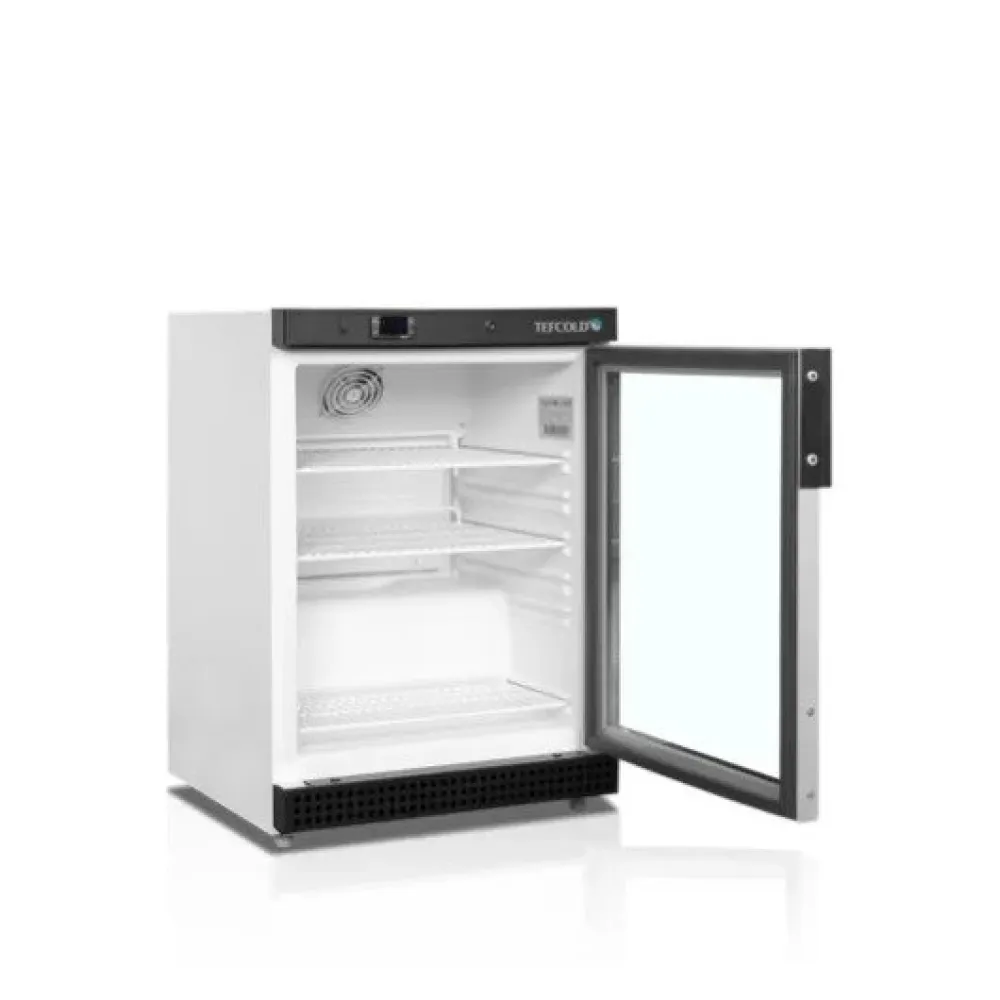

The UR200G features a single hinged glass door. Shelves can be adjusted to fit different heights of bottles, packs or trays before the unit is switched on. The electronic thermostat is set to the desired temperature between +2 and +10 °C, and the cooler starts automatically. An LED light inside illuminates the contents when the door is opened or when the ambient light sensor detects low light. The door can be hinged on the left or right, and the feet are levelled to keep the unit stable on uneven floors.

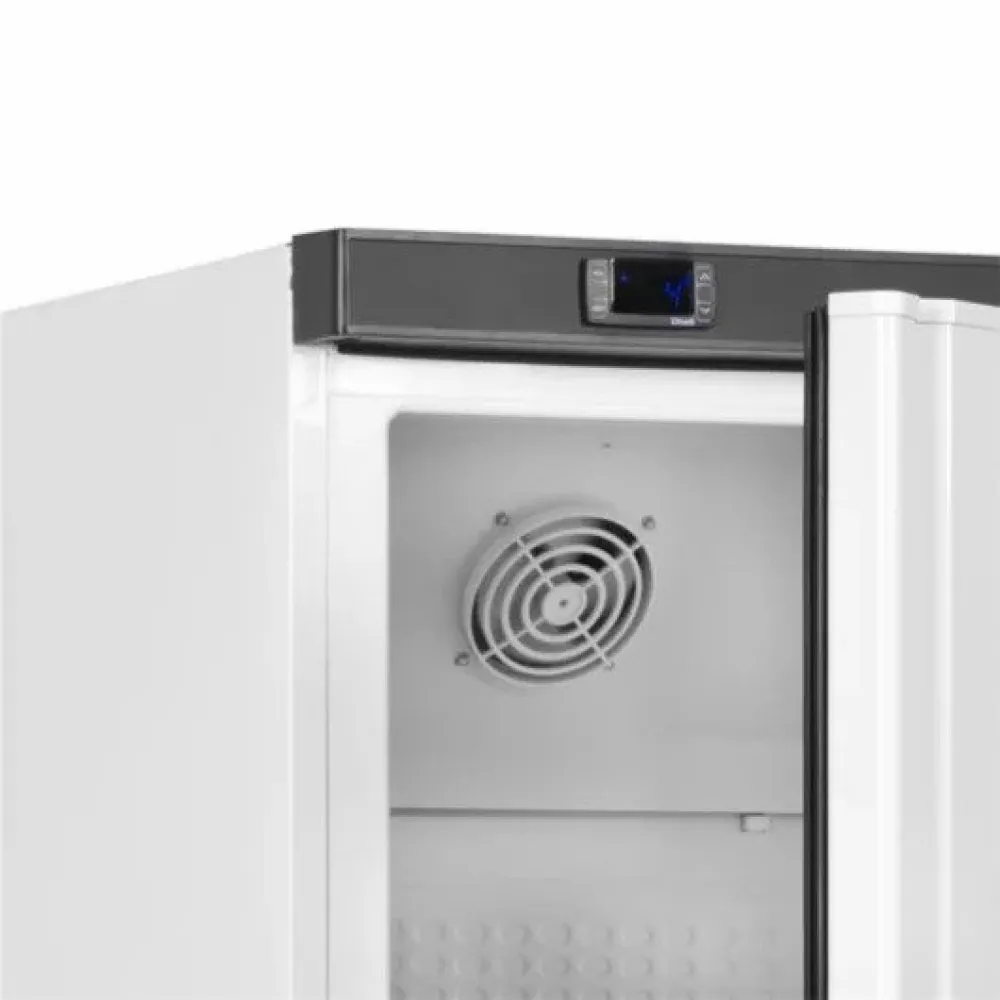

The cabinet is built with a stainless-steel interior and exterior, and the door has a double-glazed panel to reduce condensation. The refrigeration circuit uses R600a refrigerant, which is efficient and has a low environmental impact. The cooling system is fan-assisted, distributing cold air evenly across all shelves.

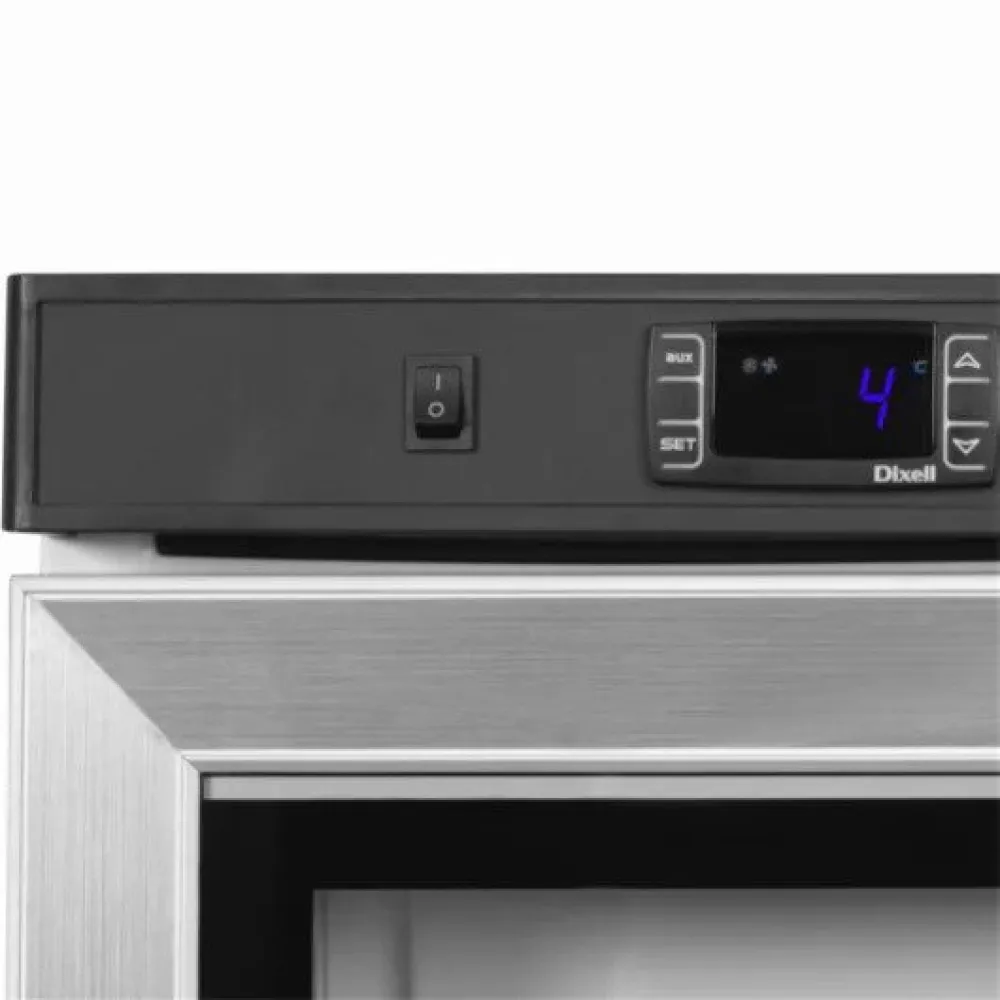

The controls include an electronic thermostat that sets the temperature within the +2 to +10 °C range. The LED interior light switches on automatically when needed, and the reversible door can be fitted to open from either side.

A power rating of 0.105 kW indicates the load on the electrical supply, suitable for a standard single-phase circuit. The temperature range of +2 to +10 °C is designed for storing chilled drinks, dairy products, and prepared foods that require refrigeration but not freezing. The 119 litre volume provides space for various items, depending on shelf arrangement. The 600 mm width fits into standard worktop runs or under counters, while the 44 kg weight allows two people to move it without a trolley.

Cleaning involves wiping the interior and exterior stainless-steel surfaces with a damp cloth and mild detergent. The shelves and feet are removable for thorough cleaning. The condenser should be kept free of dust to maintain efficiency, and the door seal should be checked regularly to ensure it remains airtight.

The UR200G includes a reversible door and adjustable feet as standard. It is designed for use in retail, café, and catering environments where chilled products need to be displayed attractively.
