Refrigerated display cabinet TEFCOLD SCU1375CP

A bottle cooler keeps drinks at serving temperature by circulating cold air evenly around every container. A fan draws air across an evaporator coil, lowering its temperature before pushing it through the cabinet. This forced convection eliminates hot spots and ensures every shelf reaches the same set point, so cans and bottles chill uniformly without freezing. The method also recovers temperature quickly after the door is opened, maintaining consistency during service peaks.

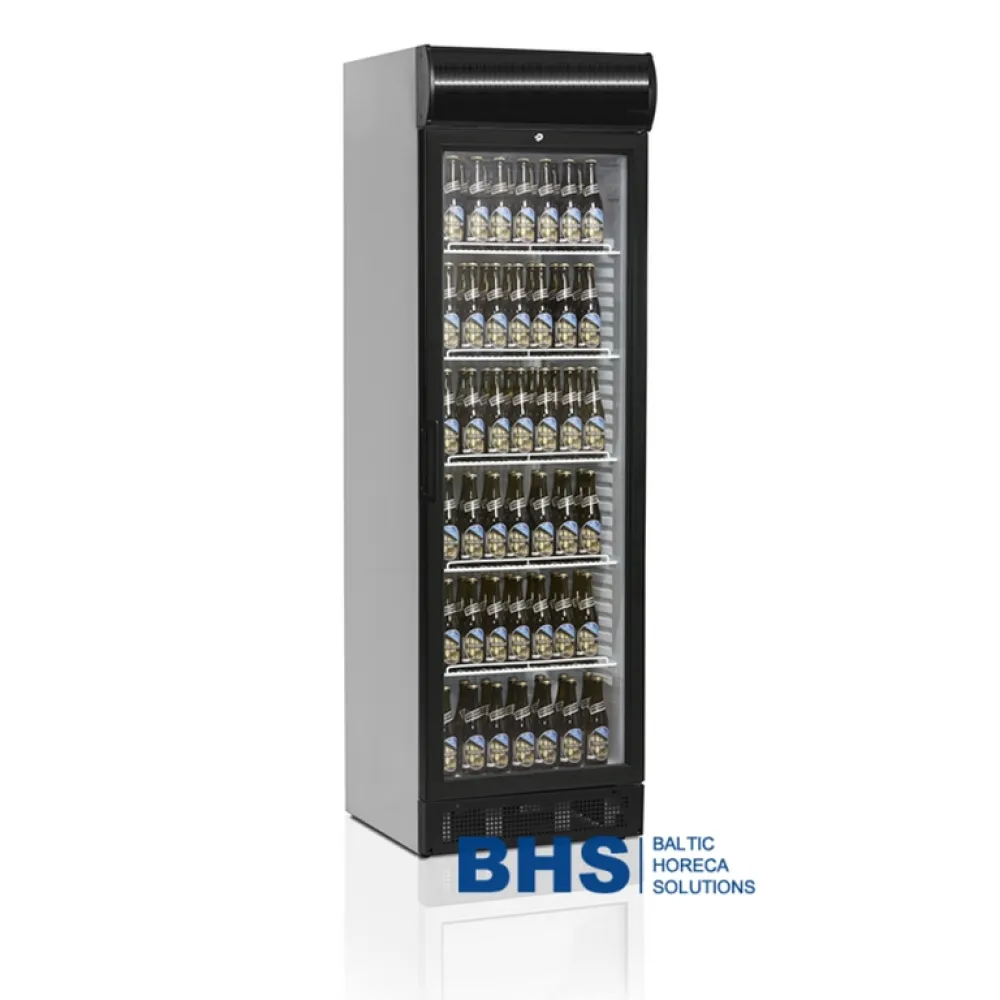

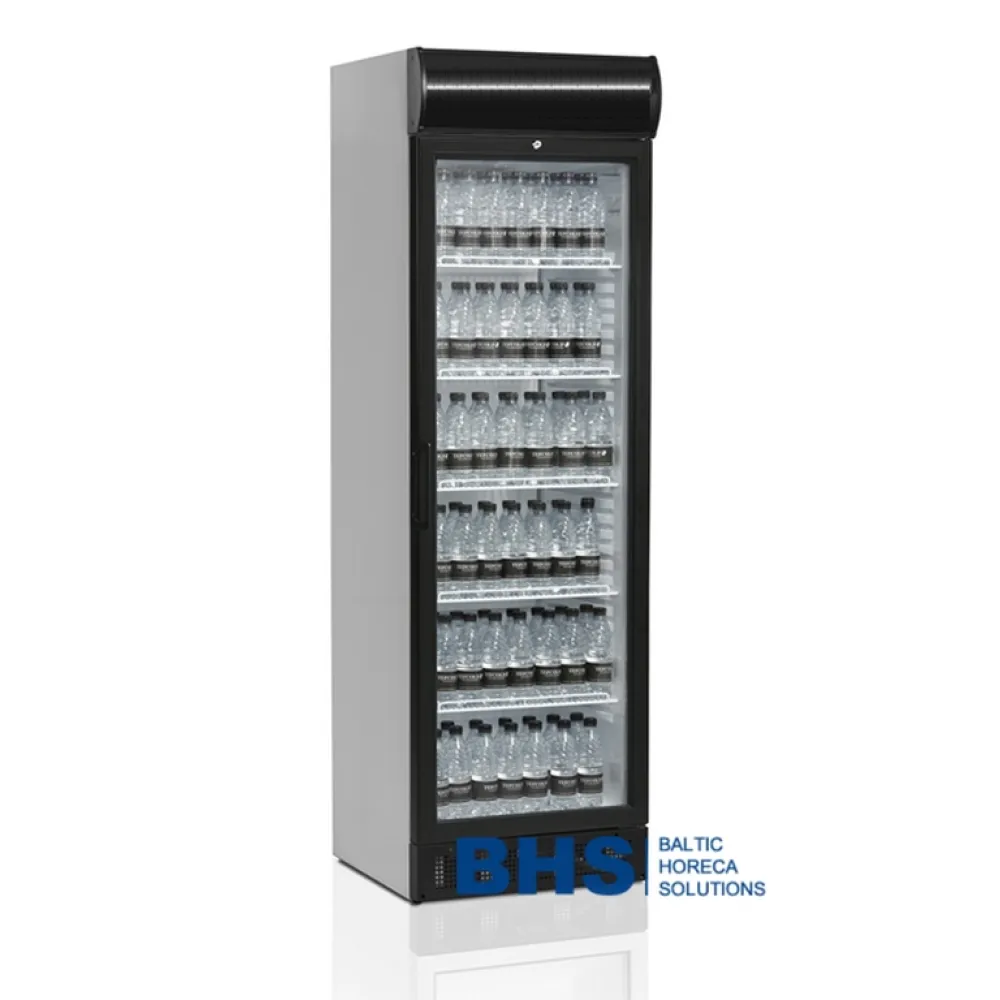

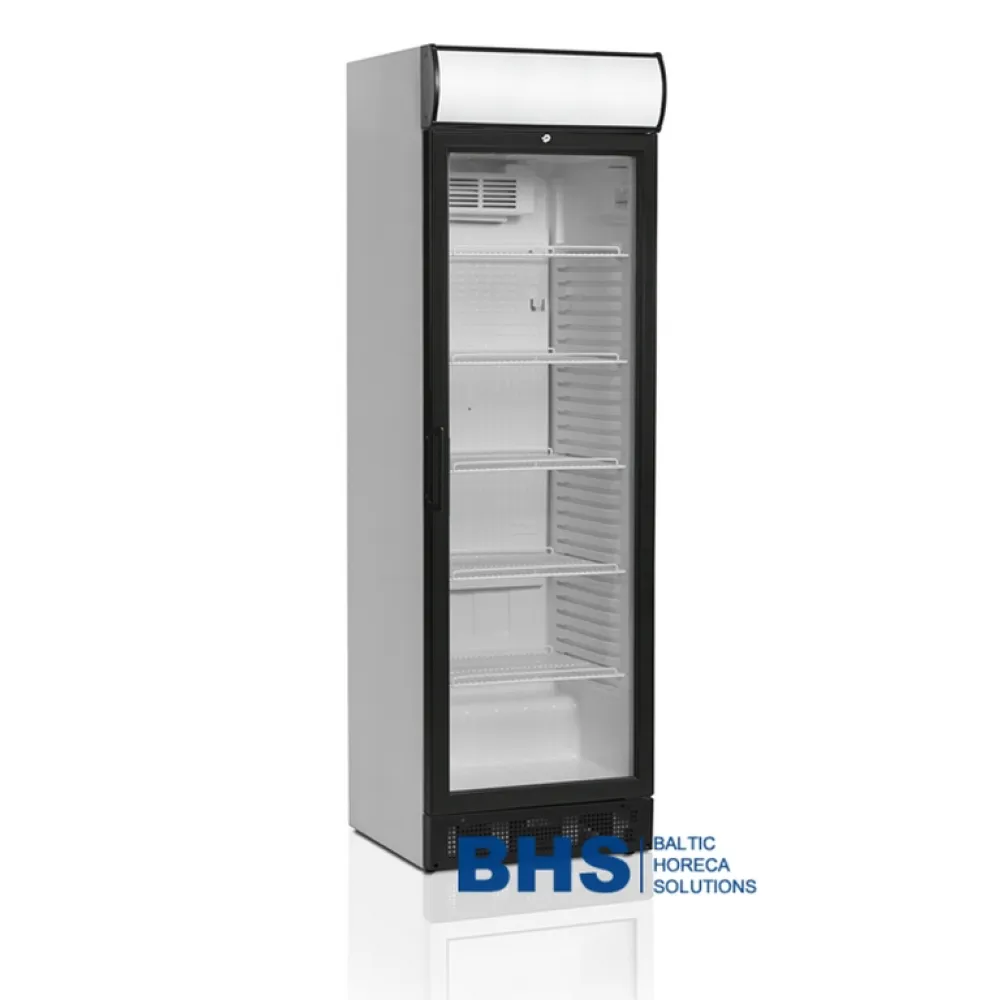

Loading begins with the adjustable wire shelves, each sized to hold standard can and bottle formats. The operator slides the shelves to the desired height, then arranges stock according to the capacity chart: up to 455 cans of 330 ml or 217 PET bottles of 500 ml. The hinged glass door seals once closed, and the LED interior light allows quick stock checks without opening. A separate illuminated canopy above the door highlights the display area, drawing attention to the chilled range. The reversible door hinge lets the unit fit left- or right-hand opening layouts, while adjustable feet level the cabinet on uneven floors.

The cabinet is constructed from white-coated wire shelves and a glass-fronted door, both set within a steel frame. The refrigerant circuit uses R600a, a hydrocarbon with low environmental impact. Inside, the fan-assisted evaporator sits behind a grille at the back, distributing cold air across the 347 litre volume. The temperature range of +2 to +10 °C suits soft drinks, beers and mixers that need chilling without freezing.

Controls are minimal: a thermostat dial sets the desired temperature within the stated range, and the LED interior light switches on when the door opens. The illuminated canopy operates independently, providing continuous display lighting.

The 0.295 kW power rating indicates the load on the electrical circuit; at 220-240 V and 50 Hz it connects to a standard UK single-phase supply. The 82 kg weight requires two people to move the unit safely, while the 595 mm width and 640 mm depth fit through standard commercial doorways. The 1980 mm height places the top shelf at eye level for most users, reducing bending during stocking.

Cleaning involves wiping the wire shelves and glass door with a damp cloth, and vacuuming the evaporator grille to remove dust. The reversible door gasket should be checked periodically for a tight seal. Shelves can be removed for thorough cleaning, and the adjustable feet allow the unit to be tilted slightly for access underneath.

The SCU1375CP is categorised as a bottle cooler within the TEFCOLD refrigeration range, designed for front-of-house display and high-volume storage in bars, cafés and event catering.
