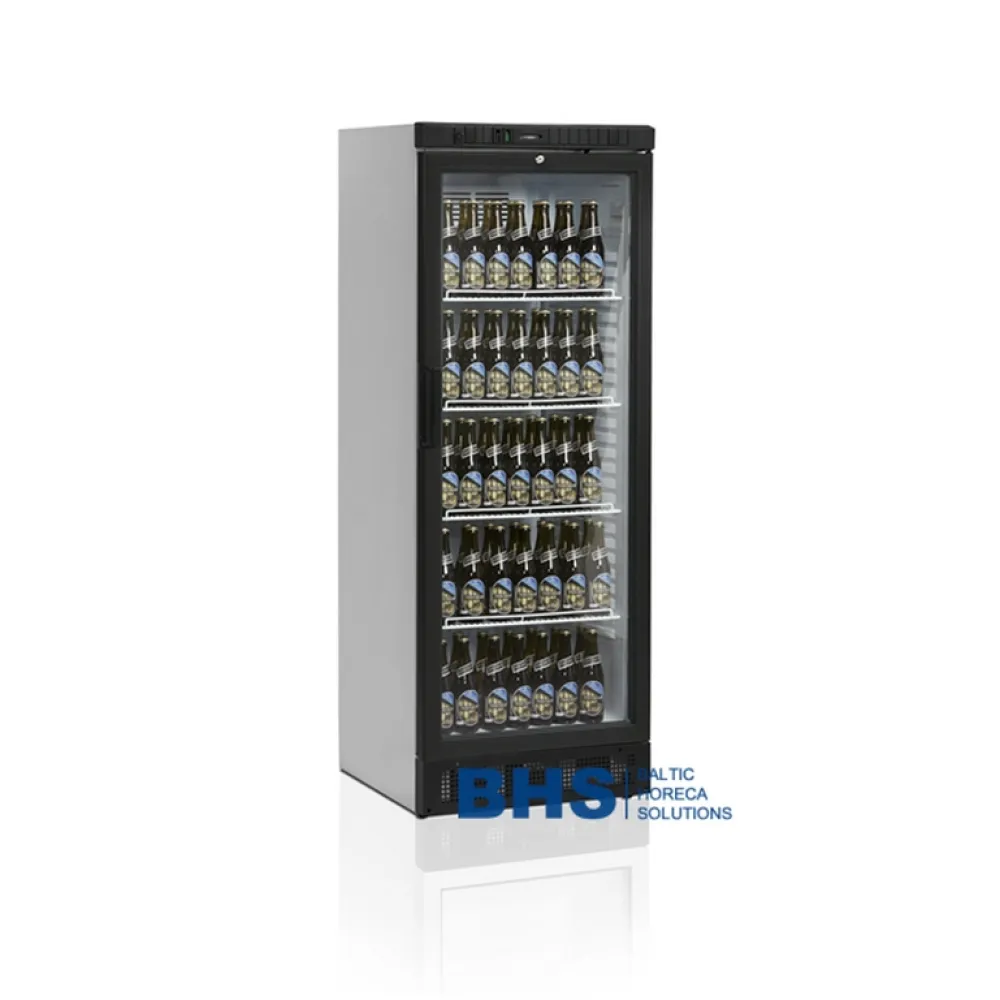

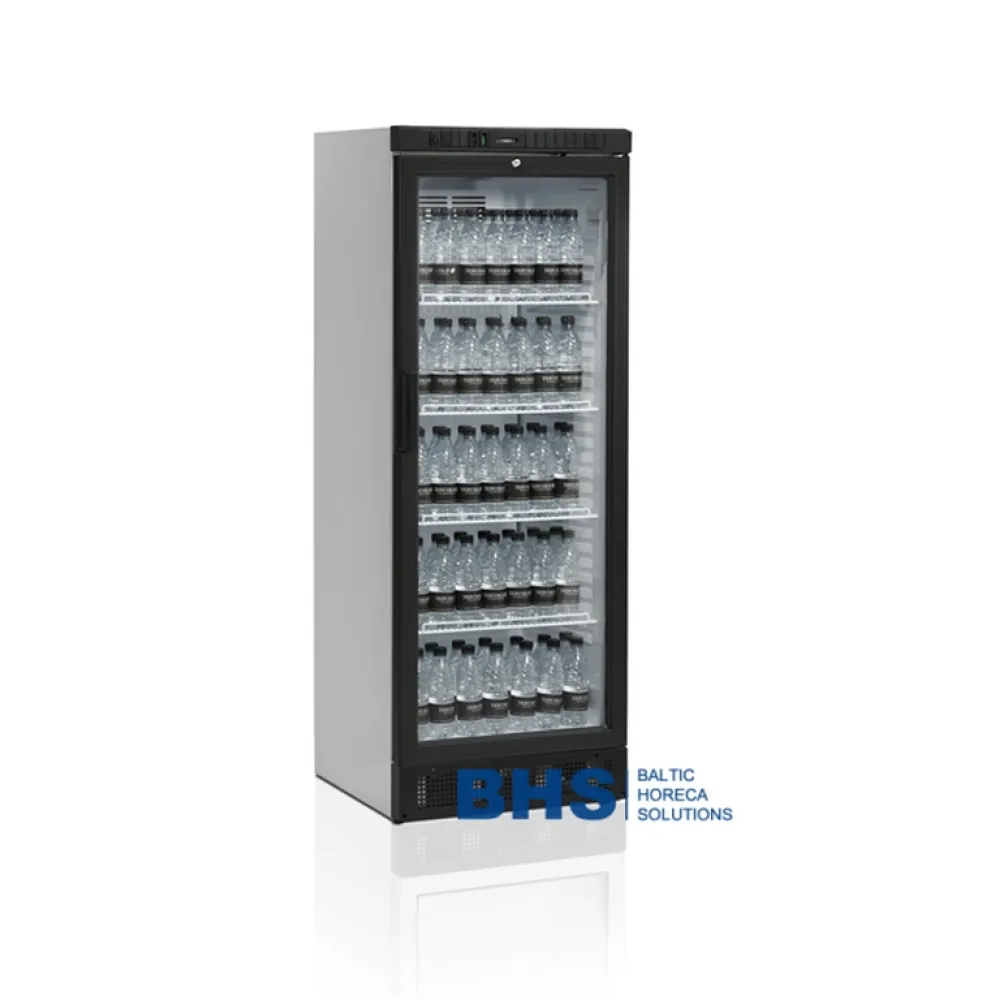

Refrigerated display cabinet TEFCOLD SCU1280

A bottle cooler keeps drinks at serving temperature by circulating chilled air evenly around every container. The fan draws warm air across an evaporator coil, removing heat before pushing the cooled air back into the cabinet. This forced circulation eliminates hot spots and ensures every can or bottle reaches the same set temperature, ready for service without delay.

The operator loads the shelves through the hinged glass door, arranging cans or bottles in the available space. The temperature is set between +2 °C and +10 °C to suit the drink type, and the cooler maintains the chosen level automatically. An LED interior light illuminates the contents for quick selection, while adjustable feet level the unit on uneven floors. The door can be hinged on either side to fit the kitchen layout.

The cabinet is constructed with a white exterior and a glass door for visibility. Inside, four wire shelves measuring 490 mm by 405 mm support the load, each adjustable to accommodate different bottle heights. The refrigerant used is R600a, which operates efficiently at the stated power draw.

The 260 L volume allows storage of up to 392 cans of 330 ml or 175 PET bottles of 500 ml, providing ample capacity for busy service periods. The 220-240 V voltage requirement matches standard UK commercial circuits, while the 73 kg weight ensures stability without needing floor reinforcement. The footprint of 595 mm by 640 mm fits under most worktops or against walls, making it suitable for compact bar areas.

Cleaning involves wiping the glass door and wire shelves with a damp cloth, while the fan and evaporator coil require periodic vacuuming to remove dust. The reversible door hinge should be checked for smooth operation, and the adjustable feet may need readjustment if the floor level changes.

The SCU1280 is positioned in the catalogue as a bottle cooler for bars, cafés, and catering operations requiring chilled drink storage.
