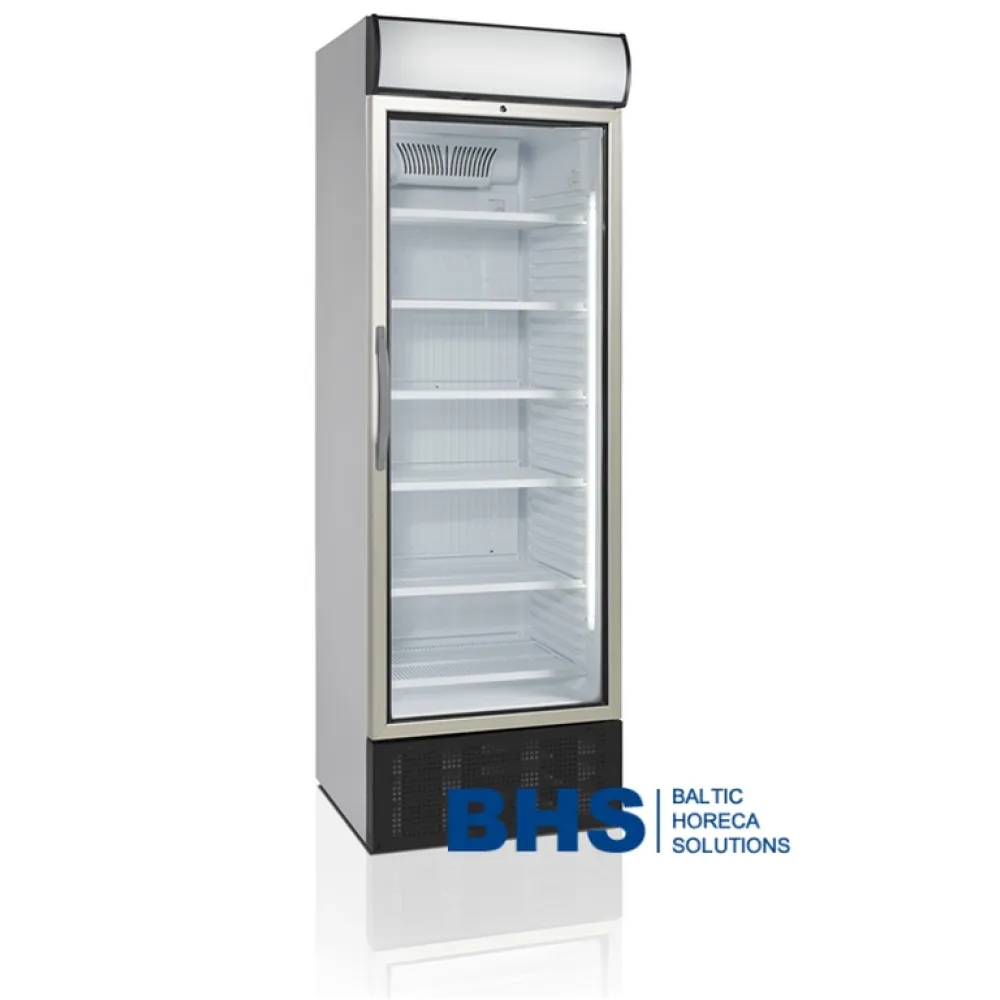

Refrigerated display cabinet TEFCOLD FSC1450

A fan distributes cold air uniformly, eliminating warm spots and ensuring consistent chilling. The hinged glass door allows staff to check stock levels without opening the unit, minimising cold-air loss and reducing energy consumption.

Six wire shelves can be adjusted to accommodate various bottle sizes. An illuminated canopy highlights the display, while the reversible door offers flexibility for different bar layouts. Adjustable feet ensure the unit remains level on uneven surfaces, maintaining an effective door seal and optimal cooling performance.

Designed for back-bar installation, the unit measures 680 mm wide, 655 mm deep, and 2,090 mm high. With a 374-litre capacity, it stores up to 720 standard 330 ml cans or 360 PET 500 ml bottles. The 102 kg weight typically requires two people for safe positioning. It operates on a 220-240 V 50 Hz power supply, compatible with standard UK commercial circuits.

The six white wire shelves, each 574 mm by 405 mm, support stock while allowing airflow. The temperature range of +2 °C to +10 °C keeps drinks chilled but not frozen, suitable for lagers, soft drinks, and bottled water. The unit uses 80 g of R600a refrigerant, selected for its environmental efficiency.

Maintenance includes wiping the glass door and wire shelves with a damp cloth. The fan and condenser coil at the rear should be vacuumed monthly to sustain airflow. The reversible door hinge can be adjusted with a screwdriver if the bar layout changes.
