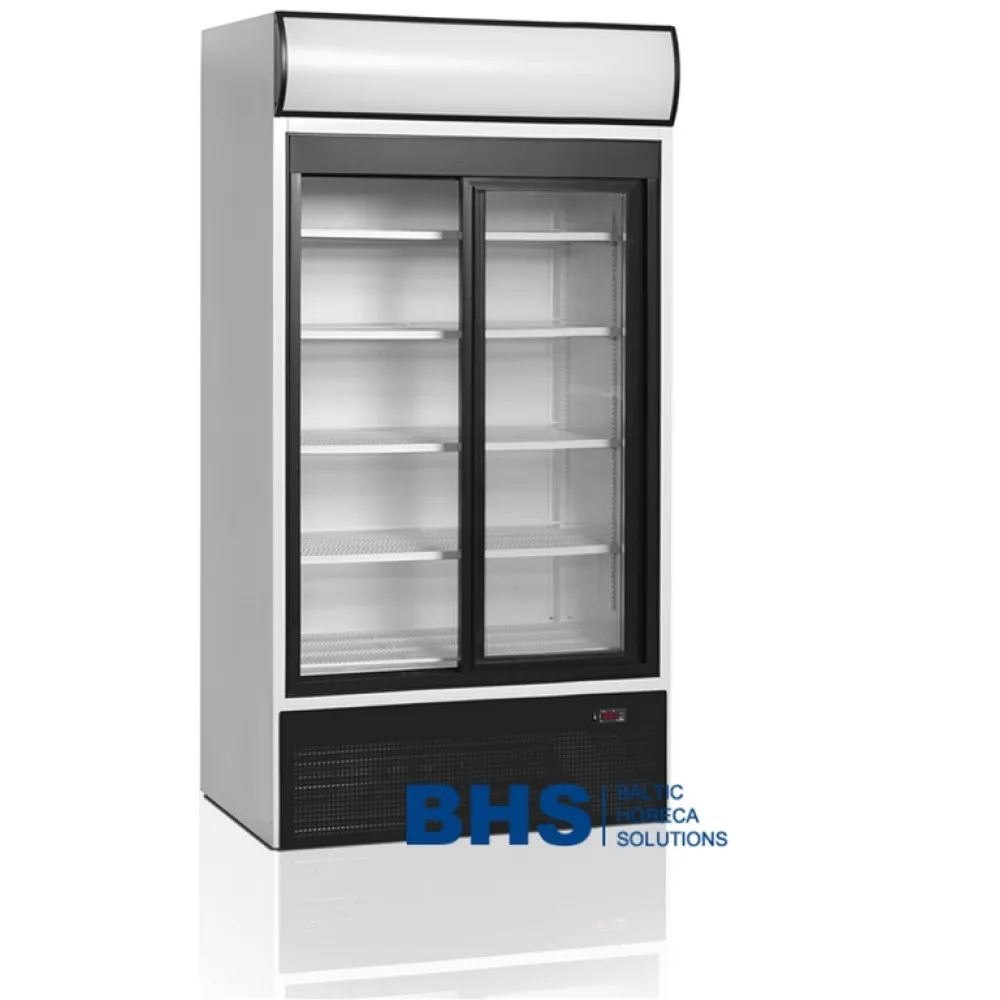

Refrigerated display cabinet TEFCOLD FSC1000S

A refrigerated display cooler keeps bottled and canned drinks chilled while making them visible to customers. The unit circulates cold air evenly across every shelf, preventing warm spots and ensuring consistent temperatures from top to bottom. Self-closing sliding glass doors seal the cabinet quickly, reducing the loss of cold air each time the door is opened. An illuminated canopy and internal vertical light draw attention to the products, turning the cooler into a point of sale without additional lighting overhead.

The operator loads drinks onto the five adjustable wire shelves, organising them by size or brand. The shelves slide out for easy access and can be repositioned to accommodate taller bottles or bulkier packs. Once loaded, the cooler maintains a temperature between +2 °C and +10 °C, preserving freshness without freezing. Adjustable feet level the unit on uneven floors, keeping the doors aligned and the glass clear.

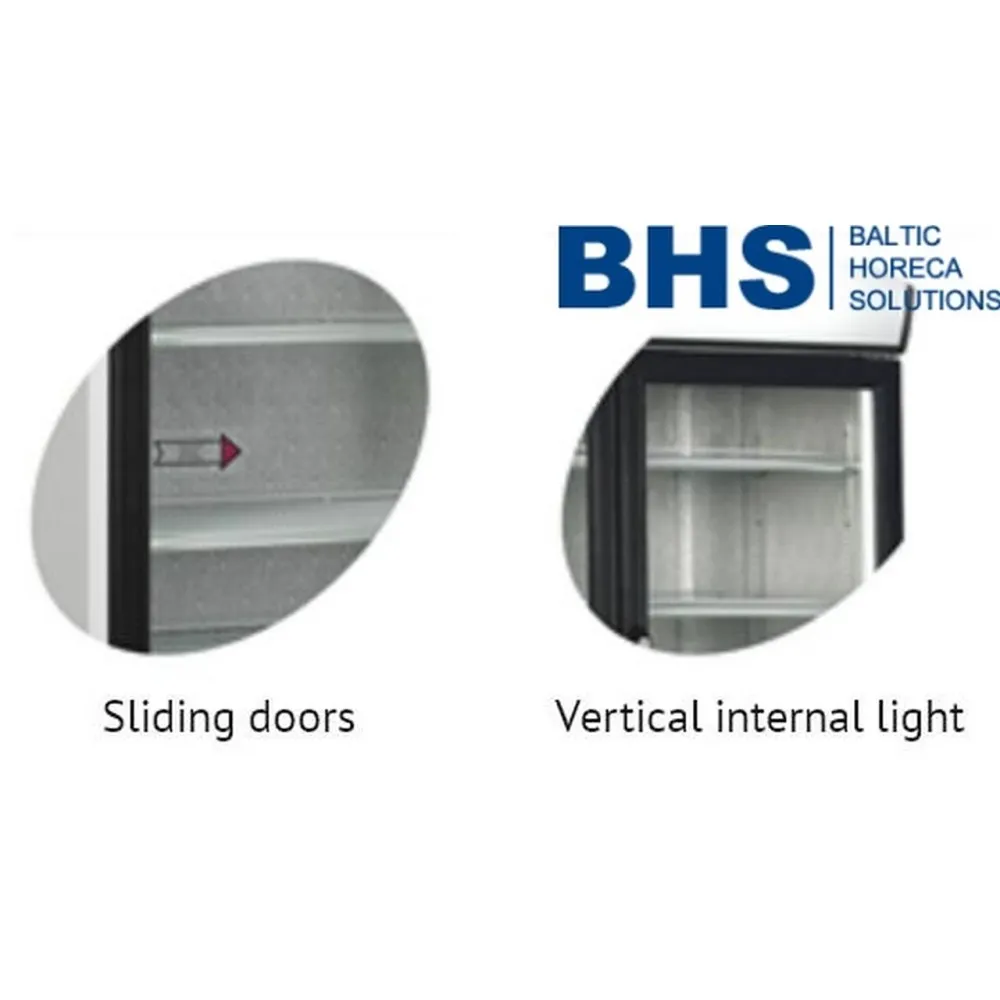

The cabinet is constructed with a ventilated cooling system that distributes air across every shelf. The refrigerant R290a circulates through the evaporator, absorbing heat from the interior and releasing it outside. Sliding glass doors minimise the opening area, reducing the workload on the compressor. The illuminated canopy runs along the top edge, casting light downward over the drinks, while the internal vertical light brightens the lower shelves.

Five white wire shelves provide sturdy support and allow air to circulate freely around the products. The self-closing mechanism on the doors ensures they shut automatically after each use, maintaining the set temperature. Adjustable feet at the base compensate for uneven flooring, preventing the unit from rocking and ensuring the doors slide smoothly.

A capacity of 524 litres translates to space for 1144 cans of 330 ml or 520 bottles of 500 ml. The footprint of 1000 mm by 740 mm fits into a standard worktop run, while the height of 2000 mm allows the unit to stand beneath most overhead cupboards. The weight of 159 kg requires two people to move the cooler into position, and the adjustable feet make final levelling straightforward once it is in place.

Cleaning involves wiping the wire shelves and interior surfaces with a damp cloth and mild detergent. The glass doors can be cleaned with standard glass cleaner to maintain visibility. The illuminated canopy and internal light should be switched off before cleaning to avoid electrical hazards. The ventilated cooling system requires occasional vacuuming of the condenser coils to prevent dust build-up, which can reduce efficiency.

The FSC1000S is designed for displaying chilled drinks in retail or catering environments, where visibility and accessibility drive sales. The combination of sliding doors, adjustable shelving, and internal lighting makes it suitable for high-traffic areas where customers select their own products.
