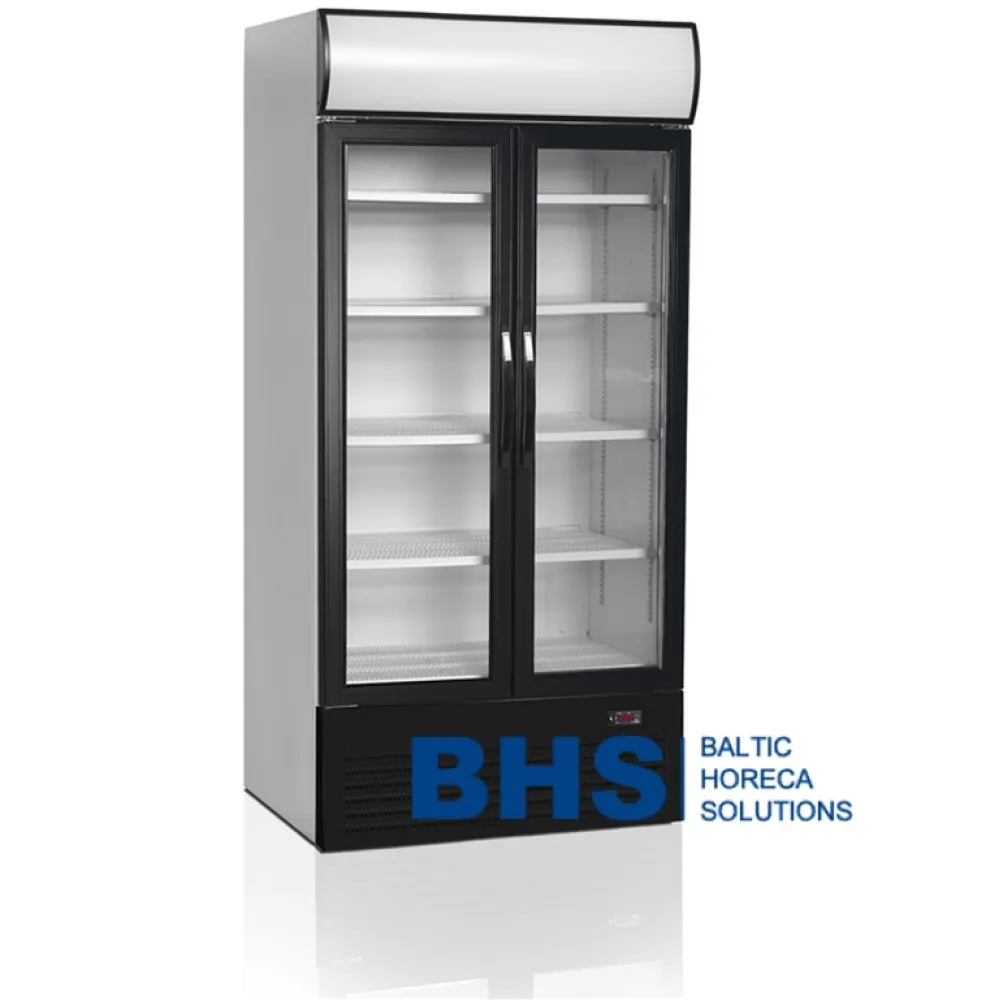

Refrigerated display cabinet TEFCOLD FSC1000H

A fan distributes chilled air uniformly, eliminating warm areas and reducing frost accumulation. The system chills more rapidly than static refrigeration, ensuring drinks remain condensation-free and ready for service.

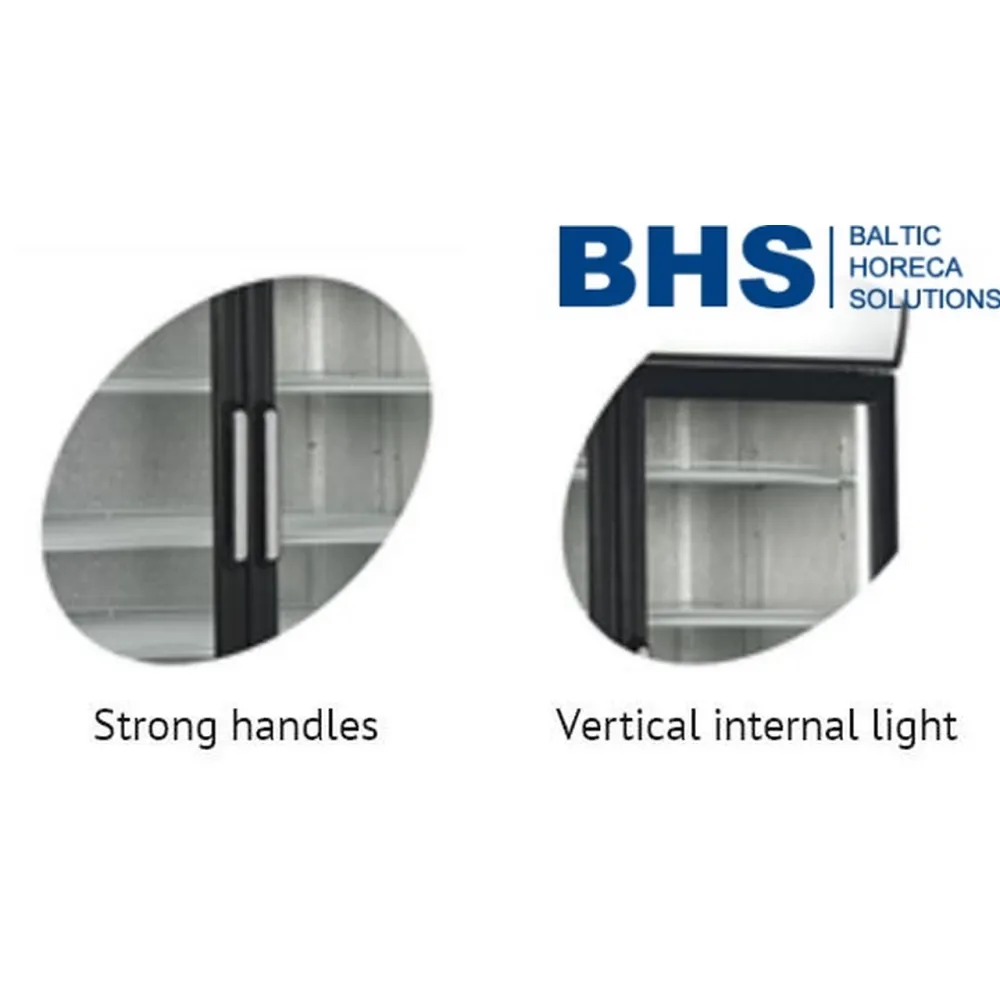

The unit features five wire shelves, each adjustable to accommodate various bottle and can sizes. The operator selects a temperature between +2 °C and +10 °C and secures the hinged glass doors. An illuminated canopy enhances visibility, while an internal vertical light ensures all shelves are clearly visible. Adjustable feet allow for stable placement on uneven surfaces, and the cooler operates automatically when connected to a standard power supply.

White wire shelves measure 870 mm by 470 mm and can be repositioned to suit different storage needs. Two outward-opening glass doors provide full access to the 524 litre capacity. The refrigerant used is R290a, with a 120 g charge, selected for its efficiency and reduced environmental impact.

With a 0.45 kW power rating, the cooler places minimal demand on a single-phase circuit. The 162 kg weight requires two people for safe relocation, and the 1000 mm width fits standard doorways. The five shelves organise storage for up to 1287 x 330 ml cans or 585 x 500 ml bottles, simplifying stock management.

Maintenance involves wiping shelves and glass with a damp cloth and clearing the rear condenser coil to sustain airflow. The internal light and canopy can be turned off during cleaning to avoid glare. Regular checks of the adjustable feet help maintain level positioning and proper door alignment.
