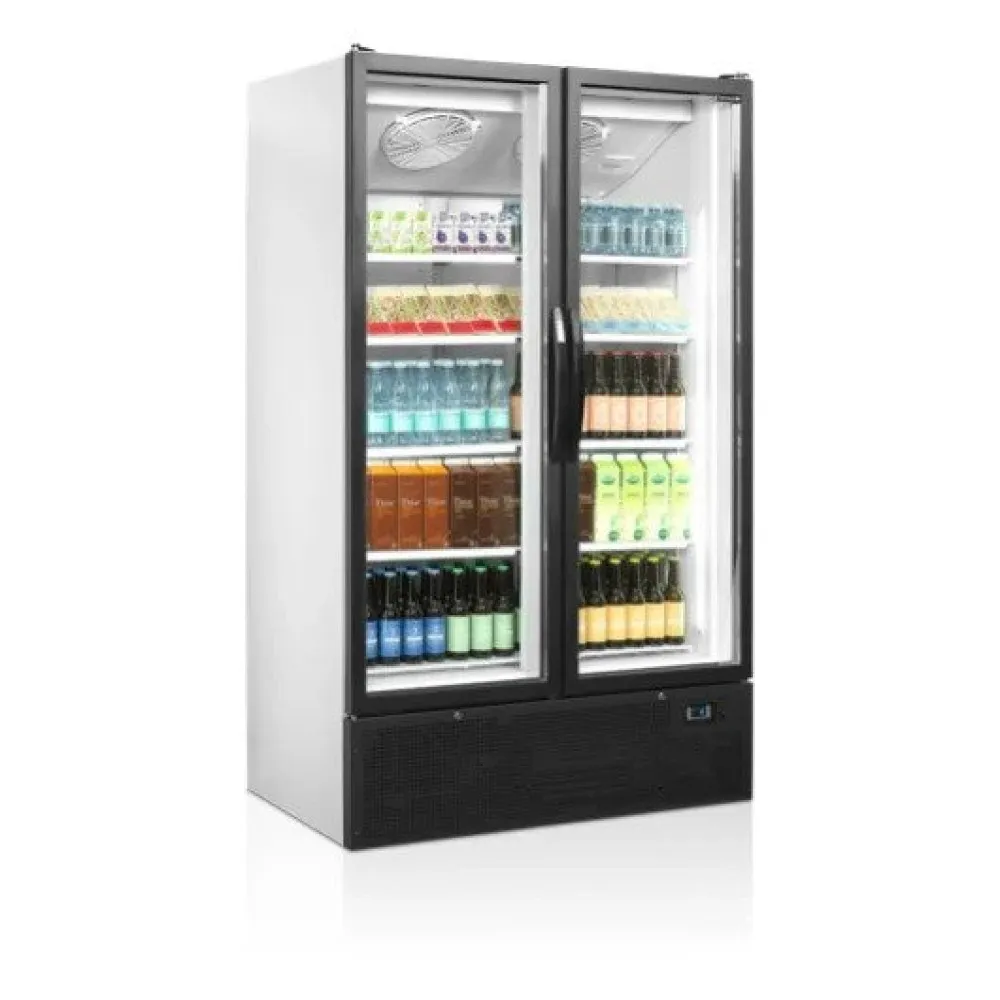

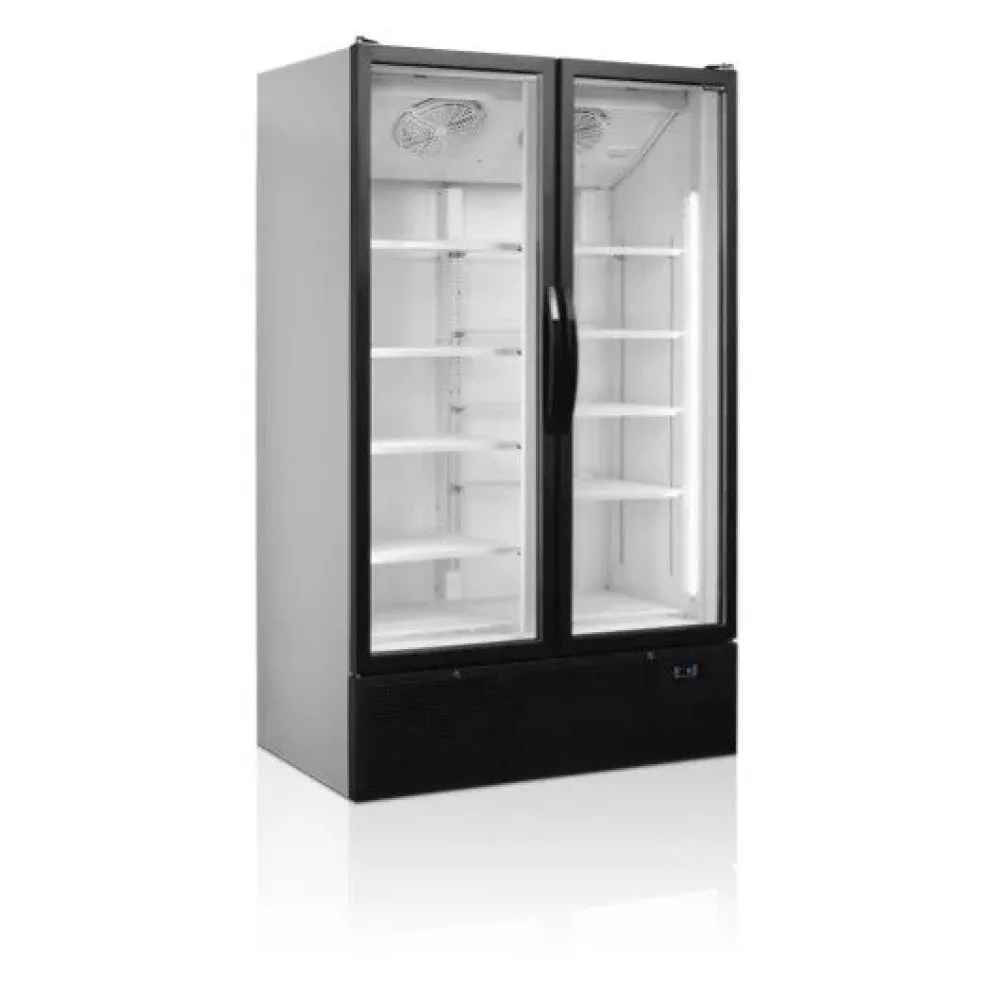

Refrigerated display cabinet TEFCOLD FS1202H

A double-door refrigerator built to keep large volumes of bottled and canned drinks chilled for shop display and quick service. The unit relies on a sealed refrigeration circuit charged with R290 refrigerant, which absorbs heat from the interior and expels it at the rear condenser. This cycle maintains a steady temperature between +2 °C and +10 °C, preserving product freshness without freezing. The compressor runs only as needed, balancing cooling demand with energy use.

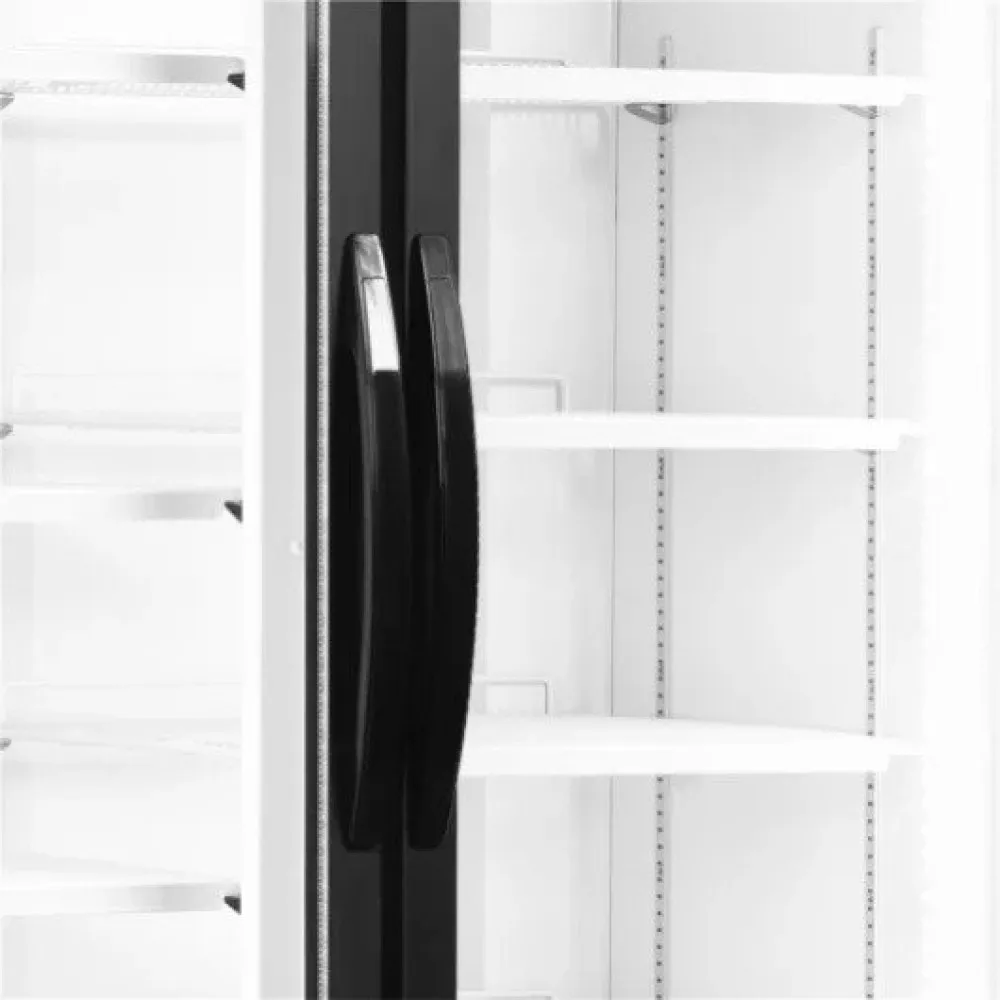

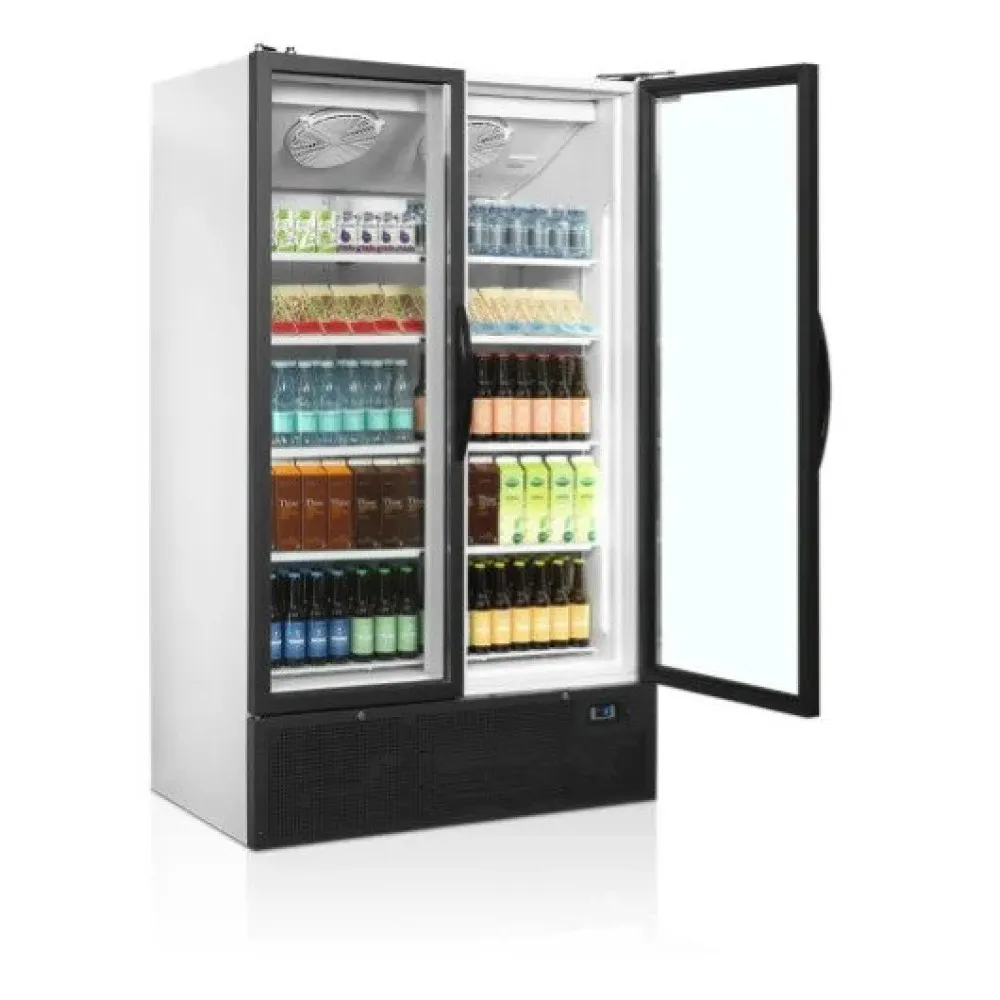

Loading is straightforward: open either self-closing glass door, slide cans or bottles onto the adjustable wire shelves, and close the door to restore the seal. Each door frame contains a vertical LED light that switches on when the door opens, illuminating the contents without adding heat. The shelves can be repositioned or removed to fit taller items, and the white interior reflects the light evenly across the entire 652 L volume.

The cabinet is constructed with a white exterior and interior, using materials chosen for durability in a busy retail environment. Ten wire shelves—five on each side—support the weight of stocked drinks, while the self-closing doors reduce cold air loss during frequent access. The unit stands on castors for easy relocation, though its 174 kg weight requires care when moving.

Controls are minimal: a thermostat inside the cabinet sets the desired temperature within the +2 °C to +10 °C range. The refrigerator connects to a standard 220-240 V single-phase supply, drawing 0.85 kW when the compressor is active. The footprint of 1200 mm width, 735 mm depth and 1990 mm height fits against a shop wall or between counters, leaving space for door swing and ventilation at the rear.

Cleaning involves wiping the wire shelves and interior surfaces with a damp cloth, and occasionally vacuuming the condenser coils at the back to maintain airflow. The LED lights require no maintenance, and the self-closing mechanism reduces the need for manual adjustment.

The FS1202H is designed for shop use, with a capacity to hold 1152 x 330 ml cans, 816 x 500 ml cans, 560 x 330 ml bottles or 560 x 500 ml PET bottles. It is categorised as a professional refrigeration unit for retail display.
