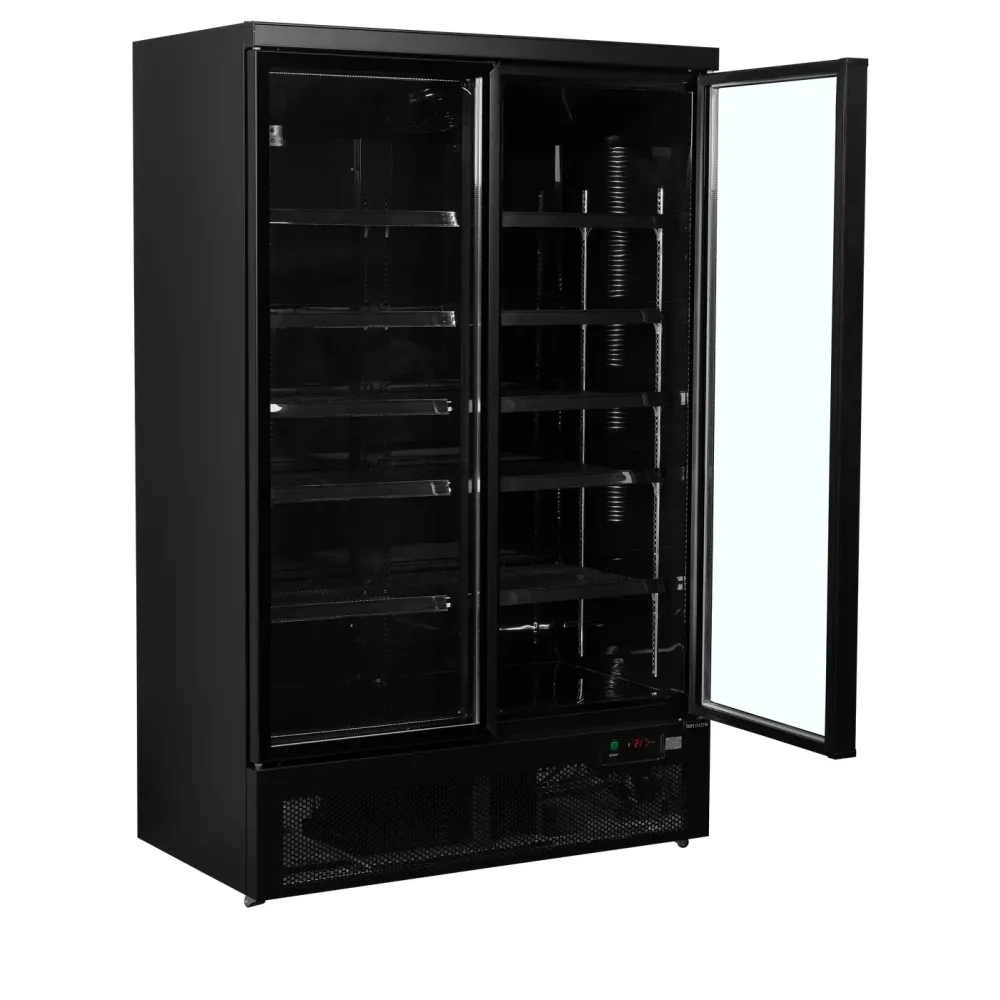

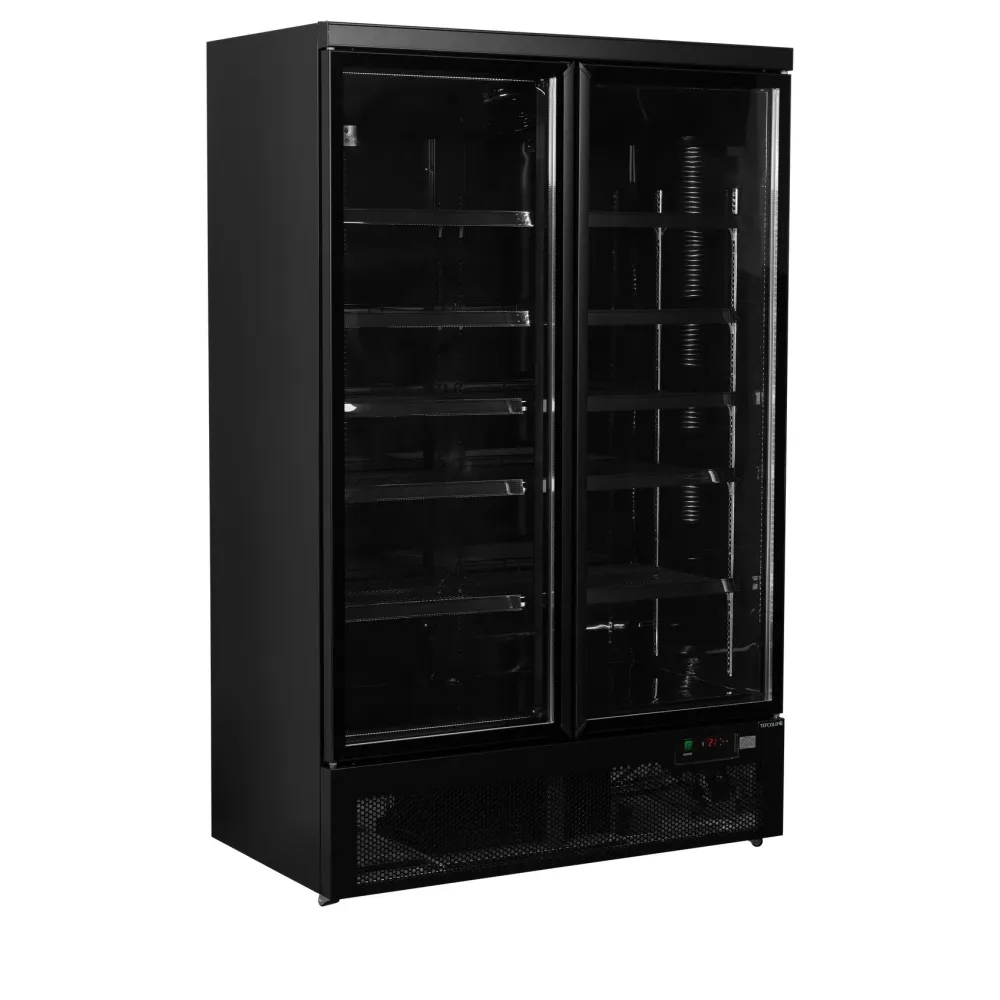

Refrigerated display cabinet TEFCOLD C2DBB

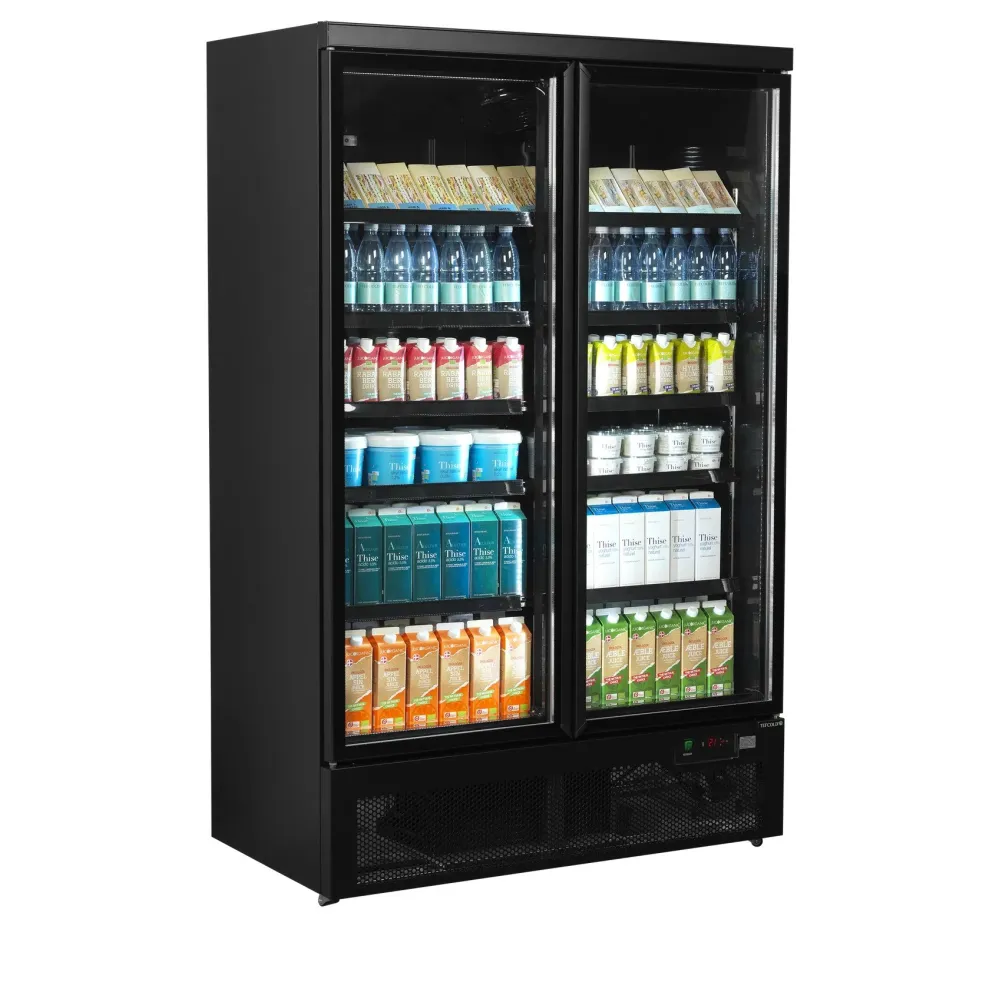

A refrigerated display case keeps bottled and canned drinks chilled while they remain visible to customers. The unit circulates cold air across adjustable shelves, drawing heat out of the products and rejecting it at the rear. A fan spreads the cooled air evenly, so every shelf reaches the same temperature range without hot or cold spots. The glass front and internal LED lighting let customers see the stock clearly, encouraging impulse purchases without opening the door and losing cold air.

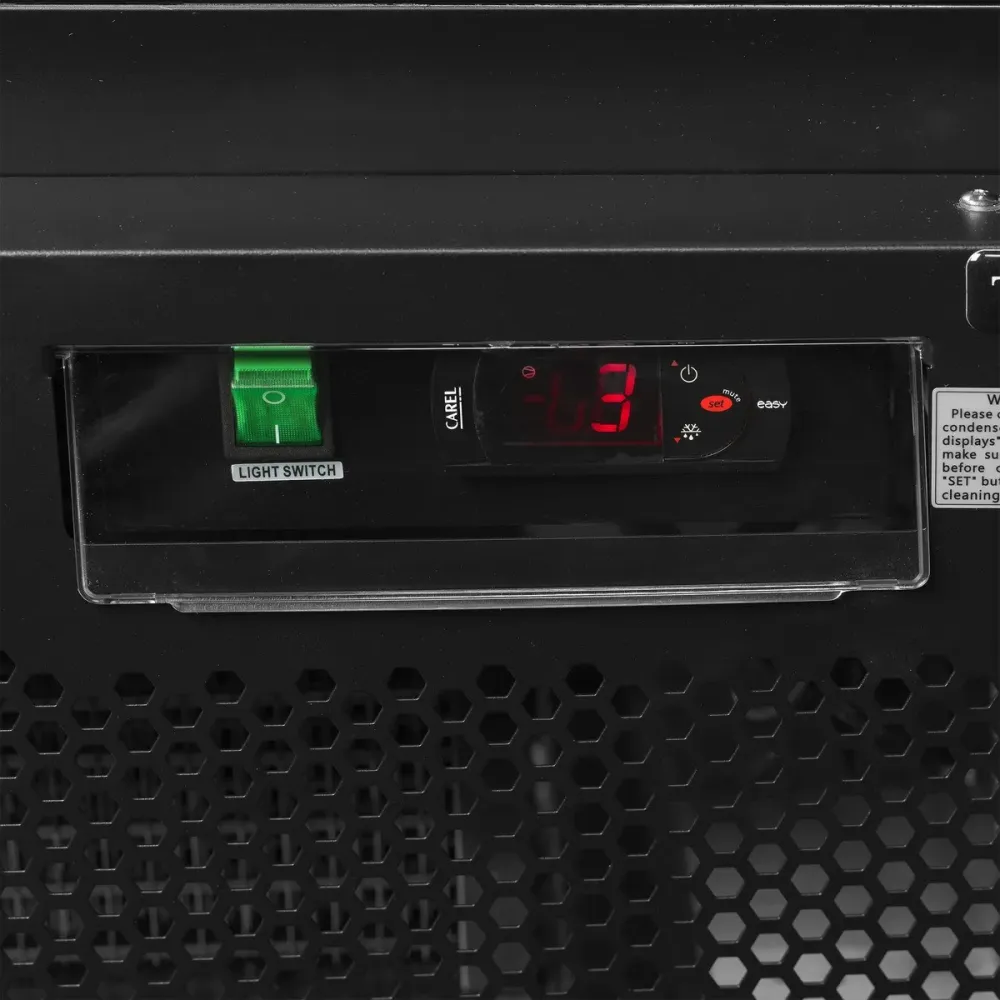

Loading the cooler begins with setting the digital controller to the desired temperature between -1 °C and +10 °C. Shelves slide out and can be repositioned to fit different bottle or can heights. Once the stock is arranged, the self-closing doors seal automatically, maintaining the internal climate. The tempered double-glazed doors also have a heating element to prevent condensation, keeping the glass clear for viewing. Wheels at the base allow the unit to be moved for cleaning or repositioning without lifting.

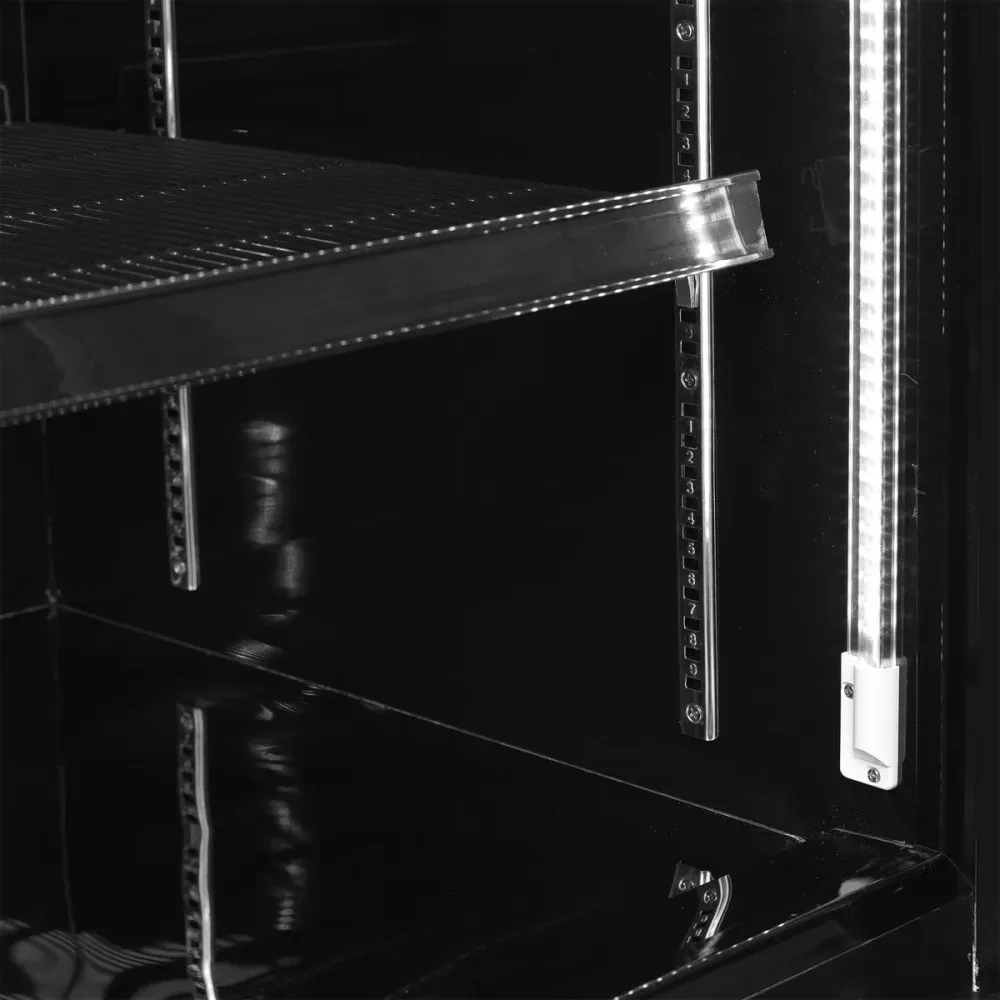

The cooler is built on a stainless-steel base with a mirror finish, supporting the refrigeration components and the 809 L interior volume. Adjustable wire shelves hold up to 800 330 ml cans, 504 560 ml cans, 630 330 ml bottles or 560 500 ml bottles. A ventilated cooling system circulates air through the cabinet, driven by a 0.46 kW compressor. The refrigerant is R290, charged at 110 g. The unit plugs into a 220-240 V, 50 Hz supply, drawing current suitable for a standard commercial circuit.

The temperature range of -1 °C to +10 °C keeps drinks cold without freezing, preserving carbonation and taste. The 1253 mm width fits into most retail floor plans, while the 179 kg weight requires two people or a trolley to move. The 809 L volume provides ample space for high-turnover stock, reducing restocking frequency. Shelves adjust in height to accommodate different bottle shapes, and the LED lighting highlights the products without adding heat.

Cleaning involves wiping the interior surfaces and shelves with a damp cloth and mild detergent. The stainless-steel base and mirror finish resist stains and fingerprints. The wheels allow the unit to be rolled away from the wall for access to the rear and condenser coils. The self-closing doors reduce the need for manual adjustment, and the digital controller displays the current temperature for monitoring.

The C2DBB is a display cooler designed for retail environments, with a freezer option available for models requiring lower temperatures.
