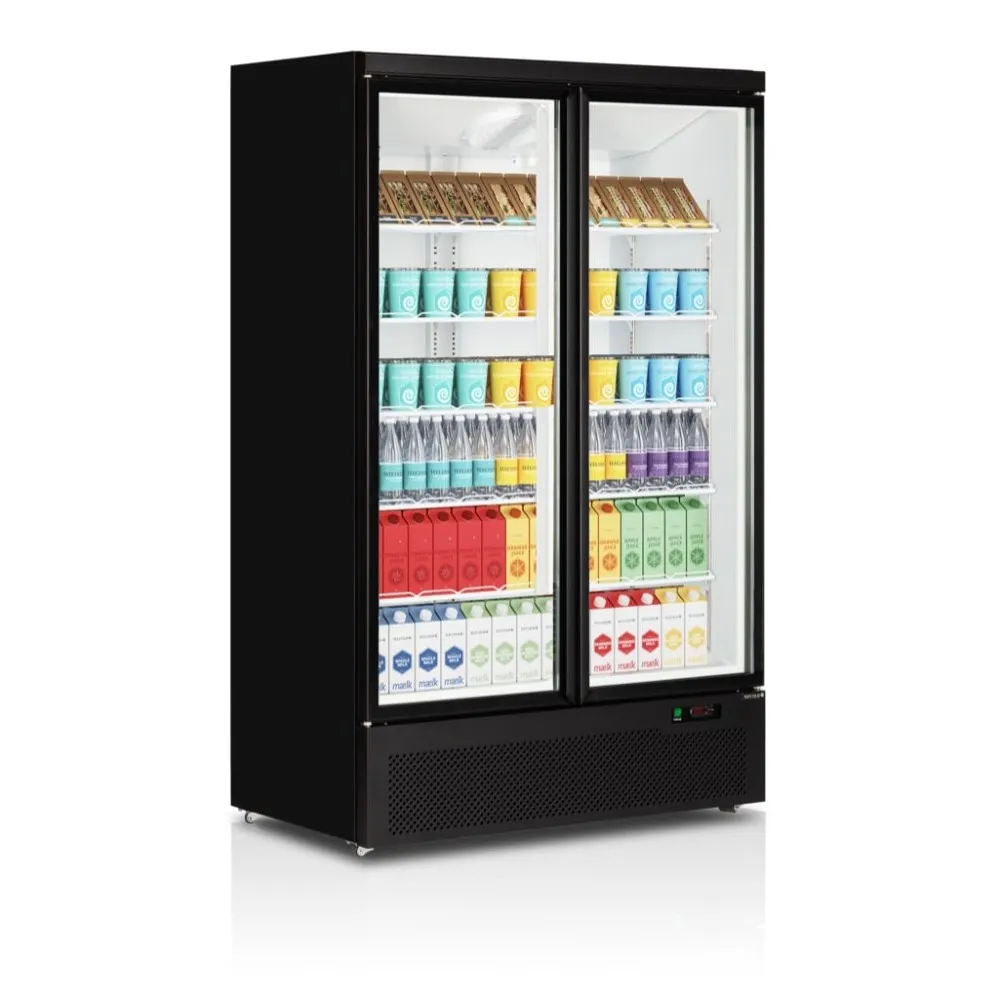

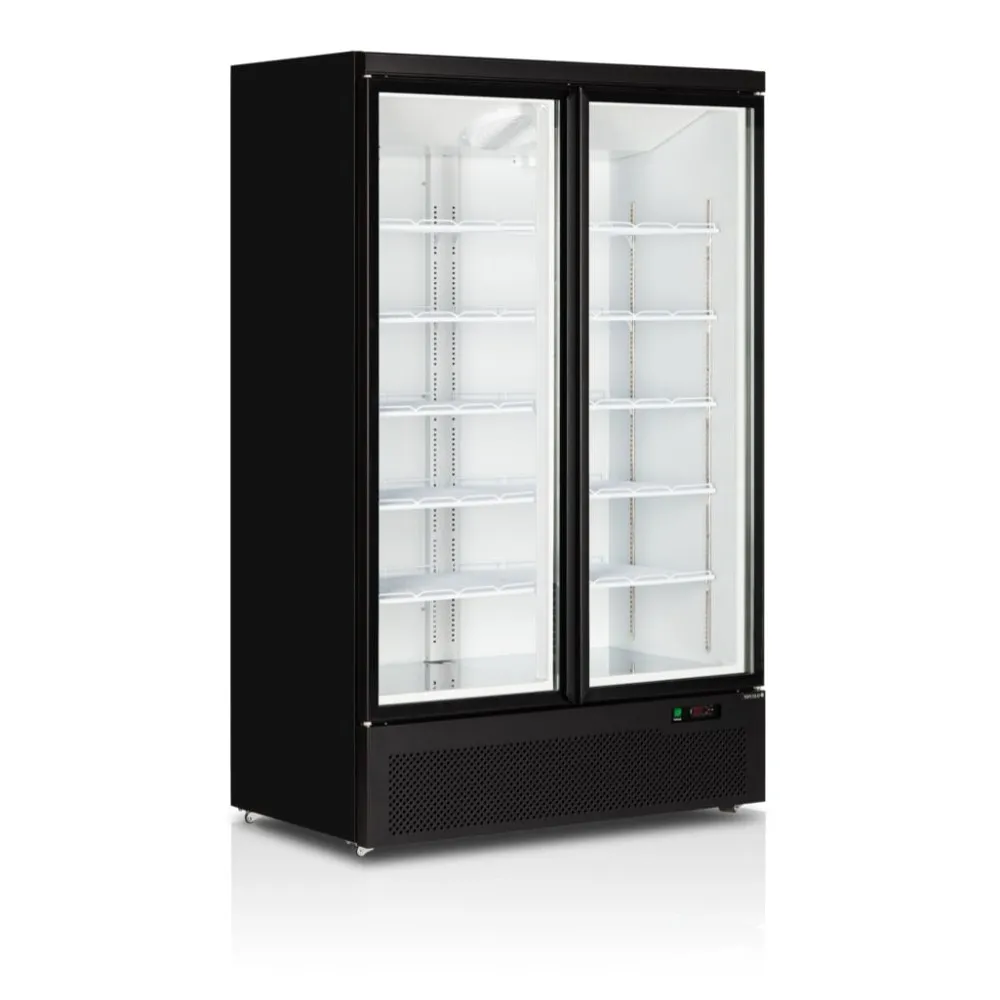

Refrigerated display cabinet TEFCOLD C2DB

A refrigerated display cabinet keeps bottled and canned drinks at serving temperature while letting customers see every item. The unit circulates chilled air behind a glass front; the air descends from a top-mounted evaporator, flows across the shelves and returns through a grille at the base. This constant movement keeps every shelf at the same temperature and prevents condensation on the glass, so labels stay clear and stock stays visible without fogging.

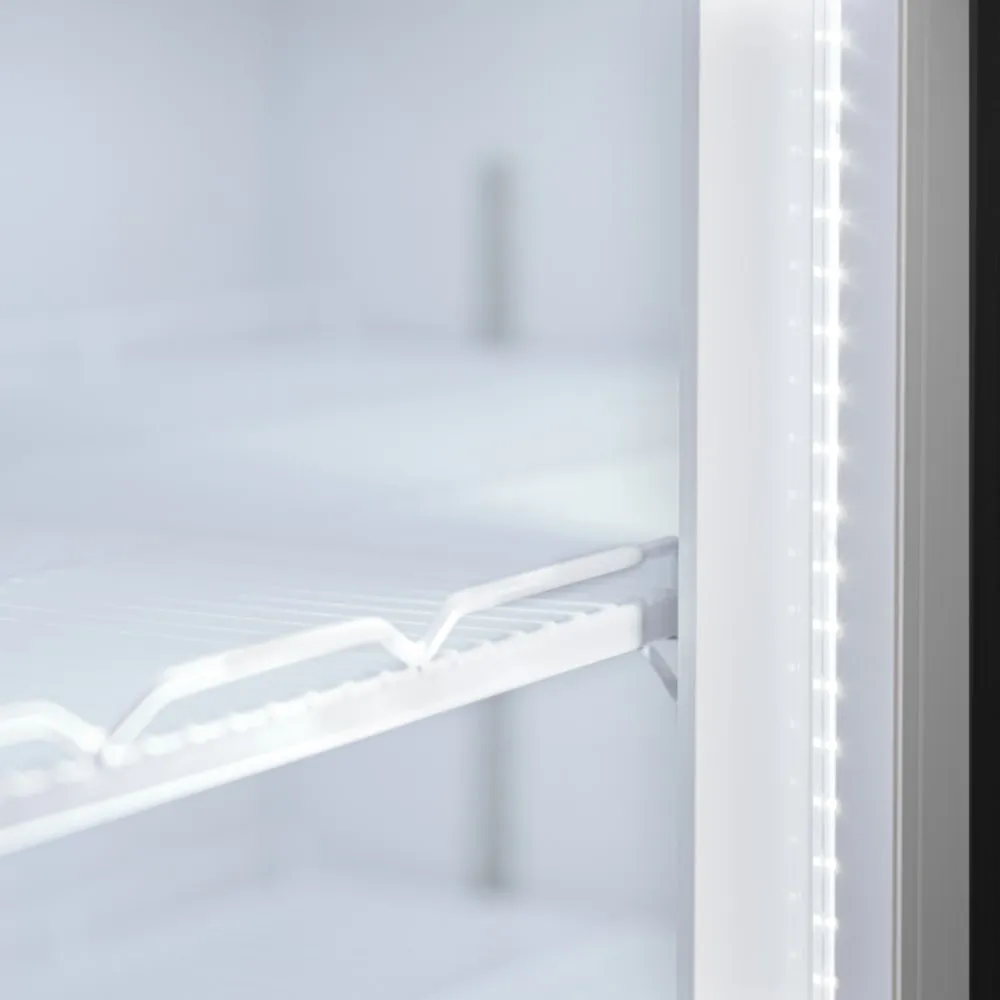

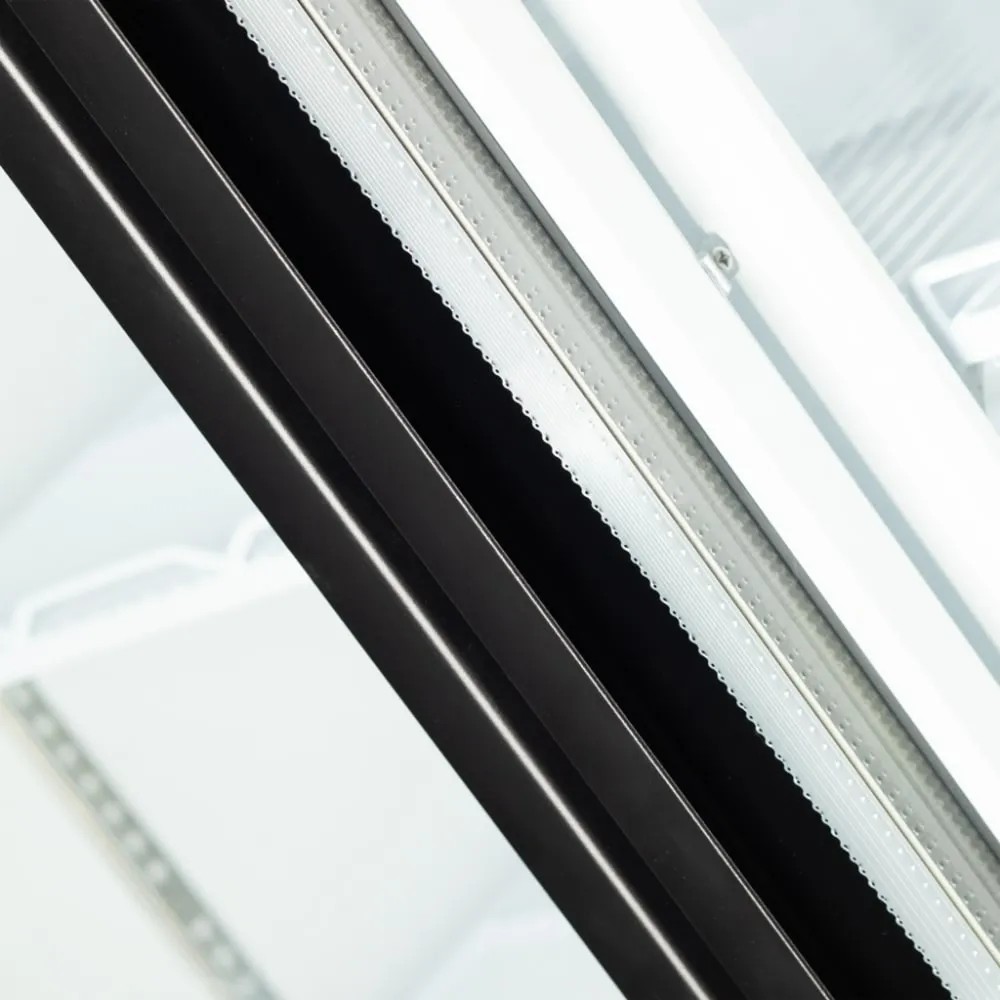

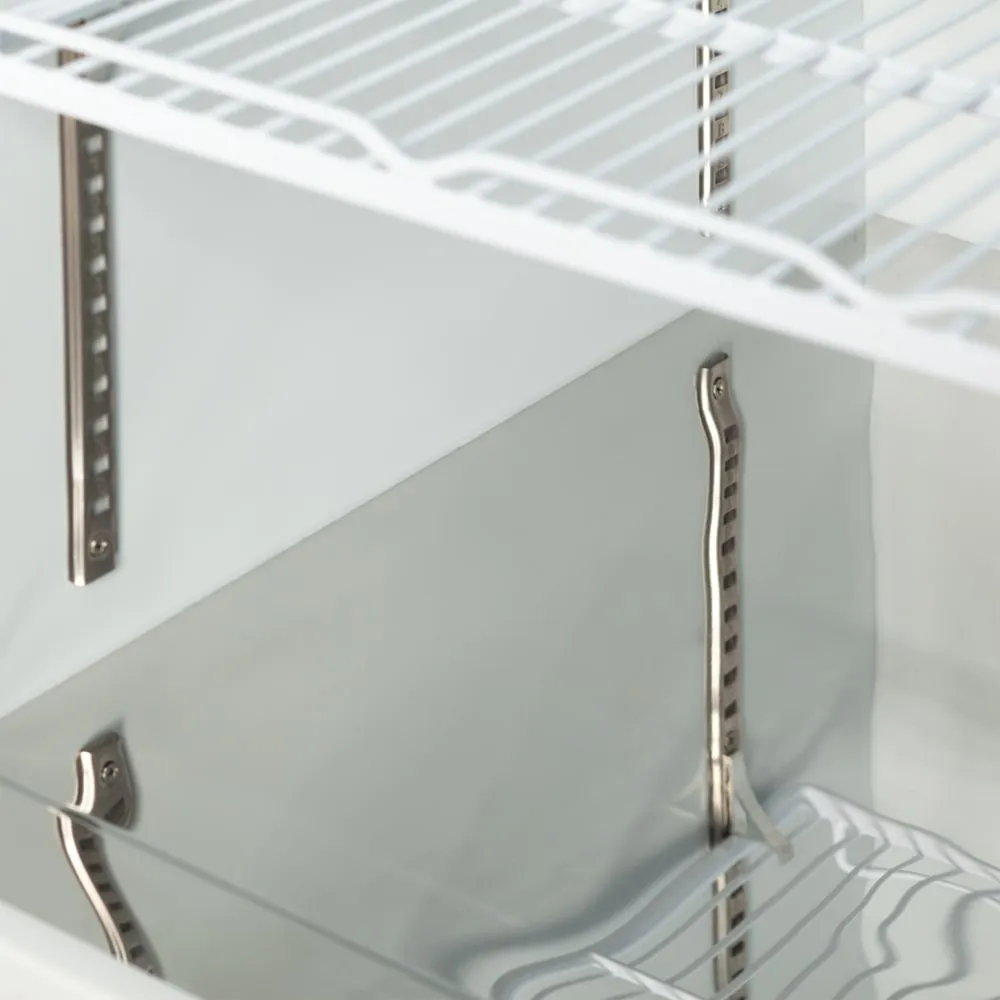

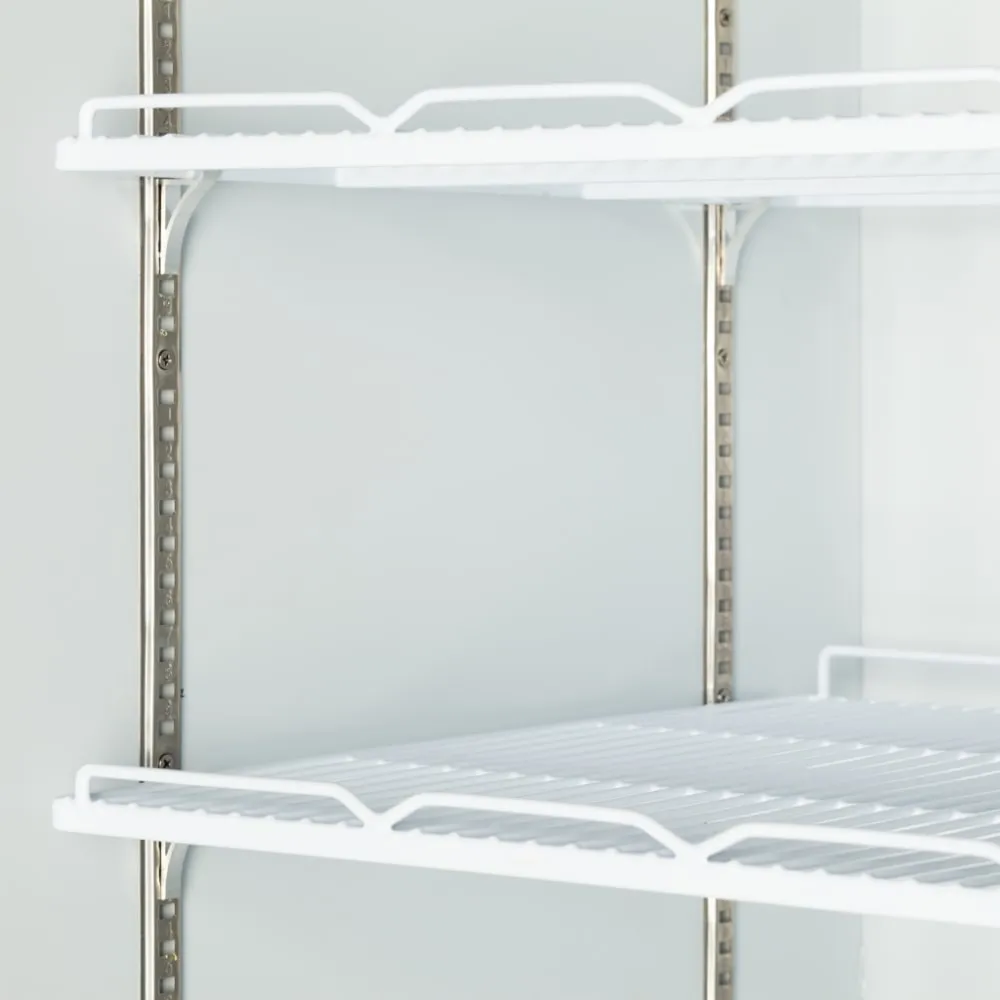

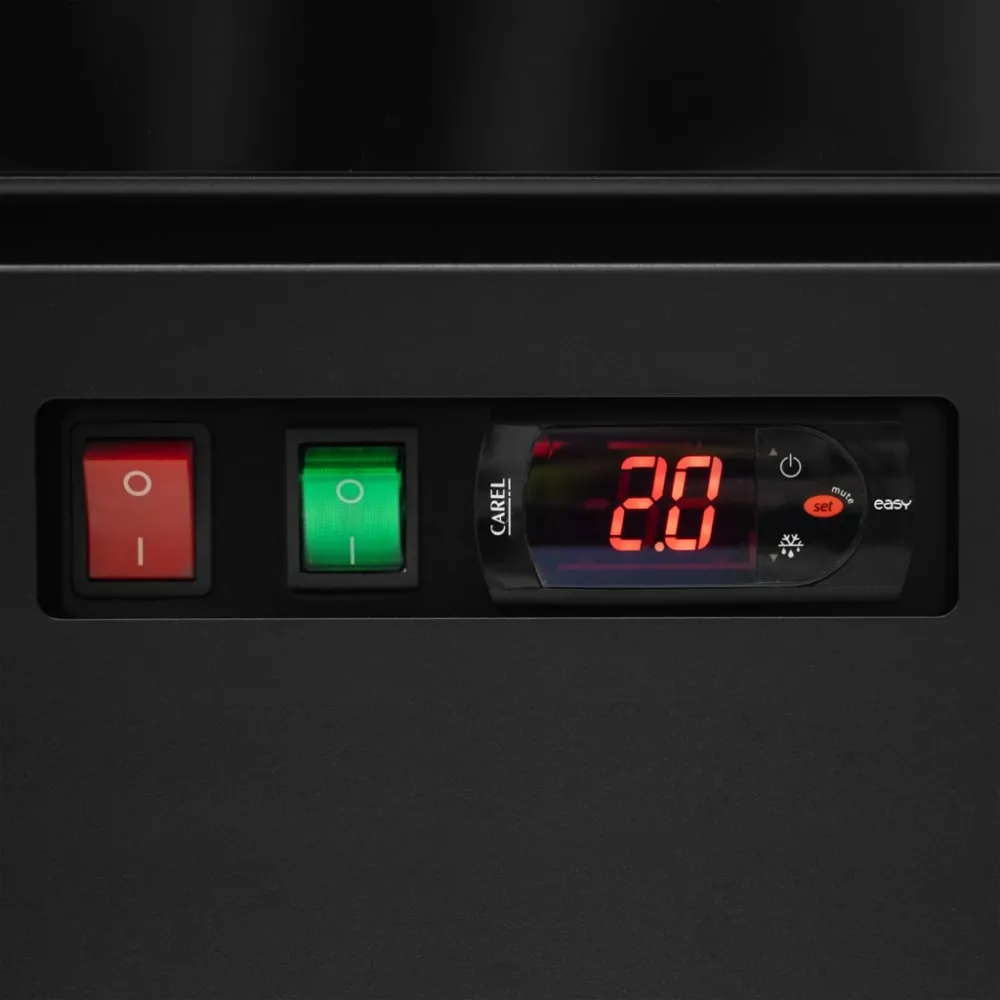

The operator loads the shelves from the front, sliding each row of cans or bottles into place. A digital controller on the top rail sets the temperature between -1 °C and +10 °C; once the setting is confirmed, the cooler maintains it automatically. Self-closing doors with heated double glazing seal the cabinet when not in use, reducing energy loss. Internal LED lighting switches on when the doors open, illuminating the stock without adding heat. Four adjustable wire shelves let the user organise different bottle heights and can diameters; the shelves clip into vertical tracks and can be repositioned without tools.

The cabinet stands on four lockable wheels, allowing it to be moved for cleaning or repositioning within the shop. A stainless-steel base with a mirror finish protects the floor and reflects the lighting upwards, enhancing the display. The refrigerant is R290, a hydrocarbon with a low environmental impact.

The cooler's 809 L volume holds up to 800 standard 330 ml cans, 504 larger 560 ml cans, 630 slim 330 ml bottles or 560 standard 500 ml bottles. Its footprint of 1253 mm wide by 710 mm deep fits against a typical shop wall or gondola end. The 179 kg weight requires two people to lift but is easily rolled by one once the wheels are unlocked. The 0.46 kW power rating draws a modest load from a standard 220-240 V single-phase circuit, matching the supply in most retail premises.

Cleaning is straightforward: shelves lift out for washing, the interior wipes down with a damp cloth, and the glass doors clean with standard window cleaner. The ventilated cooling system has no exposed coils, so dust build-up is minimal. The digital controller's display shows the current temperature, allowing the operator to check that the unit is holding the set point without opening the doors.

The C2DB is a single model; no variants are listed. It is designed for chilled display and does not include a freezer compartment, although a freezer option is available separately from the same brand.
