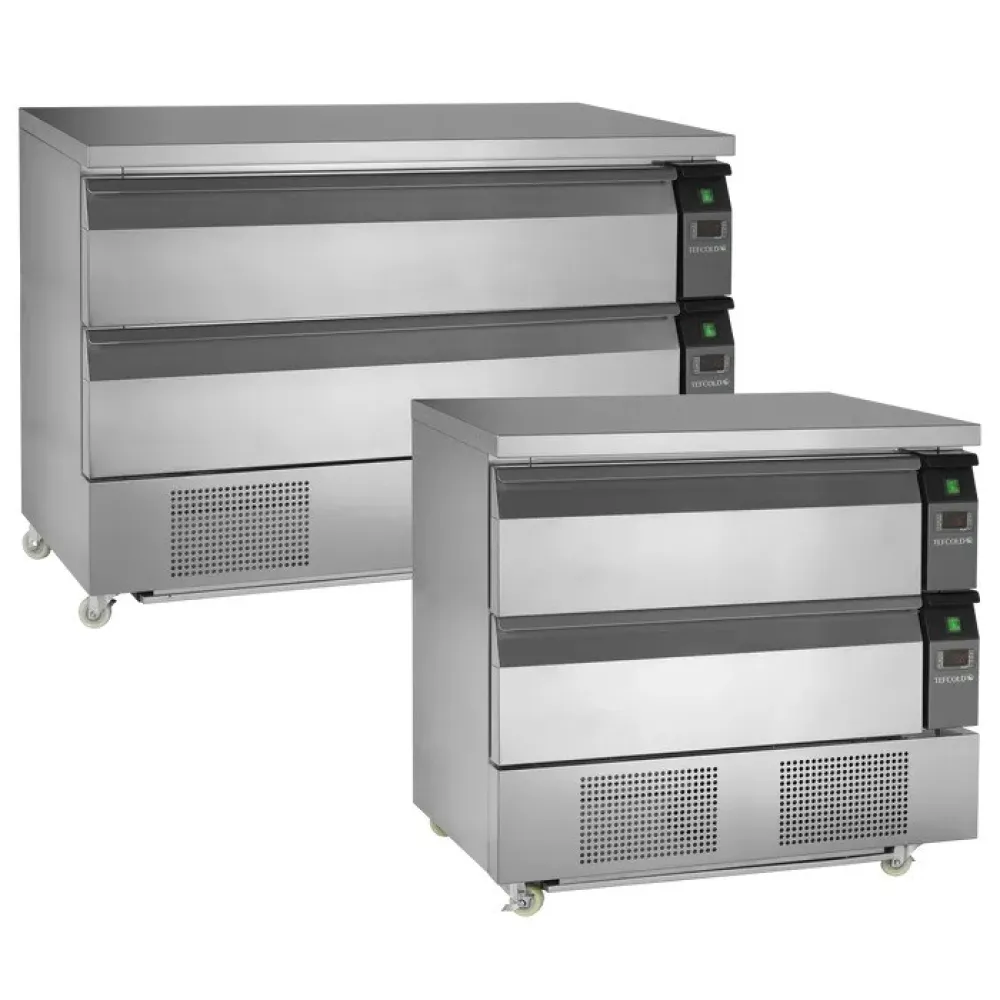

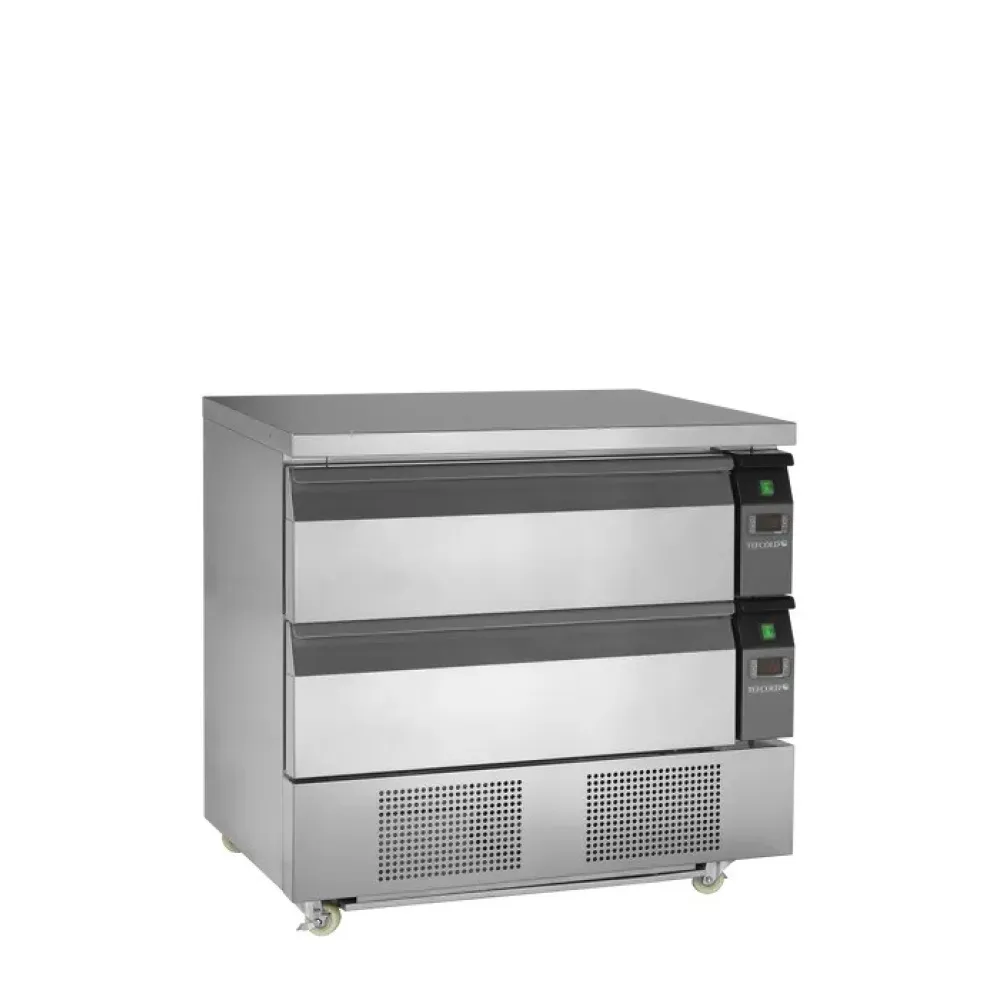

Refrigerated counter with drawers TEFCOLD UD2-22

This TEFCOLD worktop unit offers both chilling and freezing in a single appliance. Two gastronorm 2/1 pans fit side by side inside the drawers, allowing easy access without removal. A low-charge hydrocarbon refrigerant flows through finned coils behind each drawer, while a fan circulates air evenly throughout the cabinet. This ventilated system ensures rapid cooling and consistent temperatures across all pans.

Switching between modes requires only a single button press. The system adjusts to maintain either freezing temperatures of -21 °C to -18 °C or chilling temperatures of +1 °C to +4 °C. Once set, the unit operates continuously until the desired temperature is reached, then cycles to maintain it. An automatic defrost programme prevents ice build-up on the coils, eliminating manual defrosting.

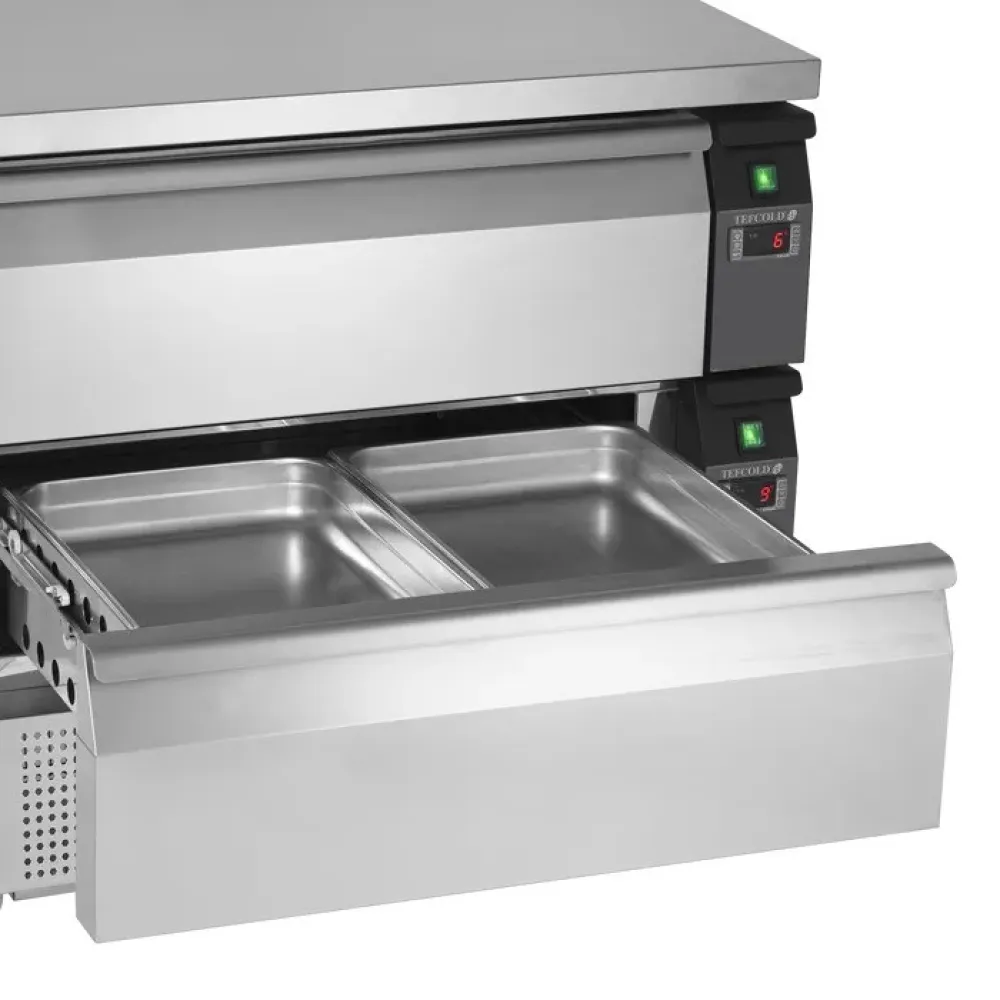

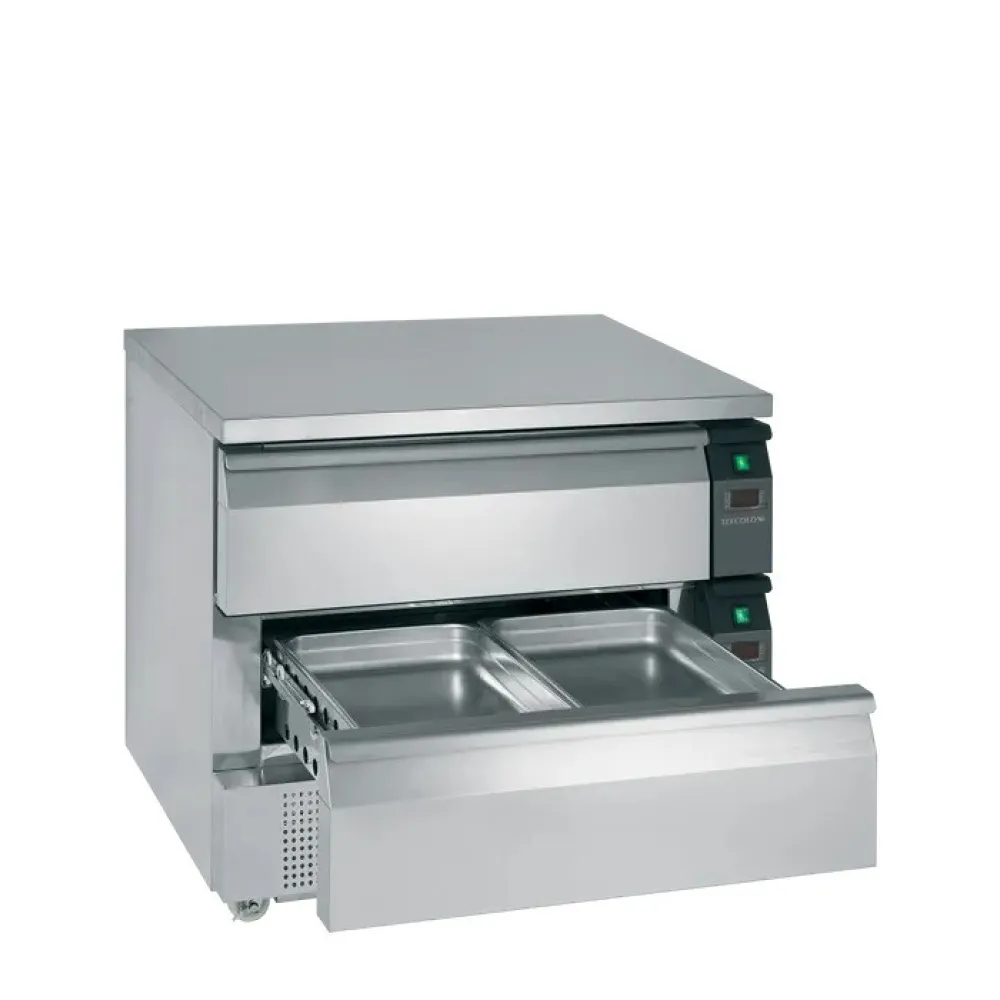

Operation is straightforward: extend the drawer, place the pan inside, close the drawer, select the mode, and leave the rest to the appliance. Each drawer functions as an independent insulated compartment, allowing one to freeze while the other chills, or both to operate in the same mode.

Constructed from stainless steel, the cabinet includes a worktop surface that aligns with standard kitchen counters. Full-extension slides support the drawers, ensuring smooth movement even when fully loaded. Refrigeration components are accessible via a slide-out chassis behind a removable panel, simplifying maintenance.

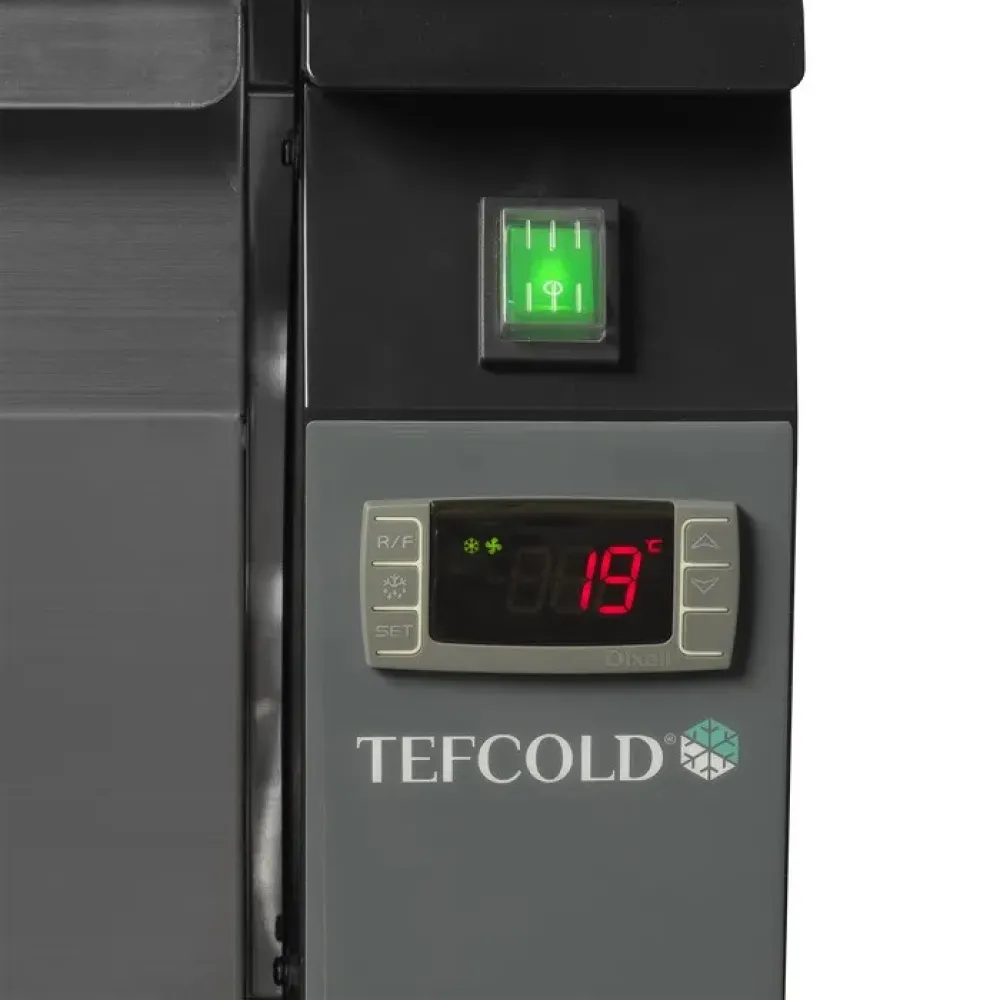

The control panel, positioned above the worktop, features a mode button, a digital temperature display, and indicator lights for power, defrost, and alarms. The temperature range accommodates everything from freezing stock to holding chilled desserts, making it versatile for various kitchen tasks.

With a power rating of 0.54 kW, the unit is suitable for standard electrical circuits. Its 113 kg weight requires two people for movement, but its 905 mm width fits standard worktop spaces. The 102 litre capacity holds two gastronorm 2/1 pans side by side, allowing efficient batch processing.

Cleaning is simple: drawers lift out for washing, and interior surfaces wipe clean with a damp cloth. The removable back panel provides access to the condenser coil, which should be cleaned monthly to maintain airflow. While the automatic defrost programme handles ice removal, the drip tray should be checked weekly and emptied if necessary.

The TEFCOLD 2 GN2/1 Uni-Drawer is available as a single model without variants, listed under worktop refrigeration in the catalogue.
