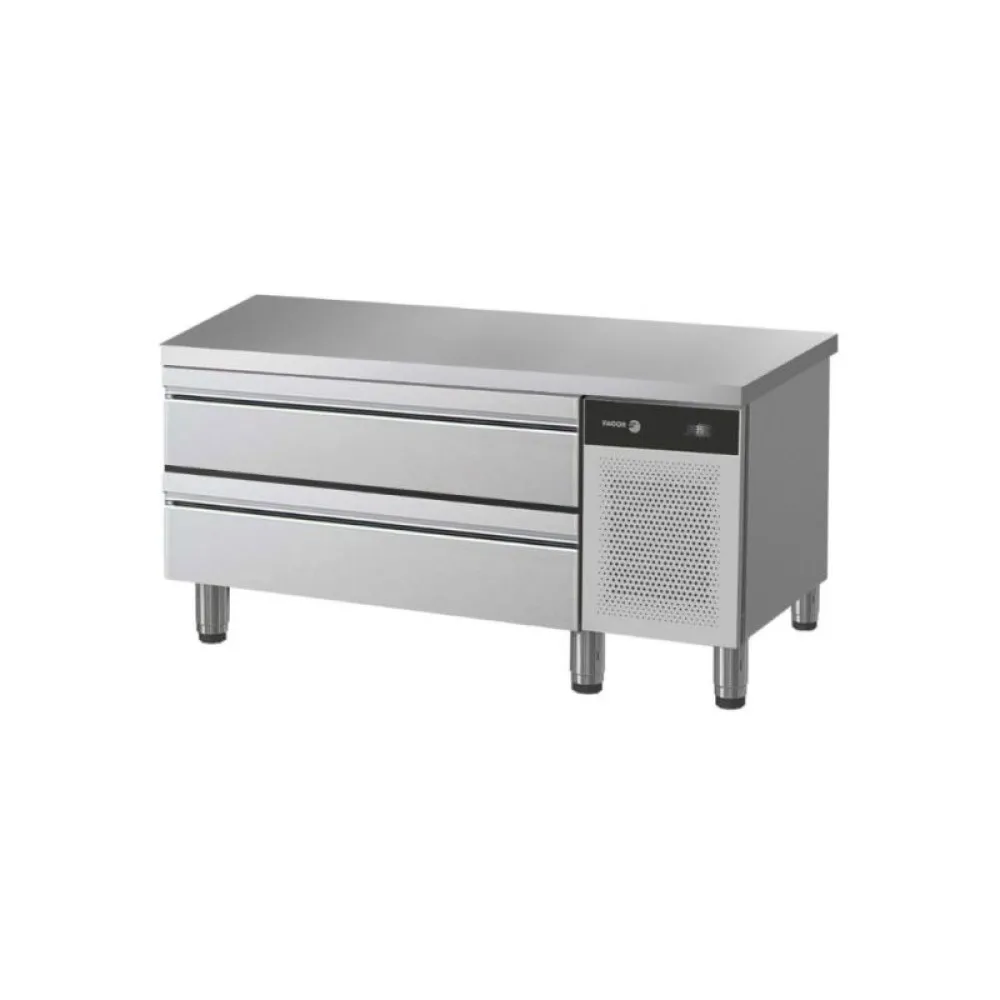

Refrigerated counter with drawers FAGOR 19105026

This refrigeration counter maintains perishable food at safe temperatures by circulating chilled air throughout its interior. A compressor circulates refrigerant in a closed loop, absorbing heat inside the cabinet and expelling it externally. Cooled air is distributed evenly to sustain a consistent temperature, slowing spoilage and extending freshness. The off-cycle defrost system periodically halts the compressor, allowing the evaporator to warm slightly and melt frost without disrupting the internal temperature. This approach minimises energy use and maintains stable storage conditions for food items.

The unit features pull-out drawers designed to hold two GN 1/1 gastronorm trays each. An electronic control panel allows setting the temperature between 0 °C and +8 °C. Once activated, the counter operates continuously, ensuring the selected temperature is maintained. Doors close automatically when released below 90° or can be secured at 120° for easier access. Condensate from defrosting is evaporated automatically, eliminating the need for manual drainage.

Constructed with AISI 304 stainless steel inside and food-grade stainless steel outside, the cabinet includes 50 mm of high-density polyurethane insulation. The worktop has a 100 mm rear lip to prevent spills from reaching the floor. Removable magnetic door seals help maintain hygiene and insulation. Adjustable stainless-steel legs ensure stability on uneven surfaces, while the front panel provides access to internal components without moving the unit.

With a 169 litre capacity, the counter holds sufficient stock for service periods without overcrowding. Its 1207 mm width fits standard worktop spaces, and the 590 mm height allows under-counter placement. The 110 kg weight requires careful handling and a sturdy floor. The 0.369 kW power rating operates on a 220-240 V single-phase circuit, suitable for most commercial kitchens. The R290 refrigerant is a low-impact hydrocarbon.

Cleaning is straightforward due to rounded internal corners and an integrated drainage system that directs liquids out of the cabinet. Magnetic door seals can be removed for washing. The ventilation grille permits built-in installation without compromising cooling efficiency.

The W2 model includes pull-out drawers for GN 1/1 trays. A 60 Hz version with the same refrigerant is available as an option.
