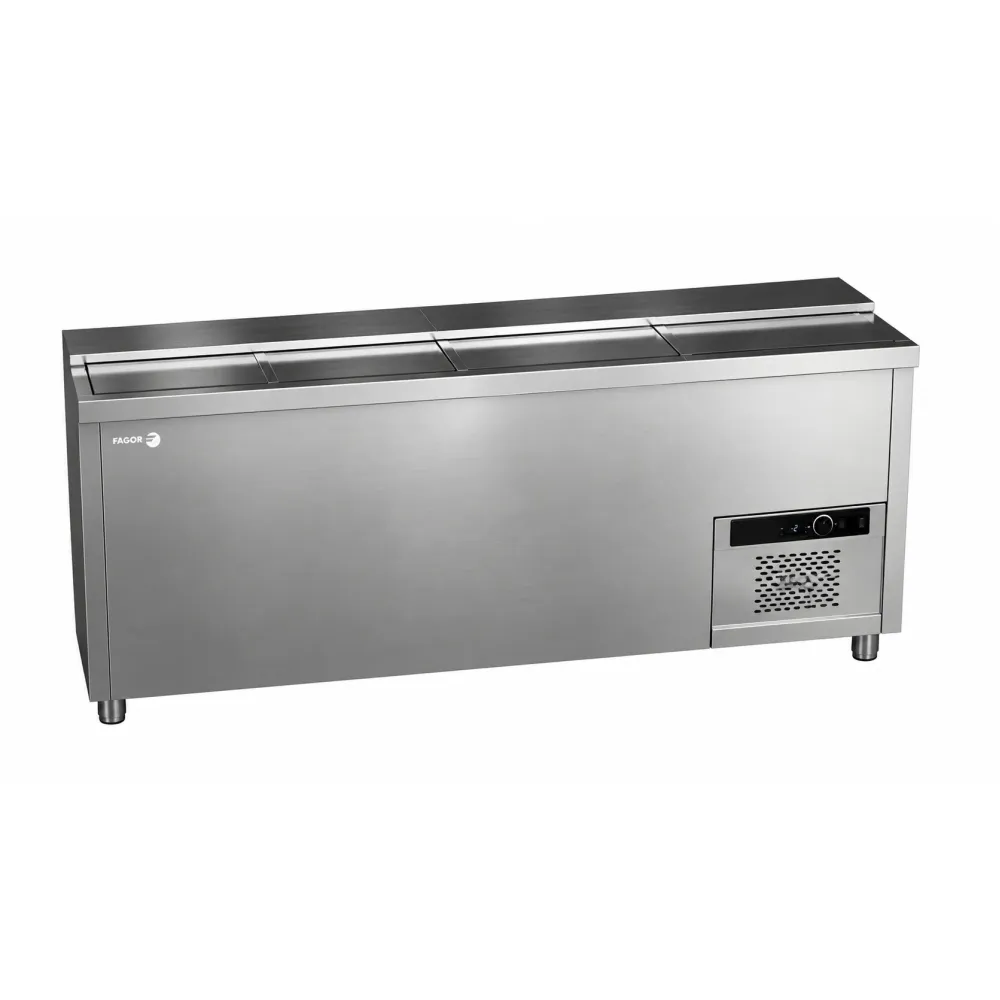

Bar refrigerator FAGOR 19089724

A top-loading bar refrigerator keeps bottles and cans chilled at serving temperature without taking up floor space behind a counter. Cold air settles naturally inside the cabinet, and the static cooling system circulates it without fans. This method avoids drying out labels or disturbing sediment in bottled drinks, while the thick insulation maintains a steady temperature even when the ambient air reaches tropical levels.

The operator loads bottles through the sliding stainless-steel roof panels, organising them on the vertical wire shelves. Each shelf acts as a divider, keeping stock visible and preventing bottles from rolling. The analogue thermostat is set once to hold the cabinet between +2 °C and +6 °C, the range that keeps drinks ready to pour without freezing.

Four sliding roof sections open independently, giving access to one section at a time. The interior and exterior surfaces are stainless steel, chosen for durability under constant use and for easy cleaning. The high-density polyurethane insulation contains no CFCs, reducing cold loss and energy consumption. The cooling coil is made of copper tubing with aluminium fins, positioned at the front right of the unit for efficient heat exchange.

An adjustable front ventilation grille ensures airflow even when the refrigerator is built into cabinetry. Removable front panels allow access to the cooling system for maintenance. Rounded interior corners and a built-in drainage channel simplify daily cleaning, while adjustable stainless-steel legs level the unit on uneven floors.

The 539 L volume provides ample storage for bottled and canned drinks in bars, restaurants and cafés. The 1994 mm width fits standard bar counters, and the 96 kg weight allows two people to move it without machinery. The 220-240 V single-phase supply matches the standard circuit in professional kitchens, and the 0.292 kW power rating keeps the load within typical limits.

The TLC-4 SS is classified as Climate Class 4, meaning it operates reliably in ambient temperatures up to +38 °C. A 60 Hz version with a 0.359 kW compressor is available as an alternative.
