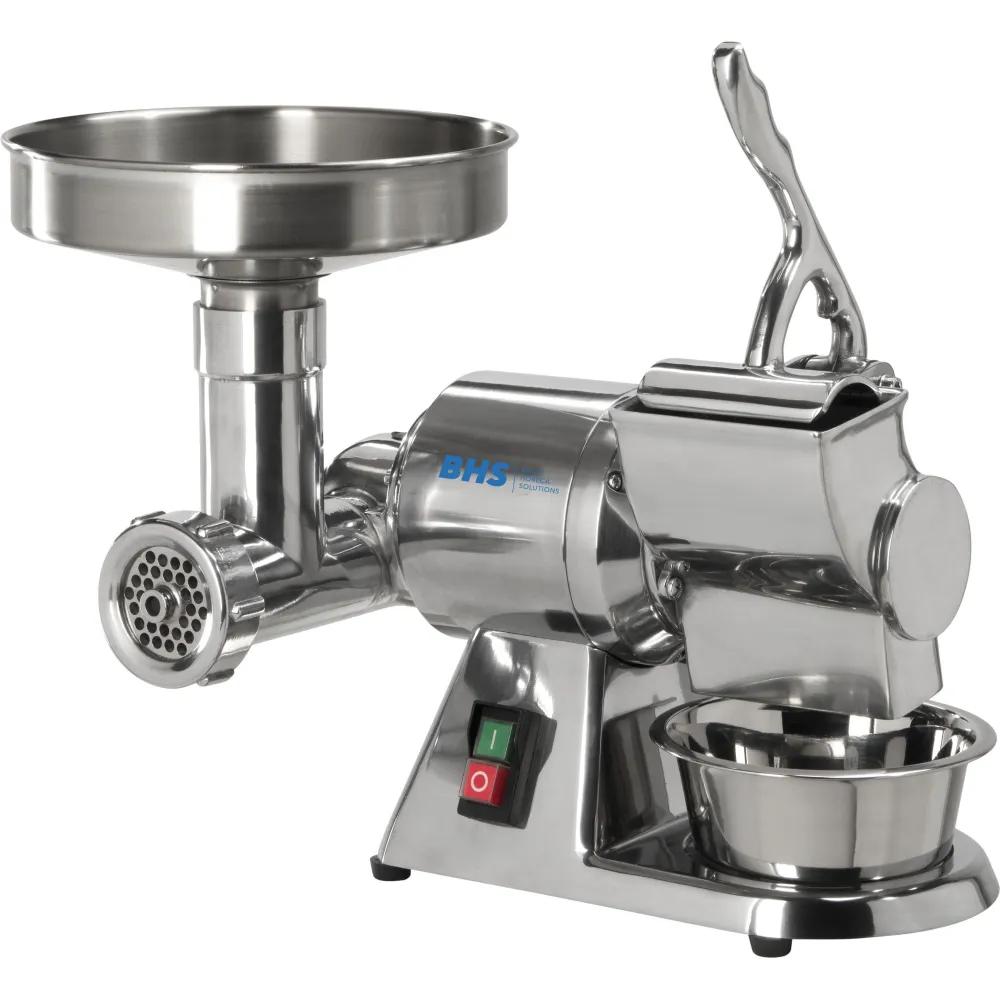

Meat grinder FIMAR BHS-AB8D

The FIMAR AB8D is a combined meat mincer and grater, designed for professional food preparation.

This appliance operates by mechanically processing food items. For mincing, a motor drives a screw mechanism that forces meat through a perforated plate. A rotating knife, positioned against the plate, cuts the meat into uniform pieces as it is extruded. The grater section functions similarly, with a rotating roller featuring abrasive surfaces that shred or grate food items passed over it.

To use the mincer, ingredients are placed into the stainless steel hopper. The machine is then activated, drawing the food into the grinding unit. The mincer is constructed with a polished aluminium structure and an aluminium grinding unit. It features a meat inlet measuring ø52 mm. The system includes a stainless steel plate with ø6 mm holes and a self-sharpening stainless steel knife, ensuring consistent results.

The grater section is equipped with a stainless steel roller. The grater inlet measures 105x65 mm. A microswitch is incorporated into the grater pusher for safety, stopping the operation if the pusher is not correctly positioned.

The capacity of the FIMAR AB8D is 20 kg/h, indicating the volume of food it can process per hour. Its power consumption is 0.37 kW, which relates to the electrical load it places on the supply. The dimensions of the unit are 430 mm in length, 270 mm in width, and 360 mm in height, defining its footprint on a work surface. Weighing 12 kg, the unit requires careful handling when moved.

Cleaning of the grinding unit and grater roller should be carried out after use. A lower protection grid is included as part of the construction.

This appliance is listed in the catalogue under meat grinders.
