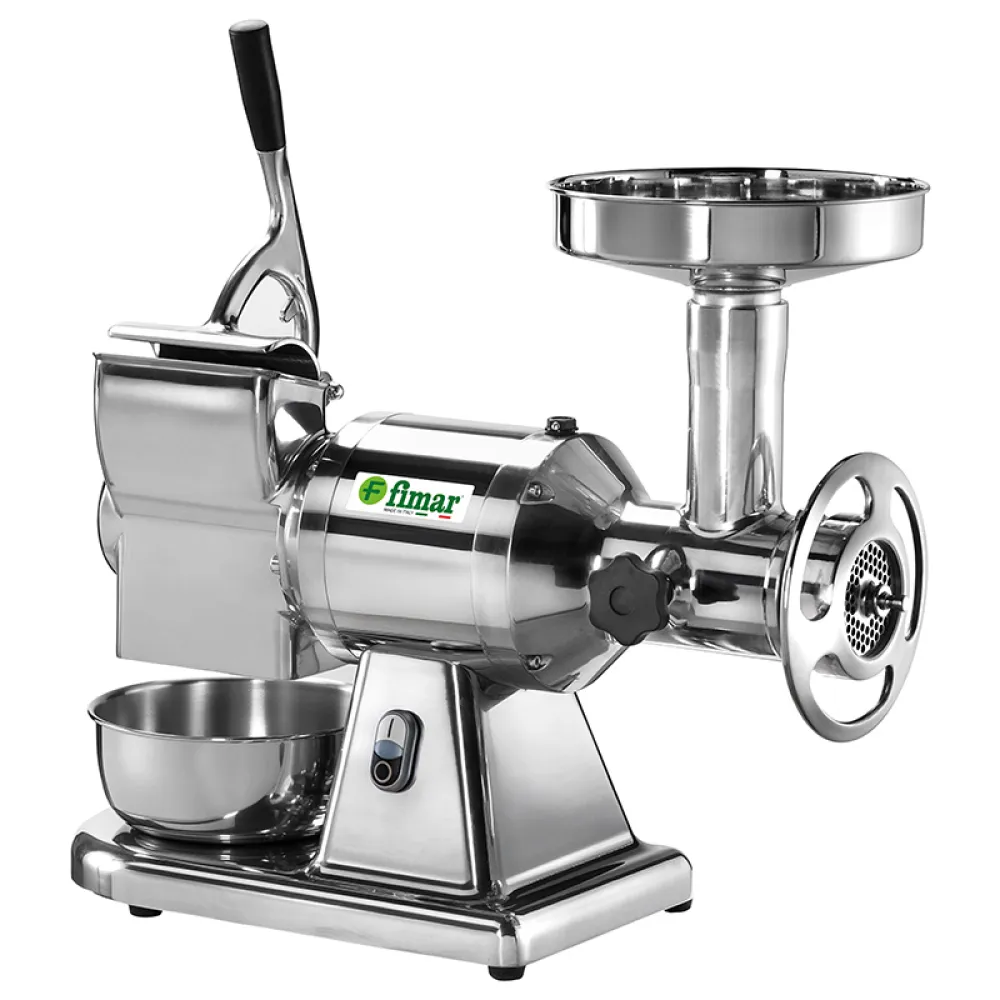

Meat grinder FIMAR 22T-unger

The FIMAR 22T-unger is a combined meat mincer and grater designed for professional use. This appliance integrates two functions into a single unit, allowing for meat and other ingredients to be processed.

The mincing function operates using the Unger system, which typically involves a screw mechanism that forces meat through a perforated plate. The unit includes a stainless steel knife and a 6 mm grid for mincing. The grinding unit is fully removable, facilitating cleaning and allowing it to be stored in a refrigerator. The drive mechanism is housed in an oil bath for smooth operation and longevity. A reverse function is incorporated to help clear any blockages.

The grater component features a polished aluminium hopper with dimensions of 140x75 mm. The grater cylinder is constructed from stainless steel, and a lower protective grid is fitted for safety. A microswitch is integrated into the grater's pressure lever, enhancing operational safety by ensuring the machine only operates when the lever is correctly positioned.

Construction of the mincer includes a polished aluminium body and a stainless steel hopper. The grinding unit itself is made from stainless steel AISI 304. Controls are low-voltage.

The specifications indicate a mincing capacity of up to 250 kg per hour, with a secondary rating of 40 kg per hour, suggesting different operational modes or ingredient types. The unit has a power consumption of 1.1 kW and operates on a 230-400 V, 3-phase electrical supply. Its dimensions are 750 mm in length, 305 mm in width, and 520 mm in height, with a weight of 29 kg. The meat receiver has a diameter of 52 mm.

Cleaning of the removable grinding unit is straightforward. The stainless steel construction of key components aids in hygiene and upkeep.

This appliance is listed in the catalogue under meat grinders.
