Meat display cabinet IGLOO SA220WG

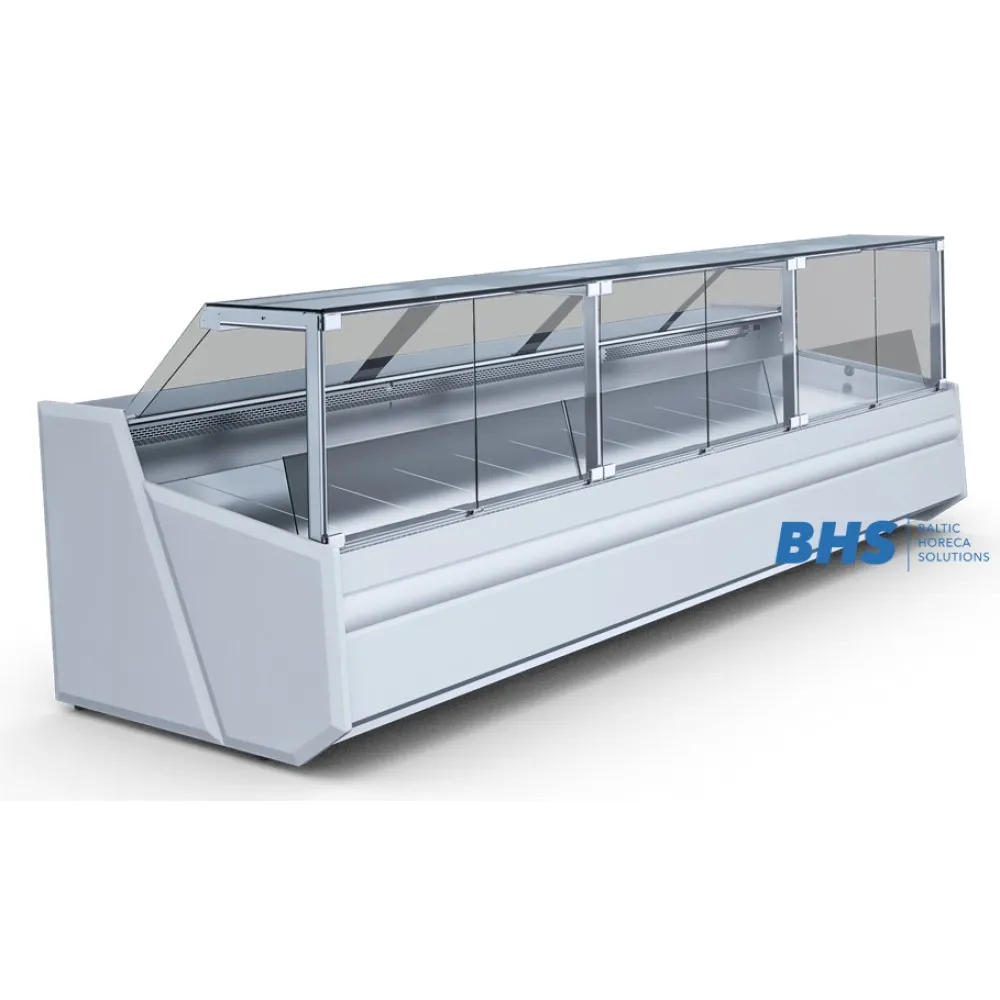

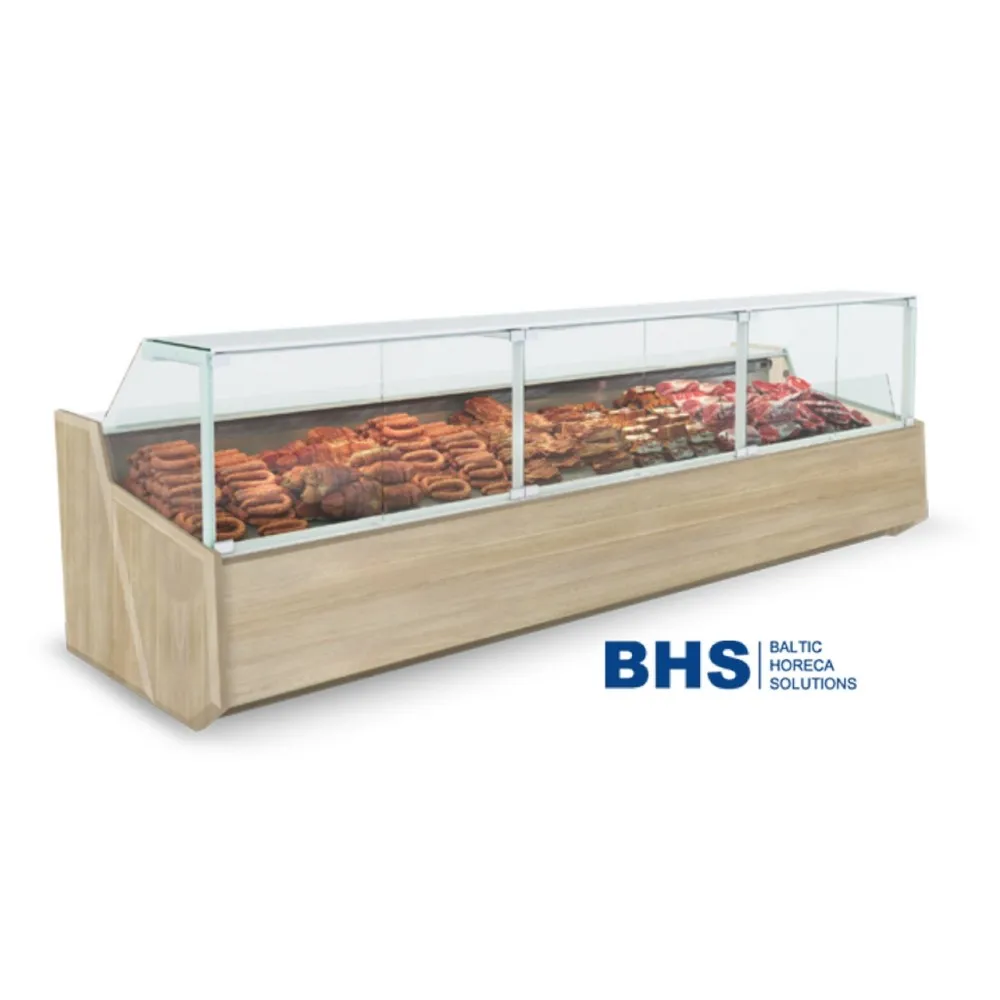

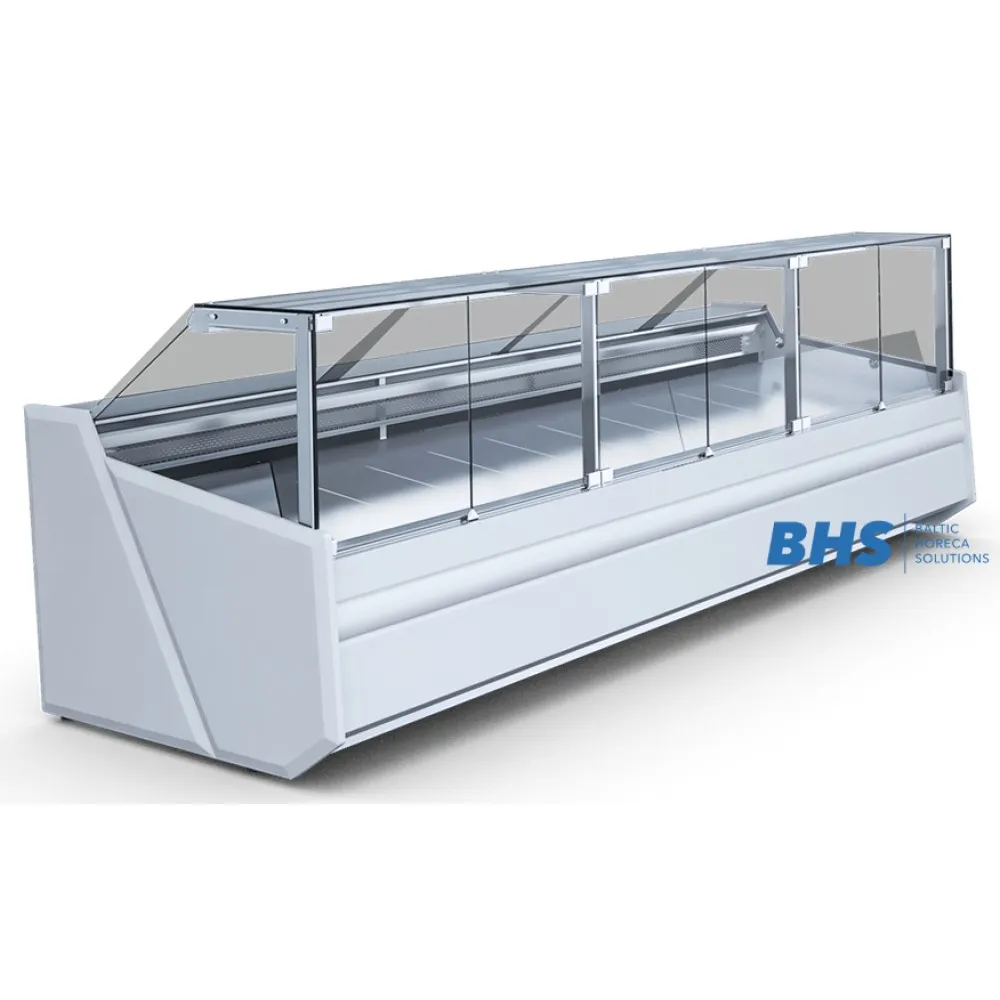

The SAMOS DEEP 0.94 is a cold showcase from IGLOO, part of the SAMOS line, article SA220WG. This type of appliance maintains a low temperature to preserve perishable goods.

It operates using an internal cooling aggregate and dynamic cooling. Dynamic cooling circulates cold air throughout the showcase, ensuring a consistent temperature across all levels. The system includes automatic defrost functionality to prevent ice build-up.

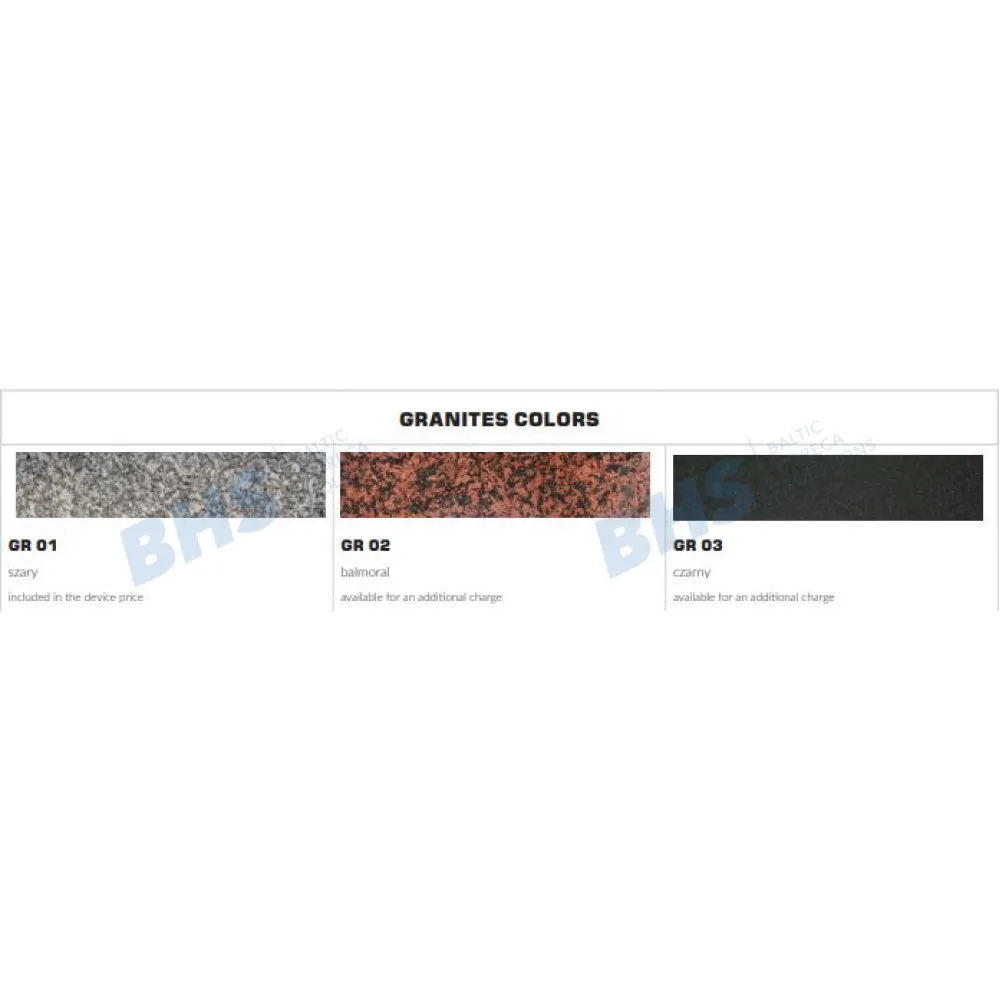

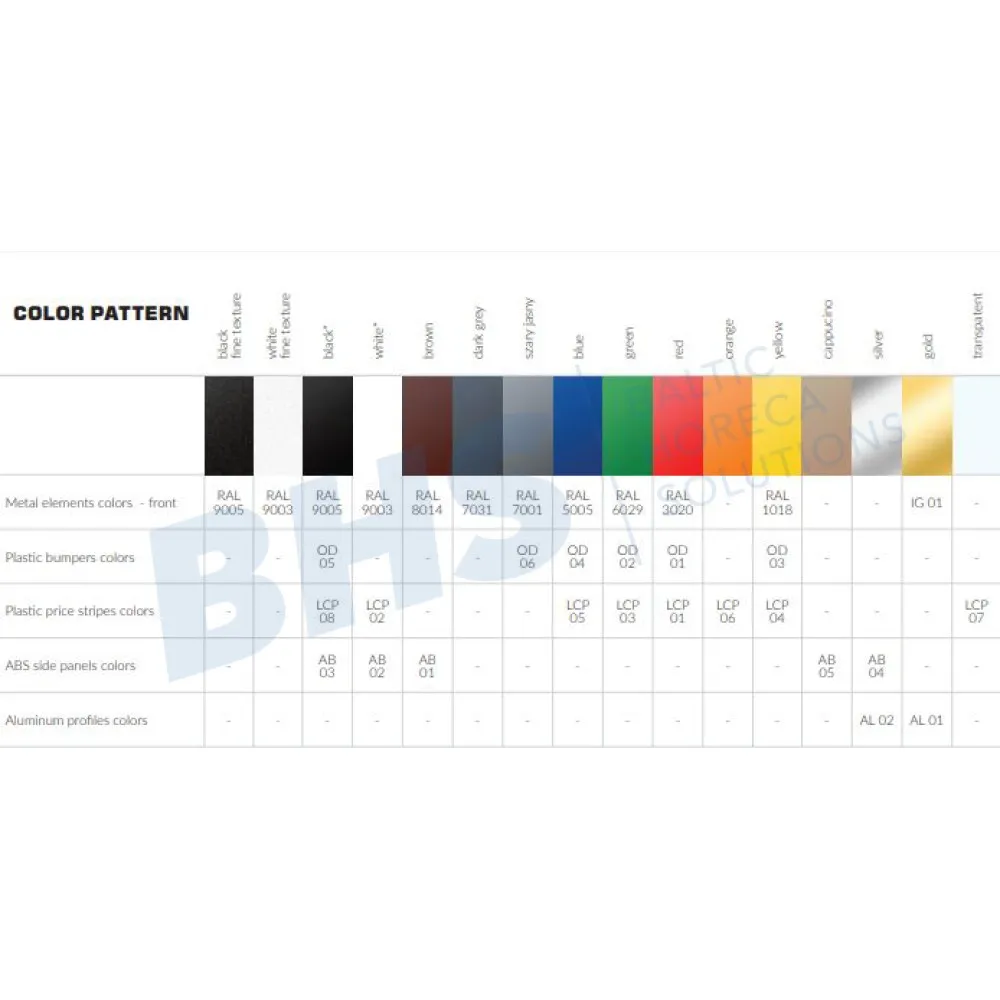

The showcase features a stainless steel exposition area. The storage chamber, also stainless steel, is accessed via hinged back doors. The worktop is constructed from grey granite with a 20 mm thickness. The body incorporates ecological polyurethane foam insulation. The service-side base flashing is white, coated sheet metal, while the front base sheets and front panel can be selected in various colours. The sides are insulated plastic and glass, also available in selectable colours. The internal frame and aluminium profiles are anodised in either silver or gold.

Controls include an electronic temperature controller with a digital display, allowing precise setting of the internal temperature. An alarm system is integrated to signal condenser impurity or fan operation failure.

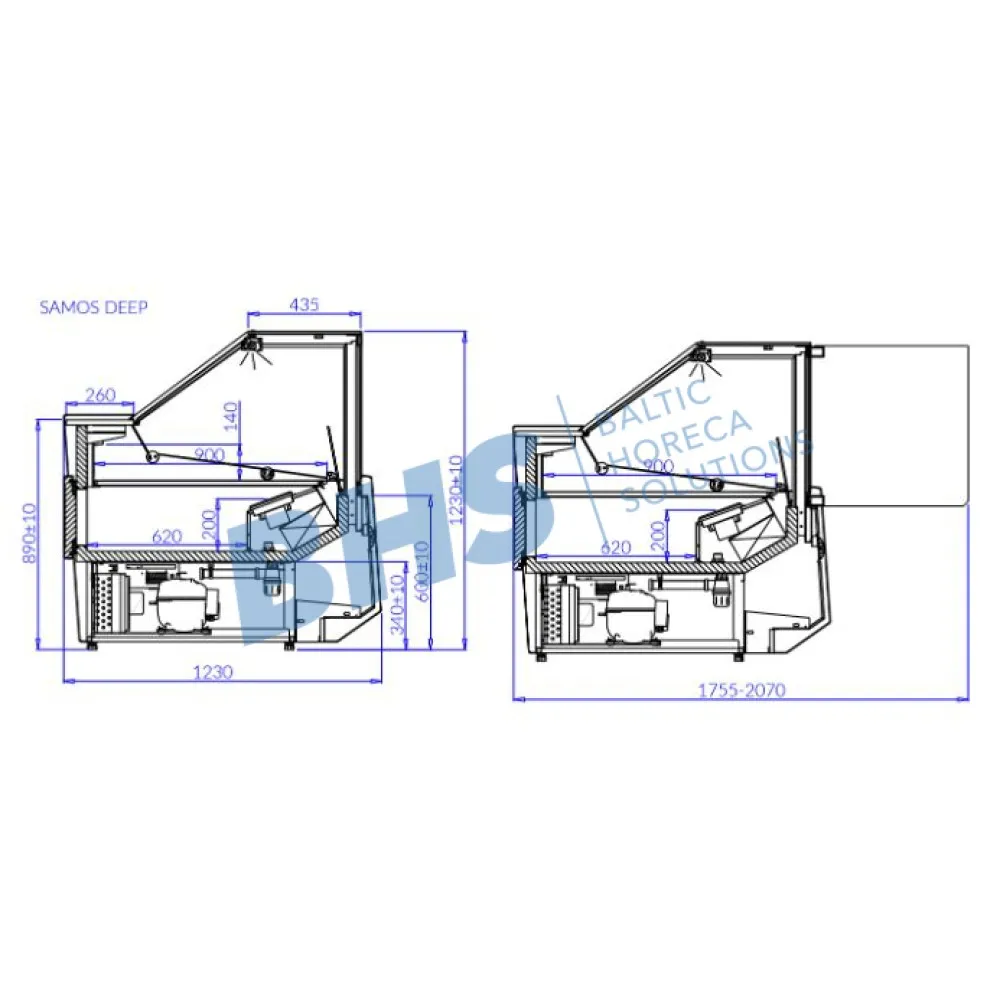

The temperature range is between 1 °C and 10 °C. The dimensions are 938 mm in length, 1230 mm in width, and 1230 mm in height.

Further features include a straight side-hung front glass panel and night blinds made of plexi glass. An LED lamp illuminates the interior. A bumper is available in different colours. The condenser outlet directs to a container. The refrigerant used is R134 A or R290.

Cleaning of the stainless steel surfaces can be carried out using appropriate agents. The hinged doors allow access for interior upkeep.

This model is listed in the catalogue for SAMOS DEEP3.
