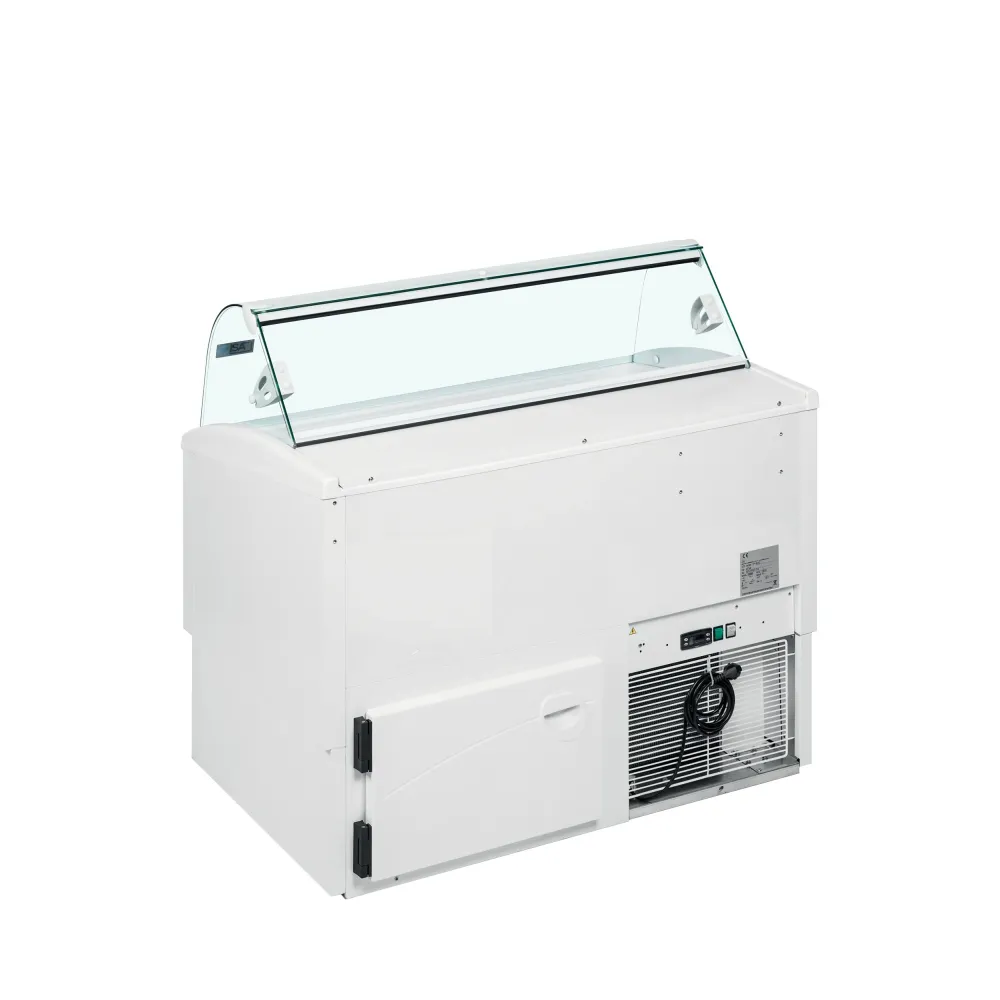

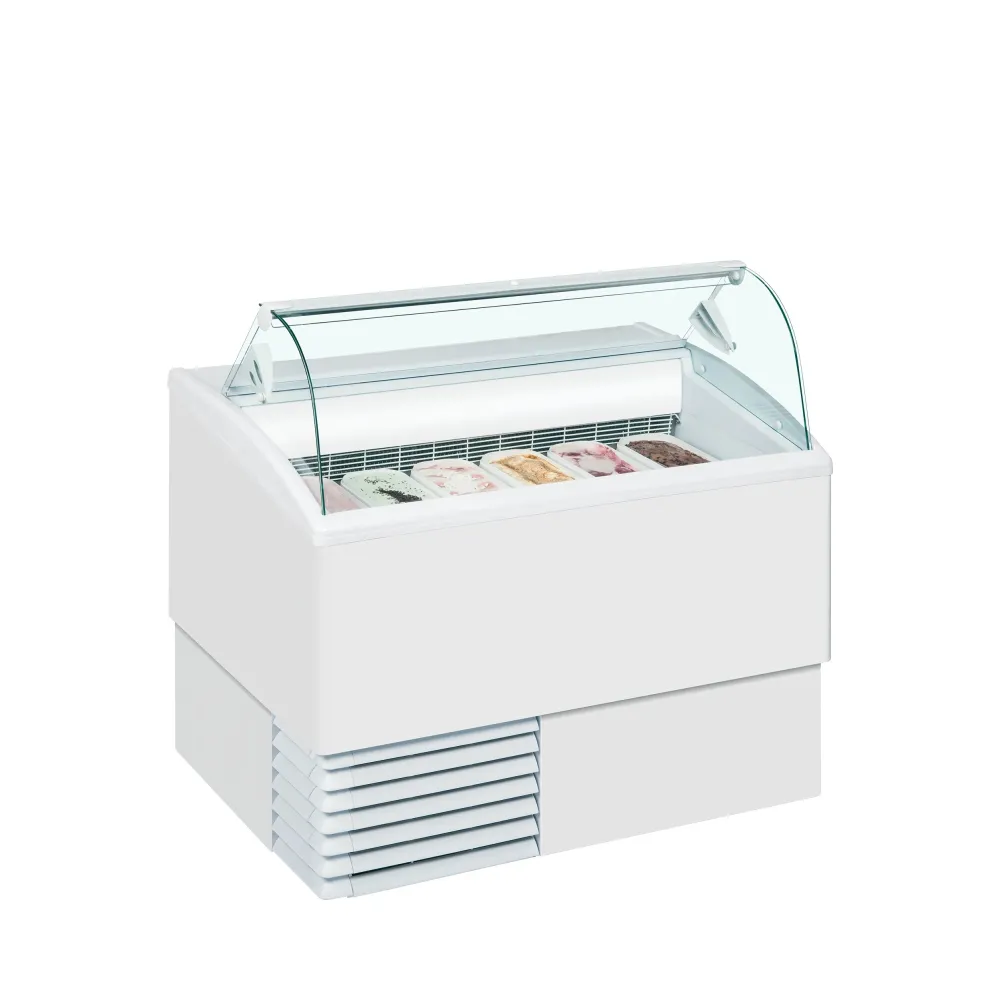

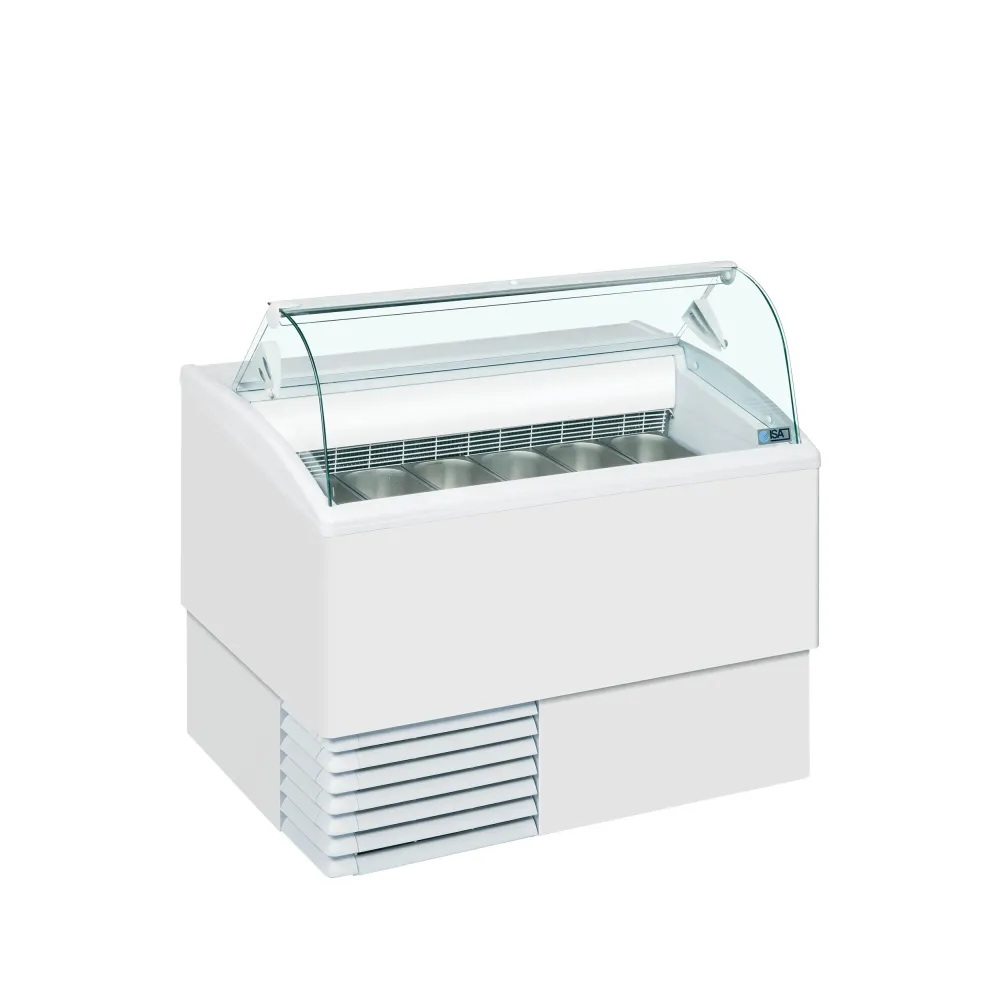

Ice Cream Display Cabinet TEFCOLD ISETTA 6LX

The TEFCOLD ISETTA 6LX is a white ice cream freezer designed for displaying frozen desserts. This unit is specifically suited for holding Napoli ice cream pans, with a capacity for 6 such containers.

An ice cream freezer operates by maintaining a consistently low temperature within its insulated cabinet, using a refrigeration system to extract heat from the interior. This process chills the air and any products stored inside, preventing them from melting or spoiling. The static cooling system employed in this model works by direct cooling of the cabinet surfaces, which helps to preserve a stable temperature environment.

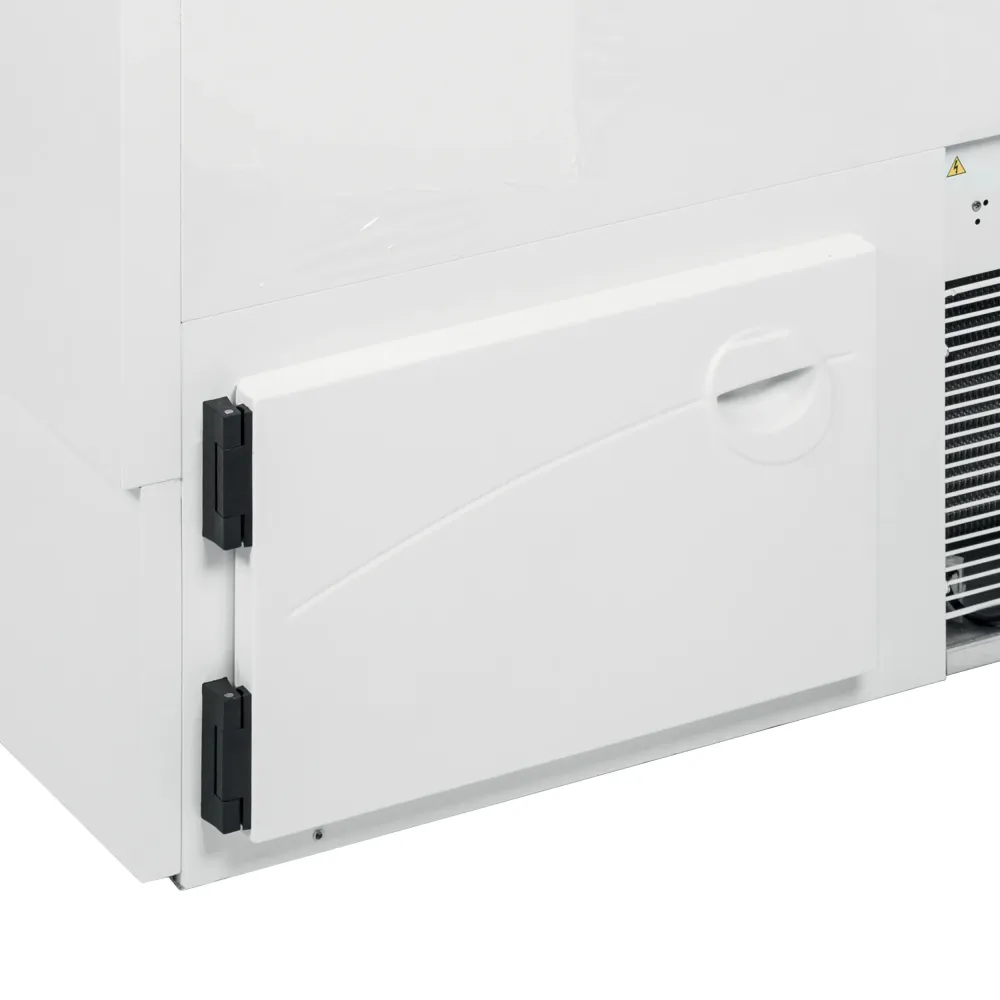

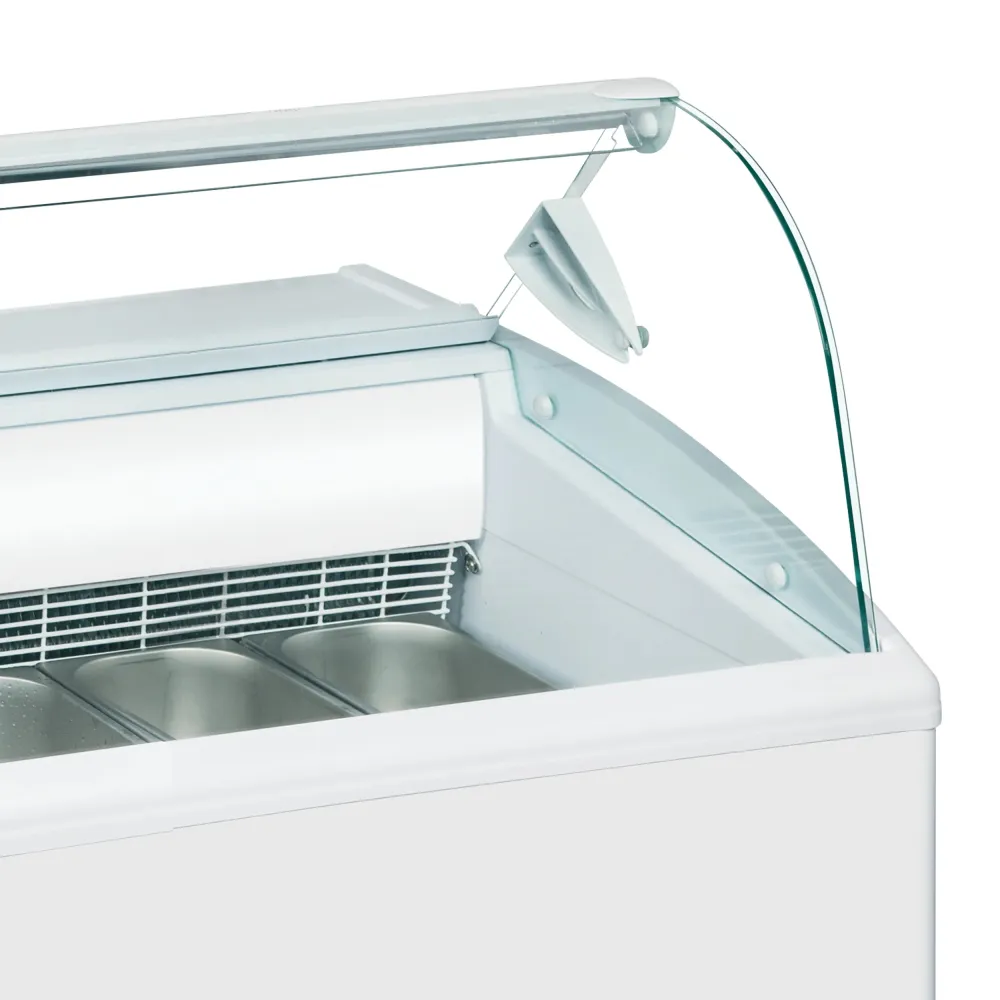

Operation involves placing pre-frozen ice cream into the Napoli pans and arranging them within the display area. The unit features a curved glass sneeze guard to protect the products while allowing clear visibility. Integrated LED lighting is included to illuminate the displayed ice cream. For restocking or serving, a rear lift-up lid provides convenient access. Below the main display, an additional storage compartment is available for keeping extra stock. The freezer is controlled via an electronic controller with a digital temperature display, allowing for precise setting and monitoring. An automatic defrost function is incorporated to minimise the need for manual maintenance.

Constructed for ease of movement and placement, the freezer is equipped with castors. Its external dimensions are 1184 mm in length, 800 mm in width, and 1176 mm in height. The unit operates on a 230 V electrical supply and has a power consumption of 0.81 kW. It uses R290 refrigerant, with 85 g contained within the system. The operating temperature range is maintained between -16 °C and -14 °C, ensuring ice cream remains frozen. The freezer has a total weight of 97 kg.

This appliance is listed in the catalogue under ice cream display cases.
