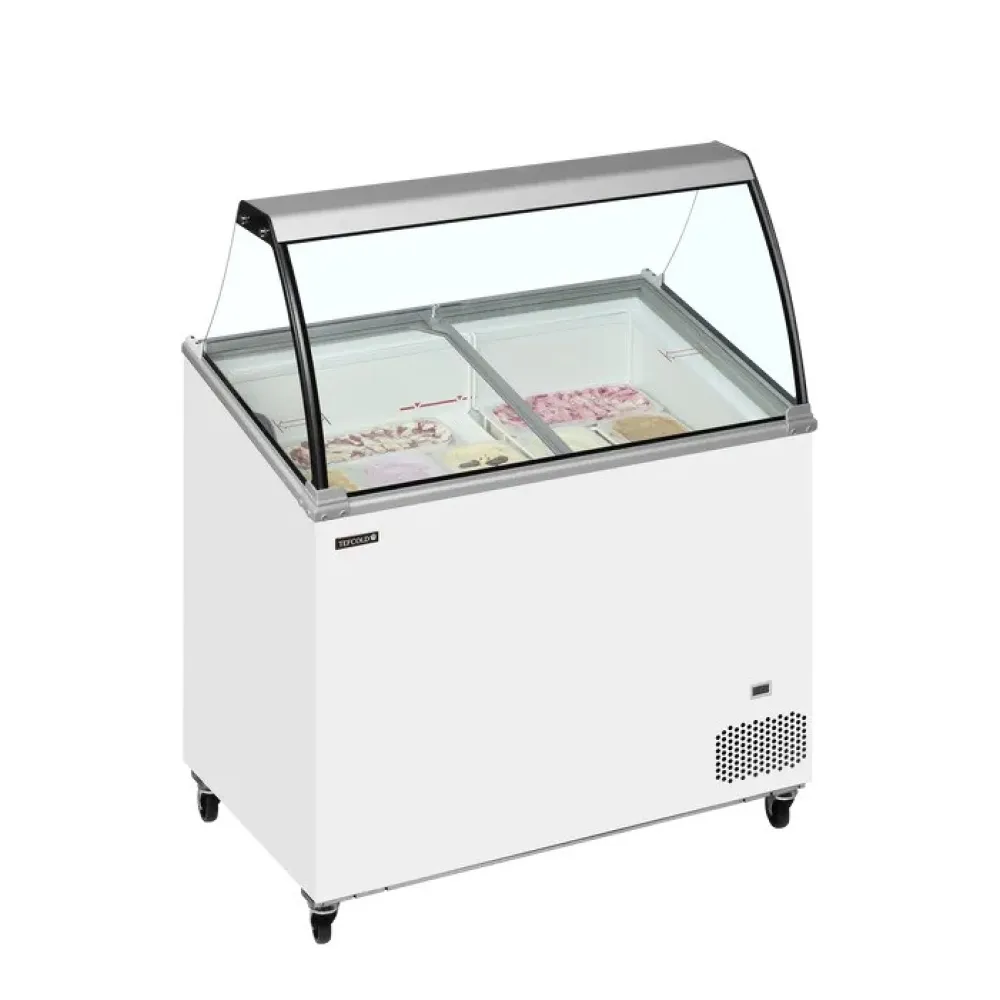

Ice Cream Display Cabinet TEFCOLD IC302SCE-SO

A refrigeration cycle removes heat from the cabinet, using a compressor, condenser and evaporator to maintain steady temperatures. Fans circulate cold air evenly, preserving every tub at the selected level regardless of external conditions.

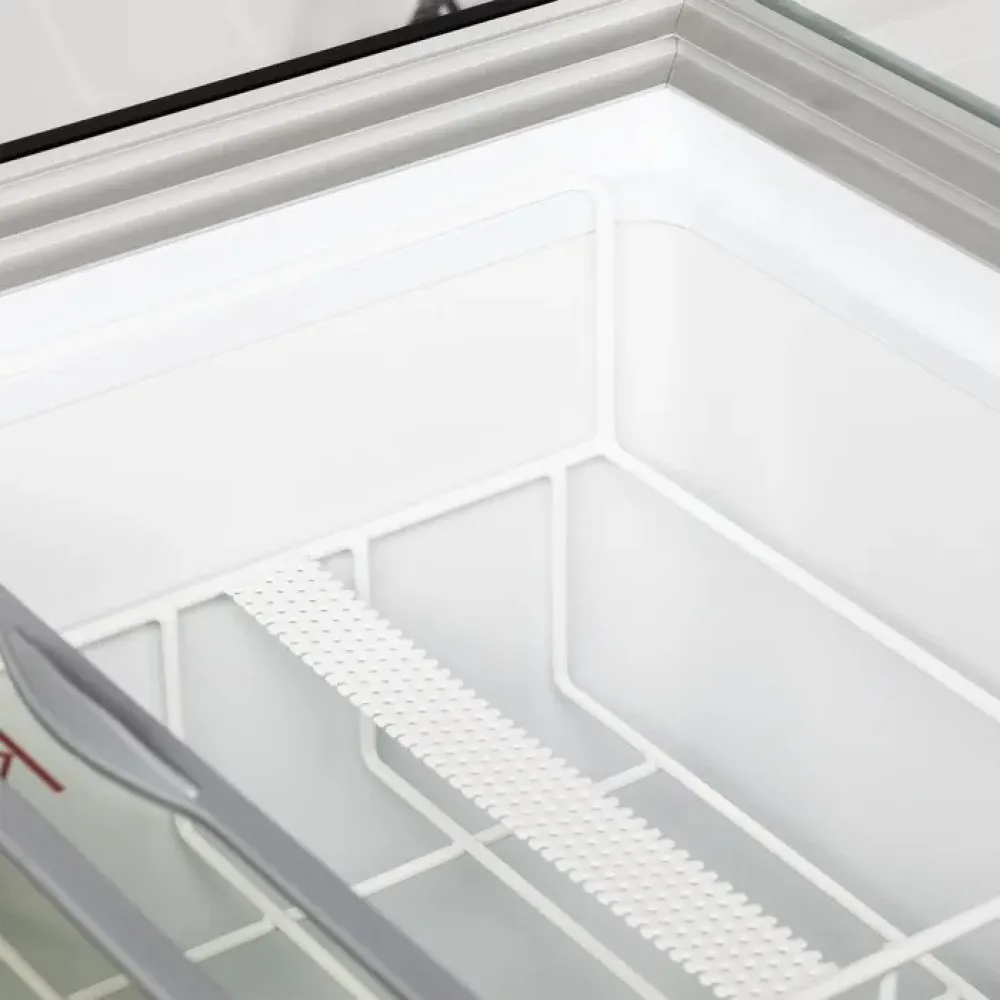

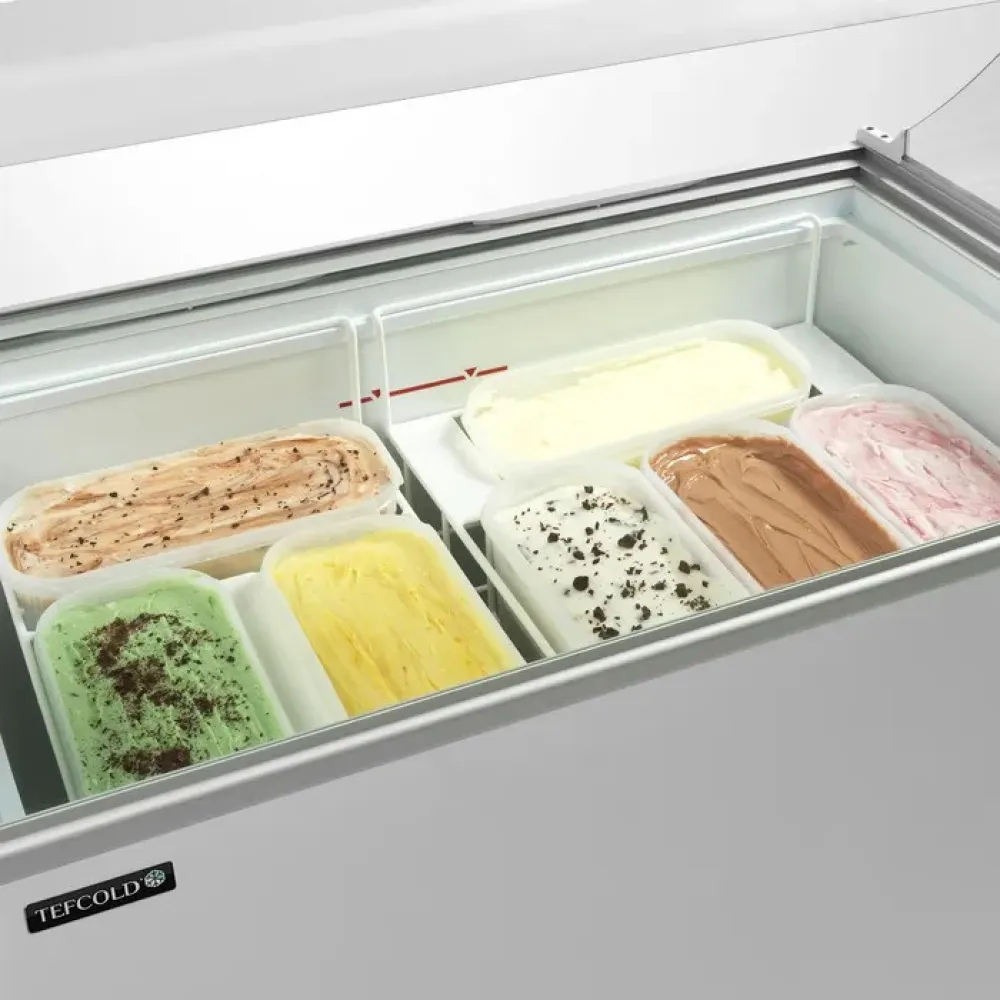

Place the unit on a level surface near a 230 V power point. Slide open the sloping lids, load ice cream tubs onto the wire shelves, then close and lock the lids. Set the temperature between -24 °C and -14 °C using the digital controls; the freezer will hold the chosen setting automatically. LED lighting switches on when the lids are open, giving clear visibility of stock. Four braked castors allow the unit to be repositioned for cleaning, while the lockable lids secure contents during use.

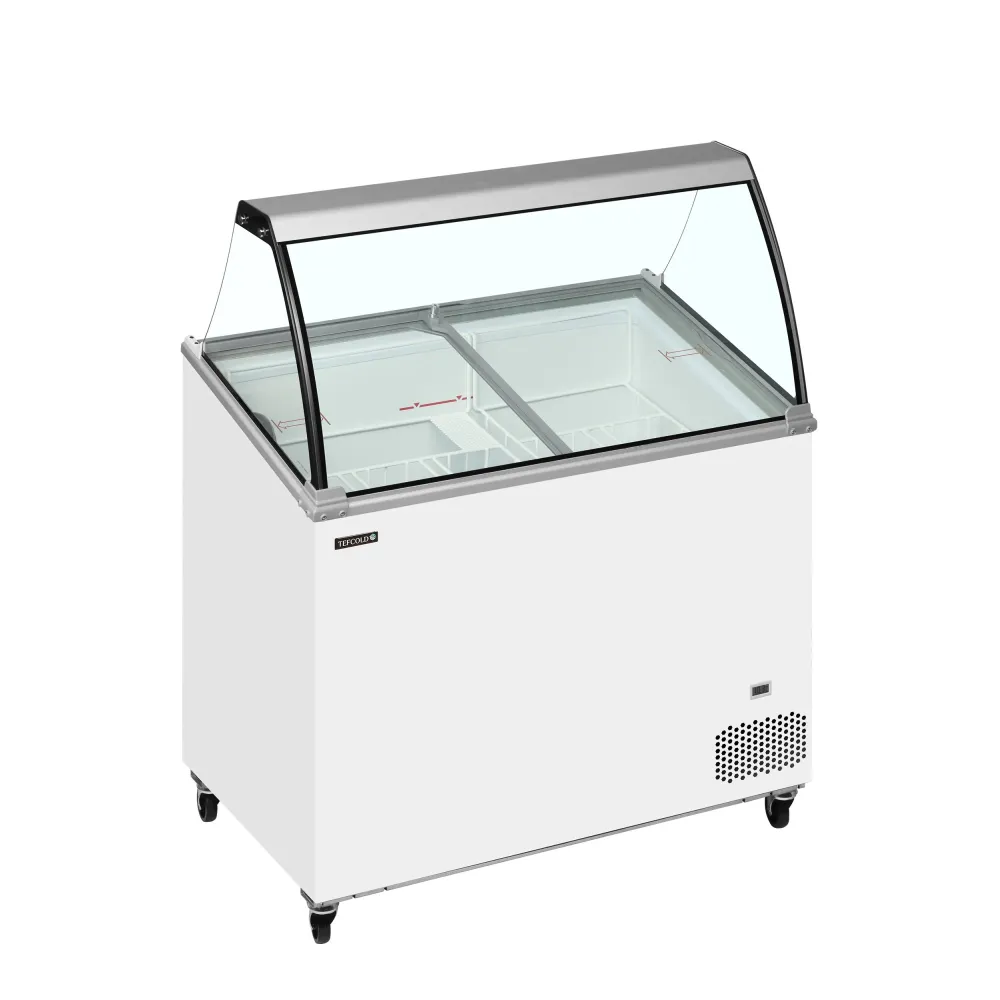

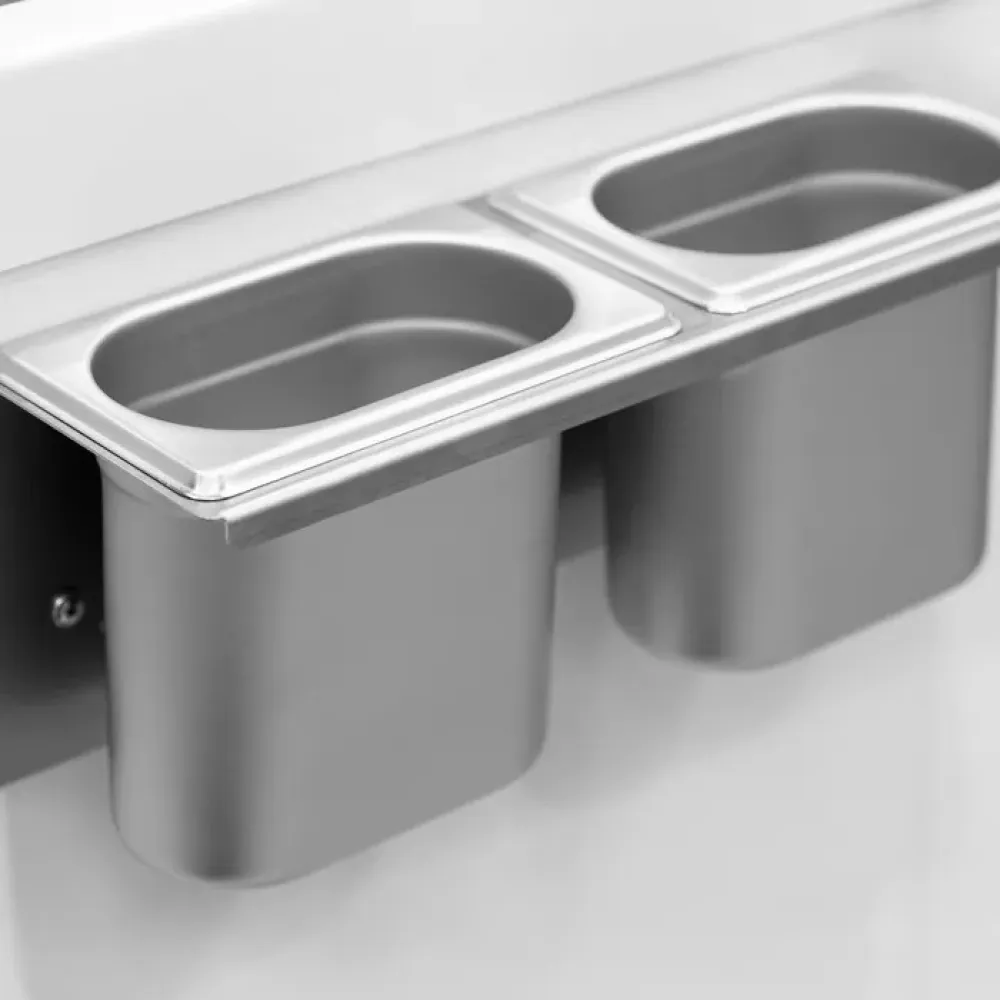

The cabinet features a stainless-steel exterior with a clear glass protective barrier at the front, letting staff check stock without opening the lids. Insulated sliding lids minimise heat gain when accessing product. A shelf beneath the main compartment offers space for scoops or small accessories. The refrigerant is R290, a hydrocarbon with low environmental impact, charged at 85 g. Climate class 5 certification confirms reliable performance in warm environments.

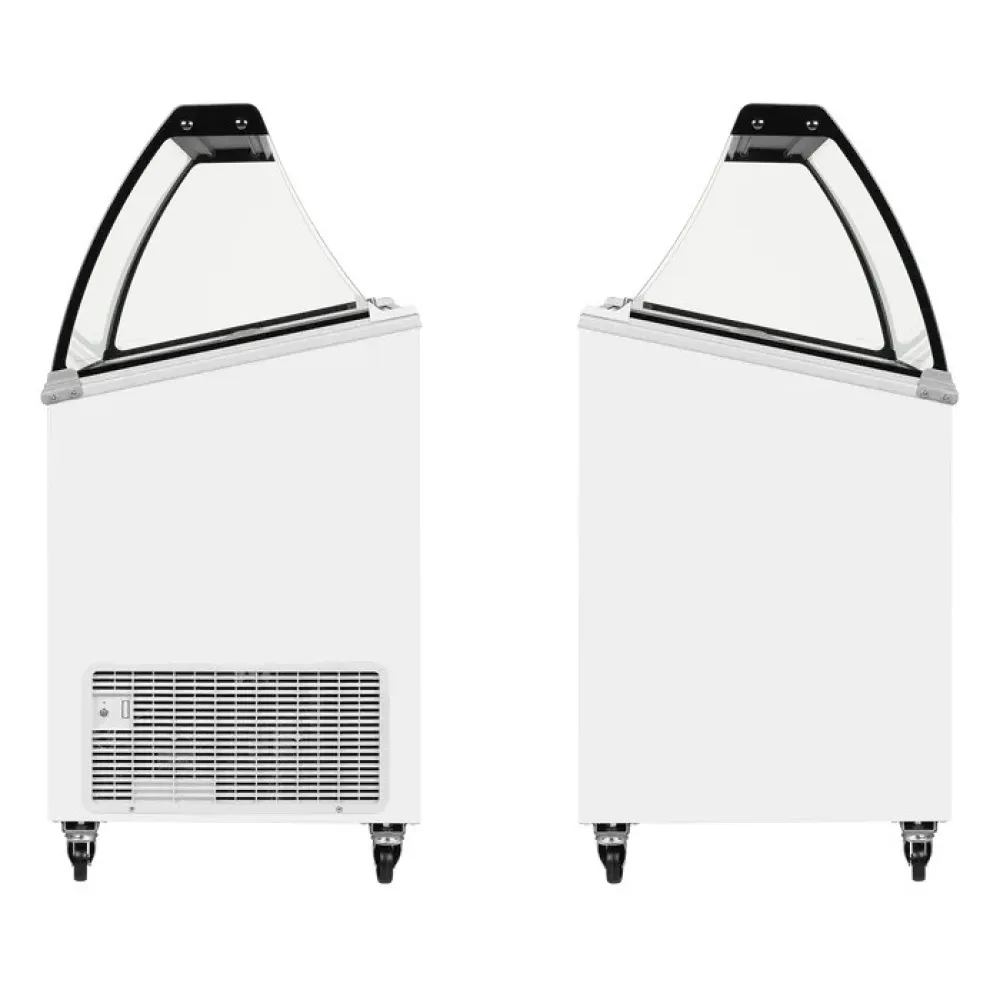

A 0.3 kW power rating suits a standard circuit. The 220-240 V, 50 Hz voltage matches UK mains supply. A net volume of 230 litres provides ample storage, while the gross volume of 264 litres includes internal components and insulation. The 102 kg weight allows two staff to move the unit using the braked castors, yet it remains stable during service. External dimensions of 1010 mm high, 615 mm wide and 1295 mm deep determine the required floor space.

Cleaning involves wiping the interior and exterior stainless-steel surfaces with a damp cloth and mild detergent. The sliding lids and wire shelves can be removed for thorough cleaning. The storage shelf beneath the main compartment should be cleared and wiped regularly. The LED lighting requires no maintenance, and the castors should be checked periodically for smooth operation. The refrigerant charge is factory-sealed and needs no routine servicing.

The freezer is designed for professional frozen dessert storage in catering and retail settings.
