Technical data
| Attributes | |
| ARTICLE | IC501SC |
| POWER | 0.191 kW |
| SIZE L/W/H | 1550/ 630/ 892 mm |
| VOLTAGE | 220-240/50Hz |
| Temperature | -24/ -14 °C |
| VOLUME | 430 l |
| WEIGHT | 72 kg |
| SHELVES | 6 wire baskets, white |
| NOTES | refrigerant R290/ 110 g |

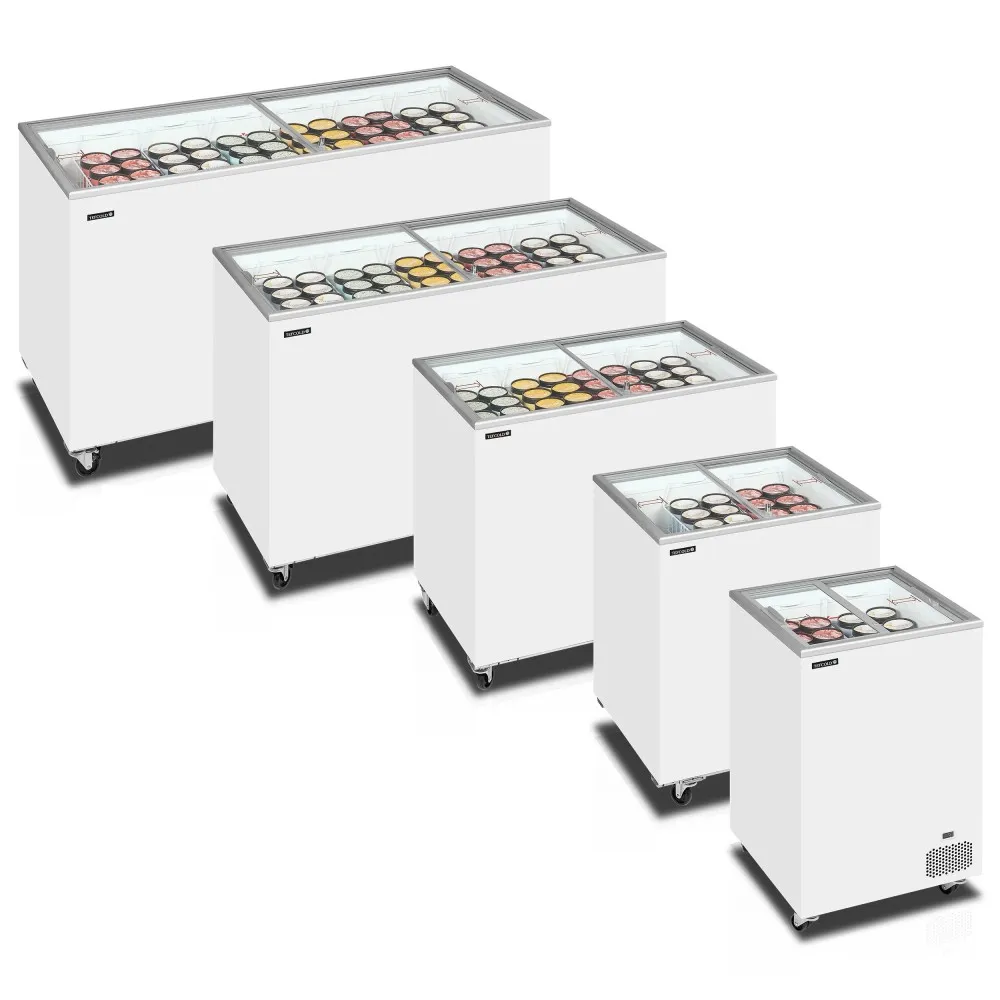

The IC-SC freezer is a price friendly compact display chest freezer. It is great for start-up companies, season sale etc. It is very stable and solid build, but at the same time on wheels so that it is easy to change location in the shop. It comes in varies sizes. The many sizes makes the model perfect for smaller shops and delis with limited space as well as larger shops, gas stations, supermarkets etc. All sizes are environmental friendly and can be branded for better presentation of the cabinet content. The freezer is ideal for display of frozen food including ice cream and lollies. Temperature can be held around -14°C for ice cream or around -21°C for other frozen foods. All sizes have glass lids with a lock for security. They also have a defrost drain for cleaning out the unit.

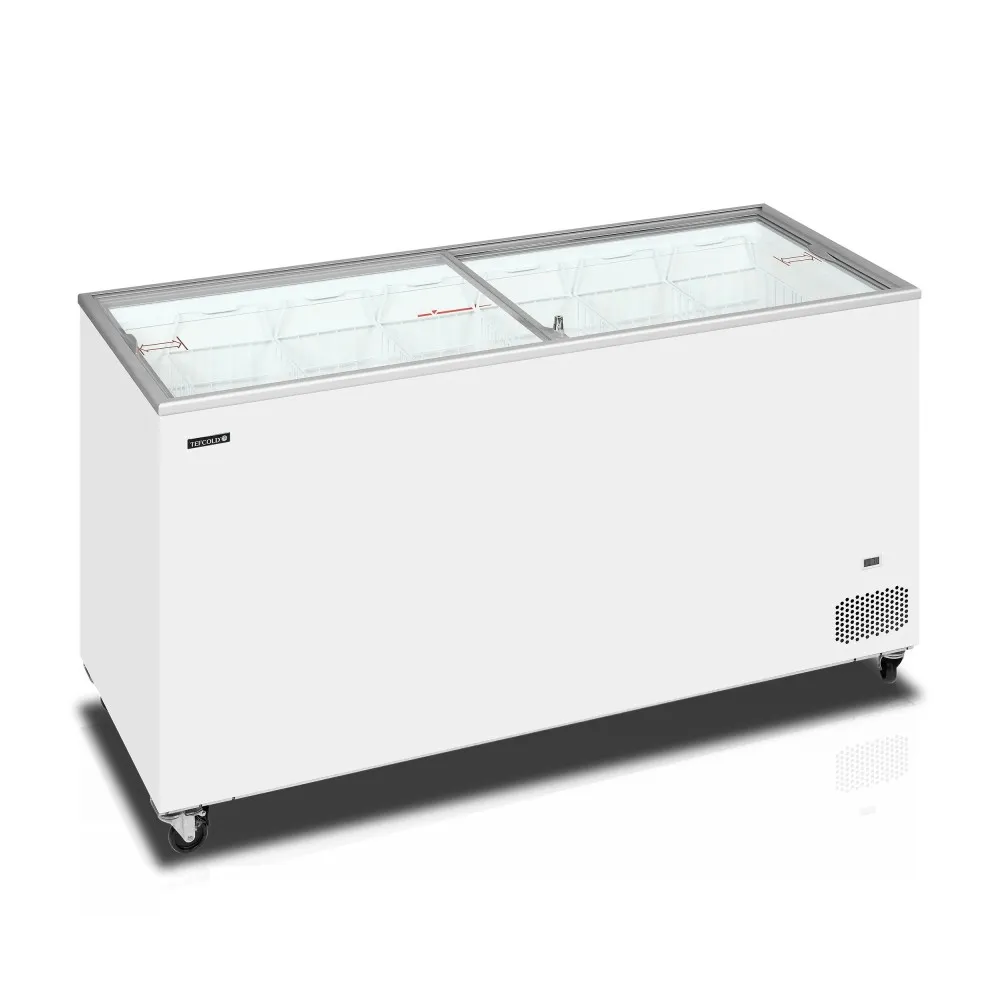

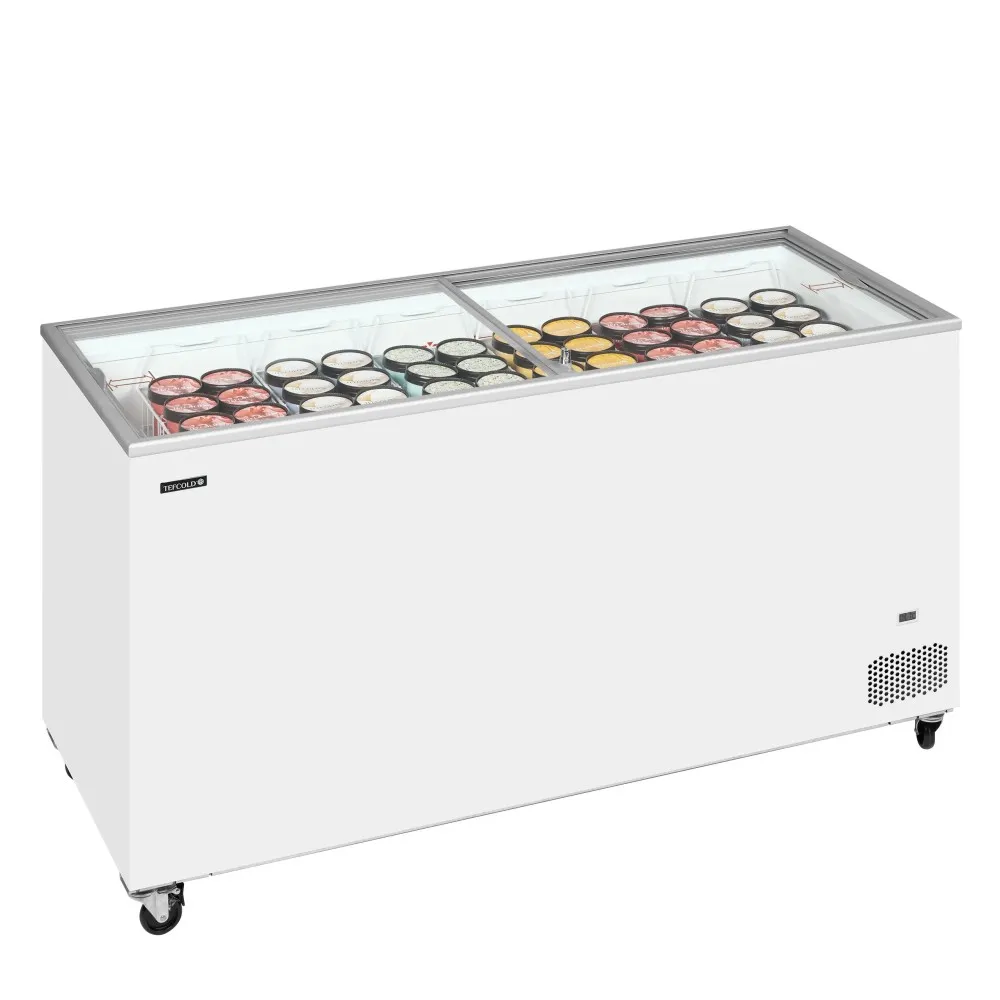

This TEFCOLD IC501SC is an ice cream freezer designed for commercial use. It operates by maintaining a consistently low temperature to preserve the texture and quality of ice cream.
The operating principle involves a refrigeration system that removes heat from the internal cabinet. This system circulates a refrigerant, which absorbs heat from the interior and releases it externally, thereby lowering the temperature.

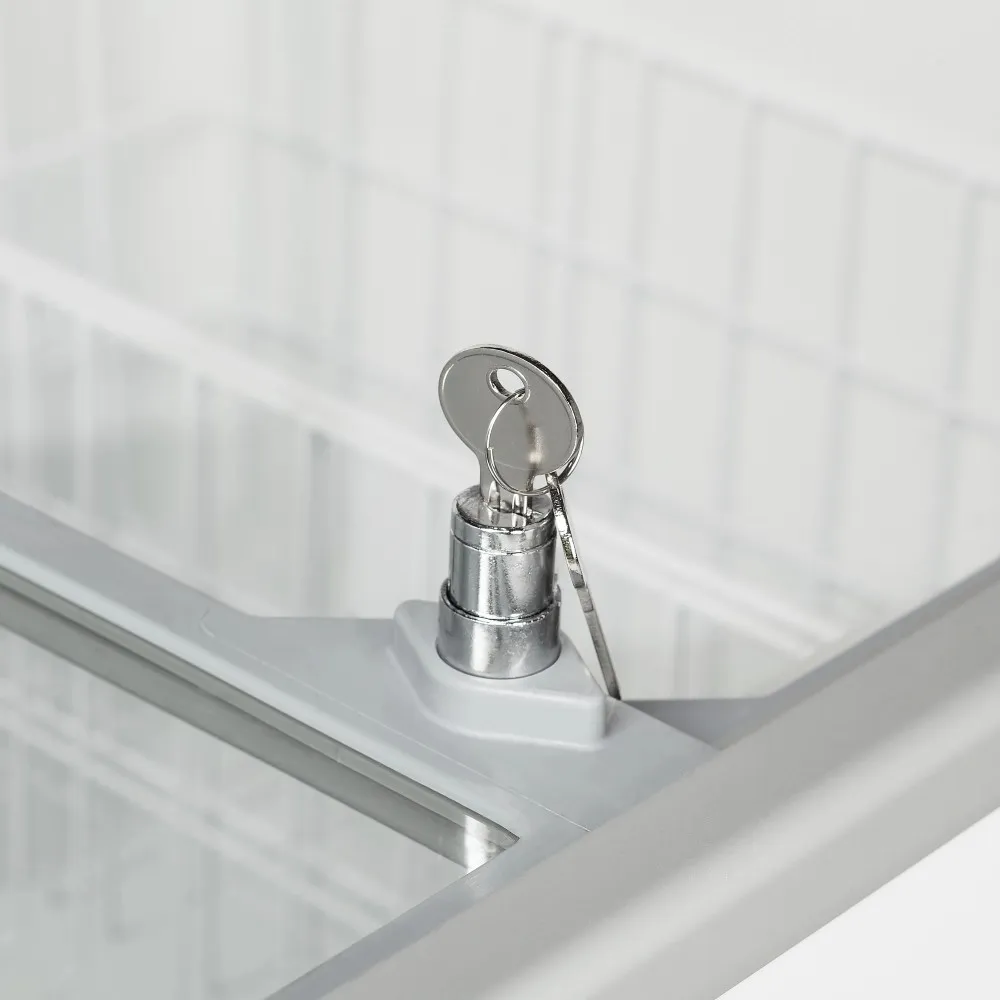

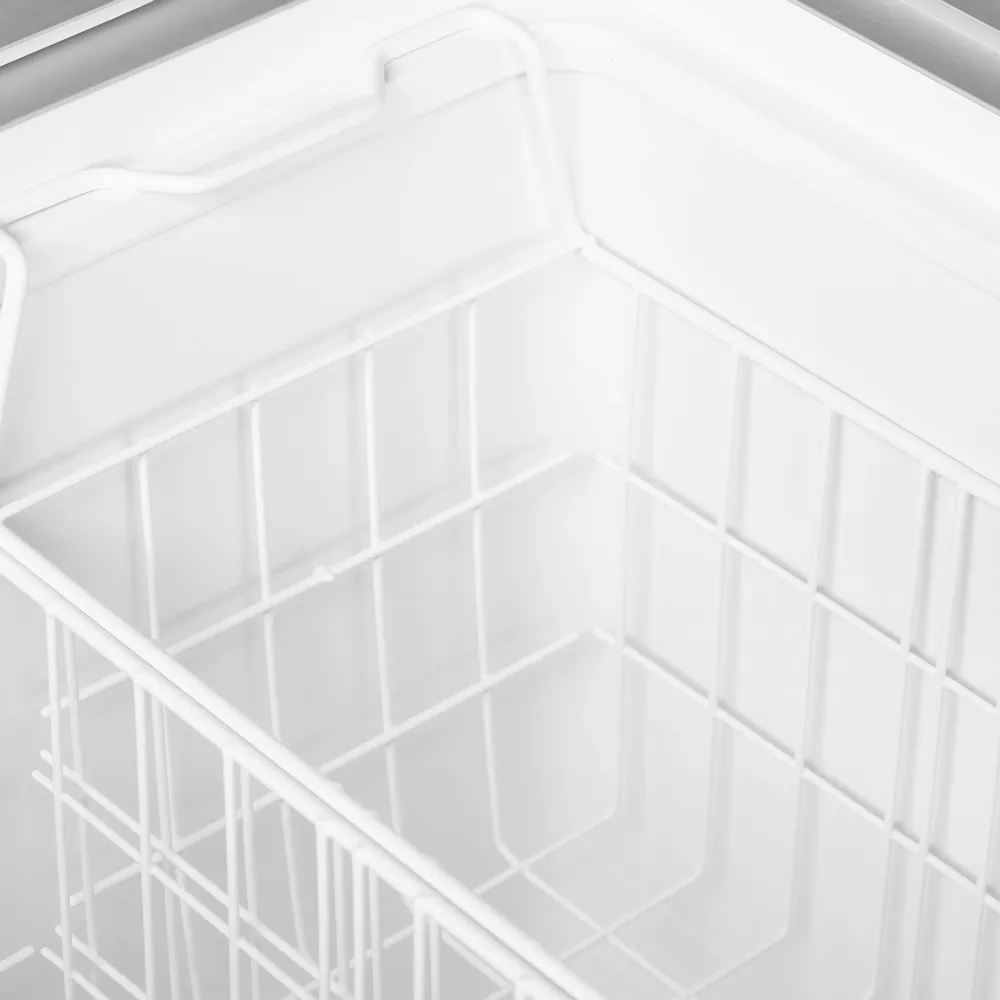

To use the freezer, ice cream products are placed onto the 6 shelves or within the included baskets. The flat sliding glass lids provide access while minimising temperature fluctuations. The lids are lockable for security. Once loaded, the freezer is set to maintain a temperature between -24 °C and -14 °C.
Construction includes castors with a brake for mobility and stability. The unit has a total volume of 430 L. Its dimensions are 1550 mm in length, 630 mm in width, and 892 mm in height. The power consumption is rated at 0.191 kW, operating on a 230 V supply. The freezer weighs 72 kg.
Cleaning and upkeep would involve regular defrosting and wiping down of the interior and exterior surfaces, paying attention to the glass lids and baskets. The refrigerant used is R290, with a charge of 110 g.
This model is classified as climate class 5, indicating it is built for high performance even in warmer ambient conditions.
The catalogue places this product under ice cream chest freezers.
