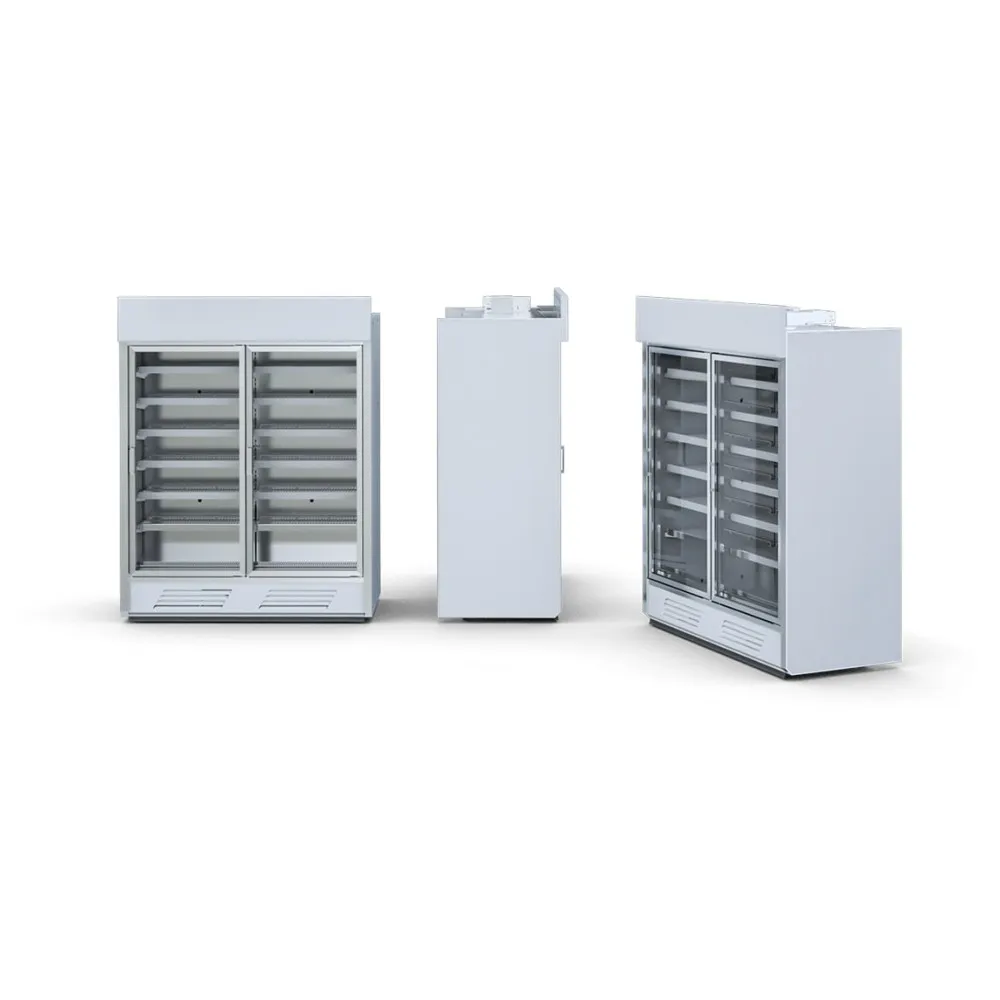

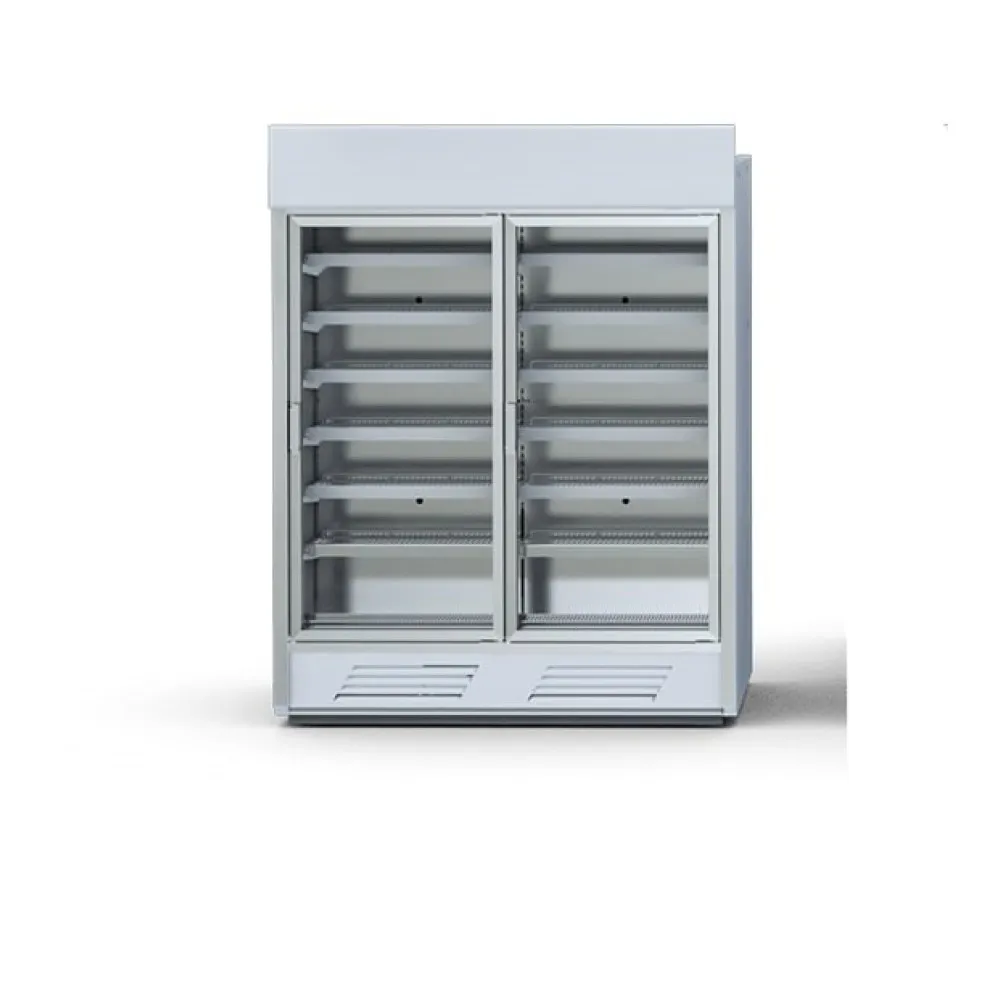

Freezer IGLOO KG102MAT

A display freezer built for supermarket sales areas keeps frozen goods visible while maintaining commercial freezing temperatures. The unit circulates cold air from a rear-mounted cooling module, drawing heat out of the cabinet and expelling it through a condenser. Refrigerant R507 absorbs heat as it evaporates inside the evaporator coil, then releases it when compressed and cooled in the condenser. This cycle keeps the interior between -18 and -12 °C, preserving frozen products without dehydration or ice build-up.

The operator loads the six mesh shelves, adjusting their height and angle to suit the products. Price strips clip onto the front of each shelf, and the bottom base shelf provides additional display space. The hinged glass doors open to restock or rearrange items, then close automatically. An electronic temperature regulator with a digital display allows the operator to set and monitor the internal temperature. The unit defrosts automatically, melting ice from the evaporator and pumping the condensate away without manual intervention. LED lights inside the top and sides illuminate the products, while fluorescent lamps on the vertical sides enhance visibility from the shop floor.

Construction uses white coated steel for the insulated side panels, front panel and front bottom panel, each available in alternative colours to match the store's interior. The interior lining is a coloured sheet, also customisable. The glass doors are heated to prevent fogging, ensuring a clear view of the products. An upper advertising panel provides space for branding or promotions.

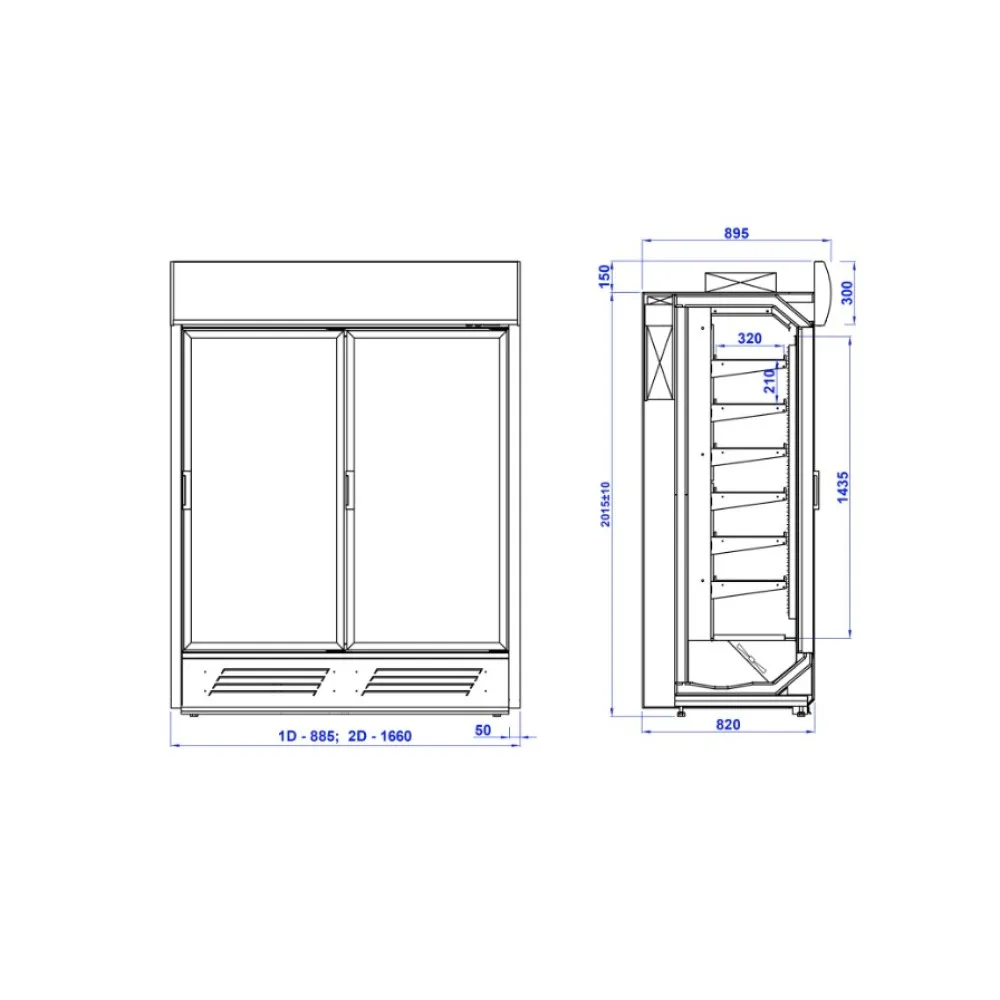

The 2.51 kW power rating indicates the load on the electrical supply, requiring a dedicated 230 V single-phase circuit. The 1660 mm width, 820 mm depth and 2165 mm height determine the floor space and vertical clearance needed in the sales area. The weight, though not specified, is typical for a unit of this size, requiring a level floor and possibly a trolley for initial positioning.

Cleaning involves wiping the coated steel surfaces with a damp cloth and mild detergent. The mesh shelves and price strips lift out for separate cleaning. The automatic condensate pump removes water during defrost cycles, but the pump outlet should be checked periodically to ensure it remains clear. The electronic temperature regulator's alarm sounds if the condenser becomes dirty or the fan malfunctions, prompting maintenance.

The KING AT M is available in various colours for the steel panels, interior lining and price strips. The standard PLUG IN configuration includes the HITACHI cooling unit, LED lighting and automatic defrost system.

This display freezer is categorised under supermarket refrigeration in the IGLOO professional range.
