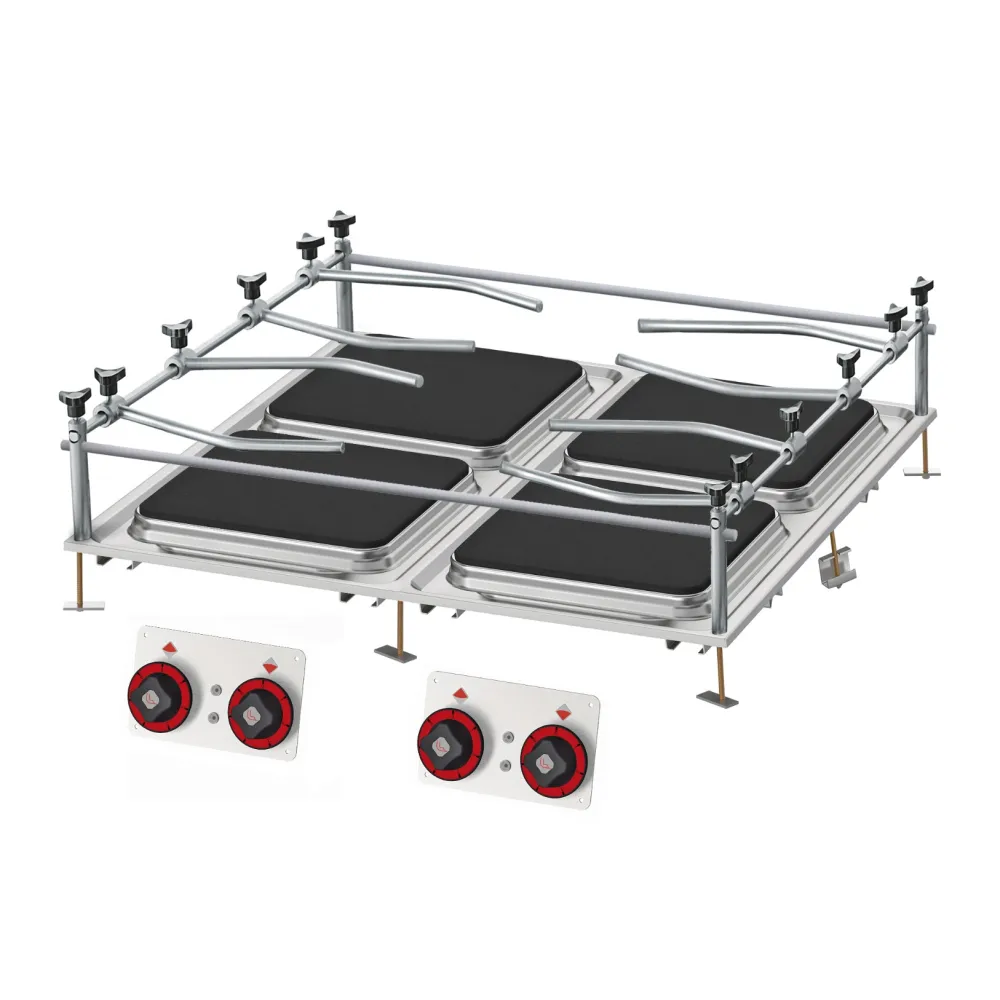

Drop-in electric hob for ships LOTUS 28030831X

The LOTUS PCQD-88ETX is a professional electric boiling hob.

This boiling unit operates using radiant heat hot plates. Electricity heats elements beneath the cast iron plates, which then transfer heat directly to cookware placed upon them. Each hot plate is equipped with a seven-position switch to control the heat output and a temperature limiter for safety.

To use the unit, place pots onto the hot plates. The integrated rolling racks help to secure the pots in place. Select the desired heat level for each hot plate using the seven-position switches. Warning lights indicate when a hot plate is still hot after use.

Constructed from CrNi 18/10 AISI 304 grade Stainless Steel, the unit features a 2 mm thick worktop and chromed details. The hot plates are made of cast iron with steel border seals. Ceramic glass tops are incorporated, surrounding the radiant heat hot plates.

Controls include a seven-position switch for each hot plate, allowing for precise temperature selection. A temperature limiter is also fitted to each plate. Warning lights are present to indicate residual heat.

The power rating of 16 kW indicates the maximum electrical load the unit will draw when all elements are operating at full capacity. The dimensions of 800 mm in length and 800 mm in width define the footprint of the unit, dictating the space required for installation. The height is 50 mm. The unit operates on a 400 V, 3-phase electrical supply, suitable for commercial installations. Weighing 48 kg, the unit requires careful handling during installation.

Cleaning involves wiping down the stainless steel surfaces and the ceramic glass tops. The cast iron hot plates should be cleaned according to standard practice for such materials.

This model is designed as a drop-in electric cooktop and is listed in the catalogue for kitchen equipment for ships.

It has a fixing system for secure installation.
