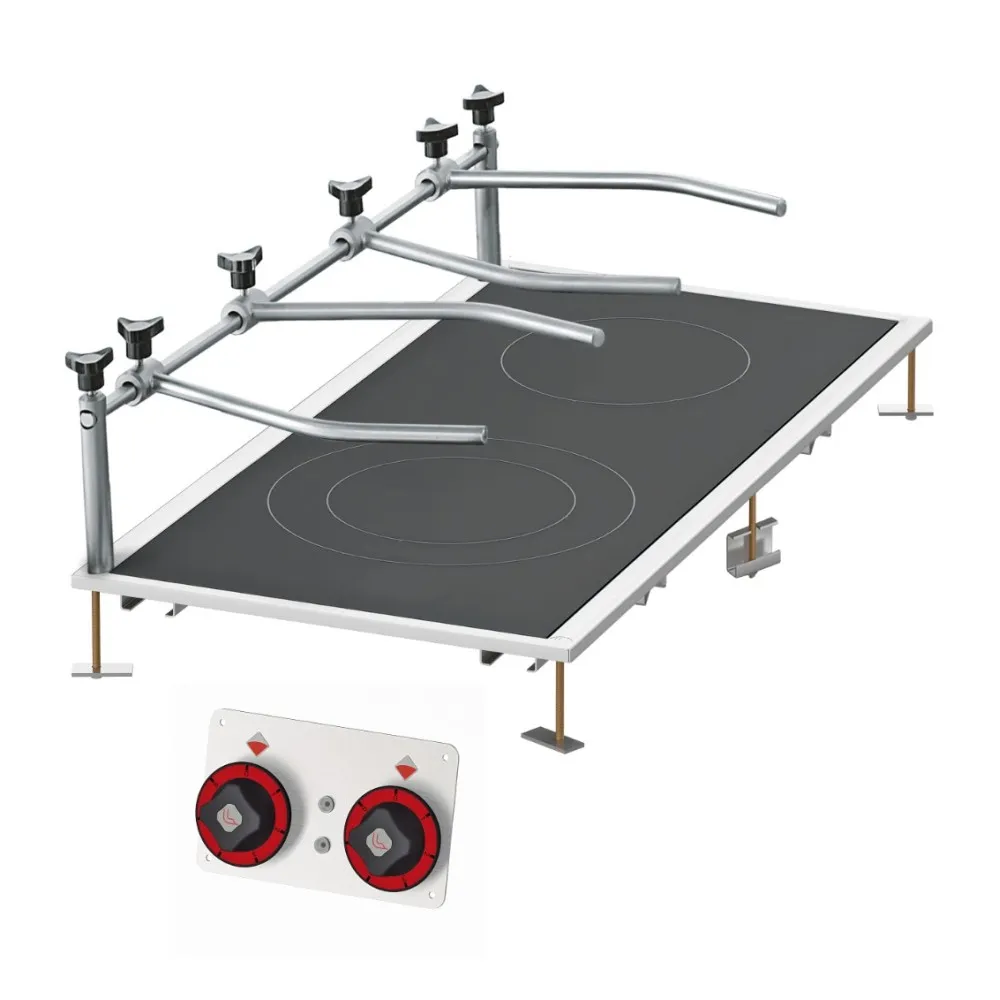

Drop-in electric hob for ships LOTUS 28030432X

The LOTUS Ceramic glass boiling unit PCCD-84ETX is a professional electric boiling hob designed for demanding kitchen environments.

This boiling unit operates using radiant heat. Ceramic glass tops cover heating elements that glow red hot. Heat transfers directly from the glowing element through the glass to the base of the pot. Warning lights indicate when the hot plates remain hot after use, a safety feature to prevent burns.

The unit is constructed from CrNi 18/10 AISI 304 grade Stainless Steel, finished with a Scotch-Brite Satin polish. It features a 2 mm thick worktop and chromed details. The hob is equipped with ceramic glass tops that house the radiant heat hot plates. For control, it has a seven-position switch and a temperature limiter to manage heating levels and safety.

Fittings include a fixing system to secure the unit and rolling racks designed to hold pots in place during operation. The unit operates at 50/60 Hz.

The power rating of 6.4 kW indicates the maximum electrical load this unit will draw from the supply. Its dimensions are 400 mm in length, 800 mm in width, and 50 mm in height. The unit requires a 400 V, 3-phase electrical connection. Weighing 24 kg, it is a substantial piece of equipment.

Cleaning of the ceramic glass top can be done with appropriate cleaners for this surface. The stainless steel body should be wiped down with a damp cloth and mild detergent.

This model is listed in the catalogue for kitchen equipment for ships and as electric cooktops DROP-IN for ships.
