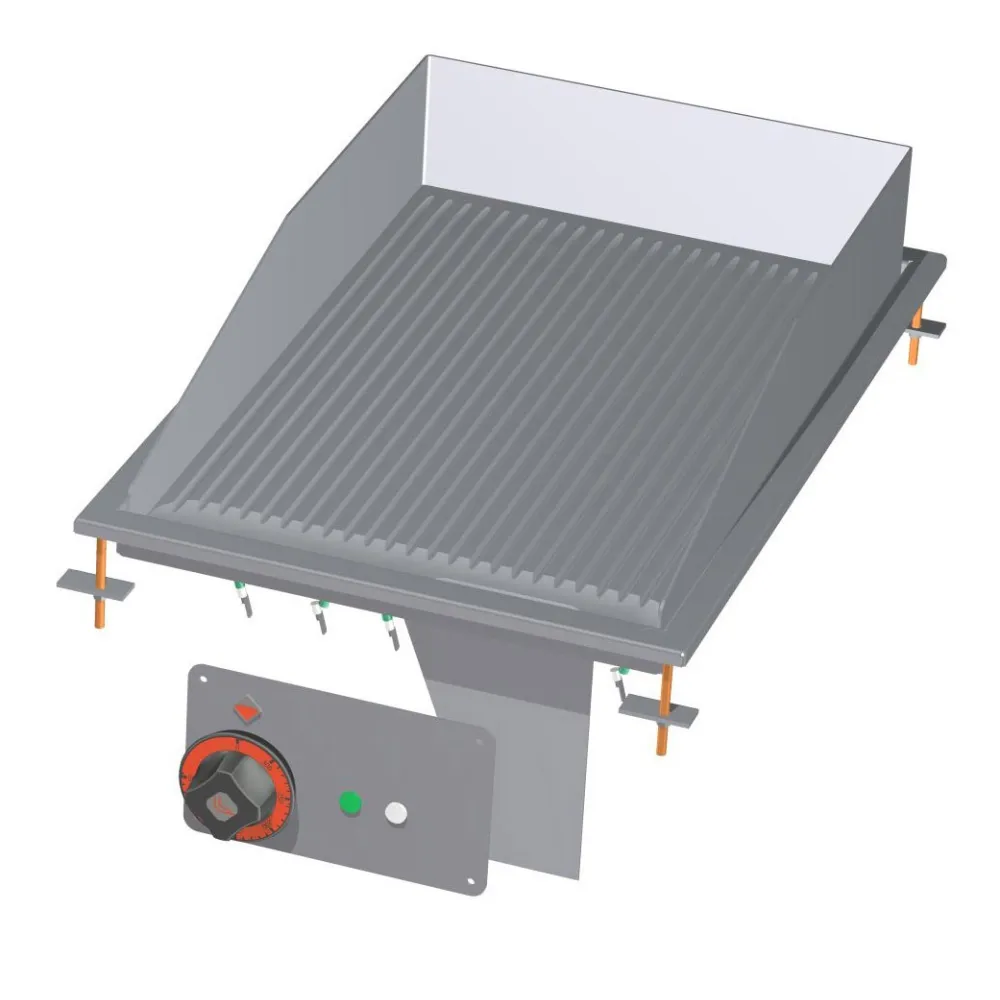

Drop-in electric fry top for ships LOTUS 26060433X

The LOTUS FTRD-64ETX is a professional electric griddle for commercial kitchens. This fry-top is constructed from CrNi 18/10 AISI 304 grade Stainless Steel, with a Scotch-Brite Satin polish finish. The worktop is 1.5 mm thick and it has chromed details.

Operating Principle:

Electric fry-tops use an electric heating element beneath a solid metal plate. When powered, the element heats the plate to the set temperature. This heated surface is used for direct contact cooking, searing, or grilling food placed upon it. The solid plate distributes heat evenly, providing a consistent cooking temperature.

Sequence of Use:

Connect the unit to the appropriate electrical supply. Set the desired cooking temperature using the thermostat control, which ranges from 50 to 300 °C. Allow the griddle plate to preheat. Food can then be placed directly onto the hot surface for cooking. The unit includes a double thermostat system: one for operation and a safety thermostat.

Construction and Features:

Fabricated from CrNi 18/10 AISI 304 Stainless Steel with a Scotch-Brite Satin polish.

Worktop thickness: 1.5 mm.

Features chromed details.

Available configurations: Smooth, Ribbed, or 50/50 split surfaces.

Plate options: Normal Plate (FE430B Steel) or Chrome Plate (FE510C Steel).

Includes a fixing system for secure installation.

Controls:

Temperature Control: Allows adjustment of the cooking surface temperature between 50 °C and 300 °C.

Double Thermostat: Comprises an operating thermostat for temperature regulation and a safety thermostat for overheat protection.

Specifications Explained:

Power Rating (4.5 kW): Indicates the maximum electrical power the unit will draw, affecting the load on the electrical supply.

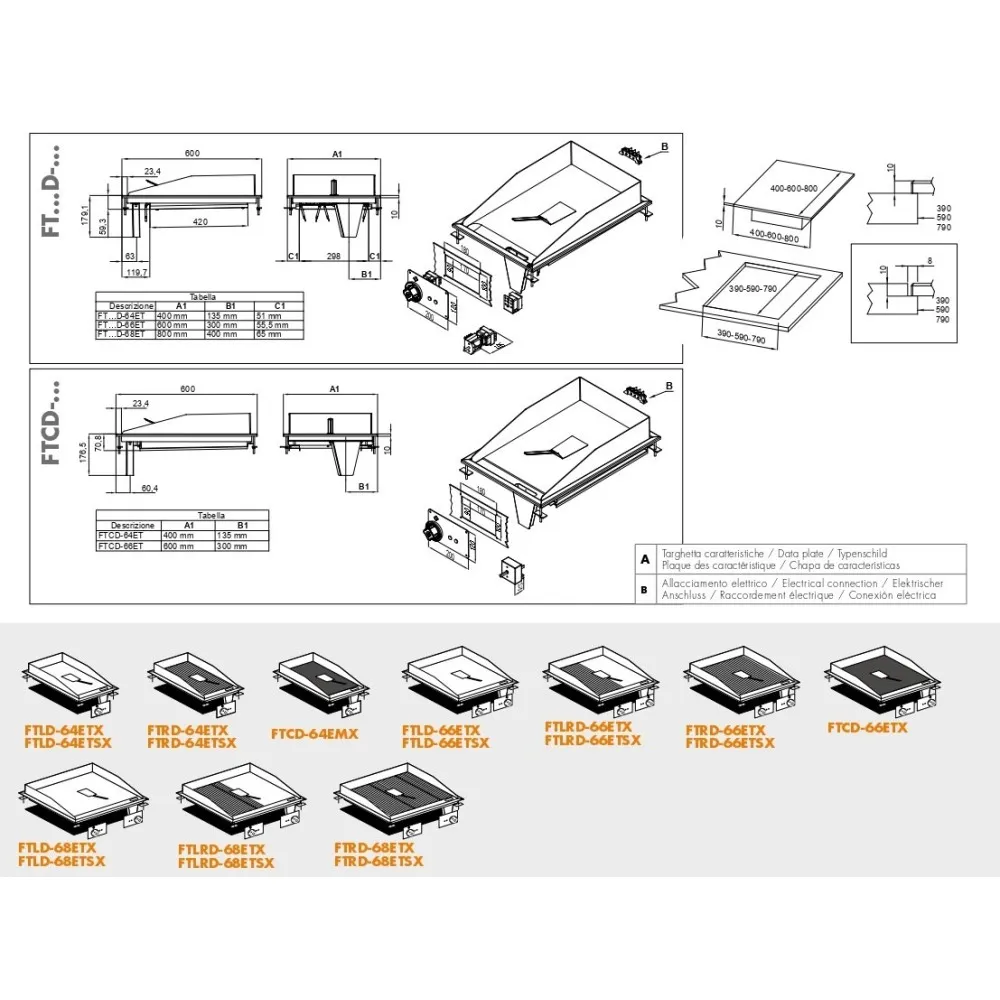

Dimensions (400 mm x 600 mm x 220 mm): Define the physical space the unit occupies.

Voltage (400 V) and Phase (3): Specify the electrical supply requirements.

Weight (30 kg): Gives an indication of the unit's mass, relevant for installation and handling.

Cleaning and Upkeep:

Cleaning should focus on the Stainless Steel surfaces and the griddle plate. The Scotch-Brite finish and the steel construction facilitate wiping down after use. Specific cleaning procedures for the Normal or Chrome plate options should be followed.

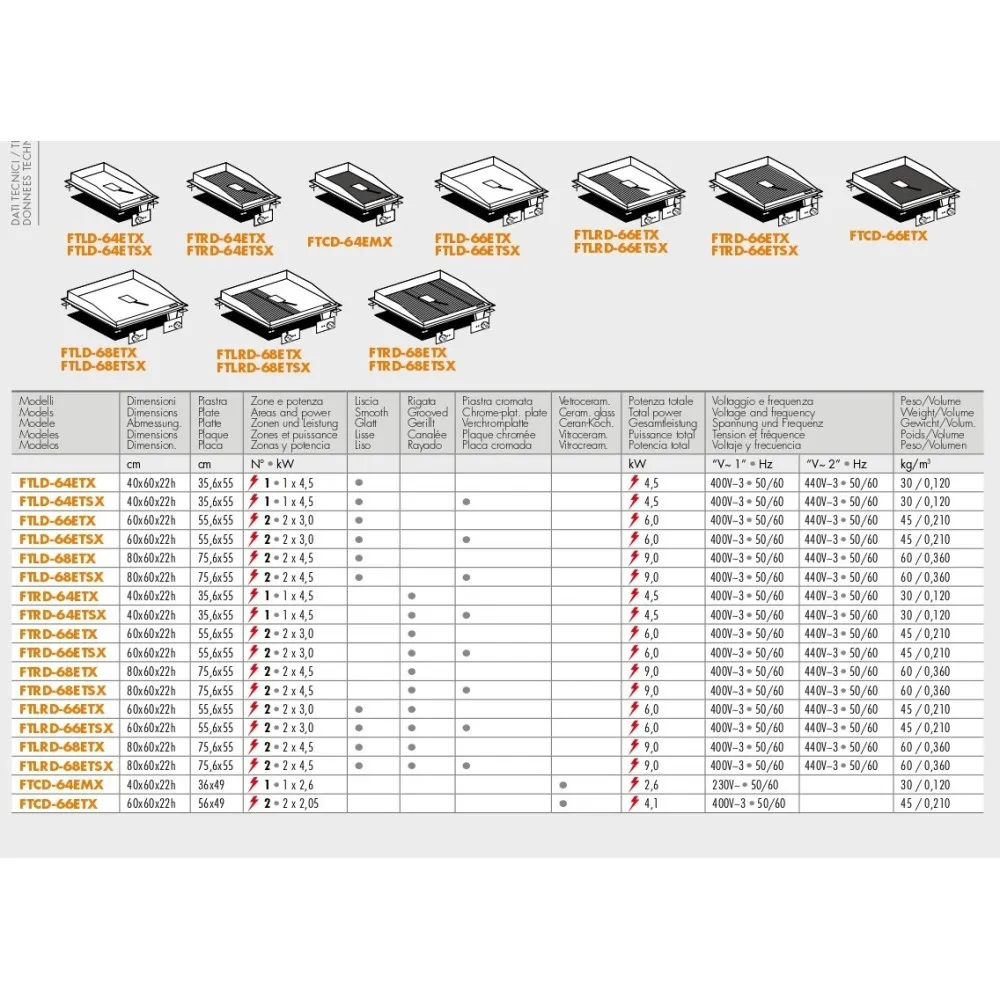

Variants:

Available in Smooth, Ribbed, or 50/50 configurations.

Offered with either a Normal Plate or a Chrome Plate option.

Catalogue Placement:

Listed under kitchen equipment for ships and as an electric griddle DROP-IN for ships.
