Display cabinet TEFCOLD ODC90

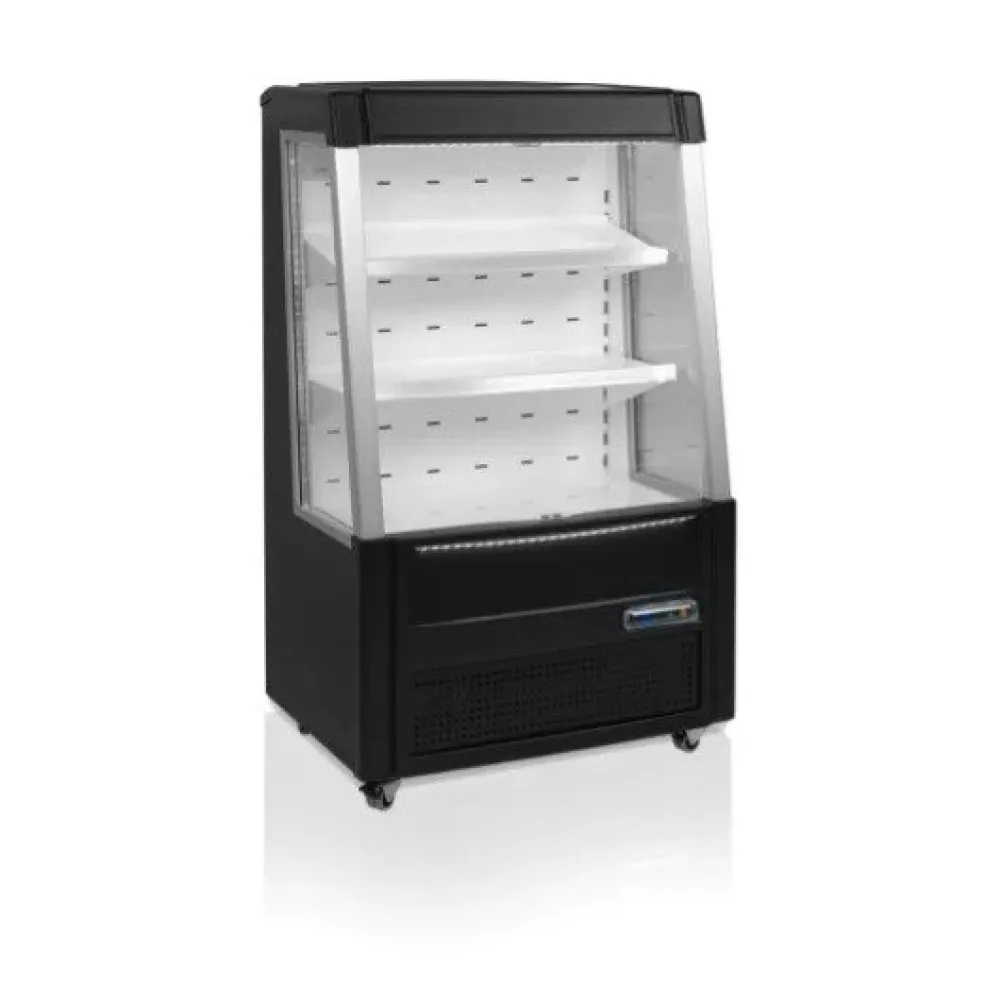

The TEFCOLD Showcase ODC90 is a display unit designed for showcasing products.

This type of showcase operates using a ventilated cooling system. This method circulates cooled air throughout the interior, ensuring a consistent temperature to preserve the displayed items. The system works by drawing air over a cooling element and then distributing it evenly within the cabinet.

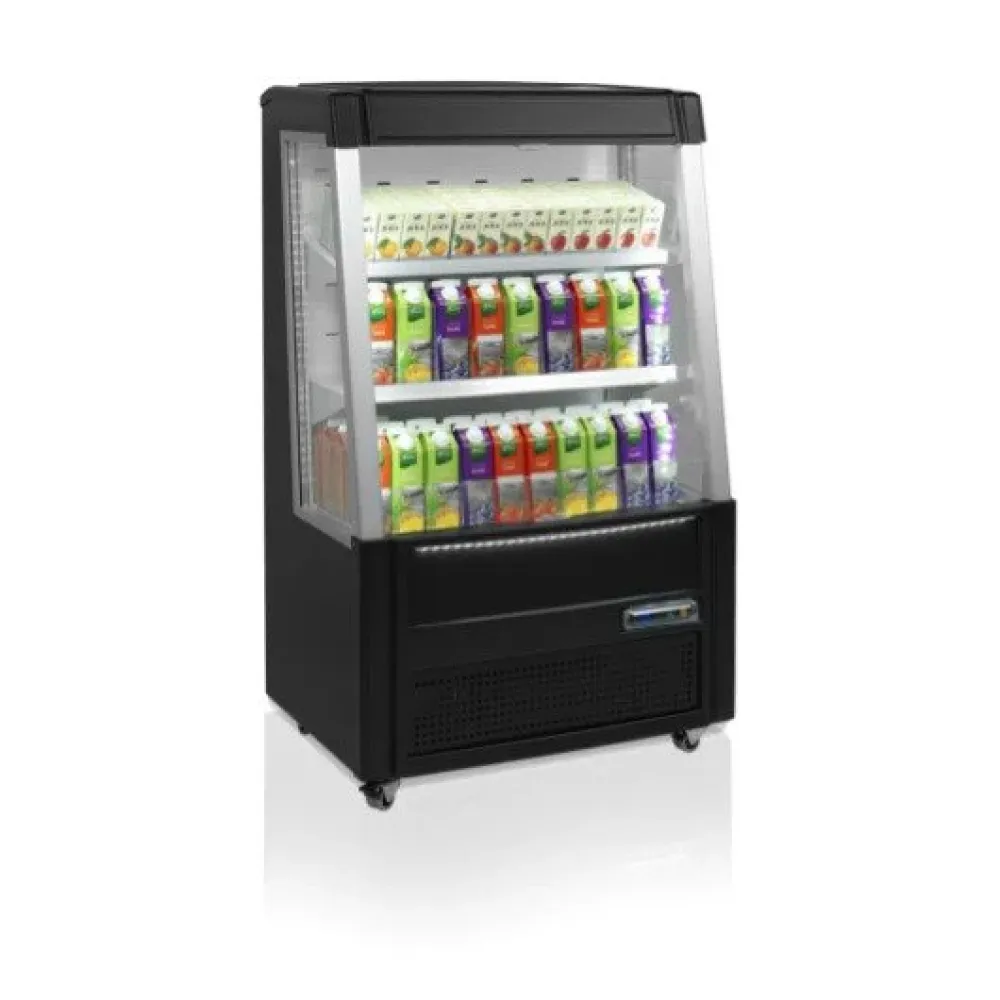

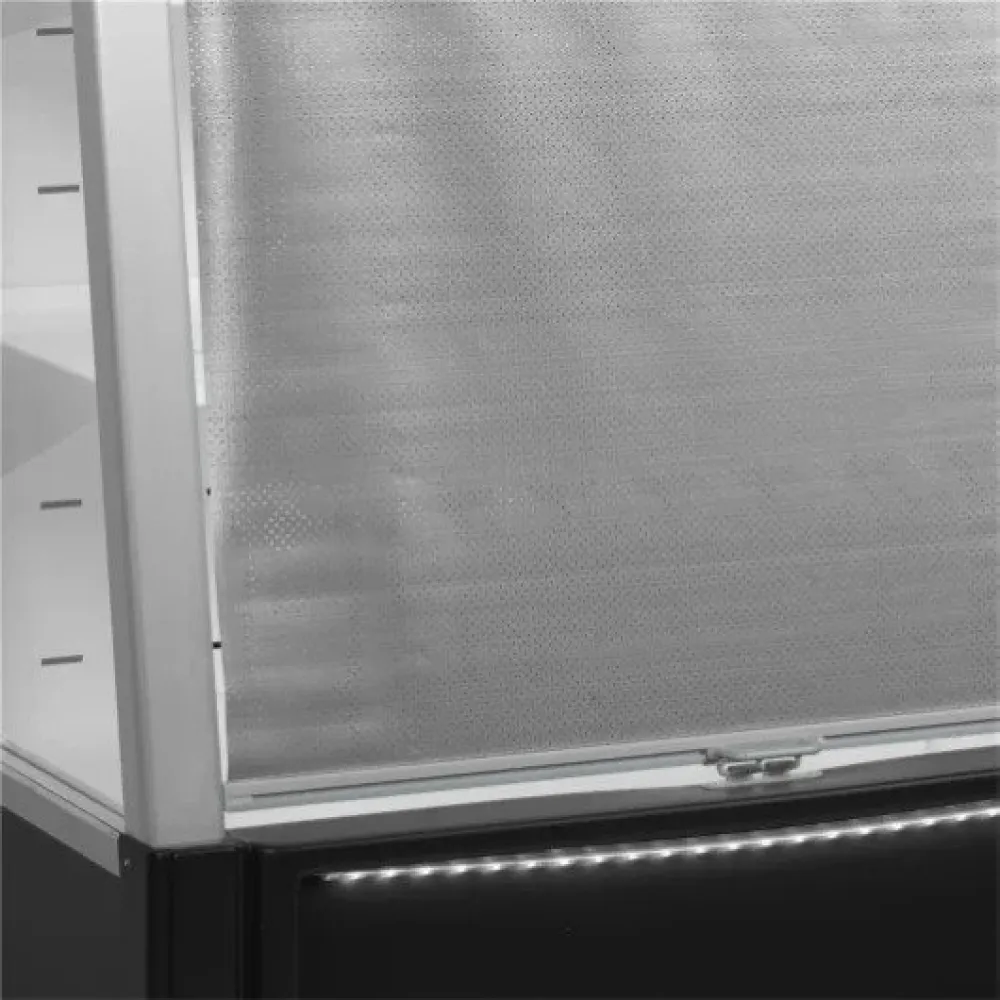

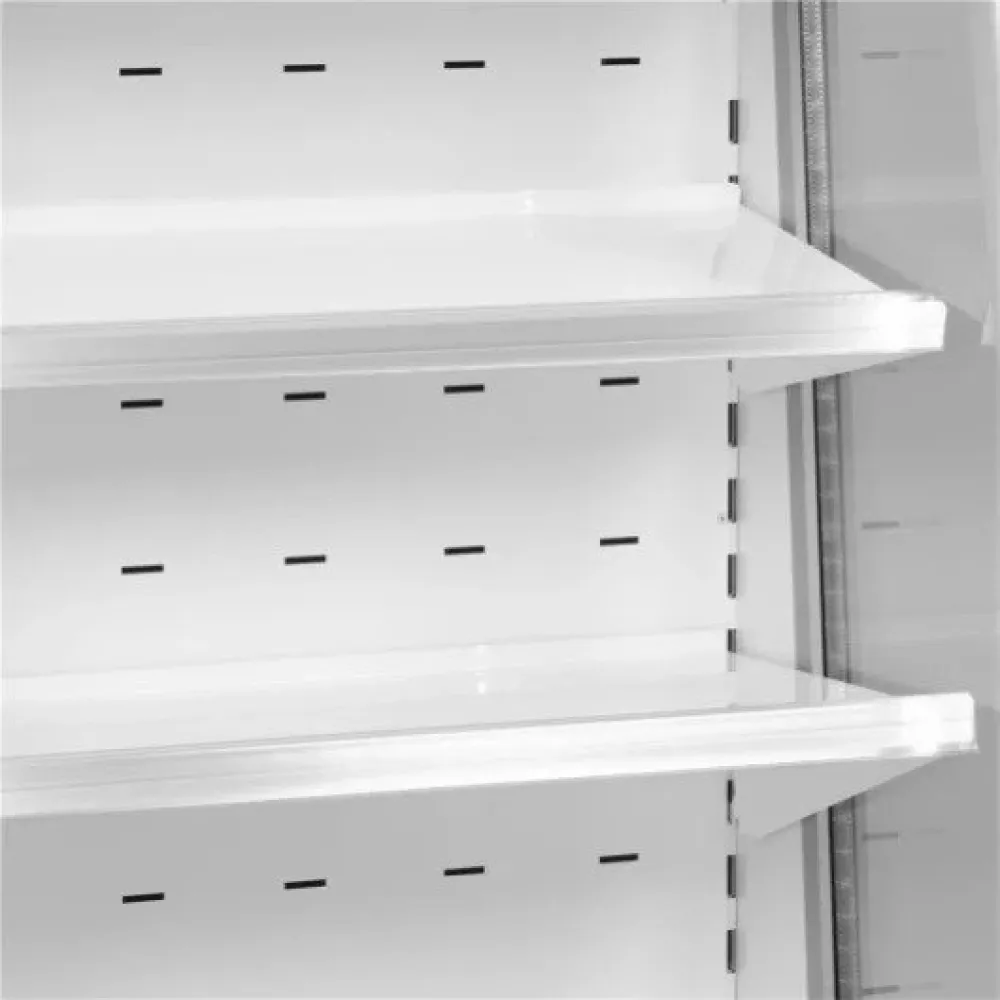

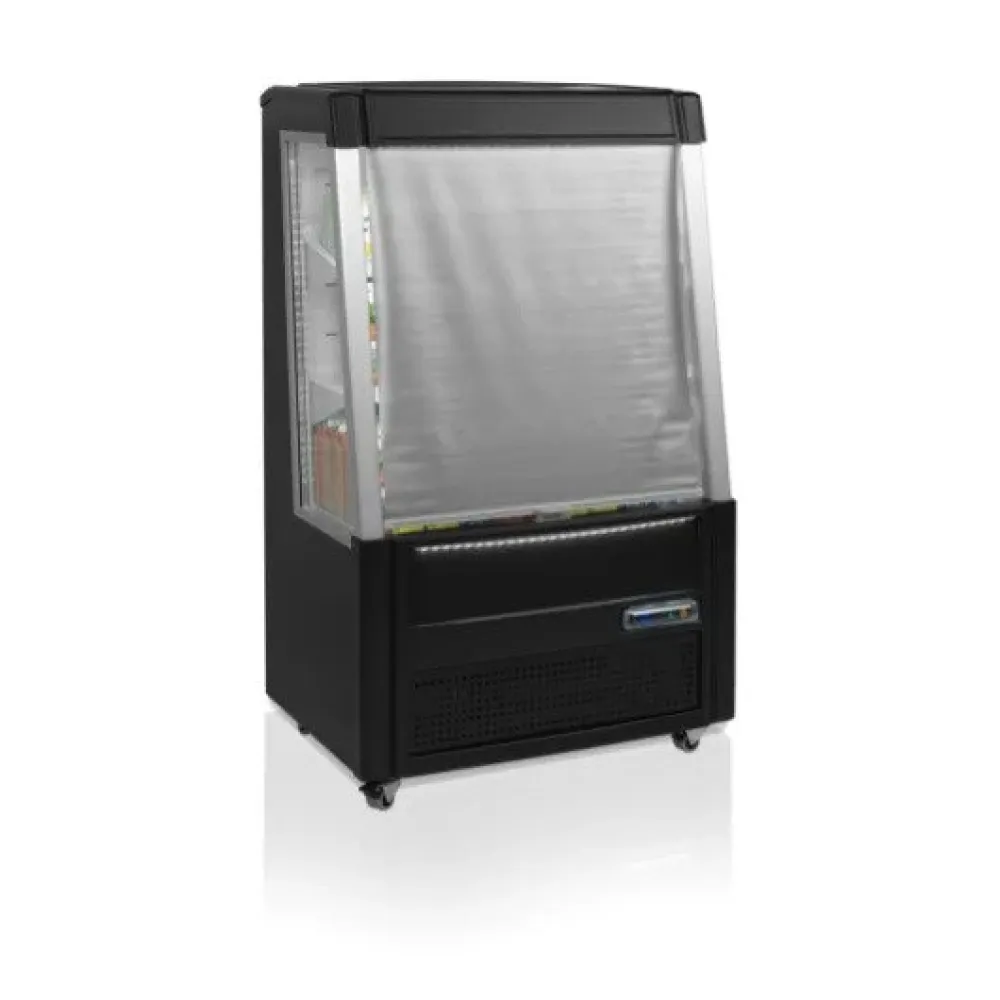

Operation involves loading items onto the adjustable shelves. These shelves can be tilted to optimise product presentation. The unit features LED interior lighting to illuminate the contents. A night blind with a soft-release mechanism is included for use when the showcase is not actively being displayed, helping to maintain temperature and reduce energy consumption.

The construction features glass sides, allowing for maximum product visibility. The exterior is finished in black, with a white interior.

Controls are not explicitly detailed, but the unit operates within a temperature range of 5 °C to 8 °C, maintained by its ventilated cooling.

The power rating of 1.613 kW indicates the electrical load the unit places on the supply. The dimensions of 915 mm (length), 640 mm (width), and 1540 mm (height) define the physical space it occupies. A volume of 242 L specifies the internal storage capacity. The weight of 164 kg indicates the unit's mass.

Cleaning would typically involve wiping down the glass and interior surfaces, and ensuring the ventilation grilles are kept clear of obstructions. The adjustable shelves can be removed for cleaning.

This model uses R290 refrigerant, with a charge of 150 g.

The catalogue places this product under designer showcases for interiors.
