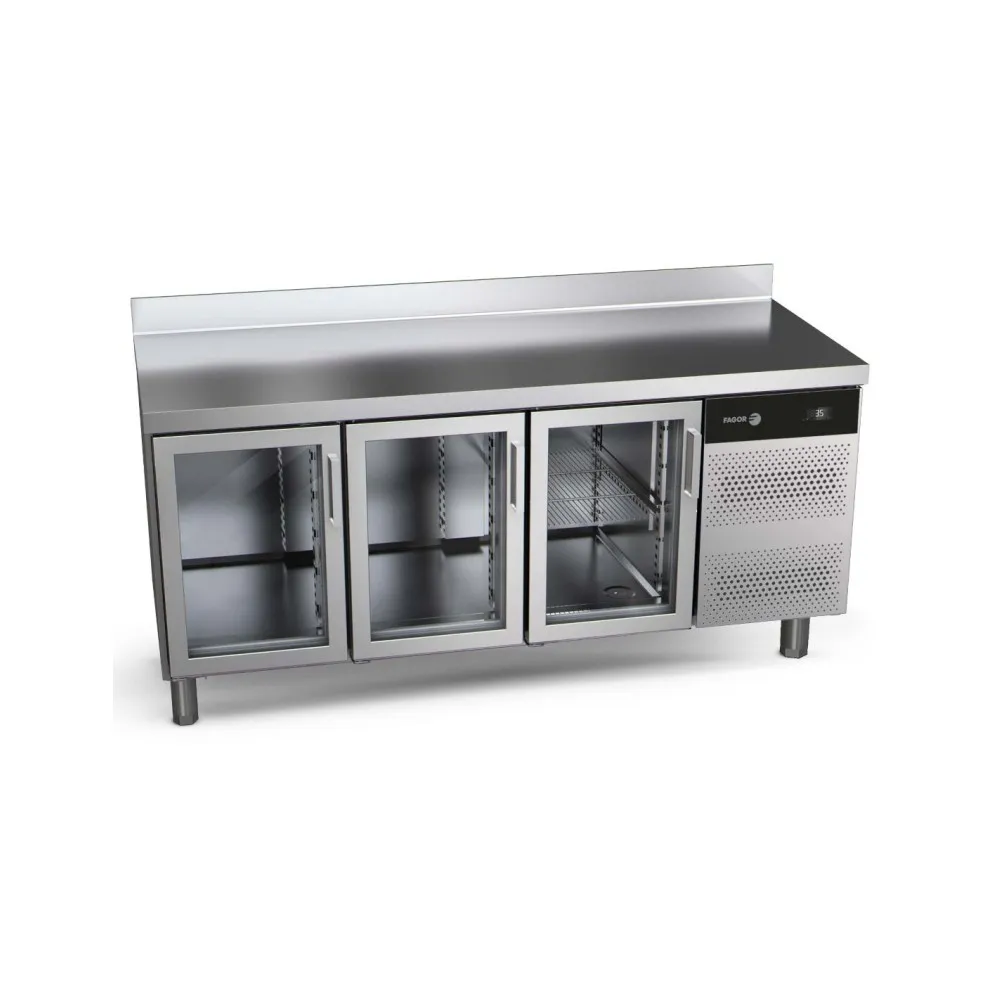

Counter refrigerator table without drawers FAGOR 19089586

A refrigeration counter display keeps chilled food visible and accessible while maintaining a steady low temperature. A compressor circulates refrigerant through an evaporator coil inside the cabinet. The coil absorbs heat from the air, lowering the temperature to the set range. A fan then pushes the cooled air evenly across the shelves, ensuring every item stays at the same temperature without freezing. Off-cycle defrost stops the compressor periodically, allowing any frost on the coil to melt and drain away without manual intervention. This method keeps the interior dry and the food fresh without interrupting service.

The operator loads the shelves with prepared dishes or ingredients, sets the desired temperature on the digital control panel, and closes the glass doors. The unit maintains the temperature automatically, displaying the current reading on the front panel. When an item is needed, the door opens easily and closes on its own if released below 90°, minimising warm air entry. The doors can be locked open at 120° for restocking or cleaning.

The interior is made of AISI 304 stainless steel, while the exterior uses food-grade stainless steel. A 50 mm layer of high-density polyurethane insulation, free of CFCs, is injected under high pressure for maximum thermal efficiency. The worktop is also stainless steel, with a 100 mm rear lip to prevent spills from running behind the unit. Each door has double glazing with low-emissivity glass to reduce heat transfer and ergonomic handles for easy opening.

Controls include a digital display and an energy-saving function that optimises storage conditions. The forced-air cooling system and low-energy electronic components ensure consistent performance. An automatic drainage system collects and evaporates defrost water, eliminating the need for manual emptying.

The 428 L capacity allows storage of multiple gastronorm trays. The unit includes one GN 1/1 shelf and two sets of height-adjustable tray slides for each full-size door, supporting up to 40 kg per shelf. The footprint of 1792 x 700 mm fits standard worktop depths, while the 140 kg weight requires a stable floor and may need two people to move. The 0 °C to +8 °C range is suitable for chilled prepared foods, dairy, and desserts but not for freezing.

Cleaning involves wiping the stainless steel surfaces with a damp cloth and mild detergent. The removable magnetic door seals and adjustable shelves can be taken out for thorough cleaning. The front panel provides access to technical components for maintenance. Adjustable stainless steel legs, ranging from 130 to 200 mm, allow levelling on uneven floors and simplify cleaning underneath.

A version with R290 refrigerant is available, offering a different power rating and compatibility with 60 Hz electrical supplies.

The unit is classified under climate class 4, ensuring reliable operation in professional kitchen environments.
