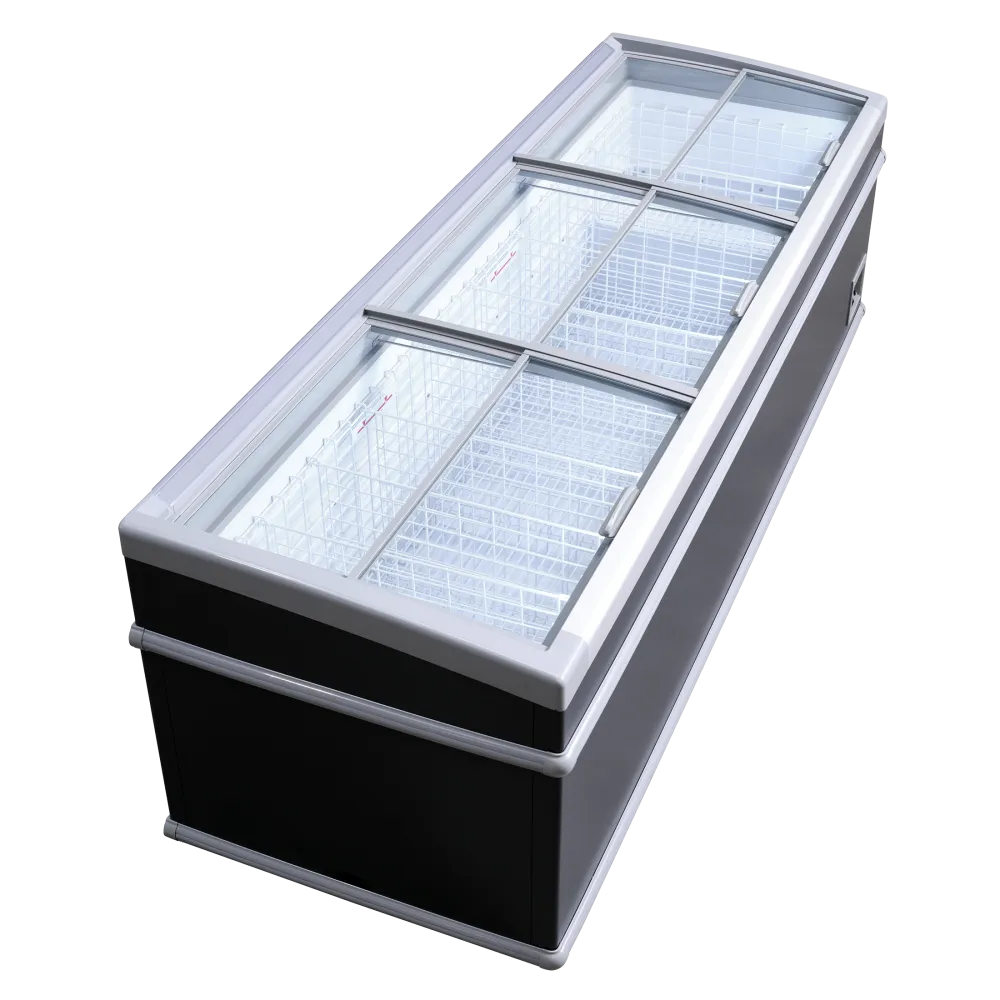

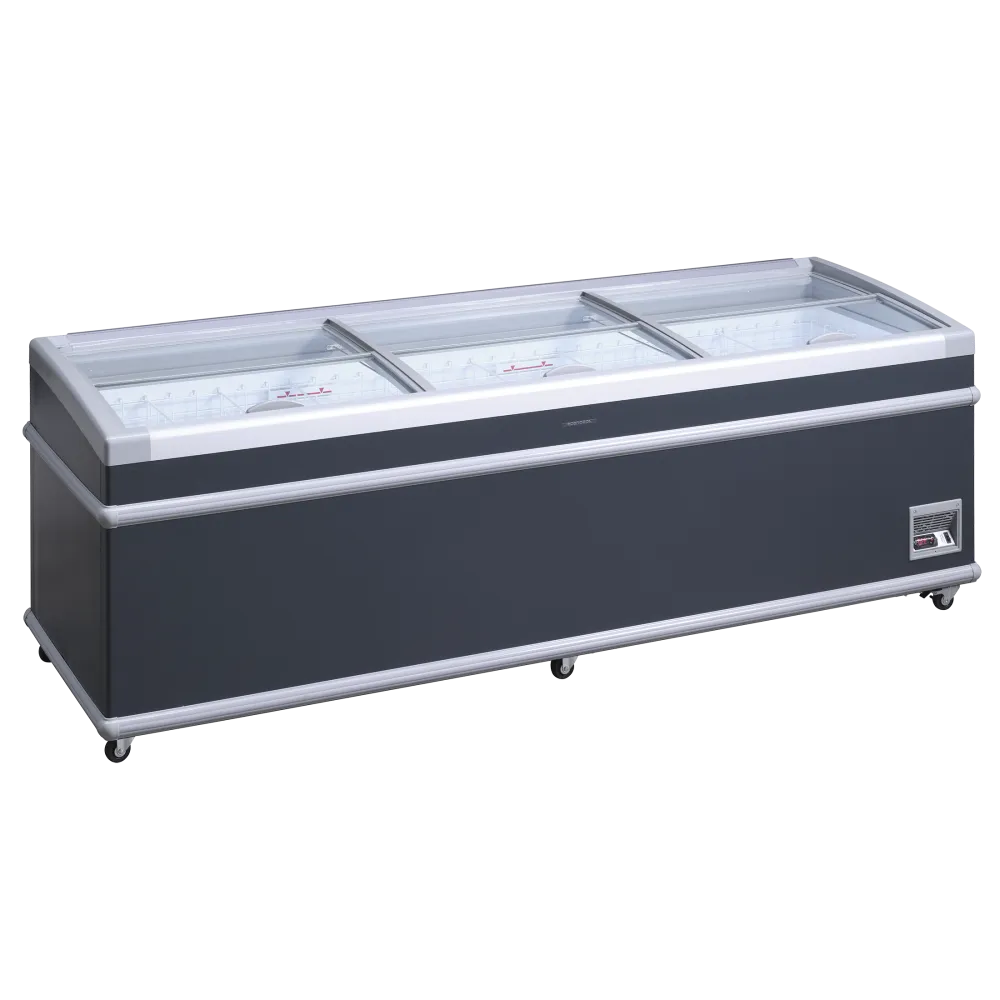

Chest freezer showcase SCANDOMESTIC 23424410000SIF900ADGD

A supermarket freezer that switches between chilled and frozen storage without changing the unit. The refrigeration system circulates cold air through a sealed chamber, removing heat from the products and maintaining the set temperature. When the thermostat calls for cooling, the compressor starts, the refrigerant absorbs heat inside the cabinet and releases it outside, lowering the internal temperature. The same process works for freezing, but the refrigerant cycle runs longer to reach the deeper cold required for frozen goods.

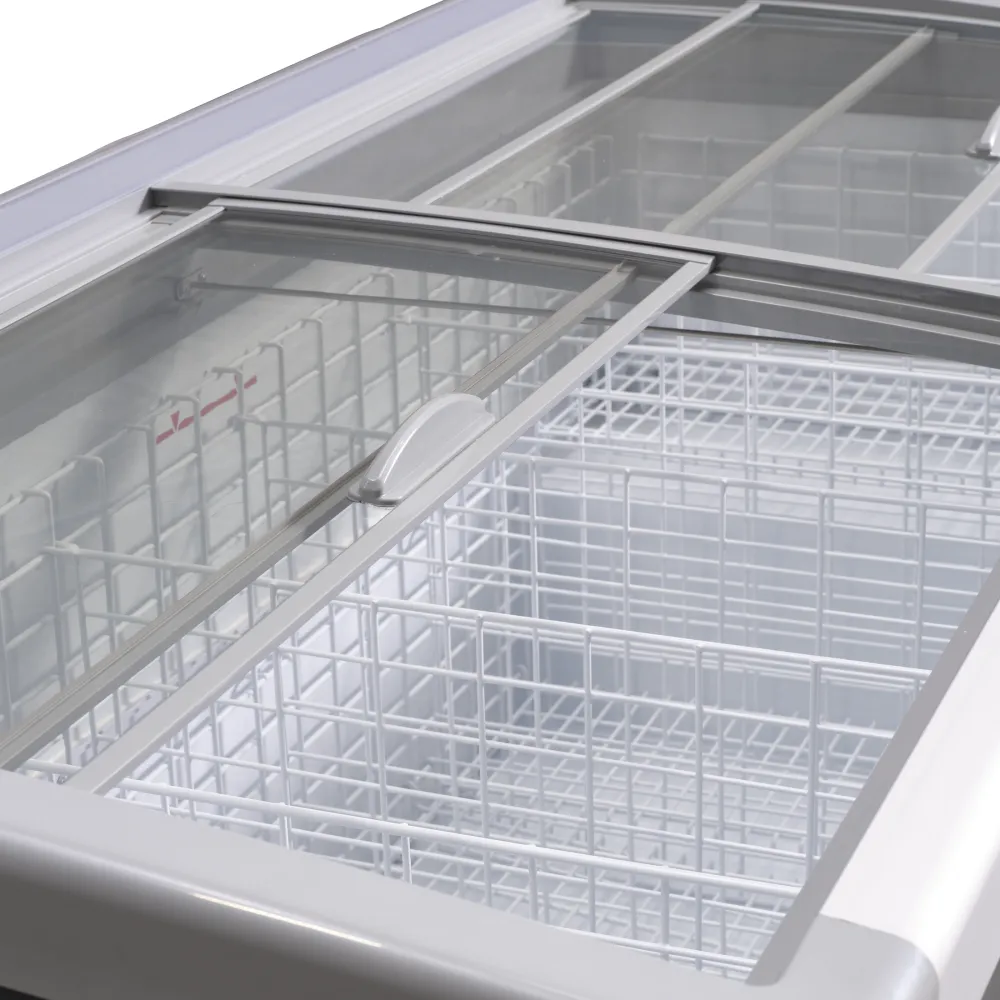

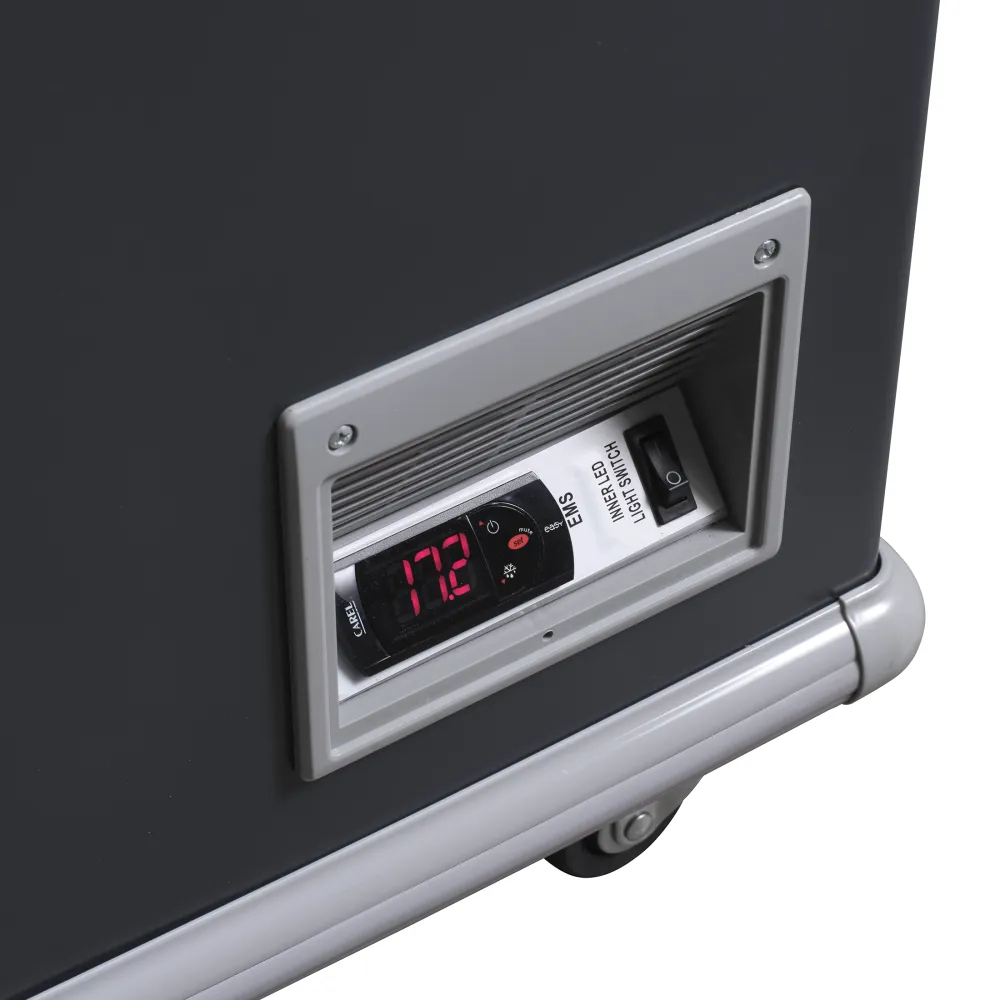

The operator loads the ten wire baskets with products, sets the digital thermostat to either the cooling range or the freezing range, and closes the curved sliding lids. LED lighting inside the cabinet illuminates the contents, and the transparent lids let customers see the products without opening the unit. An air circulation fan moves cold air evenly across every shelf, preventing warm spots and keeping every basket at the same temperature. The unit stands on six wheels, two of which lock, so it can be moved into position and secured.

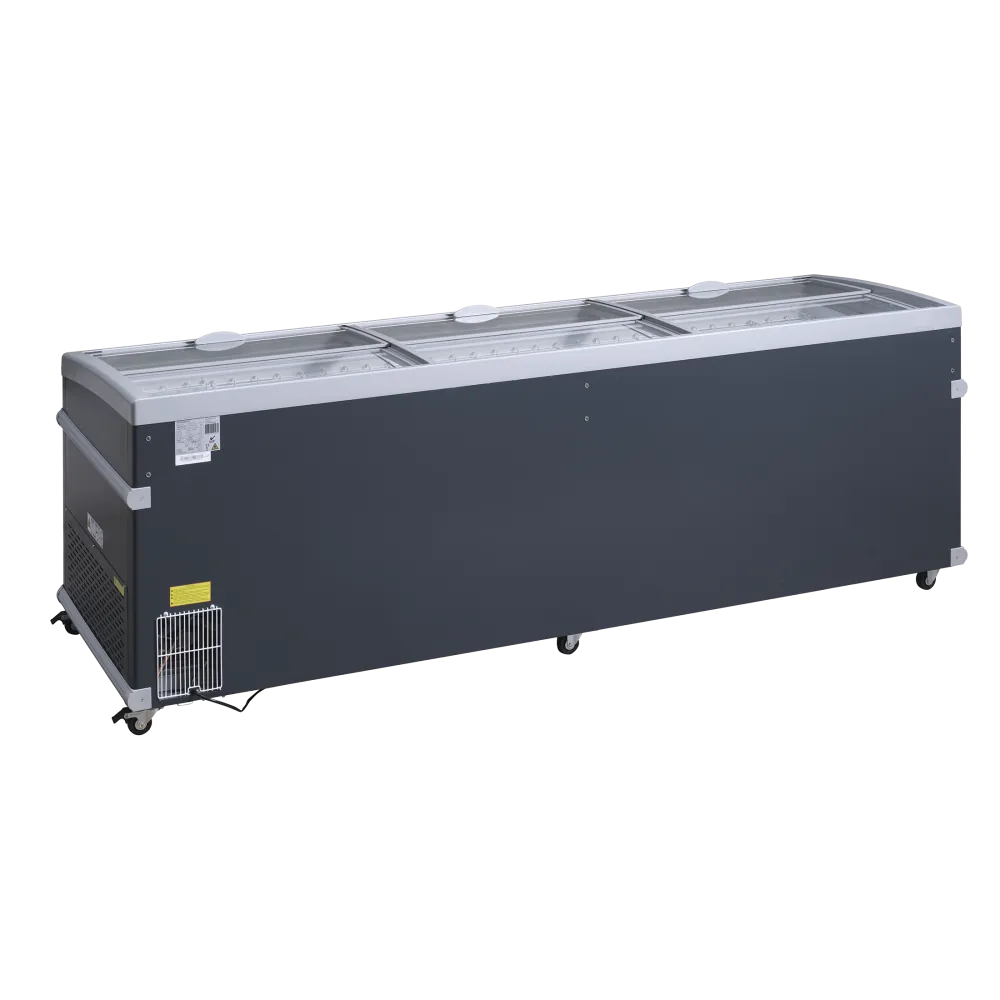

The cabinet is built with a dark grey exterior and a coated white steel inner liner. Rounded corners and aluminium handles protect both the unit and the users. The refrigerant is R290a, a hydrocarbon that cools efficiently while having a low environmental impact. The voltage requirement is 220-240 V at 50 Hz, matching the standard single-phase supply in British retail premises.

The 690 litre volume provides space for a full day's stock in a small supermarket or convenience store. The footprint of 2532 by 829 millimetres fits against a wall or into an island layout when paired with the shorter SIF600ADGC model. The 140 kilogram weight means the unit is moved by two people or a sack trolley. The 8.22 kilowatt-hour daily energy consumption reflects the load of keeping a large cabinet at freezing or cooling temperatures around the clock.

Cleaning involves wiping the coated steel liner and the wire baskets with a damp cloth and mild detergent. The sliding lids lift off for thorough cleaning, and the wheels should be checked periodically to ensure they turn freely. The LED lighting does not require replacement for many years under normal use.

The freezer is supplied with ten wire baskets and dividers for organised storage. It is classified as Energy Class D under current retail appliance regulations.
