Bar refrigerator SCANDOMESTIC 25311710000MDC1290BB

A display refrigerator keeps chilled goods visible while maintaining a steady low temperature. Cold air is drawn in at the base, passed over an evaporator coil to remove heat, then pushed by a fan through vents inside the cabinet. The circulated air flows evenly around every shelf, preventing warm spots and keeping products at the set temperature without freezing them. Because the doors are glazed, the cooling system must work harder to offset the heat gain from ambient light and customer traffic, so the fan runs continuously to maintain circulation and stability.

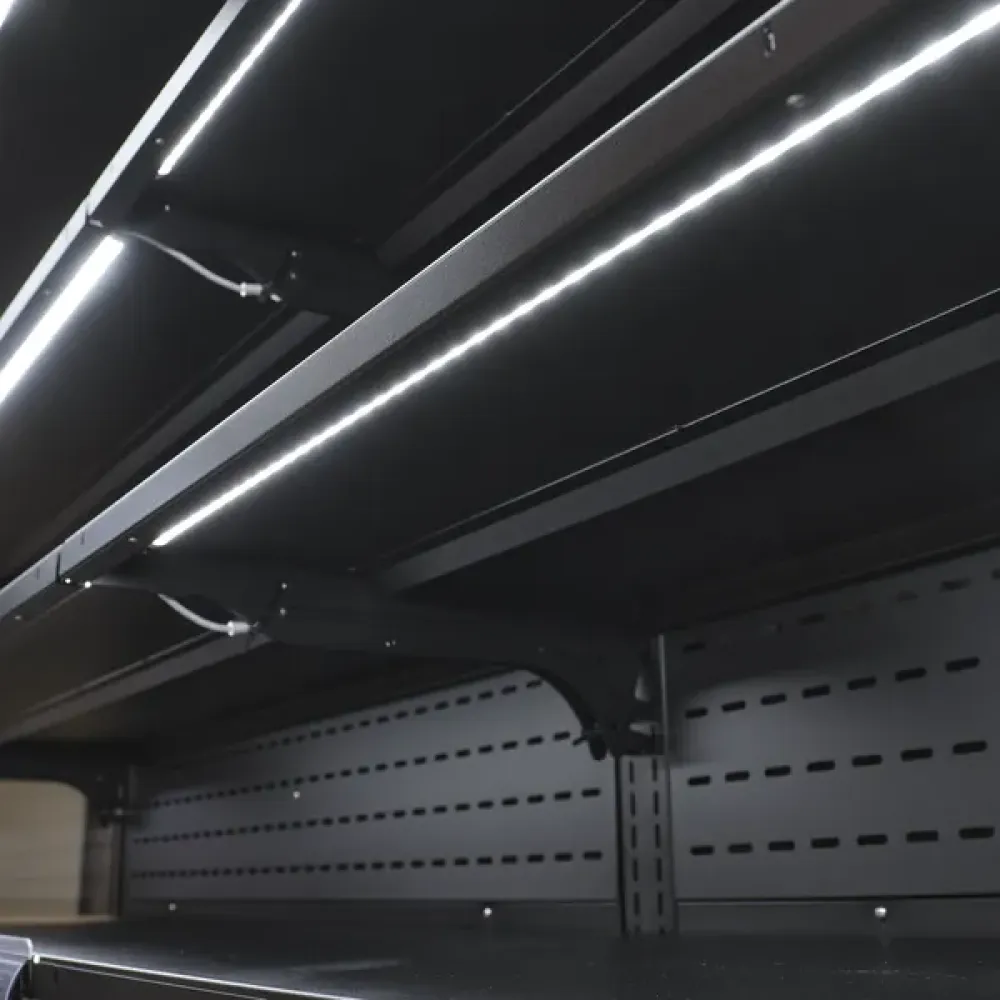

To load the refrigerator, the operator opens either of the two glazed doors, places items on the black shelves, and adjusts the shelf height or tilt angle as needed. The electronic thermostat is set via an external display, allowing precise control between -1 °C and +5 °C. Once the doors close automatically, the fan-driven air circulation resumes, distributing cold air evenly across all five shelves. LED lights at the top of the cabinet and beneath each shelf illuminate the contents, making products visible from multiple angles without adding heat.

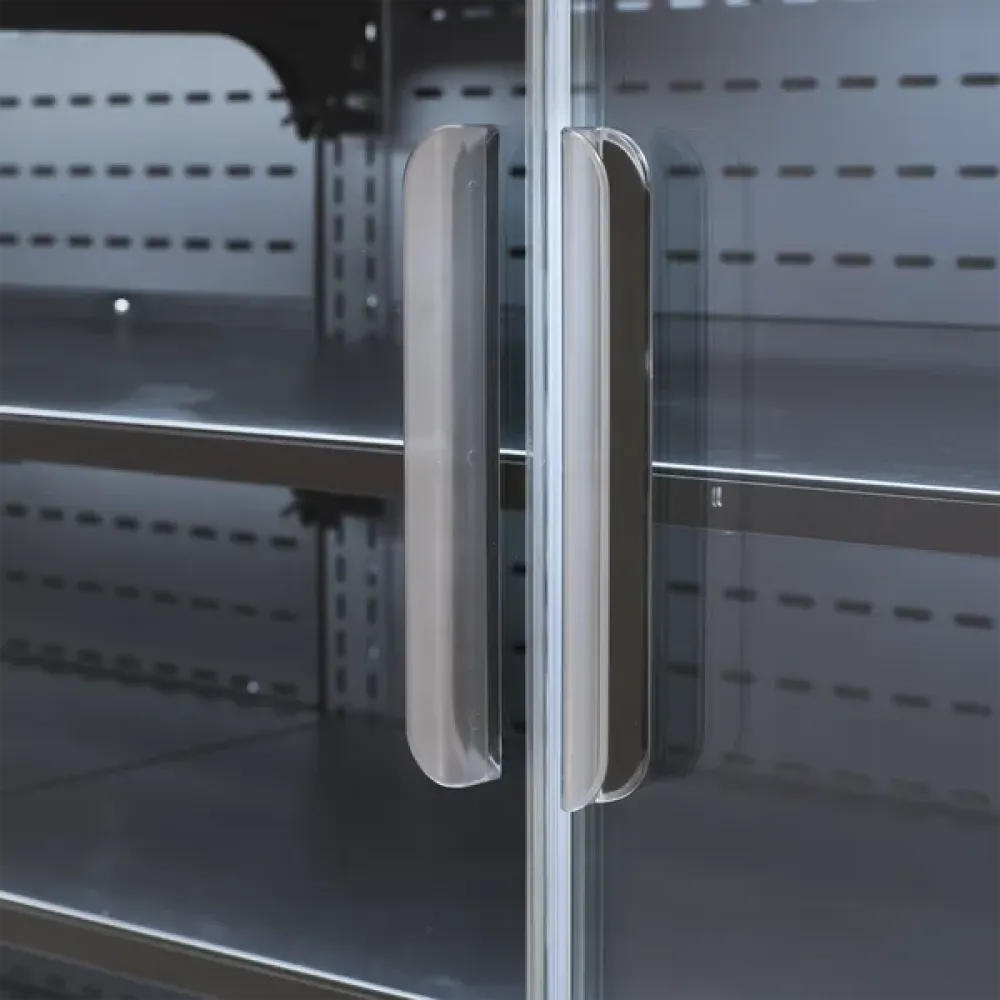

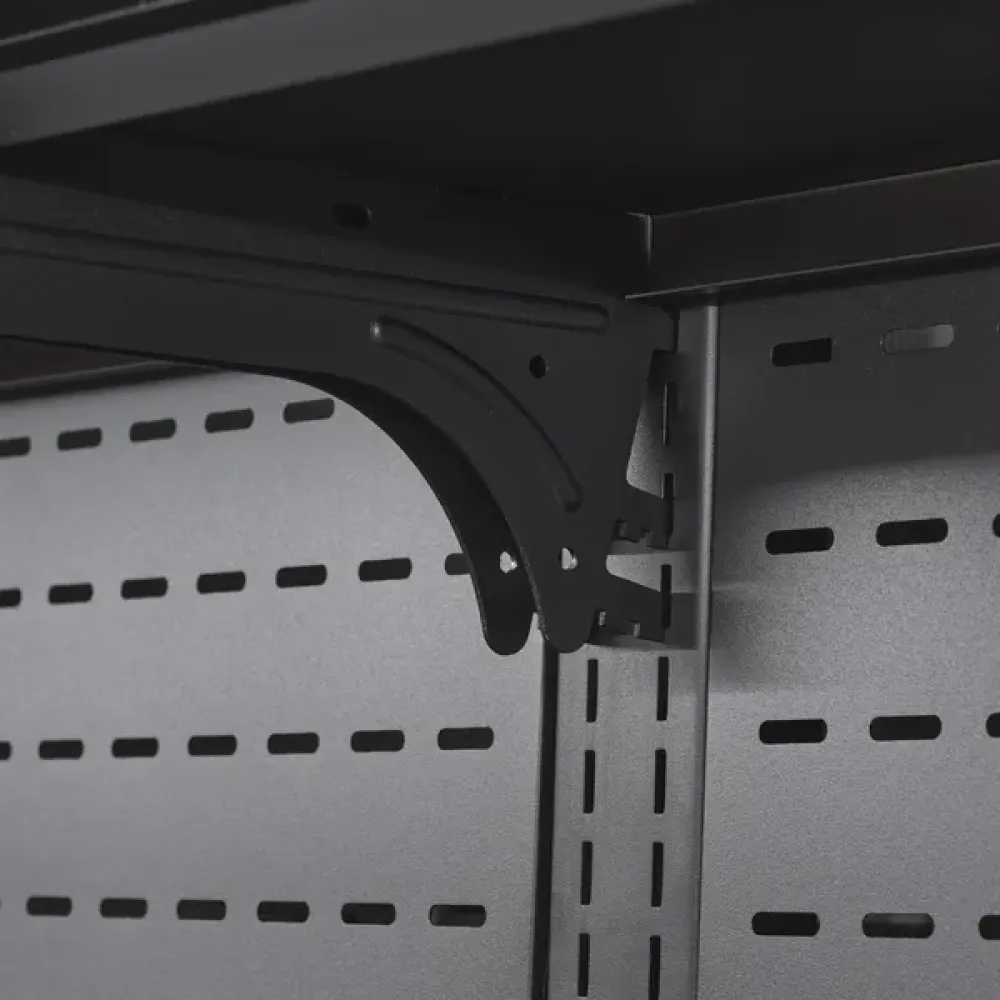

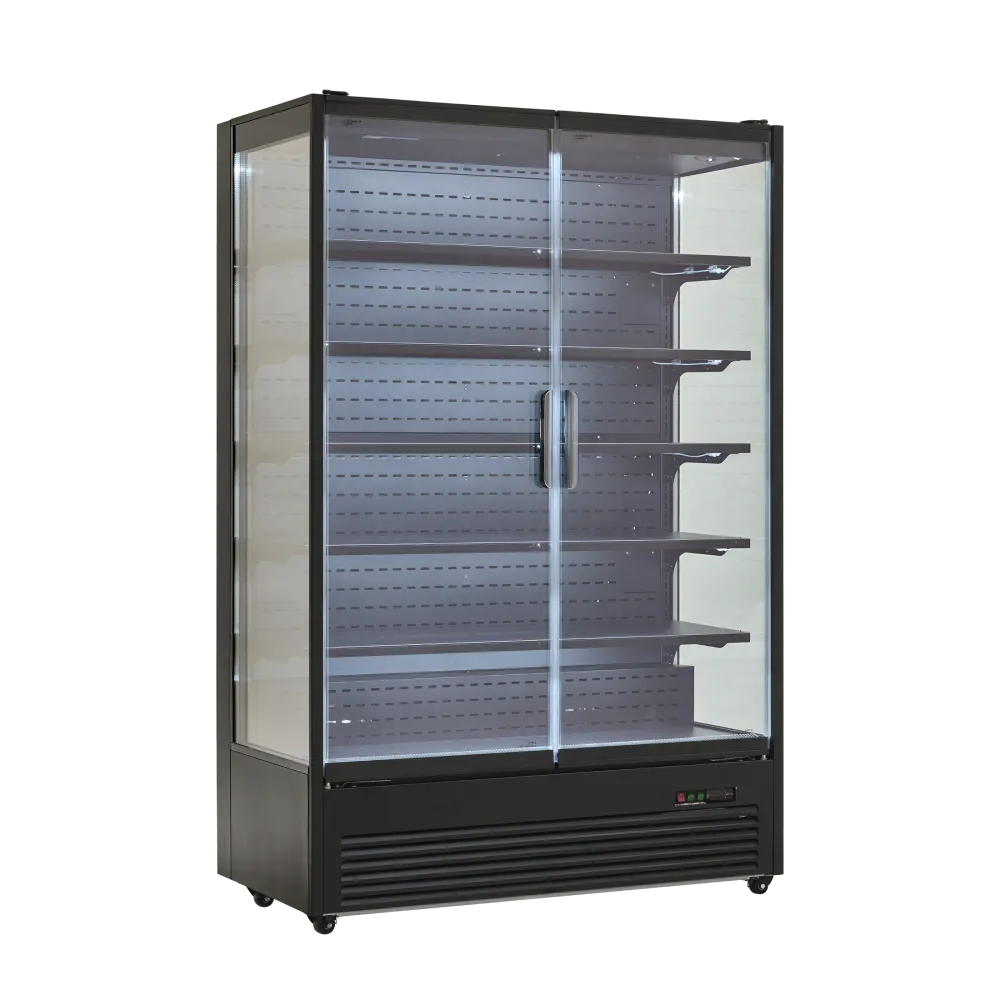

The cabinet is constructed with fully glazed doors and a glass side panel, allowing customers to view products from the front and side. Five black shelves support up to 89 kg each and can be tilted at 0°, 7°, or 14° to improve visibility or organisation. The refrigerant used is R290a, which is circulated through the evaporator coil to absorb heat from the interior. An automatic door-closing mechanism reduces cold air loss, helping to maintain a stable temperature and reduce energy consumption.

The 764 L volume provides ample space for displaying chilled goods, while the 1310 mm width and 2010 mm height determine the footprint and clearance needed in a retail or catering setting. The 260 kg weight indicates that the unit requires a stable, level floor and may need two people or a trolley for movement. The 220-240 V voltage requirement means it connects to a standard single-phase circuit, suitable for most commercial kitchens and retail environments. The 5.87 kWh per 24 hours power rating reflects the energy needed to maintain temperature in a ventilated, glazed cabinet with continuous air circulation.

Cleaning involves wiping the glazed doors, glass side panel, and black shelves with a damp cloth and mild detergent. The LED lights under each shelf should be dusted regularly to maintain brightness. The air vents at the base and rear must be kept clear to ensure proper airflow and cooling efficiency. The shelves can be removed for thorough cleaning, and the tilt mechanism should be checked periodically to ensure smooth adjustment.

This model is available in black with the article number 25311710000MDC1290BB and is categorised under display refrigeration for professional catering and retail use.
