Technical data
| Attributes | |
| ARTICLE | 25311710000MDC1973BB |
| POWER | 8,13 kWh/24h |
| VOLTAGE | 220-240V / 50h |
| VOLUME | 1147 L |
| WEIGHT | 370kg |
| TEMPERATURE MODE | -1/+5°C |
| Model | MDC1973BB |
| SIZE | 1975/ 767 / 2060 mm |
| Lighting | LED light at the top of the cabinet and under each shelf |
| SHELVES | 5 shelves |
| Number_of_doors | 3 |
| COLOR | Black |
| Refrigerant | 2 compressors - Refrigerant 2 x 135 gr |
| NOTES | Ventilated cooling; Energy Class B |

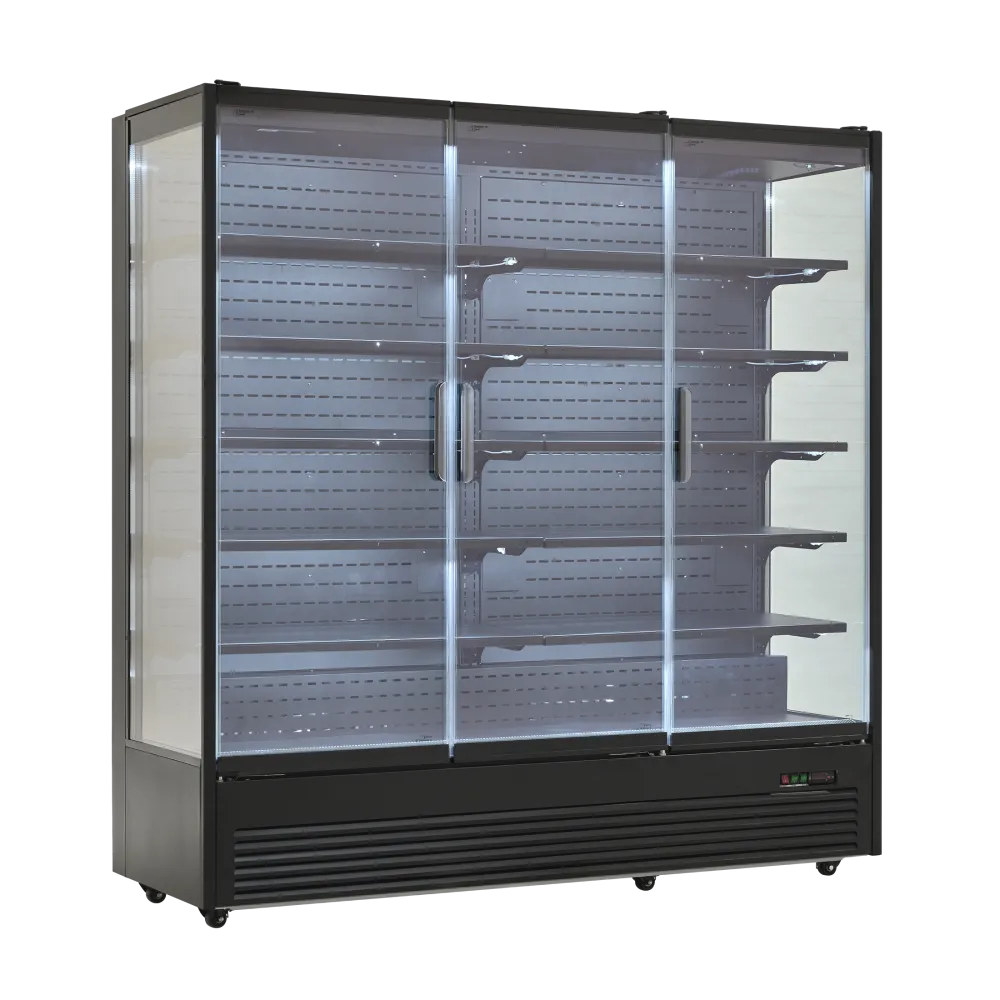

The MDC1973BB display refrigerator is a spacious 3-door multideck unit with a capacity of 1147 liters, designed for storing and attractively presenting products. It is ideal for shops, supermarkets, cafés, restaurants, pizzerias, and gas stations, especially in self-service areas.
- : SCANDOMESTIC
- Article number: 25311710000MDC1973BB
A three-door display refrigerator keeps chilled goods visible from the front and side while maintaining a steady low temperature. Cold air is drawn in by two compressors, circulated through a ventilated system, and distributed evenly across every shelf. This airflow prevents warm spots and ensures every product stays within the set range without freezing or spoiling. The glass doors and side panel allow customers to see the stock from multiple angles, turning the refrigerator into a sales tool as well as a storage unit. The operator loads the five black shelves, each adjustable in height and tilt. A tilt of 0°, 7° or 14° can be set to present products at the best angle for visibility and access. Once loaded, the electronic thermostat is adjusted on the external display to hold the cabinet between -1 °C and +5 °C. The doors close automatically after each opening, cutting cold-air loss and keeping the temperature stable. LED strips at the top and beneath each shelf illuminate the contents, making colours vivid and labels easy to read. The cabinet is built with a black exterior and fully glazed doors. Two compressors work in tandem, each charged with refrigerant. The ventilated cooling system circulates air continuously, while the electronic thermostat and external display allow precise temperature control. Shelves are rated for heavy loads and can be repositioned or tilted without tools. A 220-240 V single-phase supply powers the unit, matching standard UK commercial circuits. The 1147 L volume provides ample space for large product displays, while the 1975 mm width and 370 kg weight determine the floor space and structural support needed. Energy Class B reflects the balance between cooling performance and electricity consumption over a 24-hour cycle. Cleaning involves wiping the glass doors and side panel with a damp cloth, removing and washing the shelves in warm soapy water, and vacuuming the condenser coils at the rear to maintain airflow. Under-shelf LEDs cast a shadow-free glow directly onto every product tier, ensuring labels and freshness stay visible to shoppers even in dim store aisles. The model is supplied in black only, with no alternative colours or finishes listed.
