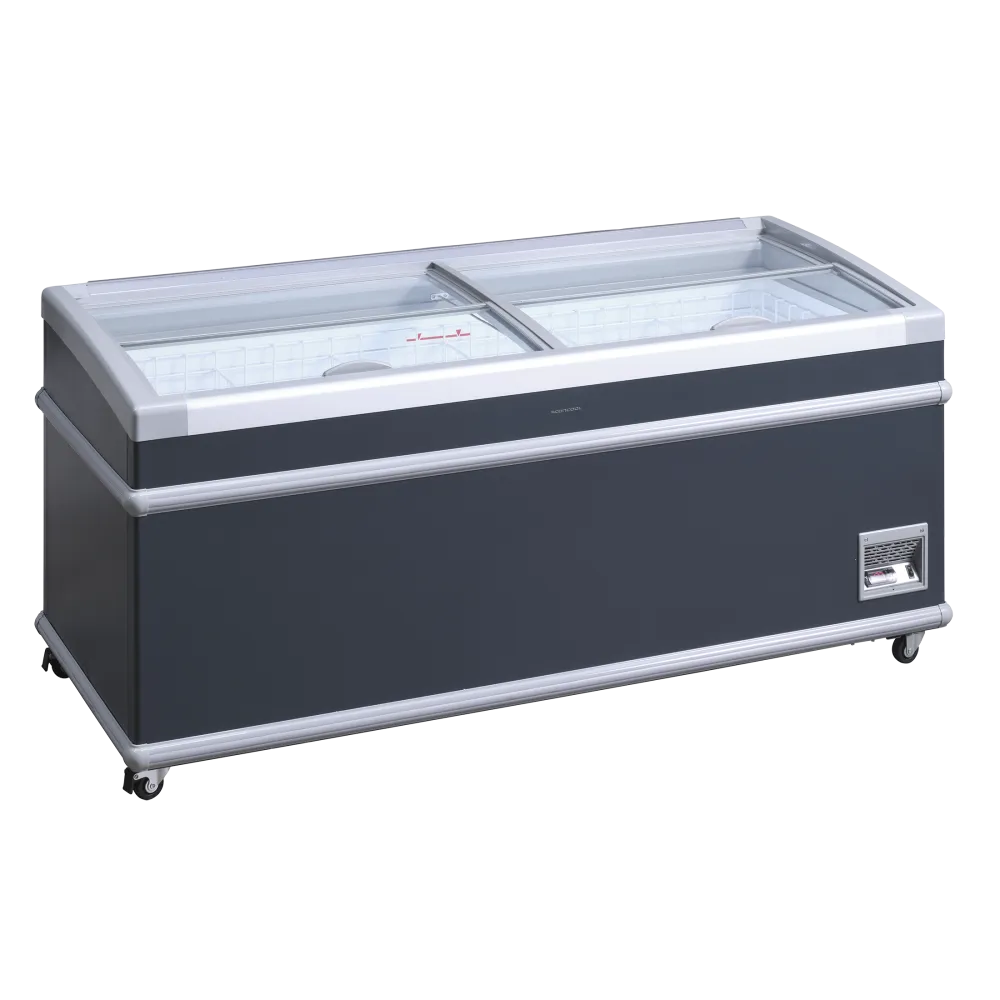

Chest freezer showcase SCANDOMESTIC 23424410000SIF700ADGC

A supermarket freezer that switches between chilled and frozen storage without moving stock. The refrigeration circuit uses a compressor to circulate refrigerant through evaporator coils inside the cabinet. When set to freezing, the coils absorb heat from the air, lowering the temperature below -15 °C; when set to cooling, the same coils maintain a gentler chill between +2 °C and +7 °C. An internal fan spreads the cold evenly across every shelf, so every basket stays at the same temperature.

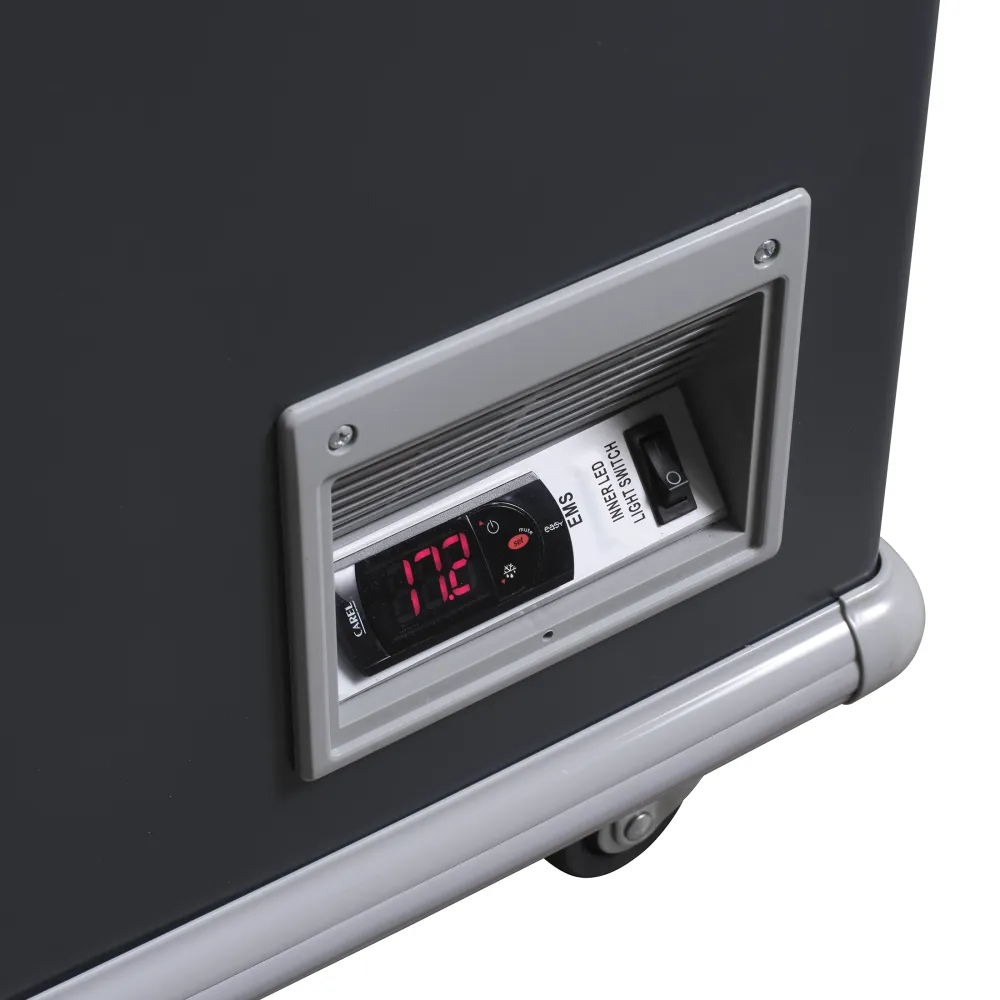

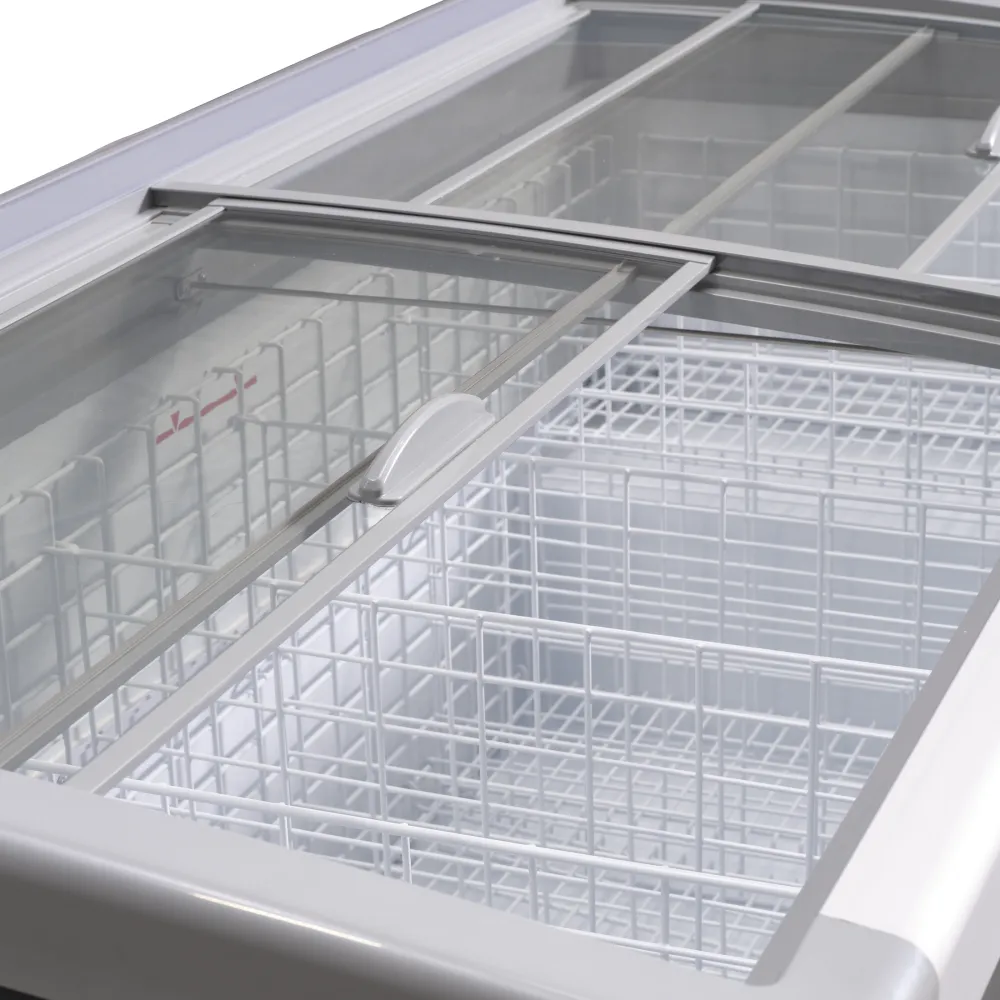

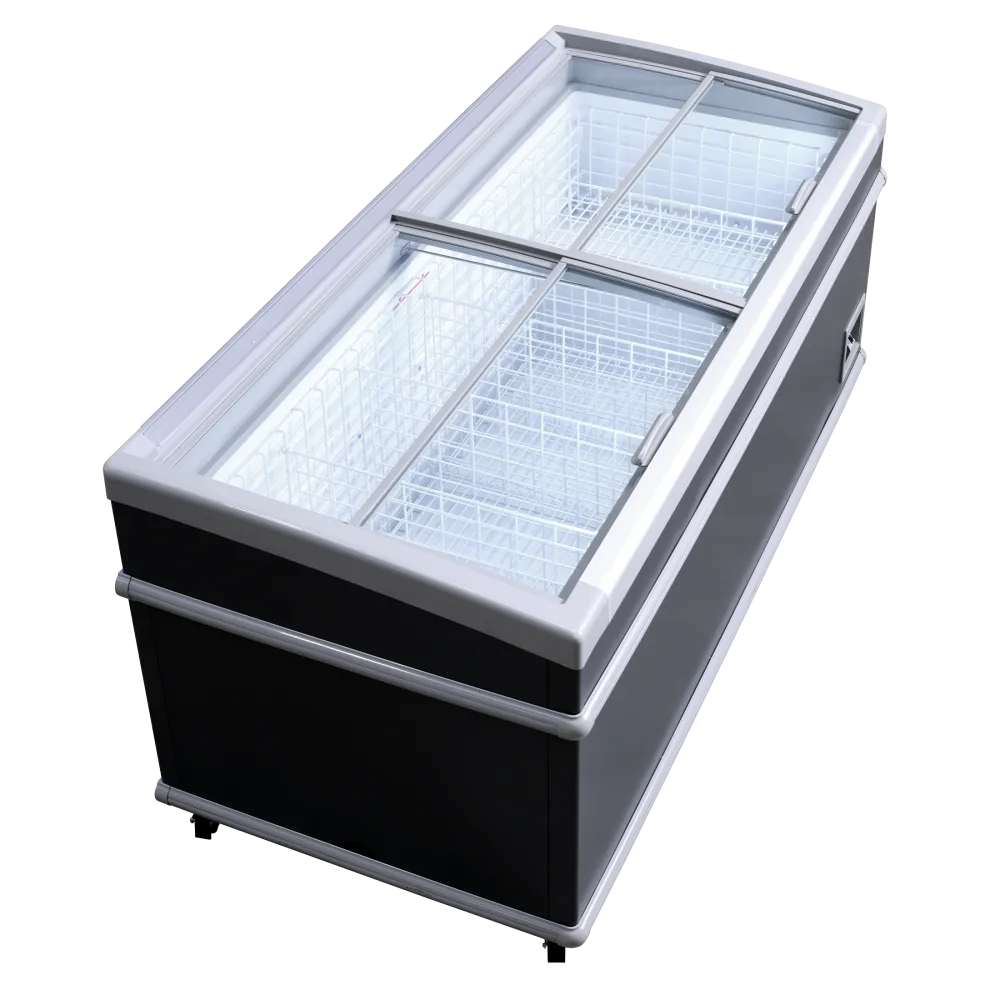

The operator loads the six wire baskets with product, closes the curved sliding lids, and selects the mode on the digital control panel. The panel displays the current temperature and allows adjustment within the two ranges. LED lighting inside the cabinet illuminates the contents without adding heat, so customers can see the stock clearly through the transparent lids. The unit stands on four wheels, two of which lock, allowing it to be positioned in a shop aisle or against a wall and then secured in place.

The cabinet is built from coated steel with a dark grey exterior and a white inner liner. Rounded corners and aluminium handles reduce sharp edges and make the unit easier to clean. The refrigerant is R290a, a hydrocarbon that cools efficiently while having a lower environmental impact than older refrigerants.

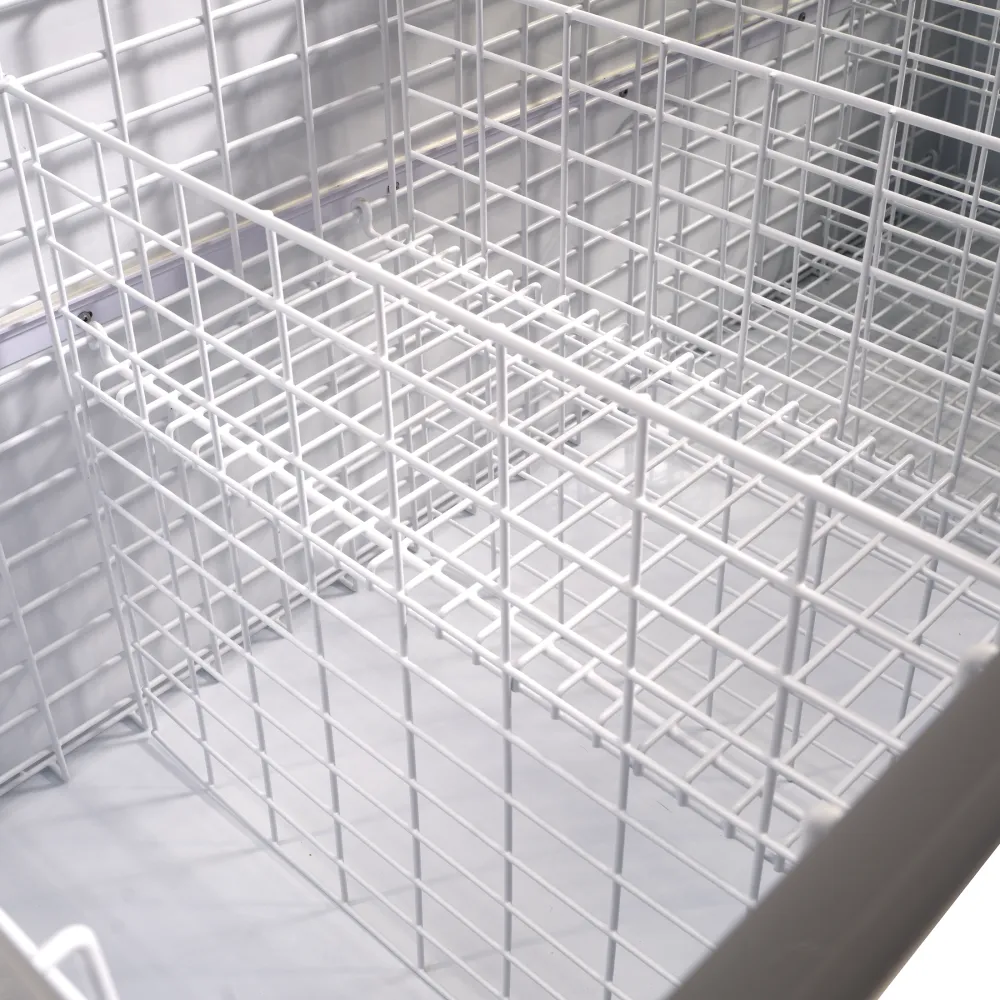

The 501 L volume provides space for six wire baskets, each fitted with dividers to organise smaller items. The footprint of 1895 mm by 830 mm fits standard shop aisles, while the 860 mm height allows customers to reach the top baskets without stretching. The 105 kg weight means the unit can be moved by two people or with a trolley, but the wheels are essential for positioning.

The voltage requirement of 220-240 V matches the standard single-phase supply in British retail premises. The 5.42 kWh per 24 hours power rating indicates the electrical load the unit will place on the circuit, which should be considered when planning the shop's total consumption.

Cleaning involves wiping the inner liner and wire baskets with a damp cloth and mild detergent. The exterior can be cleaned with the same solution, avoiding abrasive pads that could scratch the coated steel. The wheels should be checked periodically for debris that could impede movement, and the digital thermometer should be verified against an external probe to ensure accuracy.

For island configurations, the SIF600ADGC model is available as an alternative. The SIF700ADGC is categorised under supermarket freezers in the retail refrigeration section of the catalogue.
