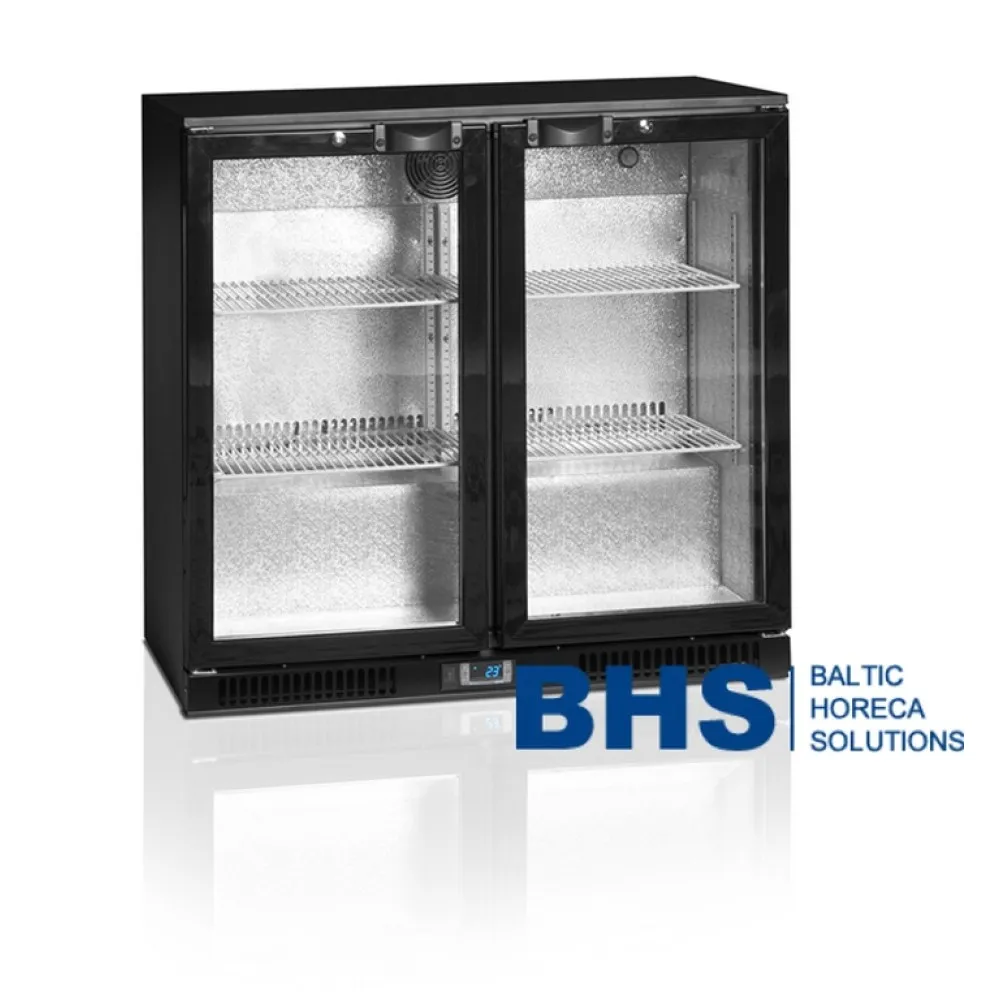

Bar refrigerator TEFCOLD DB201H

A bar refrigeration unit keeps drinks chilled by circulating cold air around wire shelves. The compressor draws heat from inside the cabinet and expels it through a condenser coil at the back, maintaining a steady temperature between 2 °C and 10 °C. A fan ensures even cooling, preventing warm spots that could spoil stock or slow service during peak hours.

To use the DB201H, slide the chrome shelves into the guides to match the height of the cans or bottles. Load the drinks, close the double-glazed door and set the electronic thermostat to the desired temperature. The LED interior light switches on when the door opens, making it easy to pick the right drink without letting cold air escape. The unit runs on a single-phase 220–240 V supply, drawing 0.115 kW, which keeps the load light on a standard kitchen circuit.

The cabinet is built from coated steel with a double-glazed door that insulates while displaying stock. Two chrome-plated wire shelves, each 395 mm wide and 330 mm deep, support the weight of filled cans and bottles. The refrigerant is R600a, charged at 70 g, which is efficient for small to medium bar units. The exterior measures 900 mm wide, 520 mm deep and 870 mm high, fitting under most bar counters or against a back wall. At 63 kg, the unit can be moved by two people or on a sack trolley.

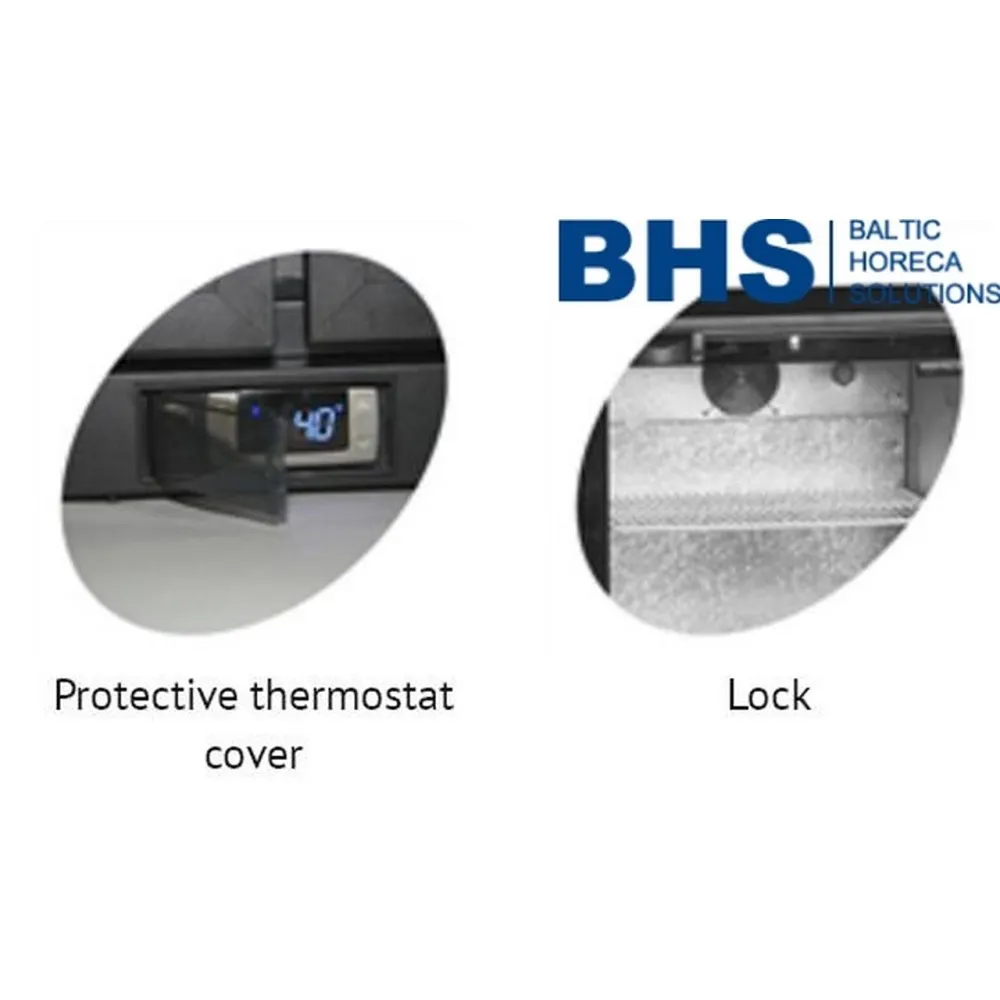

The electronic thermostat allows precise control between 2 °C and 10 °C, covering the range needed for lagers, soft drinks and bottled water. The 182-litre volume holds up to 276 standard 330 ml cans or 143 500 ml bottles, giving enough stock for a busy shift without overcrowding the shelves. The chrome finish resists rust and wipes clean with a damp cloth, while the wire shelves allow air to circulate freely around each can or bottle.

Cleaning involves wiping the interior and shelves with a mild detergent solution, then drying to prevent ice build-up. The condenser coil at the back should be vacuumed monthly to remove dust that would reduce cooling efficiency. The LED light requires no maintenance beyond occasional wiping.

The DB201H is a single model with no variants. It is listed in the bar refrigeration section of the catalogue.
