Bar refrigerator TEFCOLD BA6H

A backbar cooler keeps bottled and canned drinks chilled behind the counter, ready to serve without ice. It draws air across a refrigerated coil and circulates it evenly through the cabinet so every shelf stays at the same temperature. The coil is cooled by a compressor running on refrigerant R600a, which absorbs heat from the air and expels it at the rear. Because the air moves continuously, the unit reaches the set temperature faster and uses less energy than static cooling would need.

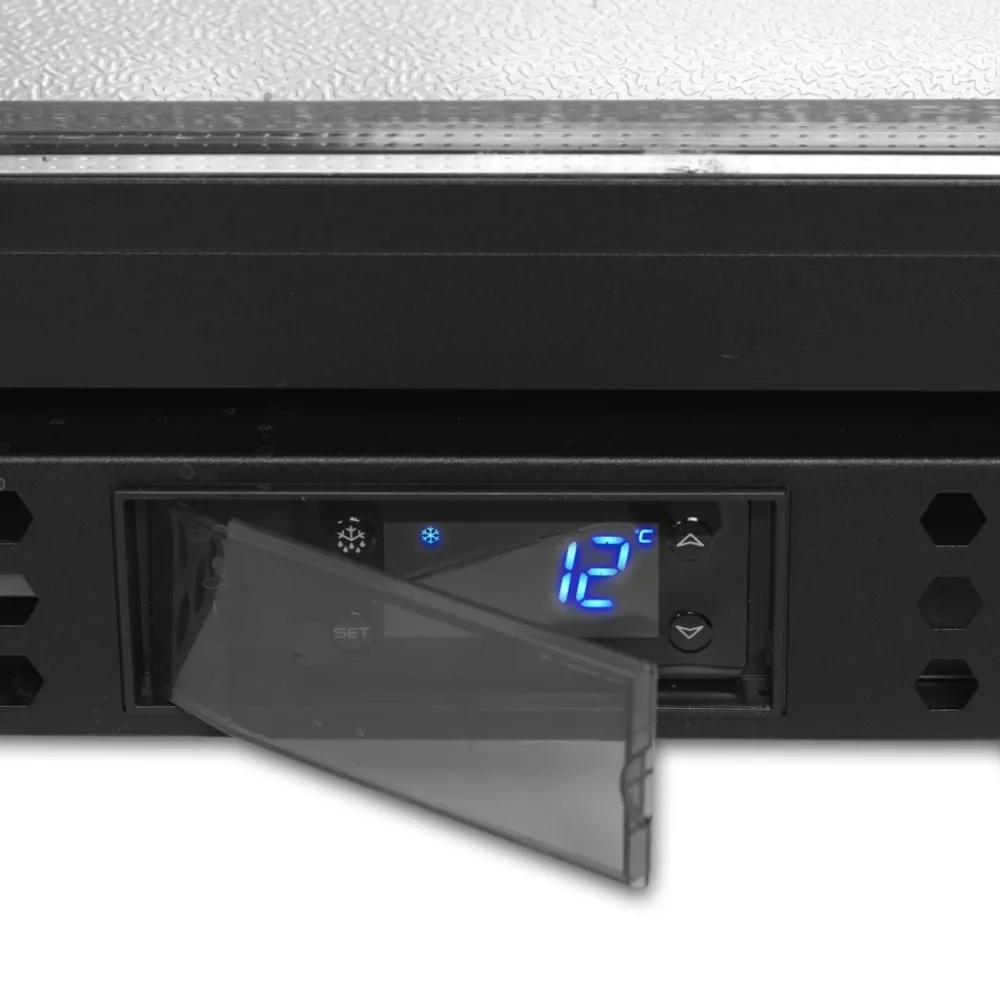

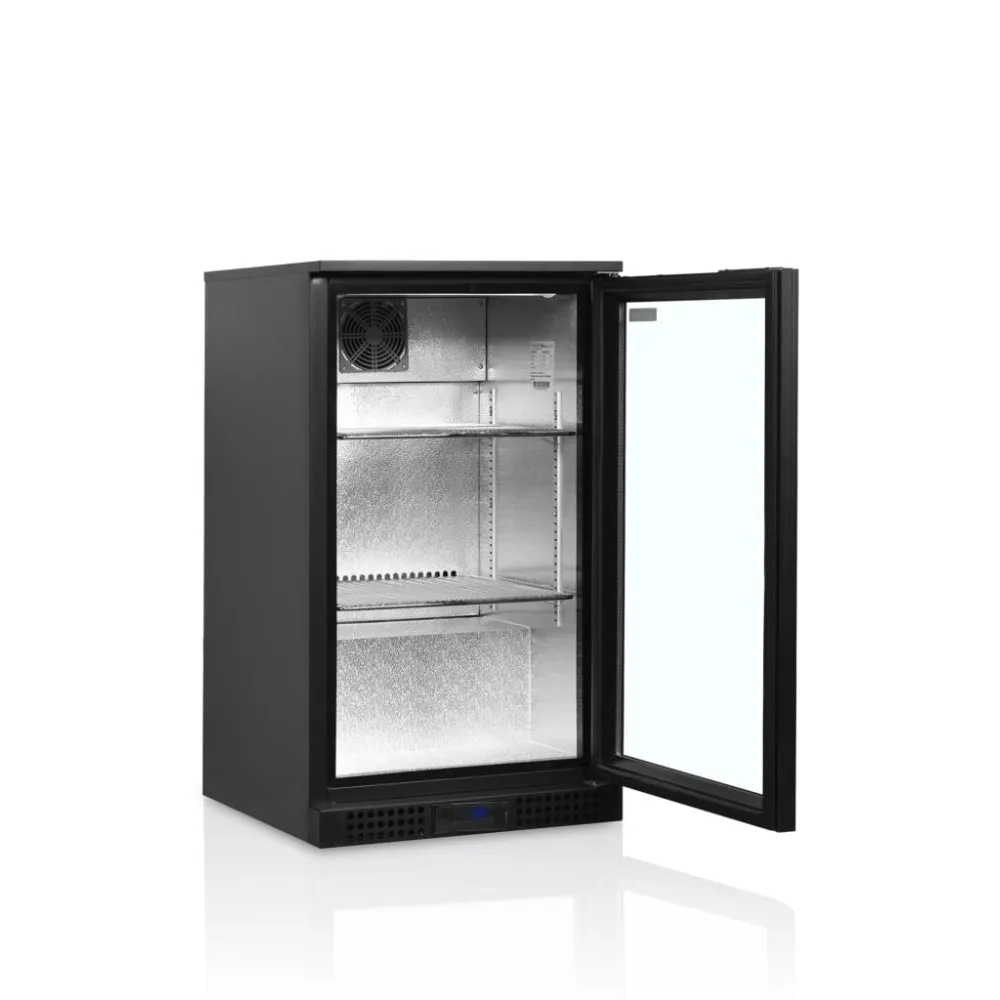

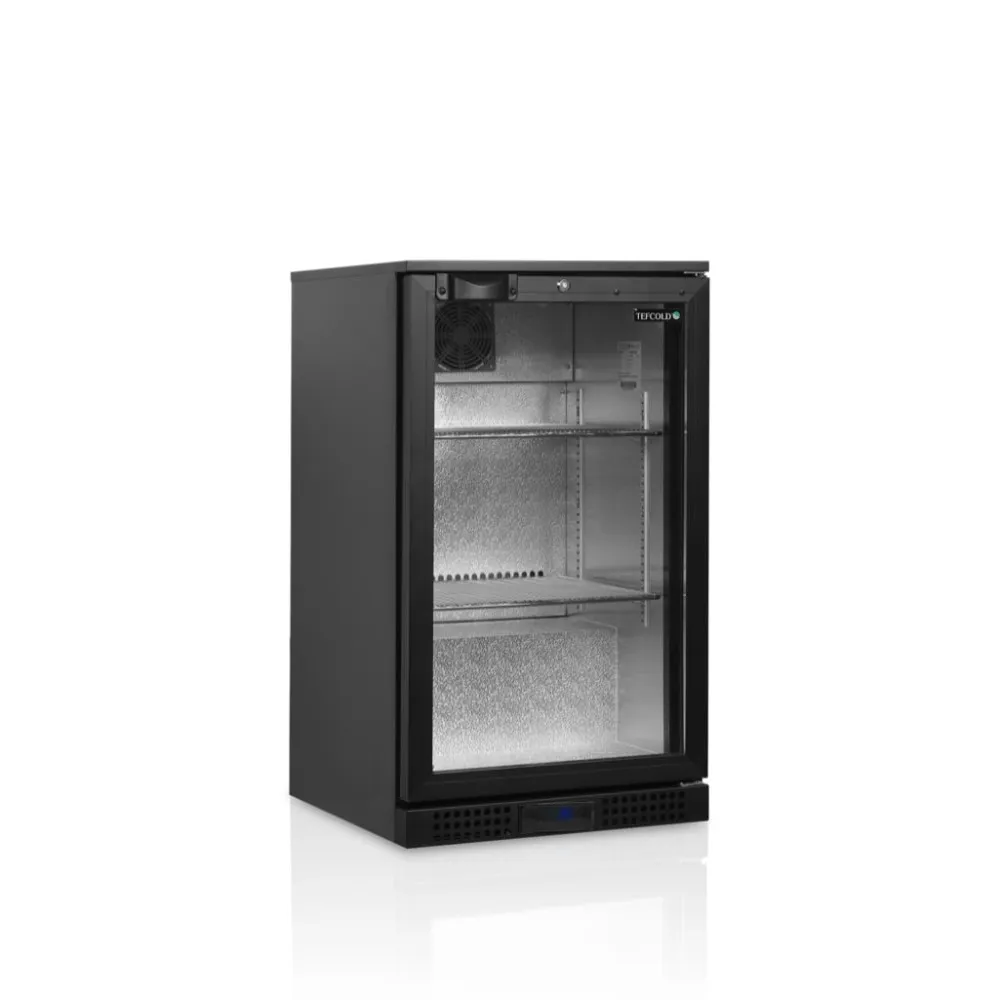

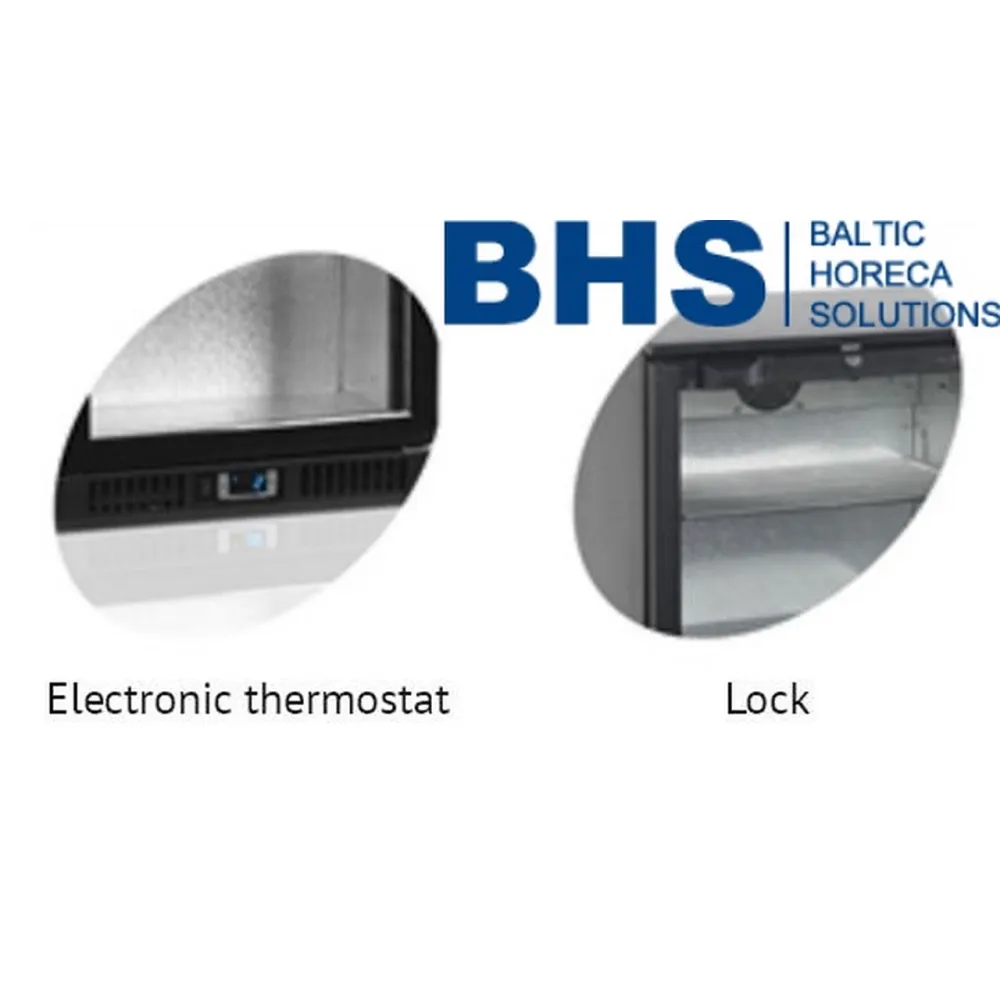

The operator loads the drinks onto the two adjustable chrome wire shelves, each sized to hold standard cans and bottles. The electronic thermostat is set between +2 °C and +10 °C; once the target is chosen the cooler maintains it automatically. A lock secures the contents, and LED lighting inside makes the stock visible through the tempered double glass door.

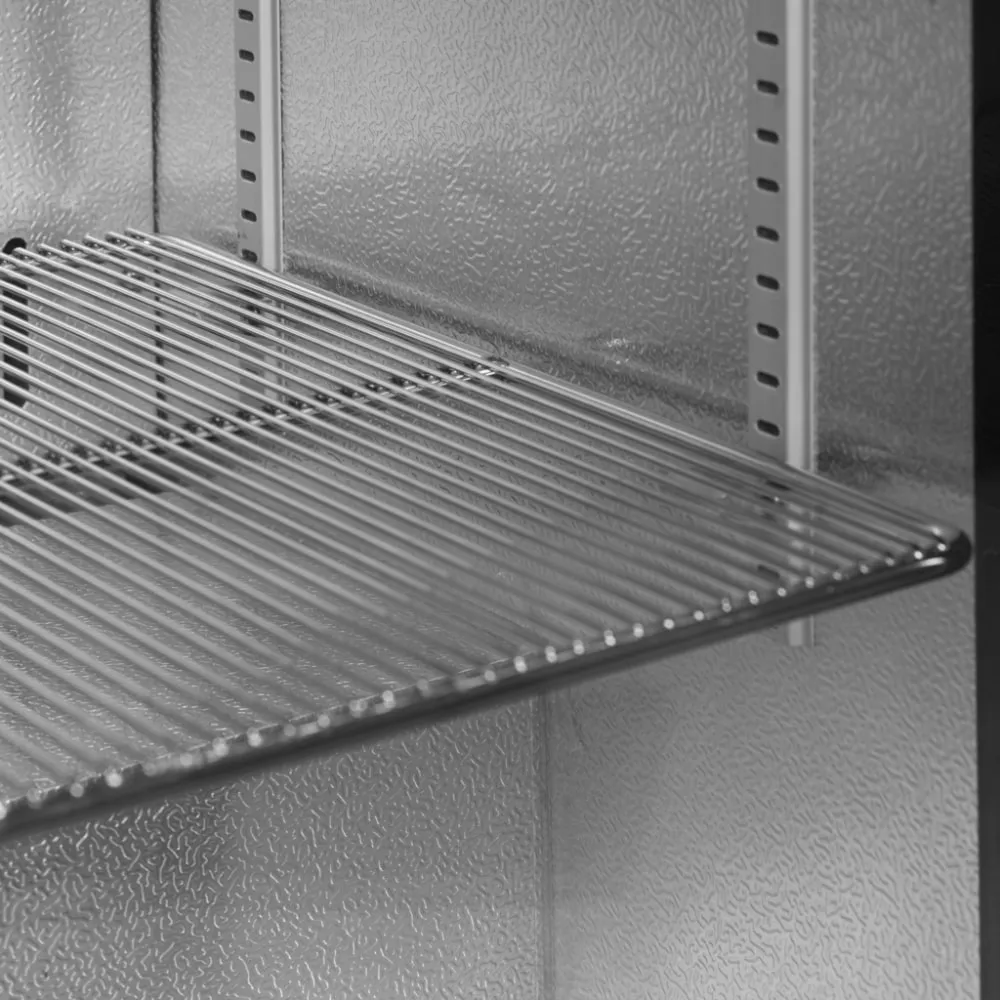

The cabinet is built from solid materials that resist corrosion and wear in a busy bar. The two chrome wire shelves slide out for restocking and cleaning. A ventilated cooling system ensures the air moves across every shelf, keeping the temperature uniform from top to bottom.

The 92 L volume holds up to 113 cans of 330 ml or 70 bottles of 500 ml. The footprint of 500 mm by 520 mm fits under most bar counters, and the 870 mm height allows it to sit on the floor without needing a plinth. The 40 kg weight means it can be moved by two people without special equipment. A 220-240 V, 50 Hz supply powers the compressor and lighting, matching the standard UK single-phase circuit.

Cleaning involves wiping the chrome shelves and the interior surfaces with a damp cloth. The ventilated cooling system requires occasional vacuuming of the rear grille to keep air flow unobstructed. The tempered glass door can be cleaned with standard glass cleaner.

The BA6H is part of the BA range of bar refrigerators, which share the same ventilated cooling technology and electronic thermostat.
