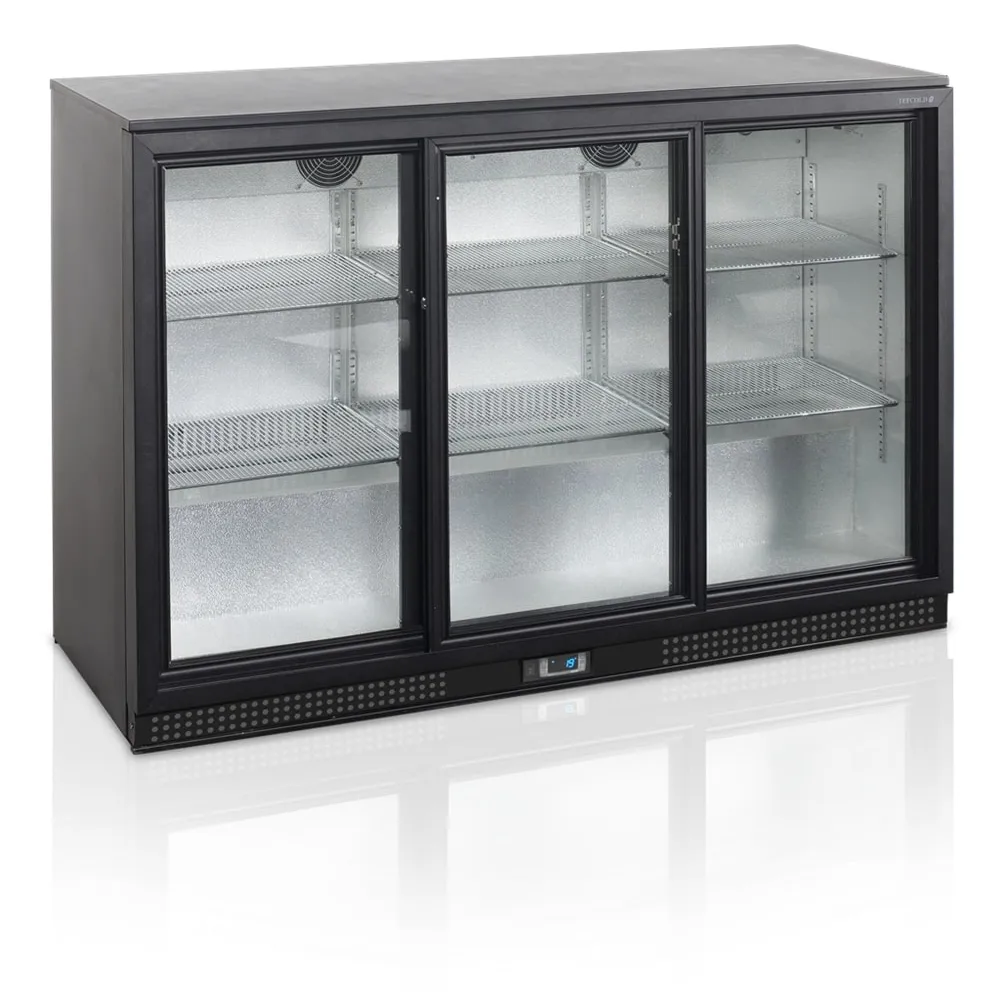

Bar refrigerator TEFCOLD BA30S-3

A backbar cooler keeps bottled and canned drinks chilled for immediate service behind a bar. It draws heat from the stored items with a refrigeration circuit that circulates a low-pressure gas. The gas absorbs warmth inside the cabinet, then releases it outside through a condenser coil. A fan spreads the cooled air evenly across every shelf, so every bottle or can reaches the same temperature without manual rotation.

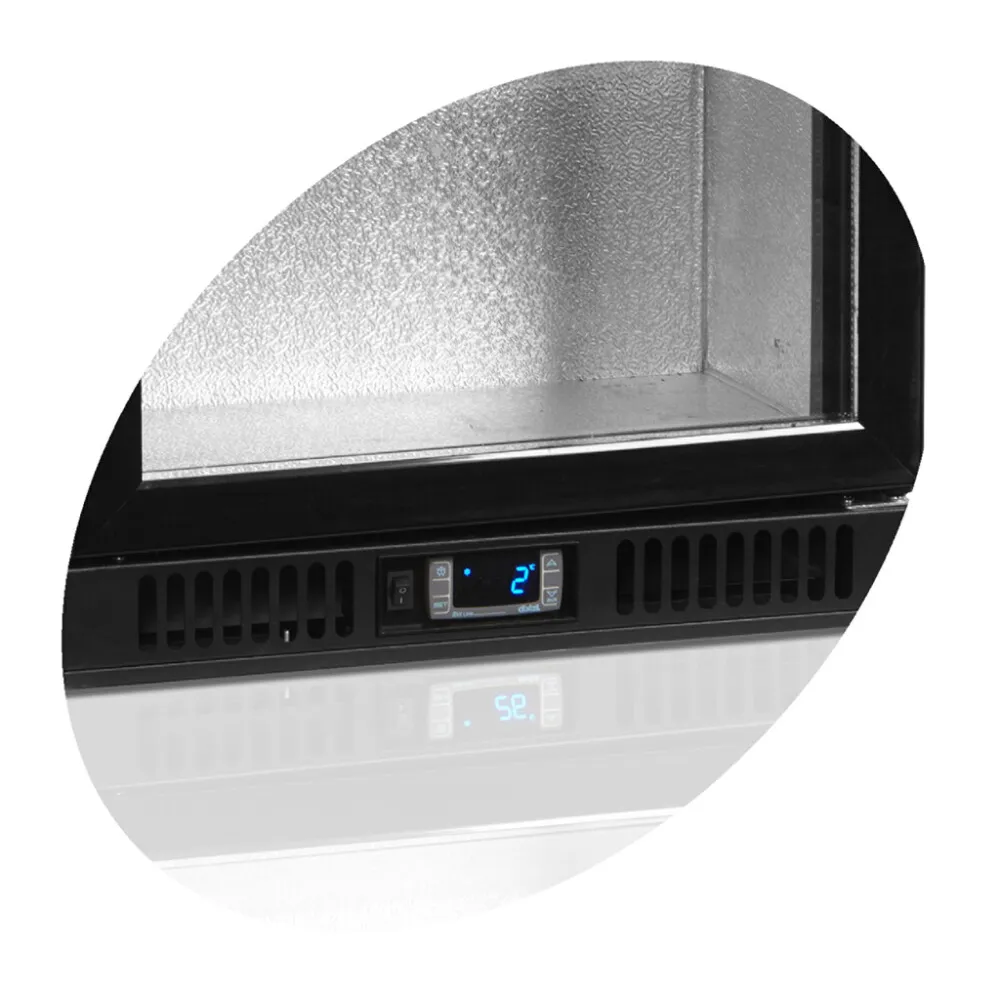

The operator loads the drinks onto the chrome wire shelves, sets the electronic thermostat to the desired temperature between +2 °C and +10 °C, and closes the double-glazed doors. The cooler maintains the set point continuously, while the interior LED light illuminates the contents whenever the doors open. Reversible glass doors allow the unit to open left or right, fitting the available space without blocking the bar workflow.

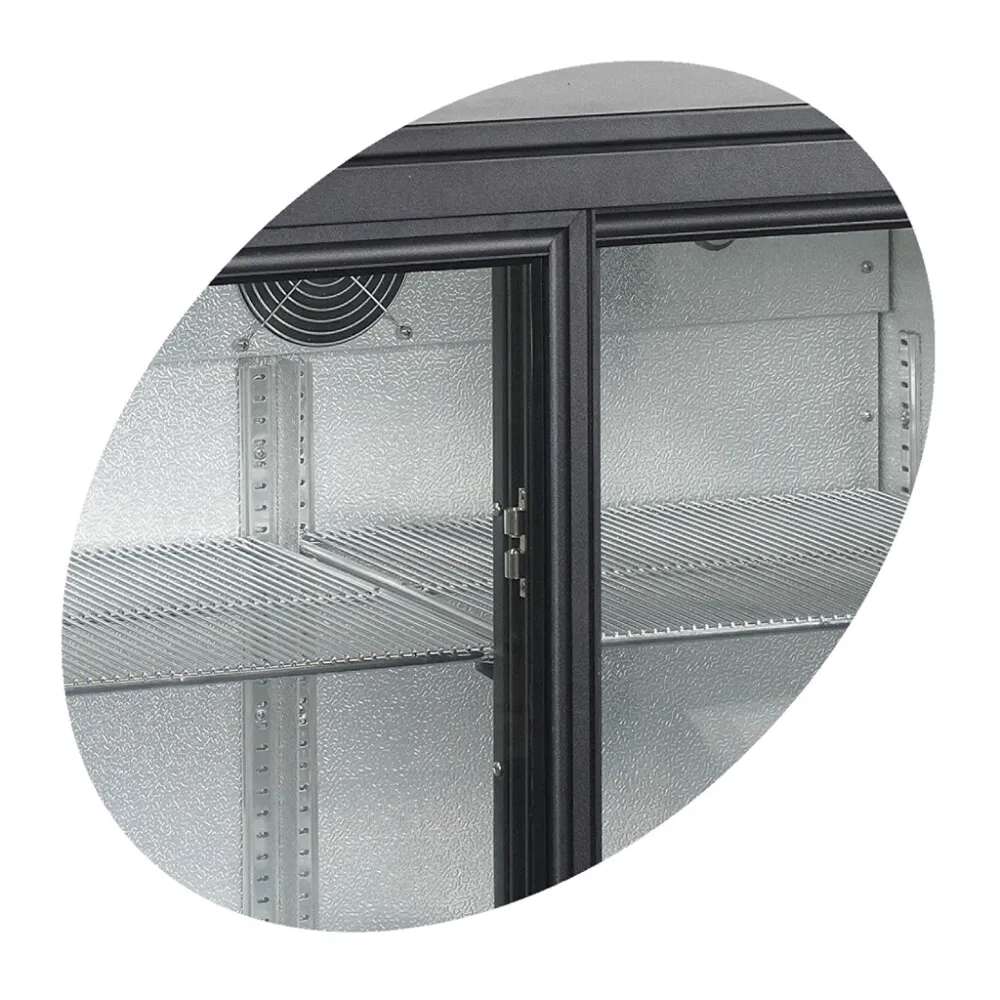

The cabinet is constructed from stainless steel and aluminium, with six adjustable chrome-plated wire shelves. The doors are double-glazed for insulation, and the feet are adjustable to level the unit on uneven floors. An electronic thermostat provides precise temperature control, and the ventilated cooling system ensures even chilling without hot spots.

The 288 L volume holds up to 380 x 330 ml cans or 218 x 500 ml bottles, making it suitable for high-demand bars. The 220-240 V voltage requirement matches standard UK commercial circuits, and the 0.32 kW power rating keeps energy use low during continuous operation. The 108 kg weight means the unit is moved with a trolley or two people, while the 1355 mm width fits most backbar spaces without overhang.

Cleaning involves wiping the interior surfaces and wire shelves with a damp cloth and mild detergent. The glass doors can be cleaned with standard glass cleaner, and the condenser coil should be vacuumed periodically to maintain airflow. The adjustable feet allow the unit to be levelled for proper door sealing and drainage.

The BA30S-3 is a single model with reversible glass doors and six chrome wire shelves. It is placed in the bar refrigeration section of the catalogue.
