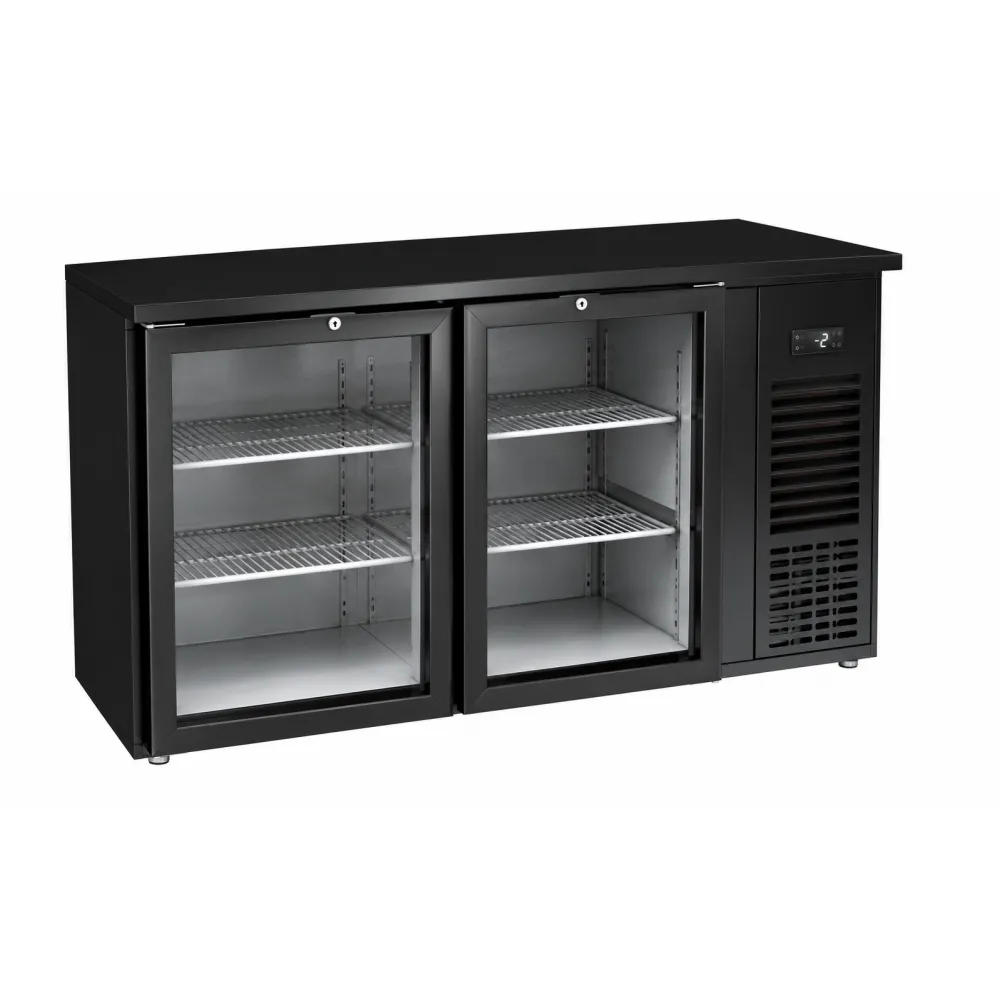

Bar refrigerator FAGOR 19106034

A bar display refrigerator keeps bottled and canned drinks chilled while presenting them through clear glass doors. The unit circulates cold air continuously so every shelf stays at the same temperature, preventing warm spots that could spoil stock. The glass doors let customers see the selection without opening the cabinet, reducing cold-air loss and energy use.

Cold air is drawn across the evaporator coil by a fan and then distributed evenly throughout the interior. The coil removes heat from the air, lowering its temperature to the set range. When the target temperature is reached, the compressor cycles off, allowing any frost on the coil to melt naturally. The resulting water evaporates automatically, so no manual draining is needed.

To operate the refrigerator, load the adjustable wire shelves with stock, close the doors and set the desired temperature on the digital control panel. The display shows the current interior temperature, and an energy-saving mode can be activated to reduce power consumption during quieter periods. The LED lighting switches on when the doors are opened, illuminating the contents for clear visibility.

The cabinet is constructed from stainless steel with a plastic-coated grey interior and black exterior. A 50 mm layer of high-density polyurethane insulation minimises cold-air loss and supports efficient operation. The insulation is CFC-free. Two double-glazed doors with low thermal conductivity maintain a stable interior temperature and reduce energy waste.

The control panel features an electronic system with a digital display for precise temperature regulation. The adjustable wire shelves, coated in grey plastic, can each support up to 40 kg of stock. A removable front panel provides easy access to internal components for cleaning and maintenance, while a ventilation grille allows the unit to be built into cabinetry without restricting airflow.

The 251 L volume provides ample space for bottled and canned drinks, while the 0/+8 °C temperature range is suited to chilled beverages and ready-to-serve items. The 0.175 kW power rating indicates the load on the electrical supply, and the 91 kg weight affects how the unit is moved and positioned. The 1435 mm width, 512 mm depth and 850 mm height determine the space required on the bar or counter.

Cleaning involves wiping the interior and exterior surfaces with a damp cloth, removing and washing the wire shelves, and ensuring the ventilation grille remains unobstructed. The front panel can be opened for access to internal components, and the automatic defrost system eliminates the need for manual frost removal.

A 60 Hz version with a 0.293 kW power rating and R600a refrigerant is available as an alternative model.

The refrigerator is designed for use in bars, restaurants, cafés and other hospitality settings where chilled drinks are displayed and served.
