Refrigerated display cabinet SCANDOMESTIC 26311010000BB211HBA

A display cooler keeps bottled and canned drinks at serving temperature while showing them to customers. It draws heat from the air inside with a refrigeration circuit and expels it at the front, so the unit can be built under a counter without overheating. A fan moves the cooled air across every shelf, preventing warm spots and keeping the drinks evenly chilled. The temperature range of 0 to 10 °C suits soft drinks, beers and mixers that are served cold but not frozen.

The operator loads the shelves with bottles or cans, closes the doors and sets the temperature on the external electronic display. The cooler then runs continuously, maintaining the chosen temperature. LED lighting switches on when the doors open, illuminating the drinks without adding heat. The automatic door-closing mechanism reduces cold air loss, and a lock secures the contents after hours or in self-service areas.

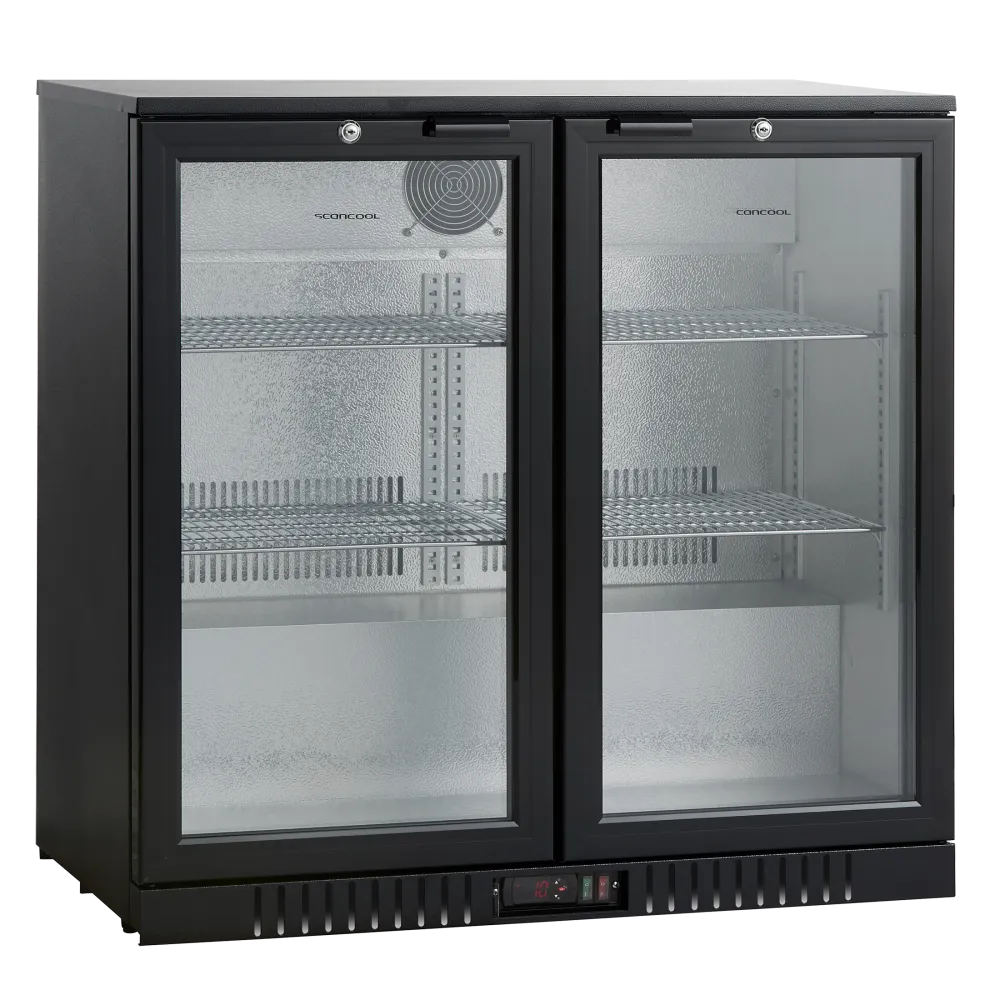

The cabinet is finished in black and measures 900 mm wide, 530 mm deep and 865 mm high, fitting under most counters or bars. Two left- or right-hinged doors open the full height of the cabinet. Inside, four chrome shelves with fine mesh support up to 30 kg each, holding 98 standard 33 cl bottles, 74 half-litre bottles, or a mix of cans. Adjustable front feet allow the unit to stand level on uneven floors.

The electronic control panel sets the temperature between 0 and 10 °C, and the external display shows the current reading. A ventilated cooling system circulates air evenly, and the front-mounted heat exhaust ensures proper airflow even when the cooler is built in. The refrigerant is R600 A, a hydrocarbon with low environmental impact.

The 158 litre volume provides space for over two hundred cans or nearly a hundred bottles, depending on size. The 59 kg weight means two people can move the unit without a trolley. A 220–240 V, 50 Hz supply powers the compressor, lighting and controls, drawing 1.05 kWh per day under typical conditions.

Cleaning involves wiping the chrome shelves and interior surfaces with a damp cloth, and vacuuming the condenser coil at the front to maintain airflow. The doors and hinges should be checked periodically for smooth operation. No other maintenance is required beyond standard refrigeration upkeep.

The BB211HBA is a standalone model in the SCANDOMESTIC range, designed for front-of-house display in bars, cafés and retail outlets. It is classified as Energy Class A, reflecting its efficient cooling performance.
