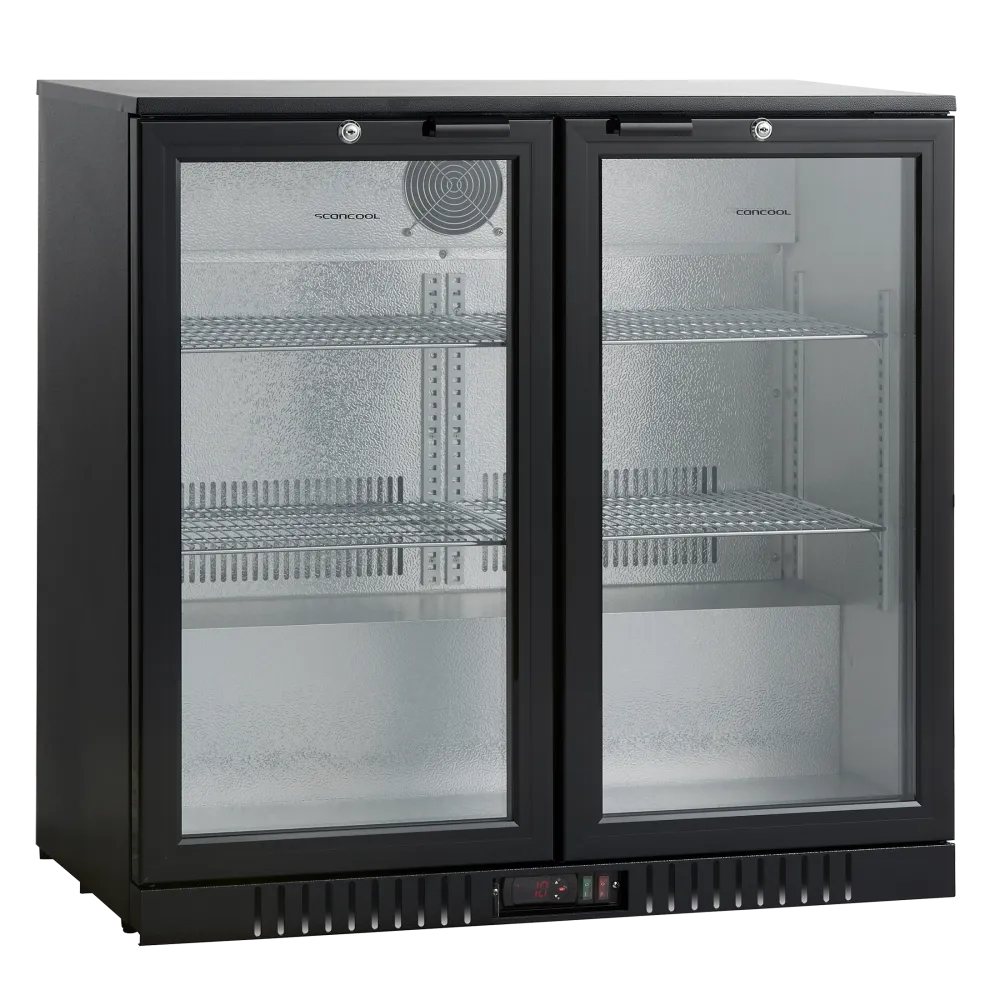

Refrigerated display cabinet SCANDOMESTIC 26310211HDE10000

A ventilated display cooler keeps bottled and canned drinks chilled while letting customers see every item. Cold air is drawn in at the base, passed over an evaporator coil, and then blown across the shelves by a fan. The constant air flow holds the temperature steady and stops warm spots, so every bottle or can stays at the set level without freezing or sweating. Because the air moves instead of settling, the cooler can be packed tightly without blocking the circulation, giving the full capacity the shelves allow.

The unit is loaded from the front through two right-hinged doors. Shelves are filled with bottles or cans in the sizes listed; the fine chrome mesh keeps them from sliding when the door is opened or closed. The electronic control panel on the outside sets the temperature between 0 and 10 °C; the display shows the current reading so the operator can check it without opening the door. Once the doors are shut, the automatic closer pulls them firmly into place, cutting cold-air loss and keeping the interior stable.

Four chrome-plated wire shelves span the full width of the cabinet. Each shelf is rated for a distributed load of up to 30 kg, so it can hold the stated number of bottles or cans without sagging. The front feet are adjustable, letting the cooler sit level on uneven floors or under a low counter. A lock on each door secures the contents when the premises are closed or in self-service areas.

The cabinet measures 900 mm wide, 530 mm deep and 865 mm high, fitting under most worktops or bar counters. The heat exhaust is front-mounted, so the cooler can be built in without blocking the ventilation. LED lighting inside the cabinet illuminates the drinks evenly, making the display bright and professional. The refrigerant is R600 A, charged at 22 g; the unit runs on a 220–240 V, 50 Hz supply and draws 1.34 kWh.

Cleaning is done with the shelves in place. The chrome mesh can be wiped with a damp cloth and mild detergent; the evaporator coil and fan should be brushed or vacuumed every few weeks to remove dust that would slow the air flow. The doors and seals are cleaned the same way, and the adjustable feet are checked to keep the cooler level.

The cooler is supplied in black with two right-hinged doors. The model designation is SC 211 HDE, and the article number is 26310211HDE10000.
